AVerMedia
AVerDiGi EB5416DVD Pro
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DiGi EB5416 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Avermedia DiGi EB5416

Summary of Contents for Avermedia DiGi EB5416

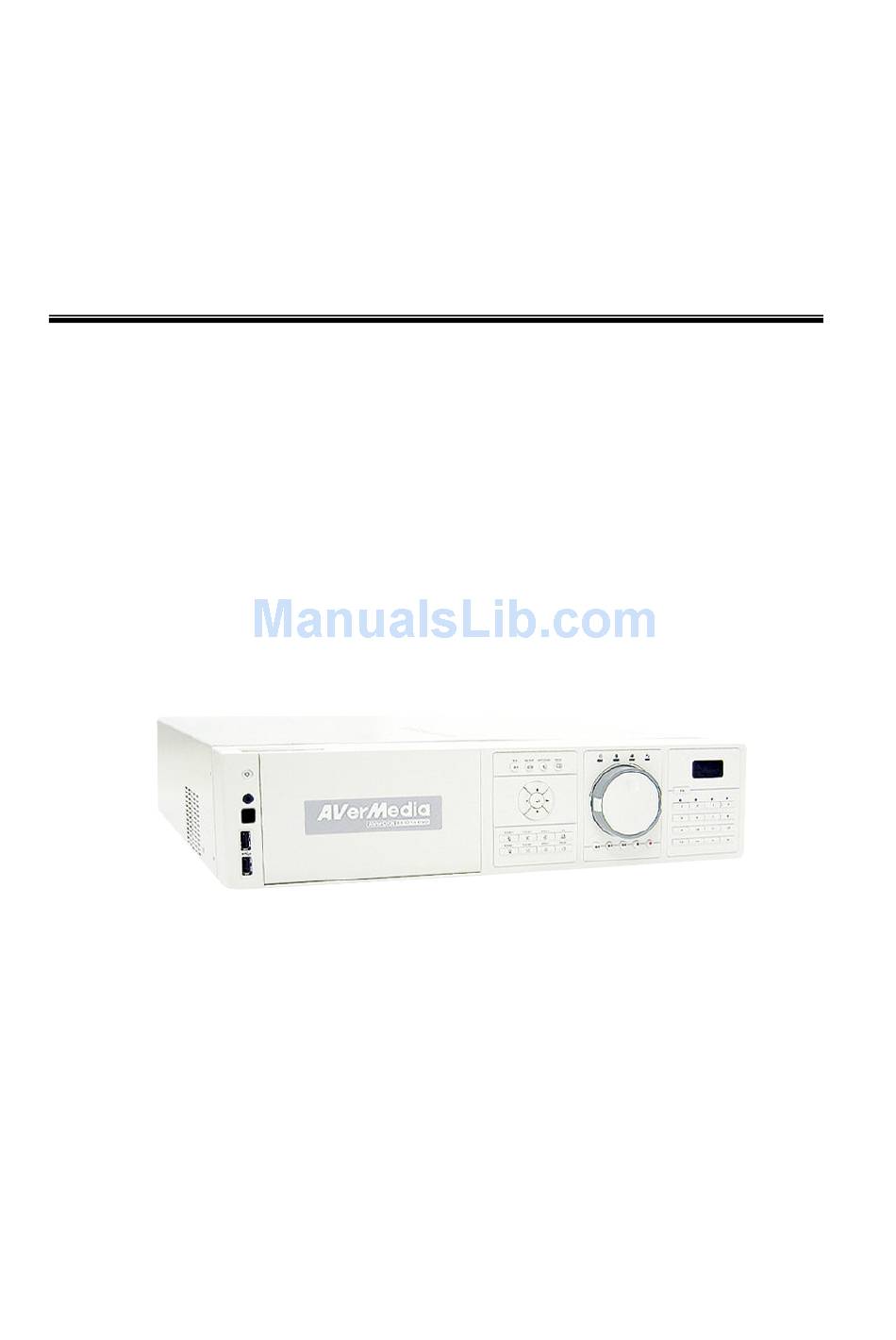

  • Page 1 ® AVerMedia AVerDiGi EB5416DVD Pro User Manual...
  • Page 2 In no event will AVerMedia be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use this product or documentation, even if advised of the possibility of such damages.
  • Page 3 WARNING TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE CAUTION IF THERE IS ANY DAMAGE, SHORTAGE OR INAPPROPRIATE ITEM IN THE PACKAGE, PLEASE CONTACT WITH YOUR LOCAL DEALER. WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT MODIFICATION NOTICE - INFORMATION IN THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE.

  • Page 4: Table Of Contents

    Table of Contents Chapter 1 Introduction................1 Package Content ....................1 Features and Specifications.................. 1 Front Panel ......................2 Back Panel ......................5 Setting Up the DVR Unit ..................6 1.5.1 Installing the Removable Hard Disk ..............6 1.5.2 Install Internal SATA Hard Disk................. 8 1.5.3 Connecting Devices ..................
  • Page 5 Familiarizing with HDD Backup Application ............48 To Backup Recorded Video File................49 Chapter 6 ImageVerification ..............51 To Run the ImageVerification................51 Chapter 7 iEnhance.................. 52 To Use iStable..................... 53 Chapter 8 Using the Remote Programs..........54 Familiarizing the Web Viewer Buttons ..............55 8.1.1 To Setup Remote System Setting ..............

  • Page 7: Chapter 1 Introduction

    Chapter 1 Introduction Package Content (1) EB5416DVD Pro unit (2) Remote Control (batteries included) (3) Quick Installation Guide (4) Power Cord * The power cord varies depending on the standard power outlet of the country where it is sold. (5) Audio cable (6) Software CD (User Manual included) (7) Extended IR Sensor cable (8) Internal HDD holder...

  • Page 8: Front Panel

    3 level password authentication mechanism DVD backup (up to 4.2GB) Support 2 HDD backup (up to 1.5TB) JavaViewer on mobile phone and PDAViewer supported Built-in player to playback video without installing CD on PC Remote playback and backup Jog/Shuttle for playback On Screen Display(OSD) control menu Support network time synchronize function (Auto correction time delay &...
  • Page 9 Do Not plug in two USB storage devices at the same time. (4) Removable Hard To install hard disk for storage recorded video file Disk Draw For hard disk spec, please referring to http://www.avermedia.com/nvd/hardware-recom_eb_c.asp (5) Removable Hard Removable hard disk power switch Disk Power...
  • Page 10 Name Function As a number key for entering password in playback and preview mode Channel camera selection number in playback and preview mode (12) Number button As a preset position with in PTZ control mode With button can switch to different screen display modes (13) LCD Display Display DVR system status such as temperature and operate status...

  • Page 11: Back Panel

    Back Panel Name Function Video Loop Out Output the video signal to a CCTV monitor. Only output one channel signal at a time. CH1~ 16 Input the video camera signal and display it on channel 1~ 16 Spot Monitor Output a video signal to a Spot Monitor when an alarm event is coming LAN Port For Ethernet connection TV Out...

  • Page 12: Setting Up The Dvr Unit

    Adjust the jumper setting according to the instructions on the hard disk label. For hard disk spec, please referring to http://www.avermedia.com/nvd/hardware-recom_eb.asp The “compatible hard disks” indicated in the above recommendation list only means that these ®...
  • Page 13 Carefully insert the hard disk in the removable Turn the removable hard disk drawer over and rack screw hard disk with screws And then, close the removable hard disk drawer Slide the drawer back cover Lock the removable hard disk drawer keylock 10.

  • Page 14: Install Internal Sata Hard Disk

    1.5.2 Install Internal SATA Hard Disk User can install one SATA hard disk inside the DVR unit if it is necessary. Please follow the below steps to install the hard disk. 1. Loosen all screws 2. Push the cover backward and lift 3.
  • Page 15 7. Secure the hard disk inside the unit 8. Screw tight the holder 9. Push the cover forward 10. Secure the cover...

  • Page 16: Connecting Devices

    1.5.3 Connecting Devices The back panel of the DVR unit, user can connect up to 16 video cameras, 16 sensor devices, 4 alarm devices, PTZ camera and output video to a TV or CRT/LCD monitor. Connecting the unit to a pen drive or external hard disk through USB connection for backup, then use the bundled software enables user to transfer, playback and segment the video.

  • Page 17: Sensor, Relay And Rs485 Pinhole Allocation

    1.5.4 Sensor, Relay and RS485 pinhole allocation The Sensor, Alarm, and PTZ camera ports enable you to connect 16 sensor inputs, 4 relay outputs, and 1 PTZ camera. Just connect the external sensor, relay, and PTZ camera pin directly to the pinhole.

  • Page 18: Rs485 Pin Definition

    1.5.4.3 RS485 Pin Definition When connect PTZ camera through RS485 interface, please refer to the following pin definition to connect the DVD and PTZ. Pin # RS485 TX+ signal RS485 RX+ signal RS485 TX- signal RS485 RX- signal RS485 RX+ signal RS485 TX+ signal RS485 RX- signal RS485 TX- signal...

  • Page 19: Chapter 2 Operating The Eb5416Dvd Pro

    Chapter 2 Operating the EB5416DVD Pro Familiarizing the Remote Control Buttons Use the Remote control to operate the OSD menu on surveillance screen. RECORD BACK UP STOP PAUSE PLAY ZOOM+ FOCUS+ SPEED+ (10) ZOOM FOCUS SPEED (11) PRESET (12) (13) MENU AUTOSCAN (14)
  • Page 20 Name Function To save the preset position of PTZ camera. Adjust the PTZ camera lens to (13) the position that user wants, and then press + number button ( ) to save the preset position. (see also Chapter 2.1.3.2) When the PTZ camera in PTZ mode, press preset position number button to move the PTZ camera to preset position.

  • Page 21: Using Usb Backup Button

    Name Function To enter the DVR ID number that assigned by user for multiple DVR (19) controlling ( see also Multiple DVR & DVR ID in Chapter 3) Press can unselect all DVR Channel camera selection number in playback and preview mode As preset positions that work with in PTZ control mode (20)

  • Page 22: Using Ab Repeat Function

    The external hard disk needs to be powered by external power. 2.1.2 Using AB Repeat Function AB Repeat function allow user to set a video segment from A to B point and play on the surveillance screen until user stop. User also can backup AB Repeat file to pen drive or external hard disk (See 2.1.1).

  • Page 23: Controlling Ptz Camera

    2.1.3 Controlling PTZ Camera Using remote control, user can easily control PTZ camera at local site. Before starting, please go to OSD menu to enable PTZ control (see 3.1 Menu Function: PTZ Setup). 2.1.3.1 To Enter the PTZ Mode To control PTZ camera, user need to enter the PTZ mode first. Press button, and camera channel number button ( ) that the selected channel will switch to PTZ mode in a full...

  • Page 24: To Control Ptz Camera

    2.1.3.3 To Control PTZ Camera To move, adjust focus, and zoom in/out camera lens can be done by using some function buttons on the remote control. To move the PTZ camera lens to the right To move the PTZ camera lens to the left To move the PTZ camera lens to go up To move the PTZ camera lens to go down To zoom in PTZ camera...

  • Page 25: Surveillance Screen

    press to confirm the selection. 3. To select the format of date, Press and use buttons to change the date format. Press to confirm the selection. 4. After selected the date format, use to go up and down and select the DATE and press to confirm.
  • Page 26 In Playback mode, the (AB Repeat) indicate that playback is in AB repeat status. The (Play) indicate that DVR unit is playback recorded video. Playback Mode The EB5416DVD Pro supports mouse control that user can use mouse (the middle button of mouse) to click channel to switch between preview and playback mode.

  • Page 27: Playback The Video

    Playback the Video The DVR system can record and playback video simultaneously. Therefore, user doesn’t need to stop recording while playback the video. Press PLAYBACK T IME S E A R C H buttons to go up and E V E NT L IS T down and select TIME SEARCH or EVENT LIST.
  • Page 28 EVENT LIST buttons to select from 2008 / 03 / 03 13 : 26 : 34 13 : 26 : 50 2008 / 03 / 03 13 : 00 : 01 13 : 16 : 46 2008 / 03 / 03 12 : 00 : 01 13 : 00 : 01 the list.

  • Page 29: Chapter 3 Osd Navigation Tree

    Chapter 3 OSD Navigation Tree The follow figure is an OSD menu tree map. To call out the OSD menu, press on the remote control.

  • Page 30: Menu Function

    Menu Function If the unit is currently recording the video, user may have to stop video recording to change the settings. User can use the following way to setup DVR unit. Remote Controller USB Mouse Front Panel control buttons For using remote controller, use to go up and down the selection list or change the value of selection.
  • Page 31 OSD MENU Description CAMERA SETUP CAMERA TITLE CAMERA SELECT 9 10 11 To assign a name for each channel. The maximum inputs is 12 RECORD SELECT 9 10 11 characters that includes letters of the alphabet, numbers, +, -, @, AUDIO RECORD 9 10 11 /, space, dash, and dot...
  • Page 32 OSD MENU Description CAMERA SETUP VIDEO ADJUSTMENT : CAMERA SELECT 9 10 11 Select the camera number and set to adjust the video brightness, RECORD SELECT 9 10 11 contrast, hue, and saturation value. AUDIO RECORD 9 10 11 CAMERA TITLE To reset the setting, select RESET TO DEFAULT VALUE.
  • Page 33 OSD MENU Description PTZ SETUP BAUD RATE: CAMERA PTZ CONTROL To setup the baud rate of PTZ camera. For more detail, please refer to your PTZ camera’s user manual. PROTOCOL PELCO-D BAUD RATE 2400 AUTO PAN GROUP: AUTO PAN GROUP 1 - 4 5 - 8 9 - 12 13 - 16...
  • Page 34 OSD MENU Description MAIN MENU RECORD CAMERA To setup the recording relate parameters. RECORD HARD DRIVE RECORD SETUP SENSOR / ALARM RECORD MODE MOTION RECORD FRAMERATE VIDEO QUALITY GOOD NETWORK RECORD SCHEDULE BACKUP SYSTEM RECORD MODE Select D1/CIF recording mode. Under D1 mode, the video recording is in full screen resolution and takes turns from one channel to the next one when Auto Scan enables.
  • Page 35 OSD MENU Description RECORD SETUP RECORD SCHEDULE RECORD MODE RECORD FRAMERATE VIDEO QUALITY GOOD RECORD SCHEDULE buttons to move to left and right. Use buttons to select the mode of record schedule. RECORD SCHEDULE SETUP SENSOR RECORDING : MOTION RECORDING : NO RECORD By default, in 24 hours, the recording schedule is set to always record every hour.
  • Page 36 OSD MENU Description HARD DRIVE SETUP HDD 1/2 FORMAT OVERWRITE ENABLED HDD1 SIZE 953,669 MB For security purpose, you may have to enter the password to HDD1 USED 1,936 MB format hard disk HDD1 FORMAT To format hard disk: HDD2 SIZE 0 MB HDD2 USED 0 MB...
  • Page 37 OSD MENU Description MAIN MENU SENSOR / ALARM CAMERA To setup sensor and alarm relate parameters. RECORD HARD DRIVE SENSOR / ALARM SETUP SENSOR / ALARM SENSOR MOTION ALARM NETWORK SENSOR RECORD TIME 10 SEC BACKUP ALARM OUT TIME 010 SEC SPOT MONITOR SYSTEM SENSOR RECORD TIME...
  • Page 38 OSD MENU Description ALARM SETUP MOTION: ALARM OUT BUZZER SENSOR Select the channel that will send out the alarm when motion has 9 10 11 MOTION been detected 9 10 11 VIDEO LOSS 9 10 11 VIDEO LOSS: HDD FAIL COPY SETTING VALUE TO BUZZER Select the channel that will send out the alarm when video is lost.
  • Page 39 OSD MENU Description MAIN MENU MOTION SETUP CAMERA MOTION SETUP RECORD SENSITIVITIY HARD DRIVE MOTION RECORD TIME 010 SEC SENSOR / ALARM MOTION CAMERA MOTION 9 10 11 MASK MOTION NETWORK BACKUP SYSTEM SENSITIVITY: Set the sensitivity level. The sensitivity is from HI (High), 9~ 2 and LO (Low).
  • Page 40 OSD MENU Description MAIN MENU NETWORK SETUP CAMERA Setup the network parameters for the internet or intranet remote RECORD HARD DRIVE monitor or playback. SENSOR / ALARM NETWORK SETUP MOTION IP MODE NETWORK NW ENABLE 9 10 11 BACKUP 0080 VIDEO PORT SYSTEM UPGARDE PORT...
  • Page 41 OSD MENU Description Only for user information. Don’t need to MAC ADDRESS: IP MODE enter the MAC address. IP MODE DHCP 192 . 168 . 153 . 100 IP ADDR ESS - When all parameters are set, select the CHANGE to 255 .
  • Page 42 OSD MENU Description NETWORK SETUP NW ENABLE: IP MODE NW ENABLE Allow internet remote user to playback or monitor the channels. 9 10 11 Without enabling the network function, the channels cannot be VIDEO PORT 0080 playback or monitor from remote site. UPGARDE PORT 5005 VIDEO PORT:...
  • Page 43 OSD MENU Description BAKCUP SETTING And then, select BACKUP EXECUTE and press YES HARD DISK : HDD 1 (ENTER) to start backup video START TIME : 2008 / 01 / 04 10 : 00 : 01 BACKUP IN PROCESS END TIME : 2001 / 01 / 05 13 : 08 : 13 CHANNEL...
  • Page 44 OSD MENU Description SYSTEM SETUP DVR ID MULTI-QUAD:LIVE MULTI-QUAD:PLAY Assign the ID number for multiple DVR system remote controls. PASSWORD CHANGE When there are more than one DVR systems, user can enable CONFIGURATION TIME SETUP MULTIPLE DVR function, and then assign DVR ID to each DVR AUTO RECORD AUDIO MUTE system.
  • Page 45 OSD MENU Description PASSWORD SETUP PASSWORD CHANGE PASSWORD SETUP ADMINISTARATOR Enable/disable full system password protection. This would OPERATOR prevent unauthorized user to stop video recording, change USER system settings and formatting the hard disk. ADMINISTRATOR: Administrator has the authority of formatting hard disk, changing system settings, remote monitor the DVR system and changes the system settings.
  • Page 46 OSD MENU Description SYSTEM SETUP CONFIGURATION MULTI-QUAD:LIVE MULTI-QUAD:PLAY Backup and resort the DVR system setting. PASSWORD CHANGE CONFIGURATION CONFIGURATION SETUP TIME SETUP SAVE CONFIGURATION AUTO RECORD RESTORE CONFIGURATION AUDIO MUTE MUTLIPLE DVR DVR ID 1024x768 VGA RESOLUTION TEMPERATURE VIDEO SYSTEM NTSC OSD TRANSPARENCY LEVEL - 2...
  • Page 47 OSD MENU Description TIME SETUP TIME SETUP DATE FORMAT YYYY/MM/DD 2008 / 03 / 12 DATE Setup system date, time, daylight saving, and enable auto TIME 21 : 07 : 45 synchronize time through network. AUTO SYNC TIME TIME ZONE DATE FORMAT: 2008 / 01 / 01 LAST SYNC TIME...
  • Page 48 OSD MENU Description TEMPERATURE SETUP TEMPERATURE SETUP TEMPERATURE FORMAT HIGH THRESHOLD Set the DVR unit temperature type and high/low threshold limit. LOW THRESHOLD DVR HOT PROTECT TEMPERATURE FORMAT: Temperature pattern display on front LED panel. HIGH THRESHOLD: Set a specific temperature limited (0 ~ 100°C) for fan active. When the hard disk temperature is higher than limited temperature, the fan will be active.

  • Page 49: Chapter 4 Using The Usb Playback Console

    Chapter 4 Using the USB Playback Console Recommended system requirements Pentium®4 2.4GHZ or above Windows®2000/ XP DDR 256 MB Graphic function must support DirectDraw Audio card or built-in Speaker 1 available USB2.0 port Installing the USB Playback Console To install the USB Playback Console: Place Installation CD into the CD-ROM drive.

  • Page 50: Running The Usb Playback Console

    Running the USB Playback Console To run the application, click the icon on the PC desktop (10) (11) (17) (12) (13) (16) (14) (15) Name Function Video playback screen To select the video file for playing. The playback application supports *.dvr and *.avf file.
  • Page 51 Name Function Select the event you want to playback. The event list only available when user select to playback in DVR Recorded File(HD). Event List Full screen Use the entire area of the screen to only display the video. To return, press the right button of the mouse or ESC on the keyboard.

  • Page 52: To Cut And Save The Portion Of The Recorded Video

    4.3.1 To Cut and Save the Portion of the Recorded Video Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to start the cut. Then, click Segment to set the begin mark. Use the Playback Control buttons or drag the bar on the playback progress bar and pause on where you want to end the cut.

  • Page 53: Playback Backup File(*.Dvr)

    4.3.3 Playback Backup File(*.dvr) Click Open File button. Select Backup File(*.dvr) and click OK. Locate the backup file folder and click OK. When open the backup video file, just locate the where folder of backup file is. And then, Playback Date/Time Selection window appears. Select the date and time and click 4.3.4 Playback Backup File (*.avf) To playback backup file in *.avf format, user can use the AVFPlayback application that included in backup folder when backup into USB storage device.

  • Page 54: Chapter 5 Backup Recorded Video File

    Chapter 5 Backup Recorded Video File Recommended system requirements Pentium®4 2.4GHZ or above Windows®2000/ XP DDR 256 MB Graphic function must support DirectDraw Audio card or built-in Speaker 1 available USB2.0 port Familiarizing with HDD Backup Application (12) (11) (10) Name Function All recorded video...

  • Page 55: To Backup Recorded Video File

    Name Function Source Disk To select the hard disk drive Target Path To locate on where user want to save the file Event (%) Display the backup progress rate of event in percentage Total (%) Display the total backup progress rate in percentage Stop Stop backup progress Start...
  • Page 56 Select the hard disk drive and click OK And then, all the recorded video files will list out. Select the event which user wants to backup. Or mark the Select All to select all listed recorded video event Locate on where user wants to save the backup file 10.

  • Page 57: Chapter 6 Imageverification

    Chapter 6 ImageVerification Image Verification is a watermark-checking program to identify the authenticity of a saved image (e.g. by snapshot). This program can only verify uncompressed bmp image files. To Run the ImageVerification To run the ImageVerification application, click the Watermark button on USB Playback Console main interface.

  • Page 58: Chapter 7 Ienhance

    Chapter 7 iEnhance The bundled iEnhance is a video editing tool and can only be used with *.dvr video file. It allows you to adjust the video picture quality, segment and save the selected portion of the video, zoom in and out the image, and print or save the screen shot.

  • Page 59: To Use Istable

    Name Function (12) Noise Reduce Adjust the softness and repair the damaged colours. (13) Sharpness Improve the overall image by enhancing edges. This gives the image more depth. (14) Effects Gray Scale: convert the image into black and white (monochrome). Normalize: adjust the brightness intensity.

  • Page 60: Chapter 8 Using The Remote Programs

    Chapter 8 Using the Remote Programs User can use Microsoft Internet Explorer to access DVR system by entering the IP address. To use this feature, make sure that you PC and EB5416DVD Pro both are connected to the internet and the Network feature is enabled.

  • Page 61: Familiarizing The Web Viewer Buttons

    Familiarizing the Web Viewer Buttons Right-clicking on the Web Viewer video screen, enables you to start video recording, change video quality, switch camera and enable/disable DirectDraw. Name Function (1) DirectDraw Enhance the video quality. Not all graphic cards can support this function. If you can not see the screen display correctly or screen is messed, please check with VGA card vendor.
  • Page 62 Name Function (12) Select cameras to Select to the view camera from different server. In Select Camera dialog box, view Display column, click to enable/disable viewing the camera. Click Add Server and select the server type between DVR and IP Cam to add.

  • Page 63: To Setup Remote System Setting

    8.1.1 To Setup Remote System Setting Click OK to exit and save the setting and Cancel to exit without saving the setting. The setting here applies to Remote DVR system only. After changed the DVR system setting, refresh your web browser in order to apply the new setting to the DVR system.
  • Page 64 Video Standard NTSC Record Mode 16, 80, 240 16, 80, 200 16, 80, 160, 240, 480 16, 80, 200, 400 VIDEO QUALITY Select the video quality setting from BEST, HIGH, MEDIUM, GOOD, NORMAL or LOW. BEST – best record quality but less record hours LOW –...

  • Page 65: Camera Setup

    START Setup daylight start up date and time. Setup daylight stop date and time. TIME OFFSET Assign a time that it is for daylight saving time offset in your time zone. For example: if the time zone is in U.S. Eastern, the time offset is 1 hour. (5) TEMPERATURE Set the DVR unit temperature type and high/low threshold limit.

  • Page 66: Record Setup

    8.1.1.3 Record Setup (1) Camera icon Select the camera that user wants to set up. (2) Record Select Enable/disable the channel number to record video The channels which could be recorded should be enabled in the CAMERA SELECT first. (3) Audio Record Enable/disable channel number audio recording.

  • Page 67: Alarm/Sensor Setup

    8.1.1.4 Alarm/Sensor Setup (1) Alarm ALARM OUT Select the way of alarming – BUZZER, RELAY-1, RELAY-2, RELAY-3, RELAY-4, or ALL. The Condition of Alarm Select the condition that it will trigged the alarm HD Fail Alarm Enable/disable send out alarm when hard disk is failed. Motion Alarm Select the channel that will send out the alarm when motion has been detected Video Loss Alarm...
  • Page 68 Alarm Out Time Set the amount of time (in second) to continue sending the alarm once activated (3) Sensor Setup Sensor Status Customize the initial state of the attached sensor for every camera. Refer to the table below to customize the sensor state. Not installed: Indicates that there is no sensor connected Normal open: Indicates that the initial state of the sensor is normal open.

  • Page 69: Network Setup

    A password use to access DDNS to register the domain name. MAC address of the DVR system is the key for user to register the domain name on AVerMedia DDNS web site. To find MAC address of your DVR system, follow the steps below:...
  • Page 70 IP MODE 2. Select any one of IP mode STATIC IP MODE IP ADDR ESS 192 . 168 . 153 . 100 3. A NETWORK INFORMATION windows will show 255 . 255 . 255 . 255 SUB NET GATEWAY 192 . 168 . 153 . 254 up MAC address of DVR system is display as 000 .

  • Page 71: User Setting

    8.1.1.6 User Setting Click Remote setup button on Web Viewer main interface, and then, click User button to call out the Password Change interface. (1) Superuser Change the remote accessing password of superuser. Superuser has the authority to remote setup the DVR system configuration on Web Viewer. Password Enter the new password Password Confirm...

  • Page 72: Familiarizing The Remote Console Buttons

    Familiarizing the Remote Console Buttons (12) (11) (10) (13) Name Function (1) Exit Close the Remote Console. (2) Audio button Enable/disable the sound. (3) Split Screen Mode Select from six (6) different split screen type to playback the recorded video file of all the camera, or one camera over the other or alongside on a single screen.

  • Page 73: To Setup Remote Console Setting

    8.2.1 To Setup Remote Console Setting Click Setup button to call out the System Setting windows. Click OK to exit and save the setting and Cancel to exit without saving the setting. (1) Storage Path Set the directory on where to save the data. When there is not enough free space to record one hour data, the system automatically replaces the oldest data.

  • Page 74: Familiarizing The Webviewer Ptz Buttons

    Familiarizing the WebViewer PTZ Buttons Name Function (1) Direction buttons Adjust and position the focal point of the PTZ camera. Click the center to pan automatically. (2) Zoom +/- Zoom in and out the image. (3) Select PTZ Choose to enable/disable the PTZ camera. In the Select PTZ dialog box, Select column, click to enable/disable viewing and controlling the PTZ camera.
  • Page 75 clock. The numbers from 01 to 16 represent the camera number. To Make a Selection: 1. Select the date in the calendar. Use buttons to shift the calendar to the left or right. 2. In the table below, click on the blue block to select and open the recorded file. The blue block turns red when it is selected.

  • Page 76: Familiarizing The Local Playback Buttons

    8.4.1 Familiarizing the Local Playback Buttons (13) (12) (11) (10) Name Function Select from six (6) different split screen type to playback the recorded video (1) Split Screen Mode file of all the camera, or one camera over the other or alongside on a single screen.

  • Page 77: To Cut And Save The Wanted Portion Of The Recorded Video

    Name Function in playback mode. (9) Camera ID Show the number of cameras that are being viewed. When you are in single screen mode, click the camera ID number to switch and view other camera. (10) Output Save the segmented file in *.mpg, *.avi, or *.dvr format (see also Chapter 8.3.1.1).

  • Page 78: Familiarizing The Download And Playback Buttons

    8.4.2 Familiarizing the Download and Playback Buttons Name Function (1) Progress bar Show the progress of the file being played. You may move the bar to seek at any location of the track. (2) Playback Begin: Move at the beginning of the video file. Control Buttons Previous: Go back to the previous frame.
  • Page 79 Any other cause which does not relate to a product defect 3. Cartons, cases, batteries, cabinets, tapes, or accessories used with product 4. AVerMedia does not warrant that this product will meet your requirements; it is your responsibility to determine the suitability of this product for your purpose WHAT WE WILL AND WILL NOT PAY FOR We will pay labor and material expenses for covered items.
