CalAmp ITC 220 Installation Manual

Base station transceiver high performance wireless for railroad ptc
Hide thumbs Also See for ITC 220:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

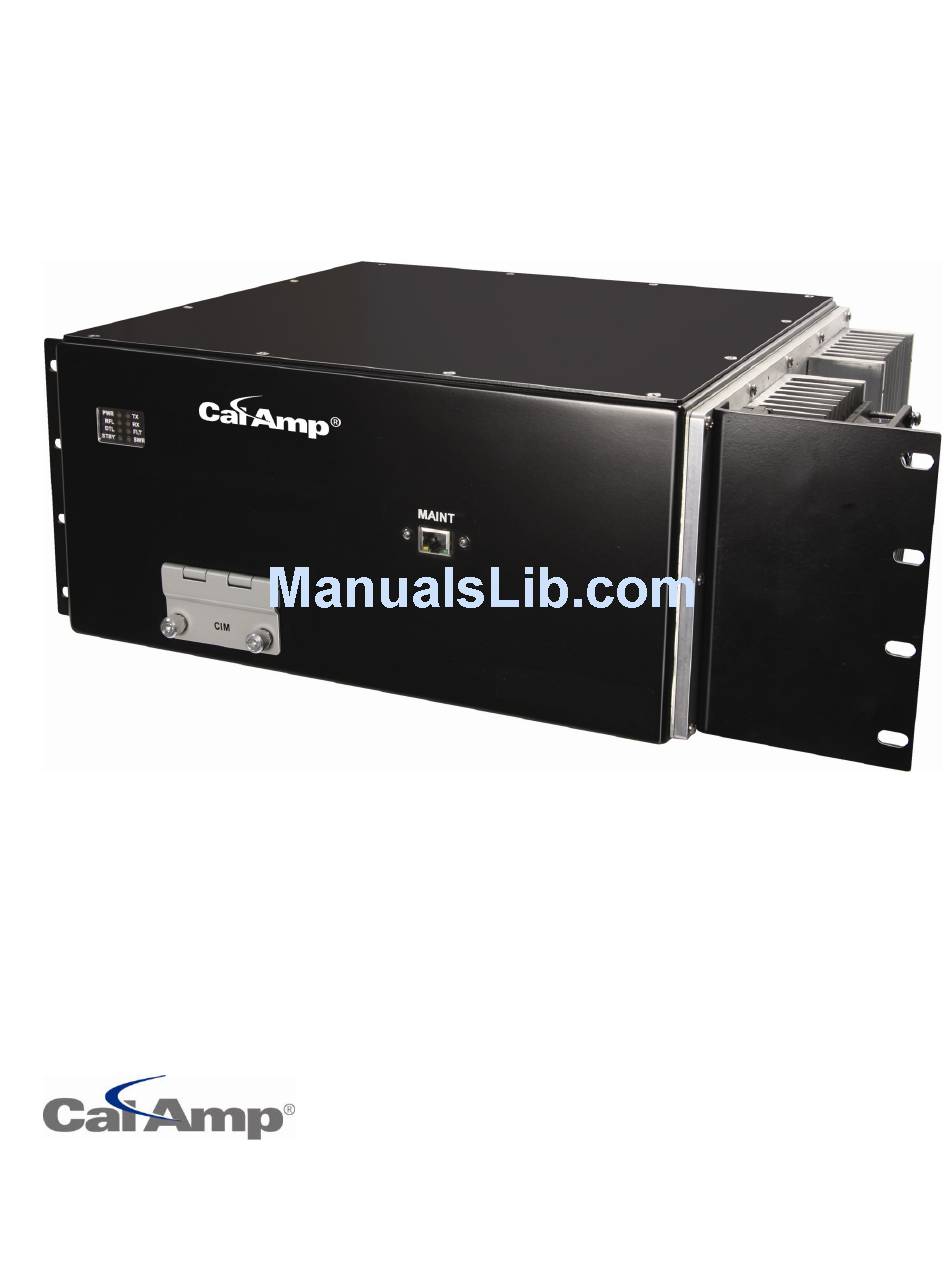

ITC 220 Base Station Transceiver
HIGH PERFORMANCE WIRELESS FOR RAILROAD PTC
Installation Guide
PN 133991 Rev. A
Revised July 2012

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ITC 220 and is the answer not in the manual?

Questions and answers

Related Manuals for CalAmp ITC 220

Summary of Contents for CalAmp ITC 220

  • Page 1 ITC 220 Base Station Transceiver HIGH PERFORMANCE WIRELESS FOR RAILROAD PTC Installation Guide PN 133991 Rev. A Revised July 2012...
  • Page 2 REVISION HISTORY DATE REVISION DETAILS July 2012 Initial release. Part number 133991.

  • Page 3: Important Notice

    Refer to Table 1 and 2 on pages 3 and 4 of the RF Energy Exposure Guide for ITC 220 Base Station, Locomotive, and Wayside Transceivers Installed in Vehicles or at Fixed Sites for recommended minimum lateral distance, as applicable for the antenna application, type of antenna, and transmitting power.

  • Page 4: Table Of Contents

    Connect Antenna Cable(s) for Narrowband RF Antenna(s) ................ 17 Connect the GPS Antenna ............................ 18 Connect the Ethernet Cable ..........................19 6.10 Connect the Power Cable ............................. 19 | Page ii ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 5 APPENDIX G — Command Security ....................55 G.1 Log On To the Transceiver ............................55 G.2 Log Off From the Transceiver ........................... 56 G.3 Change Your Transceiver Password .......................... 56 | Page iii ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 6 J.4 Maintaining Multiple Software Images in the Transceiver ..................80 J.4.1 Managing Images Via the Command Line: APPS ....................80 J.4.2 System Events On Installed Software Images ....................81 | Page iv ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 7: Overview

    PTC and ensure interoperability between components. CalAmp’s line of ITC 220 Radio Transceivers for locomotive, base station, and wayside applications are manufactured specifically for use by North American Railroads for PTC applications. Operating between 217.6 and 222 MHz, these multi-channel software-defined radio transceivers meet railroad requirements for ITC and are designed to meet relevant railroad specifications for operation in the harshest environments.

  • Page 8: Operational Characteristics

    CalAmp ITC 220 Base Station Transceivers are available in two configurations, one of which requires +24 VDC nominal input power, and the other requires +48 VDC nominal input power. Both models are almost identical, with the exception of their nominal input power requirements.
  • Page 9 80 dB Number of Simultaneous Receiver Channels: Sixteen (16) paired as eight (8) diversity; (24V and 48V) seven (7) 16 kbps; one (1) auto 16 kbps/32 kbps | Page 3 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 10: Physical Description

    1.3 PHYSICAL DESCRIPTION The ITC 220 Base Station Transceiver is housed in a 4 unit-height (allow 5 unit height to mount with a vented shelf underneath), 19-inch rack-mountable sheet metal chassis for simple installation. Repositionable brackets allow for mounting the chassis in forward or mid-plane positions in 19-inch channel-rack installations. The unit is designed to operate in an extended temperature range and provide worry-free operation.

  • Page 11: Connections

    Figure 3 Base Station Transceiver front panel interface connections Table 1 Base Station Transceiver front panel interface connections Interface Connector Type Label Maintenance Ethernet RJ-45 MAINT CIM socket SD memory card receptacle | Page 5 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 12: Related Documents

    ITC 220 Locomotive Transceiver Installation Guide; CalAmp PN 133971 ITC 220 Wayside Transceiver Installation Guide; CalAmp PN 133981 RF Energy Exposure Guide for ITC 220 Base Station, Locomotive, and Wayside Transceivers Installed in Vehicles or at Fixed Sites; CalAmp PN 134069 | Page 6 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev.

  • Page 13: Follow Established Safety Guidelines

    3.2 LIMITING RF EXPOSURE Caution – Please refer to the RF Energy Exposure Guide for ITC 220 Base Station, Locomotive, and Wayside Transceivers Installed in Vehicles or at Fixed Sites that is packaged with each Base Station and Locomotive Transceiver and available online or by request for specific information regarding safe distances that must be maintained between personnel and energized transmitting antennas.

  • Page 14: Fixed Antenna Guidelines

    Caution – Any changes or modifications to this equipment not expressly approved by the party responsible for compliance (in the respective country of use) could void the user’s authority to operate the equipment. | Page 8 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 15: Base Transmitter Operation

    EIRP and adding the loss from the antenna feedline and connectors plus the loss from any combiners, cavity filters or lightning arresters. If the net value is greater than or equal to 48.75 dBm, then the 75 W | Page 9 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 16: Routine Maintenance

    Make sure that the SD memory card (CIM) door is securely closed. Keep the indicator-LED panel dust-free and LEDs viewable. Check fan operation and make sure the fans are not obstructed. | Page 10 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 17: Installation

    Following sections describe each of the above steps in detail. This guide also contains a brief Troubleshooting chapter for help with common problems that may occur when installing a Base Station Transceiver. | Page 11 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 18: Required Equipment

    7/16" wrench for 1/4" hex nut on grounding stud; 1/2" wrench for 5/16" hex nuts on power terminals. #2 Phillips head screwdriver Torque wrench with 100 in.·lb. capacity Crimping tool | Page 12 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 19: Unpack And Inspect The Unit

    Caution – If you relocate the flanges (and dust cover), then be sure to keep the associated mounting screws with each. The screws are partnered with the brackets and dust cover. | Page 13 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 20 Machine screw, 6-32 × 1/4" Pan head, 5 screws Phillips, stainless steel Dust cover Machine screw, 6-32 × 1/4" Pan head, 2 screws Phillips, stainless steel | Page 14 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 21 Figure 6 Base Station Transceiver in 19-inch rack mount Figure 7 Channel rack installation with mounting brackets in mid-plane position | Page 15 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 22: Ground The Radio Transceiver Chassis

    The Base Station Transceiver has a ¼ inch grounding stud at the rear of the unit (located below the bottom Type N female connector for TX RX antenna connection). Figure 9 Grounding stud | Page 16 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 23: Connect Current-Limiting Circuit Protection

    The Base Station Transceiver is rated for 75 W peak envelope power (PEP). Base Station Transceivers have one combined TX/RX port and two additional ports for receiving only, all of which have Type N female connectors for narrowband RF antennas. | Page 17 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 24: Connect The Gps Antenna

    A DC block must be used at the transceiver when the additional power is supplied, to avoid damage to the transceiver. It is recommended that the cable length not exceed 30 meters. | Page 18 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 25: Connect The Ethernet Cable

    Figure 12, which follows, shows recommended construction of a power cable and the lock washers and nuts required to connect the power cable to the unit. | Page 19 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 26 6. Reinstall outer nuts on both studs and tighten to a maximum torque of 100 in.·lbs. 7. Restrain the cables, observing the cable manufacturer’s minimum bend radius requirements. | Page 20 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 27: Power On The Transceiver

    Other LEDs, such as the FLT (Fault) and SWR, indicate a problem when they are lit. A time-stamped entry will be displayed onscreen when connected in XtermW whenever the FLT or SWR LEDs are illuminated. | Page 21 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 28: Review The Power On Self-Test (Post) Results

    Make sure your computer network card has a fixed IP address of 192.168.255.200. See APPENDIX D — Configure the Computer Ethernet Ports to Communicate with the Transceiver for instructions. | Page 22 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 29: Verify The Transceiver Is Commissioned

    Ethernet cable to connect these ports. The test computer should display an active network connection on the port (indicated in the System Tray in Windows XP) within 60 seconds. | Page 23 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 30: Troubleshooting

    Run INICHECK to see if the transceiver configuration matches the current CIM script file. To run the CIM script in the event that they are not the same, use: INICHECK,SCRIPT | Page 24 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 31: Power Problems

    Confirm SD Memory Card (CIM) is Installed and Seated. If it is missing or defective, replace it with a new SD card that contains a valid CIM script file. | Page 25 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 32: Antenna Problems

    The replacement transceiver will use the CIM script on the SD memory card and its configuration will be the same as the original transceiver. | Page 26 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 33: Transmission Problems

    14. Replace the transceiver. When replacing a transceiver, if the SD card contains a valid CIM script, remove the SD memory card from the nonworking transceiver and insert and seat it in the replacement transceiver. The | Page 27 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 34: Reception Problems

    2. Make sure the Ethernet cable is securely connected to the transceiver LAN port. 3. Verify external network equipment is functioning properly. | Page 28 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 35: Rf Link Problems

    7. Verify the base radio is transmitting. In XtermW, run the STAT,RF command. This command displays the total number of packets transmitted and received by the radio. Statistics are broken down by packet type. There are also several running totals included. | Page 29 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 36 The replacement transceiver will use the CIM script on the SD memory card and its configuration will be the same as the original transceiver. | Page 30 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 37: Appendix A - Abbreviations And Definitions

    FCC: Federal Communications Commission (U.S.) PER: Packet Error Rate FRA: Federal Railroad Administration (U.S.) POST: Power On Self Test FTDMA: Fixed Time Division Multiple Access PPM: Parts Per Million | Page 31 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 38 SD memory card: Secure Digital memory card XtermW: The terminal-emulation application used for SMA connector: SubMiniature version A connector configuring and testing ITC 220 Transceivers SRSP: Standard Radio System Plan (Canada) | Page 32 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 39: Appendix B - Possible Rf Antenna Configurations

    APPENDIX B — POSSIBLE RF ANTENNA CONFIGURATIONS The ITC 220 Base Station Transceiver allows for three possible RF antenna configurations. Single-antenna configuration The antenna is connected to the primary receive port, which is the TX/RX port. Terminate the other two ports, RX1 and RX2 each with 50 Ohm termination.

  • Page 40: Appendix C - Gps Satellite Constellation Overview And Antenna Planning Considerations

    GPS antennas at the site. The GPS antenna location selection must be optimized for as much sky visibility as possible in all directions, not just to the South. | Page 34 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 41: Gps Antenna Planning Considerations

    Degradation condition 4: The GPS radio will ignore satellites that are below the mask angle ( ~ 10 degrees) that is set in the radio, even if the antenna has perfect visibility of them. | Page 35 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 42: Minimize Potential Of Gps Antenna Issues

    May configure the GPS by issuing the command manually or by including the command in a CIM script file. The following example shows the use of the LOCATION command. | Page 36 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 43 19:18:42 47:28.380N 122:14.015W S000 H000 A00014 V1 Position entered from GPS survey Precision: LOW NSAT: 9 HDOP: OFF (0.93) HOLD: OFF LOCK: OFF DGPS-Age: 99 Seconds COPY Port: OFF | Page 37 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 44 Because it may take several minutes for the survey to complete, and completion should be verified, the survey should not be repeated unless a GPS antenna has been physically moved. Consequently this method is not recommended for inclusion in a CIM script file. | Page 38 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 45: Appendix D - Configure The Computer Ethernet Ports To Communicate With The Transceiver

    Ethernet port, but you will only be able to communicate with one port at a time, and you will need to reconfigure the port each time to use the appropriate IP address for the transceiver port you are connecting to. | Page 39 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 46: To Configure The Computer Ethernet 1 Interface For Communication With The Transceiver Maint Port

    2. The Local Area Network Connection Status window opens. Click Properties and the Local Area Connection Properties window for the first Ethernet connection opens. Figure 17 Local Area Connection Properties window for Ethernet 1 connection | Page 40 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 47 4. Click Use the following IP address. 5. In the IP address box, enter 192.168.255.200. 6. In the Subnet mask box, enter 255.255.255.0. 7. Click OK. | Page 41 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 48 Figure 19 XtermW Configure Port window with settings for MAINT port Note TCP/IP Settings for Host on the MAINT port is configured for IP address 192.168.255.201. | Page 42 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 49: To Configure The Computer Ethernet 2 Interface For Communication With The Transceiver Lan Port

    3. On the General tab, click on Internet Protocol (TCP/IP) to select it (you may have to scroll down the items list to see it—do not remove the check mark) and then click Properties. | Page 43 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 50 4. Click Use the following IP address. 5. In the IP address box, enter 10.255.255.200. 6. In the Subnet mask box, enter 255.255.255.0. 7. Click OK. | Page 44 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 51: Creating An Xtermw Connection Profile

    1. Open XtermW if it is not already open. 2. From the File menu, select New Connection and the Connection Description window opens. Figure 23 Connection Description window | Page 45 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 52 To use a previously-saved connection profile in the future, open XtermW, and from the File menu, select Open, and then select the connection profile to use. | Page 46 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 53: Appendix E - Sample Post Results From A Properly Functioning Base Station Transceiver

    : PASS HOST: CHANNEL TABLE : PASS HOST: SITENAME : PASS HOST: DHCP CONTROL : PASS HOST: SERIAL NUMBER : PASS HOST: FPGA LOAD : PASS | Page 47 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 54 : PASS : 1.396 HOST: 1.2v Supply (Host) : PASS : 1.249 HOST: External Supply : PASS : 2.401 HOST: 12V Power Supply Temp : PASS : 41.751 | Page 48 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 55 Flash1 active_user USER_BOOT Inx Pri Stat Fail Lnch Name Notes Last Status --- --- ---- ----- ----- -------------- ----- ---- ---------- D:01011506.A14 ACTV Success | Page 49 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 56: Appendix F - Program Signal Generator For Dqpsk

    Mode Setup Select “Filter.” Filter Choose “Select.” Select Pick “Root Nyquist.” Root Nyquist Define the filter alpha to be 0.35 by picking “Filter Alpha.” Filter Alpha | Page 50 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 57 1 Enter Set the frequency and power level, and be sure RF and Modulation are ON. Frequency: 220 MHz Amplitude: –80 dBm Mod: ON RF: ON | Page 51 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 58: Program Agilent E4438C To Test Transceivers With Sprint 23.03 And Upward

    0011 0000 0110 1101 1100 1101 1000 0110 0001 1000 1101 1000 1000 1010 1111 0100 1100 1010 1100 1100 1001 0001 1101 1100 0011 0100 1110 1000 | Page 52 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 59 1 Enter Set the frequency and power level, and be sure RF and Modulation are ON. Frequency: 220 MHz Amplitude: –80 dBm Mod: ON RF: ON | Page 53 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 60: Program F4438C Signal Generator For Msgps (Multi-Satellite Gps)

    Verify IQ Phase = Normal IQ Phase Select More. More Select Frequency. Frequency Set frequency to 1.575420 GHz. Select Real-time GPS = on. Rea;-time GPS (on) | Page 54 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 61: Appendix G - Command Security

    1. On the computer, open XtermW if it is not already running. 2. Click Send, click Command, and then type: LOGON,password Where password is your current password. | Page 55 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 62: Log Off From The Transceiver

    2. In XtermW , click Send, click Command, and then type: NEWPASSWORD,oldpassword,newpassword,newpassword Where: oldpassword is your current password newpassword is your new password you want to change to 3. Click OK or press Enter. | Page 56 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 63: Forget Your Password

    Ask an administrator who has permission to reset users’ passwords to the default password to reset your password to the default. Change your password from the default password to your own password. See G.3 Change Your Transceiver Password. | Page 57 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 64: Appendix H - Commonly Used Diagnostic Commands

    BEACON WAIT DTRF STAT DIST DEG BROADCST 000 SYSTM 0 0000 0000 CMNBDCST 000 SYSTM 0 0000 0000 r^00000500 v 127 SDR1 0 0000 -099 0000 | Page 58 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 65: Rev

    Util Out: HPCSMA: 105098 APCSMA: 105117 QStatPkt BaseBeacon AckPkt AcqPkt PosPkt TodPkt BcastShort BcastLoc BcastComm UniLocal UniLocal UniCommon UniCommon UniBdcst OtherLocal OtherLocal OtherComm OtherComm Illegal Messages | Page 59 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 66: Stat,Hrx

    SH Code 9: SH Code 10: SH Code 11: SH Code 12: SH Code 13: SH Code 14: SH Code 15: Unknown/Illegal: ACK Messages: NACK Messages: | Page 60 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 67: Appendix I - Transceiver Test And Adjustment Procedures

    1. Agilent #4417A power meter to measure peak and average power or equivalent and Agilent E9325A Peak and Average Power Sensor –65 to +20 dBm or equivalent 2. 10 MHz signal reference 3. 60 dB of attenuation rated at 100 W | Page 61 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 68 - Gate Start: 3 ms - Gate Length: 97 ms Trace Setup - Start: 1 ms - Length: 99 ms Trigger - Cont Trig Measure Setup | Page 62 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 69 2. Once observation of radio performance is complete, turn off transmit operations by typing: L1_TEST,STOP To key up transmitter at π/4DQPST half rate: 1. In XtermW type the following commands: STOP SCHED,DEL,ALL DSP_MODE,IDLE DSP_MODE,TEST L1_TEST,SET,TXFREQ,value | Page 63 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 70 2. Once observation of radio performance is complete, turn off transmit operations by typing: L1_TEST,STOP Note: Each figure in this section shows a typical transmission spectrum or power measurement of a locomotive radio. Figure 26 Typical transmission spectrum (DQPSK) | Page 64 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 71: Adjust Rf Power Output

    To adjust RF output power: 1. Key up the transmitter for full-rate π/4DQPSK modulation using the following commands in XtermW: STOP SCHED,DEL,ALL DSP_MODE,IDLE DSP_MODE,TEST L1_TEST,SET,TXFREQ,value L1_TEST,SET,TXMOD,DQPSK | Page 65 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 72 The TXPOWER,MAX command is required to ensure a known reference. The second command assigns a reduced level (in dB units) relative to that reference. This will result in a change sustained across power cycles. | Page 66 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 73: Measure Full-Rate Receiver Sensitivity

    DSP_CMD,SET,BER,RAW L1_TEST,START,RX DSP_CMD,BAC,3 SCHED,I,6,L1_TEST,GET,ERRCOUNTS,3,3 where: value equals the desired frequency of operation. Once observation of radio performance is complete, turn off transmit operations by typing: L1_TEST,STOP | Page 67 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 74: Diversity/Rx2 Receiver Measurement

    To begin the test, make sure the E4438C signal generator is outputting the proper wave form into the TXRX port on the transceiver. Next, issue the following commands in XtermW: STOP SCHED,DEL,ALL DSP_MODE,IDLE DSP_MODE,TEST L1_TEST,SET,RXPATH,P L1_TEST,SET,RXENABLE,3,ON L1_TEST,SET,RXFREQ,value,3 DSP_CMD,SET,BER,RAW L1_TEST,START,RX | Page 68 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 75: Put A Trace On A Feature

    Activity on the RF link RSSI Signal strength indicators Hex dump of data being received through the RF receivers Hex dump of transmit date being sent to the RF transmitter | Page 69 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 76 1. In XtermW, click Send, Click Command, and then type: TRACE,SUSPEND 2. Click OK. To resume a trace: 1. In XtermW, click Send, click Command, and then type: TRACE,RESUME 2. Click OK. | Page 70 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 77 To stop a trace: 1. In XtermW, click Send, click Command, and then type: TRACE,OFF 2. Click OK. | Page 71 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 78: Appendix J - Managing Software Application Images

    The active image is the image that runs when the radio boots. The following example output of the APPS command shows the BootInfo information, followed by the Apps Table, which shows the image status. | Page 72 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 79 2 04/09/2012 05:10 PM 3364220 C:01011503.A18 ACTV Success NRDY 0 04/09/2012 05:05 PM 3361028 D:01011401.A18 NRDY 0 04/09/2012 05:03 PM 3346860 C:01011203.A18 NRDY 0 04/09/2012 11:32 AM 3347544 D:01011101.A18 | Page 73 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 80: Updating Software Images

    5. To download the software image, on the Send menu, select 63xx File Download. You will see a dialog window like the following: 6. Under File Type, select App. 7. Click Browse, then locate and select the software image file. | Page 74 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 81 10. To execute a synchronized software update at a future time, select the Schedule check box. Choose the desired date and time in the pop-up window, and then click OK. | Page 75 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 82 When you select the Schedule check box, XtermW automatically executes the APPS,SCHED,date,time,image-file command after the software image is downloaded. 11. Click Send to begin the download. | Page 76 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 83 If the Schedule check box was selected, the downloaded software image will be listed with a status of SCHD. The APPS,SCHED command displays a report of the software update schedule. | Page 77 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 84: Rolling Back An Image

    Note: You can manually delete the FLTY image by using the APPS,DELETE command. The FLTY image may also be automatically deleted when disk space is needed for new image downloads. | Page 78 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 85: Rolling Back An Image Via The Command Line: Apps

    --- --- ---- ----- ----- ---------- --------- -------- -------------- ----- ------------- 2 04/09/2012 05:05 PM 3361028 D:01011401.A18 ACTV Success 2 04/09/2012 05:10 PM 3364420 C:01011503.A18 Success 0 04/09/2012 05:03 PM 3346860 D:01011203.A18 | Page 79 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 86: Maintaining Multiple Software Images In The Transceiver

    Images with the status NRDY, FLTY, or INV can be deleted by the APPS,DELETE command. The image is removed from the Apps table and the file system. | Page 80 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...

  • Page 87: System Events On Installed Software Images

    If an APPS download operation requires additional space, any image with the INV or FLTY status that resides on the target drive is deleted from the file system and the Apps table. | Page 81 ITC 220 Base Station Transceiver Installation Guide PN 133991 Rev. A...
  • Page 88 CalAmp delivers cost-effective high quality solutions to a broad array of customers and end markets. CalAmp is the leading supplier of Direct Broadcast Satellite (DBS) outdoor customer premise equipment to the U.S. satellite television market. The Company also provides wireless data communication solutions for the telemetry and asset tracking markets, private wireless networks, railroad Positive Train Control (PTC) radio transceivers, public safety communications and critical infrastructure and process control applications.
