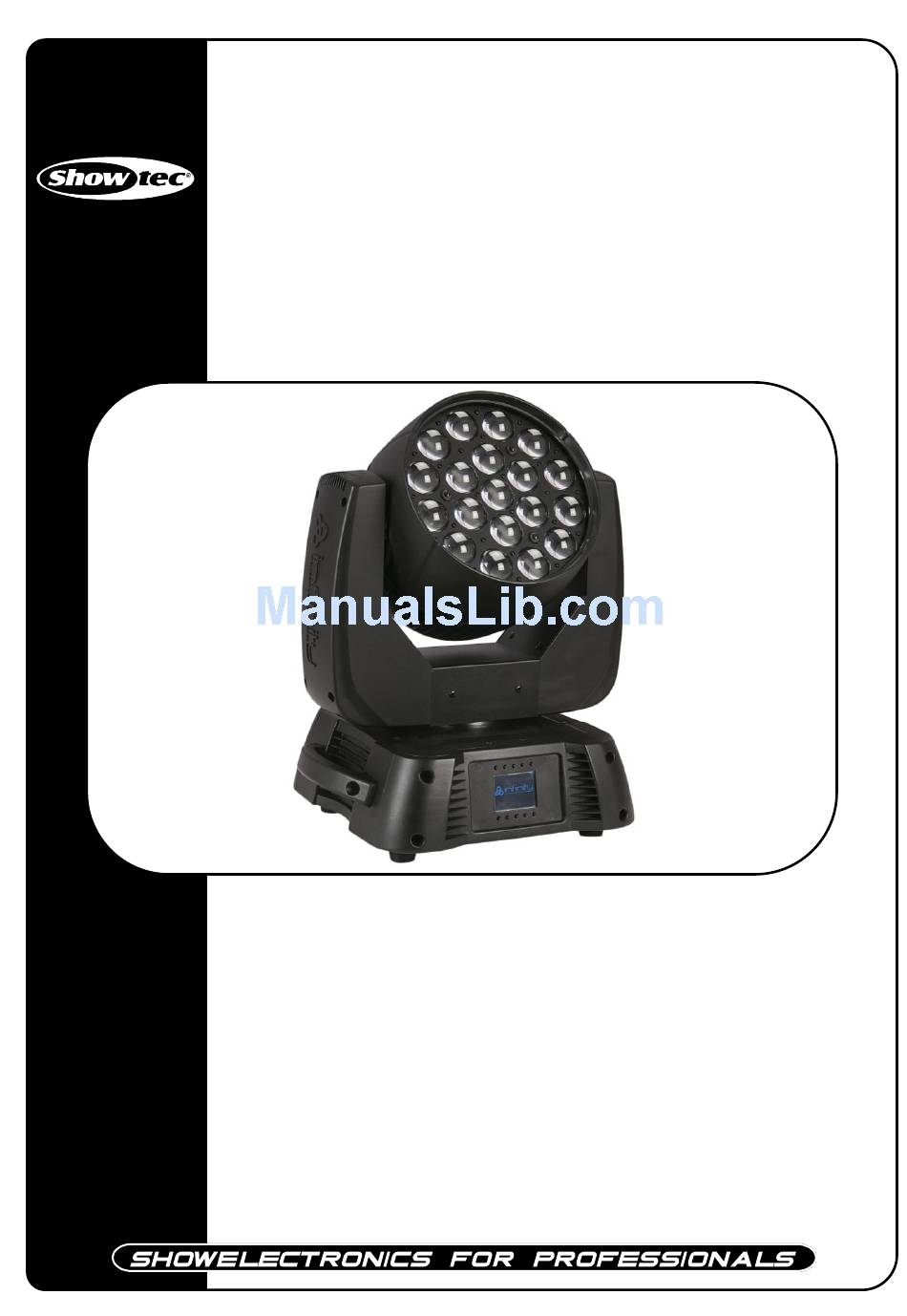

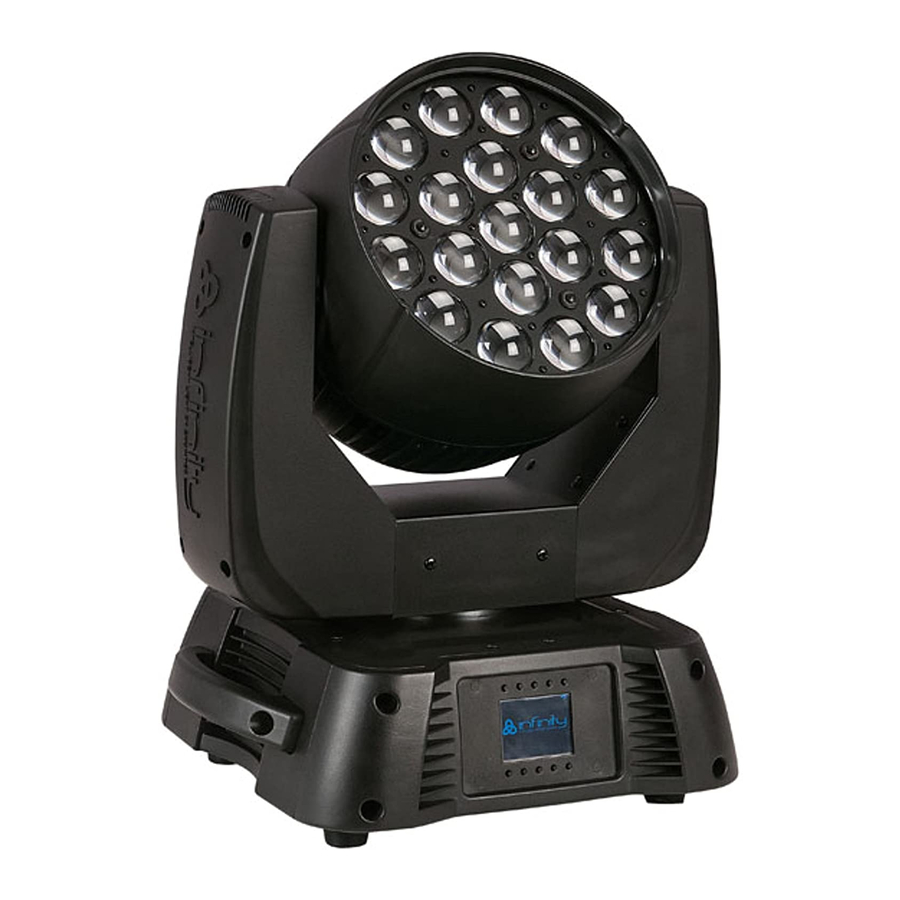

- Page 1 Infinity iW-1915 RGBW Wash ORDERCODE 41522 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec Infinity iW-1915 LED Wash brings excitement to any venue. Whether you want simple plug-&- play action or a sophisticated DMX show, this product provides the effect you need.
-
Page 3: Table Of Contents
Showtec Showtec Infinity iW-1915 LED Wash Product Guide ™ Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................8 Backside ..................................8 Installation ................................... -
Page 4: Warning
Your shipment includes: • Showtec Infinity iW-1915 LED Wash with Powercon powercable 0,9m • 2 brackets for truss mounting • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 5 IMPORTANT: The manufacturer will not accept liability for any resulting damages caused by the non- observance of this manual or any unauthorized modification to the device. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! ...
-
Page 6: Operating Determinations
Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 1 meter. •... - Page 7 Mounting a clamp to the underside of the Infinity moving head Eye for safety-cable Unlocked Locked Improper installation can cause serious damage to people and property !
-
Page 8: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER NULL YELLOW/GREEN GREEN... -
Page 9: Description Of The Device
Description of the device Features The Showtec Infinity iW-1915 LED Wash is a moving-head with high output and great effects. • Beam & Wash effect • High torque motors • Ultra-fast movements • Quick lock screws on the covers allow you to change gobos within minutes without the need of any special tools •... -
Page 10: Overview
Overview Fig. 1 1) Lens 2) Menu Buttons + LCD Display Backside Fig. 2 3 4 5 6 7 8 DMX signal connector (IN) 3-pin DMX signal connector (OUT) 3-pin Earth connection Fuse F5AL 250V 7) Neutrik Powercon OUT 8) Neutrik Powercon IN NOTE: Knowledge of DMX is required to fully utilize this unit. -
Page 11: Installation
Installation Remove all packing materials from the Infinity iW-1915 LED Wash. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 12: Multiple Infinity's (Dmx Control)
Multiple Infinity’s (DMX Control) 1. Fasten the effect light onto firm trussing. Leave at least 1 meter on all sides for air circulation. Always use a safety cable (ordercode 70140 / 70141). Plug the end of the electric mains power cord into a proper electric power supply socket. Use a 3-p XLR cable to connect the Infinity’s and other devices. -
Page 13: Fixture Linking
Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.). The Infinity iW-1915 LED Wash can be operated with a controller in control mode or without the controller in stand-alone mode. -
Page 14: Control Panel
Control Panel Fig. 5 A. Home button G. Down Button B. Edit Menu button H. OK/ENTER Button C. Settings Mode Button I. Left Button D. Address Setting Button J. Right Button E. Infinity Logo Button K. LCD Display F. Up Button Control Mode The fixtures are individually addressed on a data-link and connected to the controller. -
Page 15: Menu Overview
Menu Overview... -
Page 16: Main Menu Options
Main Menu Options DMX address Edit Mode Settings Menu Built-in Programs Test Mode Info Home Edit Menu Down Setting Mode Address Setting Left Infinity Logo Right 1. DMX Addressing With this menu you can set the DMX address. 1. Press the button and select 2. -
Page 17: Edit Mode
2. Edit Mode With this menu you can set your desired mode. 1. Press the button and select 2. Press the button, to confirm. You can choose 3 different modes. Use the Up / Down buttons to select the required mode: 3. -
Page 18: Built-In Programs
3. Once you have selected the desired mode, press the buttons to change the value from No to YES. 4. A couple of menus have more options, then your regular, yes or no function: Pan Angle: 540°, 360°, 180° Tilt Angle: 270°, 180°, 90°... -
Page 19: Information Menu
3. Once you have selected the desired mode, press the buttons to change the value from 000 to 255. 4. If you press the OK button at the Manual Test, a new Menu will open. 5. You can set 14 different Test options. 6. -
Page 20: Dmx Channels
DMX Channels 34 Channels (Advanced) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 –... - Page 21 Channel 17 – White 3 Dimmer intensity (CH30 and CH31 must be open 0-255 White from 0 – 100% Channel 18 – Red 4 Dimmer intensity (CH30 and CH31 must be open 0-255 Red from 0 – 100% Channel 19 – Green 4 Dimmer intensity (CH30 and CH31 must be open 0-255 Green from 0 –...
- Page 22 150-154 Color 30 155-159 Color 31 160-164 Color 32 165-169 Color 33 170-174 Color 34 175-179 No Function 180-201 CW Color-flow from fast to slow 202-207 Stop color at this point 208-229 CCW Color-flow from fast to slow 230-234 No Function 235-249 Color Jump from fast to slow 250-255...
- Page 23 Channel 28 – Built-in Programs (CH30 and CH31 must be open Use in combination with CH29 0-15 No Function 16-20 Built-in Program 1 21-25 Built-in Program 2 26-30 Built-in Program 3 31-35 Built-in Program 4 36-40 Built-in Program 5 41-45 Built-in Program 6 46-50 Built-in Program 7...
- Page 24 Channel 31 – Shutter / Strobe (Dimmer must be open 0-19 Close 20-24 Shutter open 25-64 Strobe effect 1, from fast to slow 65-69 Shutter open 70-84 Strobe effect 2 (fast on and slow off), from fast to slow 85-89 Shutter open 90-104 Strobe effect 3 (slow on and fast off), from fast to slow...
- Page 25 Channel 34 – Built-in Programs; Use in combination with CH 6 - CH 25 No Function 8-23 Built-in Program 1 24-39 Built-in Program 2 40-55 Built-in Program 3 56-71 Built-in Program 4 72-87 Built-in Program 5 88-103 Built-in Program 6 104-119 Built-in Program 7 120-135...
-
Page 26: Channels (Basic)
14 Channels (Basic) Channel 1 – Horizontal movement (Pan) Push the slider up, in order to move head horizontally (PAN). Gradual head adjustment from one end of the slider to the other (0-255, 128-center). The head can be turned by 540° and stopped at any position you wish. Channel 2 –... - Page 27 166-170 Built-in Program 31 171-175 Built-in Program 32 176-180 Built-in Program 33 181-185 Built-in Program 34 186-190 Built-in Program 35 191-195 Built-in Program 36 196-200 Built-in Program 37 201-205 Built-in Program 38 206-210 Built-in Program 39 211-215 Built-in Program 40 216-220 Built-in Program 41 221-225...
- Page 28 45-49 Reserved 50-54 Reset Pan after 3 seconds 55-59 Reset Tilt after 3 seconds 60-64 Reset Zoom after 3 seconds 65-69 Reserved 70-74 Reset all 75-79 Reserved 80-84 Reserved 85-89 Reserved 90-94 Reserved 95-99 Reserved 100-104 Reserved 105-109 Reserved 110-114 Reserved 115-119 Pan/Tilt Speed Fast...
-
Page 29: Channel Settings
Channel settings Fig. 6... -
Page 30: Maintenance
Maintenance The Showtec Infinity iW-1915 LED Wash requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. -
Page 31: Battery Replacement
Battery Replacement Unplug the unit from the electric power source. 2. Remove the 6 screws on the front side of the Infinity. 3. Gently pull the front cover from the device. 4. Disconnect the plug from the PCB. 5. Remove the 2 screws holding the battery pack in place. 6. -
Page 32: Troubleshooting
Troubleshooting No Light This troubleshooting guide is meant to help solve simple problems. If a problem occurs, carry out the steps below in sequence until a solution is found. Once the unit operates properly, do not carry out following steps. If the light effect does not operate properly, refer servicing to a technician. - Page 33 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 34: Product Specification
Product Specification Model: Showtec Infinity iW-1915 LED Wash Input Voltage: 100-240 VAC Continuous Power 528W max. at full output Fuse F10AL / 250V Dimensions: 303 x 366 x 450 mm (LxWxH) Weight: 14,7 kg Operation and Programming Signal pin OUT: pin 1 earth, pin 2 (-), pin 3 (+)
