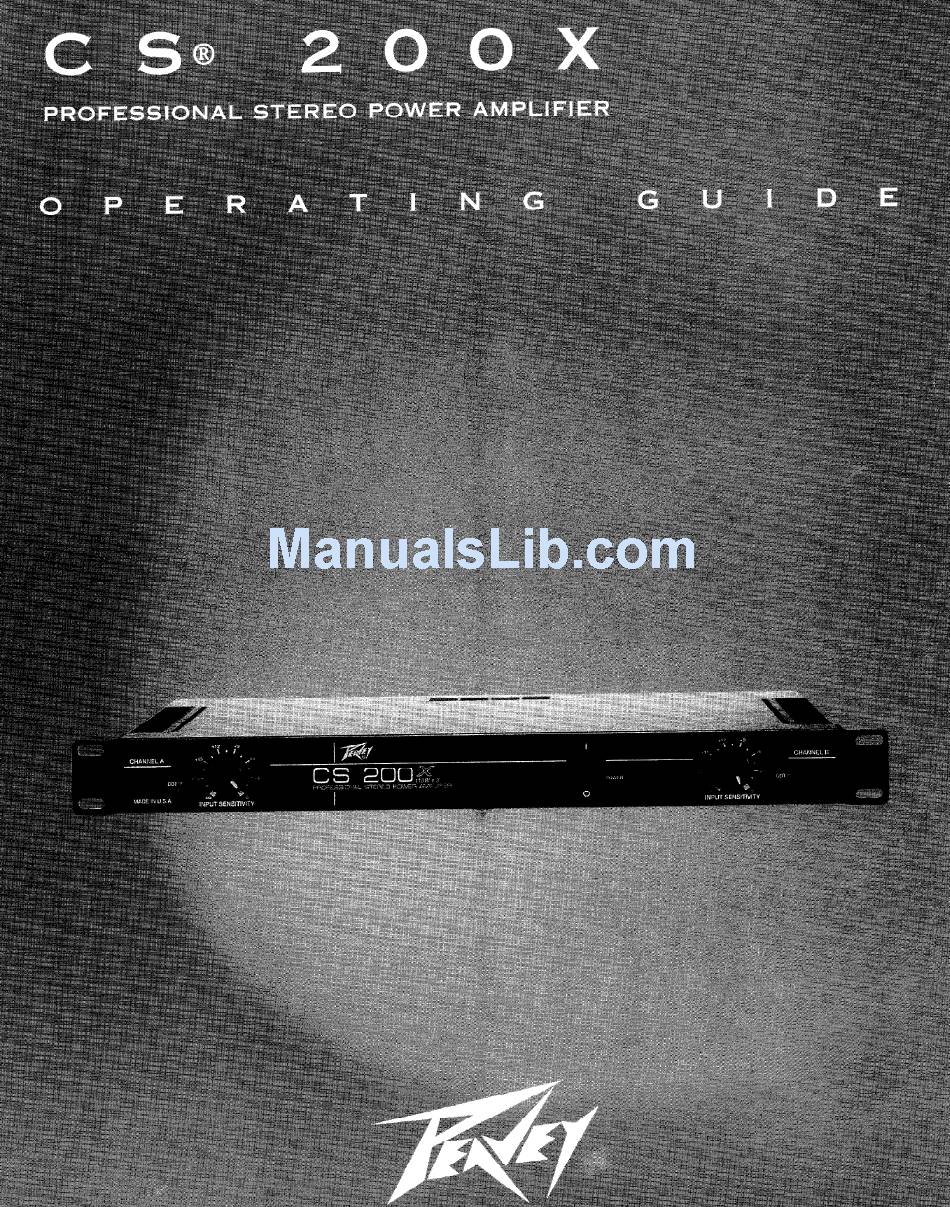

Summary of Contents for Peavey CS 200X
- Page 2 WARNING! Intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. Intended to alert the user of the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
-
Page 3: Input Sensitivity Controls
Peavey’s patented DDTTM compression system for the ultimate control of headroom and distortion. Together, these features allow the CS 200X to be a very flexible unit and offer a variety of power and impedance combinations for PA, guitar, and distribution applications. The following are extra capabilities not listed above: 1. -
Page 4: Mode Switch
This switch is a 3-position type allowing the CS 200X to be converted to either a 4 ohm, 8 ohm, or 16 ohm amplifier. This selection switch is actually changing electrical “taps” on the specially designed toroidal power transformer and, thereby, selects three different internal “rail”... -
Page 5: Speaker Outputs
15 AMPS continuously or greater. This is particularly critical for sustained high power applications when two or more CS 200X’s are employed on the same circuit. If the socket used does not have a ground pin, a suitable ground lift adaptor should be used and the third wire grounded properly. -
Page 6: Installation And Connection
POWER RATING equal to the sum of both channels’ power ratings at a LOAD RATING of twice that of the single channel rating. In this case, the CS 200X is rated at 110 watts RMS per channel into 2 ohms with the Impedance Selector switch set a 4 ohms. - Page 7 70 volt system load of 32 ohms at 170 W RMS output power. This makes the CS 200X ideal for small and medium-sized distribution systems. Although not related to the bridge mode, the CS 200X can also drive 25 volt distribution systems directly.
-
Page 8: Specifications
Specifications 2 ohms, 1 kHz, 1% THD 110 W RMS per channel [4 ohms] 85 W RMS per than [4 ohms], 120 W RMS per than [8 ohms] 4 ohms, 1 kHz, 1% THD 85 W RMS per than [8 ohms], 120 W RMS per than [ 16 ohms] 8 ohms, 1 kHz, 1% THD 16 ohms, 1 kHz, 1% THD - 85 W RMS per than [16 ohms]... -
Page 9: Bridge Mode
Can be used as outputs to patch to other power amp inputs provided STEREO MODE - BALANCED INPUTS stereo patch cords Ground Lift are used Defeated Mode Switch In Stereo Position Right Left output output From Mixer From Mixer Set impedance Speakers Speakers selector switch... - Page 10 PEAVEY OO-DAY LIMITED WARRANTY ON TUBES AND METERS If this product contains tubes or meters, Peavey warrants the tubes or meters contained in the product to be free from defects in material and workmanship for a perrod of ninety (90) days from date of purchase; PROVIDED, however, that this limited warranty is extended only to the original retarl purchaser and is also subject to the conditions, exclusions, and limitations hereinafter set forth.
-
Page 11: Important Safety Instructions
The user should not attempt to service this equipment. All service work should be done by a qualified service technician. This product should be used only with a cart or stand that is recommended by Peavey Electronics. Exposure to extremely high noise levels may cause a permanent hearing loss. Individuals vary considerably in susceptibility to noise induced hearing loss, but nearly everyone will lose some hearing if exposed to sufficiently intense noise for a sufficient time. - Page 12 Features and specifications subject to change without notice. Peavey Electronics Corporation 711 A Street! Meridian, MS 39301 / U.S.A. / (601) 483-5365 0 1 9 9 4 Printed in U.S.A. 4196...
