Summary of Contents for CTS 200LX

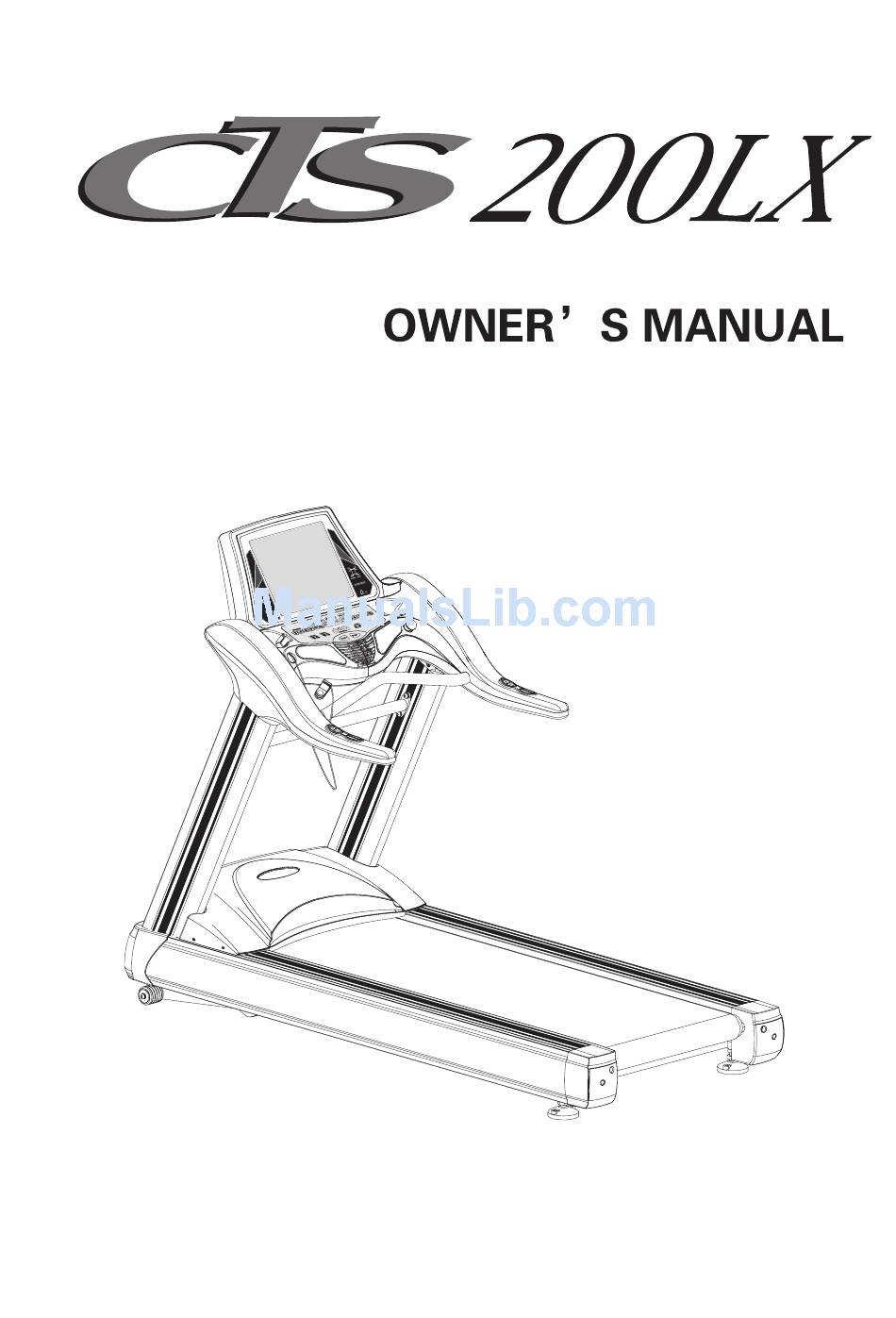

  • Page 1 110V...
  • Page 2 The TV mode 1 button 9.4 inch TV screen + Exercise information The TV mode 2 button Exercise information in 17 inch TV full screen The TV mode 3 button 17 inch TV full screen. The volume button Adjust the volume. The channel button Press the button to change the channel.

  • Page 3: Console

    CONSOLE Main Display The start button Start the machine or start the program. The stop button Stop the machine. The program button Press the key to enter the program mode. The program select button Select the program and press the START key to start the program. The incline button Press ‘INCLINE-’...
  • Page 4 The heart rate display When heart rate be input indicates the practicing value. The incline display 1. Ready time indicates the setting value. 2. During running indicates the practicing value. The distance display 1. Radix Point will automatically more backward when exceed 9.99or 99.99 2.
  • Page 5 MONITOR Main Display The volume and the channel display 1. The volume value will be changed when you press “VOL+” “VOL-” key. 2. The channel value will be changed when you press “CH+” “CH-” key.. The speed display 1. During running indicates the practicing value in green colour. 2.
  • Page 6 Technical Parameter Packing List Description Quantity 1. Input voltage: AC110V（60HZ） 2. Rated Current: 18A Main Body 3. Motor power: 5.8HP Monitor Vertical Frame 2PCS 4. Speed scope: 0.5-12（mph） 5. Incline scope: 1-16% Horizontal Bar 6. Time scope:00:00-99:59（Min.：Sec.） M10*30 Bolt 4PCS M10*20 Column Bolt 4PCS 7.
  • Page 7 19) Stop using the treadmill in case of discomfort or when there is something wrong with the treadmill. 20) Long-haired user should pay more attention to your hair while using the treadmill. 21) Never operate the treadmill if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water.
  • Page 8 IMPORTANT SAFETY INSTRUCTIONS When using this treadmill, basic precautions should always be followed, including the following： Read all instructions before using this treadmill: DANGER – To reduce the risk of electric shock: 1) Always unplug this appliance from the electrical outlet immediately after using and before cleaning. WARNING –...

  • Page 9: Table Of Contents

    TABLE OF CONTENTS IMPORTANT SAFETY INSTRUCTIONS……………………………………… 1 TECHNICAL PARAMETER……………………………………………………... 3 PACKING LIST……………………………………………………..…………... 3 PARTS DIAGRAM……………………………………………………..……….. 3 MONITOR……………………………………………………...………….... 4 CONSOLE……………………………………………………..…………..6 ASSEMBLY……………………………………………………..…………..8 USAGE GUIDE……………………………………………………..………….. 12 MEASURE THE HEARTRATE…………………………………………………. 12 HOW TO USE THE PROGRAM……………………………………………….. 12 VIDEO MODE……………………………………………………………………. 13 DAILY MAINTENANCE…………………………………………………………. 15 PART LIST……………………………………………………..…………..

  • Page 10: Assembly

    ASSEMBLY 2. Fix up the bolts to the machine with the 1. Open the package and unload the body 6MM wrench. (Attention the procedure machine with the 6MM wrench. (Attention to according the picture instruction.) keep the bolts and the washer for next step.) M10*40 bolt Big flat washer...
  • Page 11 MANUAL INSTALL At ready time press TV/DVD button to select the TV MODE and the press the TV MODE 3 BUTTON to enter full screen mode. Press MENU button and the press VOL+ button to enter TV parameter adjusting. 1. Press TV/DVD button to activate the menu. The red color shows the adjusting item and the other items is black color.
  • Page 12 VIDEO MODE DVD SIGNAL PLAY Connect the DVD and the treadmill with the lines （A） ，Press the “TV/DVD”button on the console to choose the video mode. When the VOLUME & CHANNEL WINDOW shows ‘DVD’, then press the button to enter AV2 mode. And now the display will show the DVD signal. Press VOL+/VOL- button to adjust the volume.

  • Page 13: Usage Guide

    USAGE GUIDE 1. Before switch on the power, check the voltage, grounding line, and check if there is a noise when pull the belt. 2. Switch on the power, the operation reminder says “Emergency stop”. Insert the safety key into corresponding socket, the reminder will flash 3 times and then turn to “Select program, target or start”.

  • Page 14: Electrical Power Requirements

    50/60 GROUNDING INSTRUCTIONS The Tuff Stuff Fitness CTS 200 and 300 Series product must be properly grounded. If the unit malfunctions or breaks down, proper grounding provides a path of least resistance for the electric current, which reduces the risk of shock to anyone touching or using the equipment. Each unit is equipped with an electrical cord, which includes equipment grounding conductor and a grounding plug.
  • Page 15 9. Using Wrench to adjust the adjusting down nut until the machine is level off then tighten the up nut.
  • Page 16 5. Make the screw holes of the left and right 6. Link the left frame wire to the console frame in a line with the holes in the body wire (Attention to the direction). Fix up the machine. (Attention not to cut off the console to the frames.

  • Page 17: Daily Maintenance

    DAILY MAINTENANCE The running belt of the treadmill is imported which was made from special materials with lower coefficient of friction and higher of tensile strength; the running board is with double shock-absorb system and which surface is smooth and hard wearing. Clean It can prolong the life of treadmill to keep it in clean situation, so it’s necessary to clean usually the treadmill and keep the area around the treadmill clean, include the underneath the treadmill.
  • Page 18 EXPLODED DRAWING —CTS200LX...
  • Page 19 EXPLODED DRAWING —CTS200LX CTS200LX-01...
  • Page 20 Key No. Designation Qty. Description Key No. Designation Qty. Description Elastic Collar φ12*1 Screw ST4.2*45 Gyro Shaft φ30*φ25*42 Screw(Big Head) ST4.2*12 Guide Shaft φ12*90*M8 Screw(Big Head) ST4.8*12 Axle Pin φ14*φ10*64 Screw(Big Head) ST4.8*16 φ20*φ2.5*70 Platform Screw ST4.2*9.5 φ3.2*25 Flat Washer Oil Bottle φ80*180(500ml) Flat Washer...

  • Page 21: Part List

    PART LIST To locate the parts listed below, refer to the EXPLODED DRAWING attached in the end of the manual. Key No. Designation Qty. Description Key No. Designation Qty. Description Bottom Frame Plastic Rail 83.4*7*1530 Life Frame Left Trail 180.7*44*1966 Left Vertical Frame Right Trail 180.7*44*1966...
  • Page 22 More attention: it’s not over much tight, much better. The walking belt is off-centre All the running belt were adjusted before the treadmill left the factory or after assembling, but after a period of usage, the belt will off-centre, this circumstance is from the following causes: 1) The treadmill is not horizontal.
  • Page 23 OWNER’S MANUAL TUFFSTUFF FITNESS EQUIPMENT 1325 E. Franklin Ave., Pomona, CA 91766, USA PH: 909-629-1600 FX: 909-629-4967 www.tuffstuffitness.com · email: info@tuffstuff.net...
