S E R V I C E I N S T R U C T I O N S
www.keatingofchicago.com 1-800-KEATING
REPLACEMENT MOUNTING AND WIRING INSTRUCTIONS
KEATING ELECTRONIC TIMER

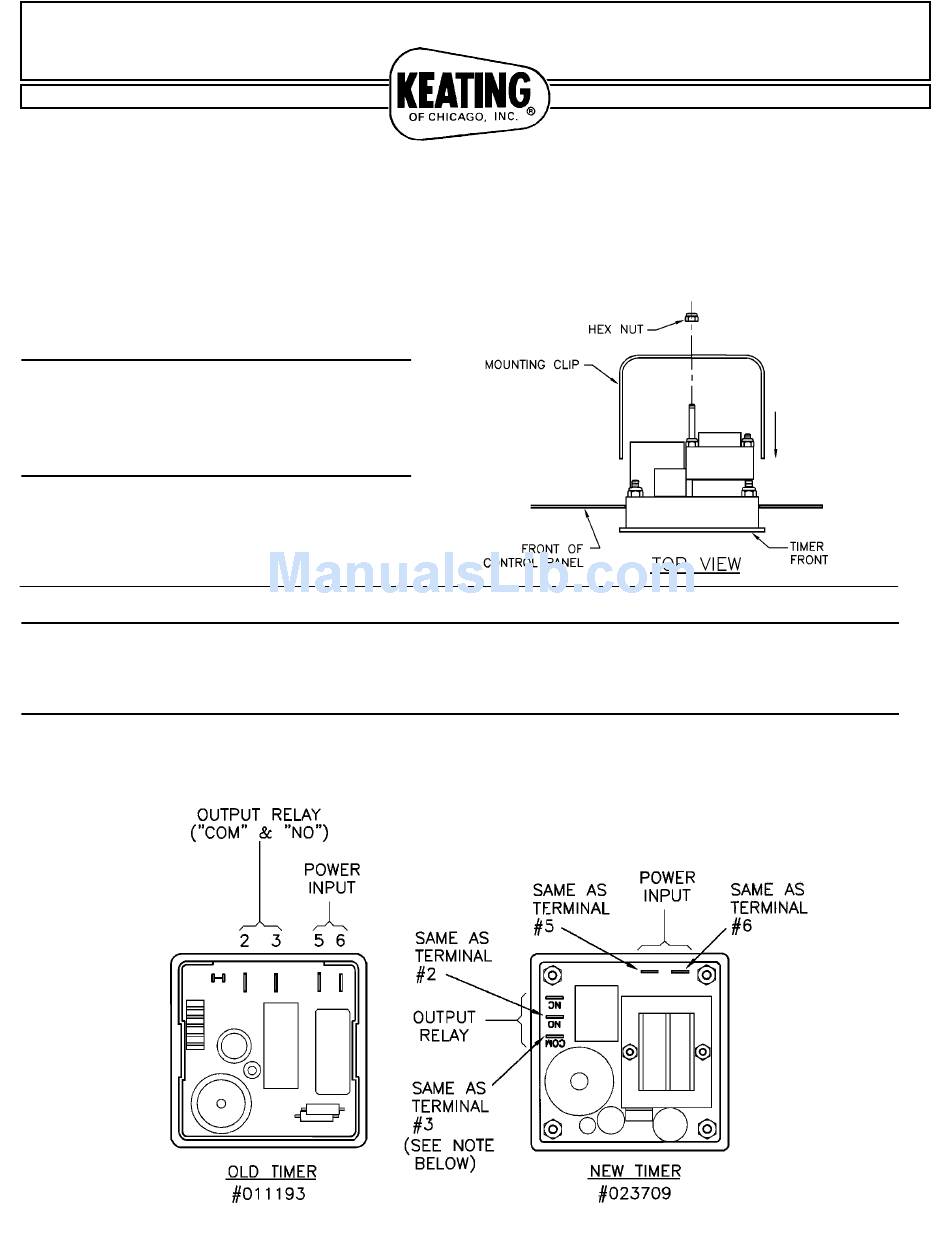

REPLACEMENT TIMER MOUNTING

*Remove old timer and mount new
Keating digital timer as shown.
NOTE: When removing the wires from the
old timer, mark the terminal number for
reference when re-wiring.

REPLACEMENT TIMER WIRING

*Wire the new Keating digital timer using the old timer to new timer terminal reference shown.
NOTE: On fryers that use the output terminals (e.g. IFM's or units with basket lift) use the wire
extension that is included with the kit, on COM terminal or power input terminal where
necessary.
