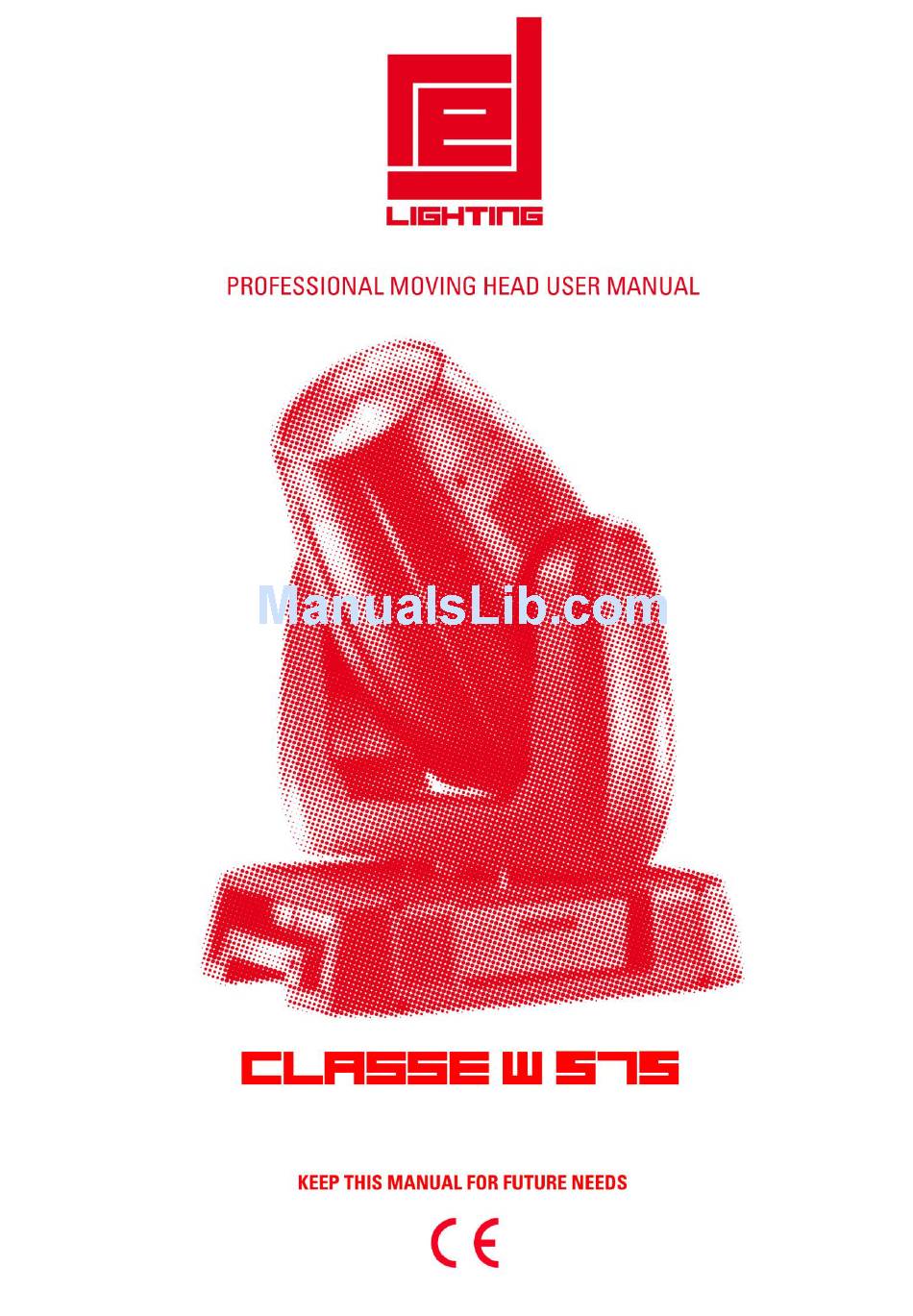

Red lightning Classe W 575 User Manual

Professional moving head
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Classe W 575 and is the answer not in the manual?

Questions and answers

Summary of Contents for Red lightning Classe W 575

  • Page 2: Table Of Contents

    Contents 1. FEATURES ..............................1 2. FIXTURE OVERVIEW ..........................2 3. SAFETY INSTRUCTIONS ..........................2 3.1) Important safety warns ........................2 3.2) GENERAL GUIDELINES ........................3 4. INSTALLATION INSTRUCTIONS ......................4 4.1) Installing or replacing the lamp ......................4 4.2) Mounting the device ..........................5 5.

  • Page 3: Features

    Thank you for your patronage. We are confident that our excellent products and service can satisfy you. For your own safety, please read this user manual carefully before installing the device. In order to install , operate, and maintain the lighting safety and correctly. We suggest that the installation and operation should be done by the verified technician and follow the instruction strictly.

  • Page 4: Fixture Overview

    · Rechargeable Back up Battery for Display, no need external power supply, enable users to enter display menu for address setting or access other functions setting. ·Auto-program: 7 pre-built programs can be selected. ·Software-upload by optional accessory via DMX line 2.

  • Page 5: General Guidelines

    Important: Damages caused by the disregard of this user manual are not subject to warranty. The dealer will not accept liability for any resulting defects or problems. If the device has been exposed to temperature changes due to environmental changes, do not switch it on immediately.

  • Page 6: Installation Instructions

    Do not shake the device.Avoid brute force when installing or operating the device. While choosing the installation-spot, please make sure that the device is not exposed to extreme heat, moisture or dust. Please don't project the beam onto combustible substances.The minimum distance between light-output from the projector and the illuminated surface must be more than 3 meter.

  • Page 7: Mounting The Device

    Procedures: 1) Unscrew the 3 screws (A, B, C) on the bottom of the housing, holding the plate where the lamp is underneath. Carefully remove the metal plate. 2) Carefully insert the lamp into the socket. Please remember there is only one way to insert the lamp.
  • Page 8 Overhead mounting requires extensive experience, including amongst others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the device. If you lack these qualifications, do not attempt the installation yourself. Improper installation can result in bodily injury. The electric connection must only be carried out by a qualified electrician.
  • Page 9 Dimensional Drawings: Classe 575 W v1.0...

  • Page 10: Dmx-512 Control Connection

    Layout Drawings: Mounting points Be sure this fixture is kept at least 3m away from any flammable materials (decoration etc.). Always use and install the supplied safety cable as a safety measure to prevent accidental damage and/or injury in the event the clamp fails. Overhead mounting requires extensive experience, including amongst others calculating working load limits, a fine knowledge of the installation material being used, and periodic safety inspection of all installation material and the fixture.

  • Page 11: Dmx-512 Connection With Dmx Terminator

    Address 33 Address 17 Address 1 6. DMX-512 connection with DMX terminator For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.

  • Page 12: Projector Dmx Start Address Selection

    7. Projector DMX start address selection All fixtures should be given a DMX starting address when using a DMX signal, so that the correct fixture responds to the correct control signals. This digital starting address is the channel number from which the fixture starts to “listen” to the digital control information sent out from the DMX controller.
  • Page 13 Set Dmx Address A001~AXXX DMX address setting Value Display PAN…… DMX value display Set To Slave Slave1,Slave2,Slave3 Slave setting Auto Program Master / Alone Auto program Music Control Master / Alone Music control Time Information Current Time XXXX(Hours) Power on running time Total Life Hours XXXX(Hours) Fixture running time...

  • Page 14: Function Mode

    Reset All Reset all motors Reset Pan&Tilt Reset Pan/Tilt Reset Colors Reset color wheel Reset Shutter Reset shutter and/or dimmer Reset Others Reset other motors PAN …… Test Channel Test function Manual Control PAN =XXX Fine adjustment of the lamp Calibrate Values --Password-- Password=XXX...

  • Page 15: Set To Slave

    3．Press ENTER, the display will show “Value Display”. 4．Tap the <Up/Down>button，choose each channel. 5．Press ENTER to confirm or press <MODE/ESC> to return to the main menu. 8.1.3 Set to slave With this function, you can define the device as slave. 1．Access the main menu.
  • Page 16 Total Life Hours With this function, you can display the running time of the device. The display shows “XXXX”, “XXXX” stands for the number of hours. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Information” is displayed. Press ENTER, the display will show “Information” . Tap the <Up/Down>button until the display will show “Time Information”...
  • Page 17 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Time Password With this function, you can display the timer password. The time password is 038. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Information”is displayed. Press ENTER, the display will show “Information”. Tap the <Up/Down>button until the display will show “Time Information”...

  • Page 18: Temperature Info

    8.2.2 Temperature Info Head Temperature With this function you can display the temperature on the display board of the base (near CMY-filter) in Celsius. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Information” is displayed. Press ENTER, the display will show “Information” . Tap the <Up/Down>button until“Temperature Info”is displayed.

  • Page 19: Lamp On/Off When Power On

    8.3.2 Lamp on/off when power on With this function you can select if the lamp will be switched on when switching the power on. Select “ON” by turning the encoder if you wish to enable this function or “OFF” if you don’t. 1．Tap <MODE/ESC>button，...

  • Page 20: Personality

    <Up/Down>button until the display will show “Lamp Off at Temp”. Press ENTER, the display will show “Lamp Off at Temp”. <Up/Down>, the display will show “ 130 ℃ ” , Temperature generally in 2．Press 80~139 ℃. 3．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. When the temperature around the lamp is higher than the preset value continuously up to 5 minutes, the lamp will be shut off automatically.
  • Page 21 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. Tilt Reverse With this function you can reverse the Tilt-movement. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Personality”is displayed. Press ENTER, the display will show “Personality”. Tap the <Up/Down>button until the display will show “Status setting”.

  • Page 22: Service Setting

    Mic Sensitivity With this function, the default is 70%, you can select the desired microphone sensitivity from 0 % to 99 %. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Personality”is displayed. Press ENTER, the display will show “Personality”. Tap the <Up/Down>button until the display will show “Status setting”.

  • Page 23: Fans Control

    8.4.3 Fans Control With this function, you can set the speed of the running fans. The selections have Auto、high and low. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Personality”is displayed. Press ENTER, the display will show “Personality”. 2．Press <Up/Down>, the display will show “Fans Control”. 3．Press<...

  • Page 24: Initial Effect

    5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 8.4.6 Initial effect With this function, Display initial effect position. 1．Tap <MODE/ESC>button，access the main menu，Tap the <Up/Down>button until “Personality”is displayed. Press ENTER, the display will show “Personality”. 2．Press <Up/Down>, the display will show “Initial effect”.

  • Page 25: Calibrate Values

    2．Press <Up/Down>, the display will show “Manual control”. 3．Press< ENTER>, the display will show “Manual control”. 4．The display show “PAN=XXX”. 5．Press <ENTER> to confirm or press <MODE/ESC> to return to the main menu. 8.6.3 Calibrate values With this function, you can calibrate and adjust the effect wheels to their correct positions. The password of calibrate values is 050.
  • Page 26 Excursion: A Master unit can send up to 3 different data groups to the Slave units, i.e. a Master unit can start 3 different Slave units, which run 3 different programs. The Master unit sends the 3 program parts in a continuous loop. The Slave unit receives data from the Master unit according to the group which the Slave unit was assigned to.
  • Page 27 • Press the Enter button to confirm. • Turn the encoder to select the desired program. With this function you can edit specific scenes into a specific program. • Press the Enter button to confirm. • Press the MODE/ESC button in order to return to the main menu. 5.

  • Page 28: Instructions On Use

    9. INSTRUCTIONS ON USE: DMX channel´s functions and their values (22 DMX channels): Mode/Channel Value Function Cyan Color 0-255 Cyan (0-white, 255-100% Cyan) Cyan Color Fine : 0-255 Cyan Fine Magenta Color : 0-255 Magenta (0-white, 255-100% magenta) Magenta Color Fine : 0-255 Magenta Fine PAN Movement 8bit :...
  • Page 29 4-127 Beam shaper indexing 128-189 Forwards rainbow effect from fast to slow 190-193 No rotation 194-255 Backwards rainbow effect from slow to fast Stepless Zoom : 0-255 Zoom adjustment from small to big Stepless Zoom Fine: 0-255 Zoom fine adjustment from small to big Shutter, strobe: 0-31 Shutter closed...
  • Page 30 152-159 Macro19 160-167 Macro20 168-175 Macro21 176-183 Macro22 184-191 Macro23 192-199 Macro24 200-207 Macro25 208-215 Macro26 216-223 Macro27 224-231 Macro28 232-239 Macro29 240-247 Macro30 248-255 Random CMY Lamp on/off, reset, internal programs: 0-19 colour & gobo change normal 20-29 colour change to any position 30-39 colour &...

  • Page 31: Error Message

    10. ERROR MESSAGE When you turn on the fixture, it will make a reset at first. The display may show“Err channel is XX” while there are problems with one or more channels. “XX” stands for channel 1, 2, 3, 4, 5, 6 who has the testing sensor for positioning.

  • Page 32: Cleaning And Maintenance

    Zoom (Zoom error) This message will appear after the reset of the fixture if the magnetic-indexing circuit malfunction (sensor failed or magnet missing) or the stepping-motor is defective (or its driving IC on the main PCB). The Focus is not located in the default position after the reset. 11.

  • Page 33: Technical Specifications

    12. TECHNICAL SPECIFICATIONS Power supply: □AC220V~,50Hz; □AC230V~,50Hz; □AC240V~,50Hz; □AC220V~,60Hz; □AC230V~,60Hz; □AC240V~,60Hz; Power consumption: 780W Lamp: MSR 575/2 GX9.5 Lamp power: 575W Flight case dimensions: 99 x 61 x 93 cm (2Pcs) Net weight:34.5 KGS Gross weight: 122.5 KGS Remark: errors and omissions for every information given in this manual excepted. All information is subject to change without prior notice.
