INSTALLATION
& OPERATION
MANUAL
WingMan™
Standard - Optix Version
WingMan™
Interior Lighting System
2011 CHEVY CAPRICE
REAR DECK LIGHTBAR
CONTENTS:
Introduction............................................................................2
Unpacking & Pre-Installation....................................................2
Installation & Mounting.........................................................3-4
Wiring Diagram & Instructions..................................................4-5
NarrowStik Wiring Diagram.......................................................5
LED Flash Pattern Selection....................................................6
Troubleshooting......................................................................7
Exploded View & Parts List...........................................................7
Warranty................................................................................8
For future reference record your product's serial no. here __________________________________________
IMPORTANT:
Read all instructions and warnings before installing and using.
This manual must be delivered to the end user of this equipment.
INSTALLER:
Advertisement
Table of Contents
Related Manuals for Code 3 WingMan
Summary of Contents for Code 3 WingMan
- Page 1 INSTALLATION & OPERATION MANUAL WingMan™ Standard - Optix Version WingMan™ Interior Lighting System 2011 CHEVY CAPRICE REAR DECK LIGHTBAR CONTENTS: Introduction................2 Unpacking & Pre-Installation............2 Installation & Mounting............3-4 Wiring Diagram & Instructions..........4-5 NarrowStik Wiring Diagram............5 LED Flash Pattern Selection............6 Troubleshooting..............7 Exploded View & Parts List............7 Warranty................8...

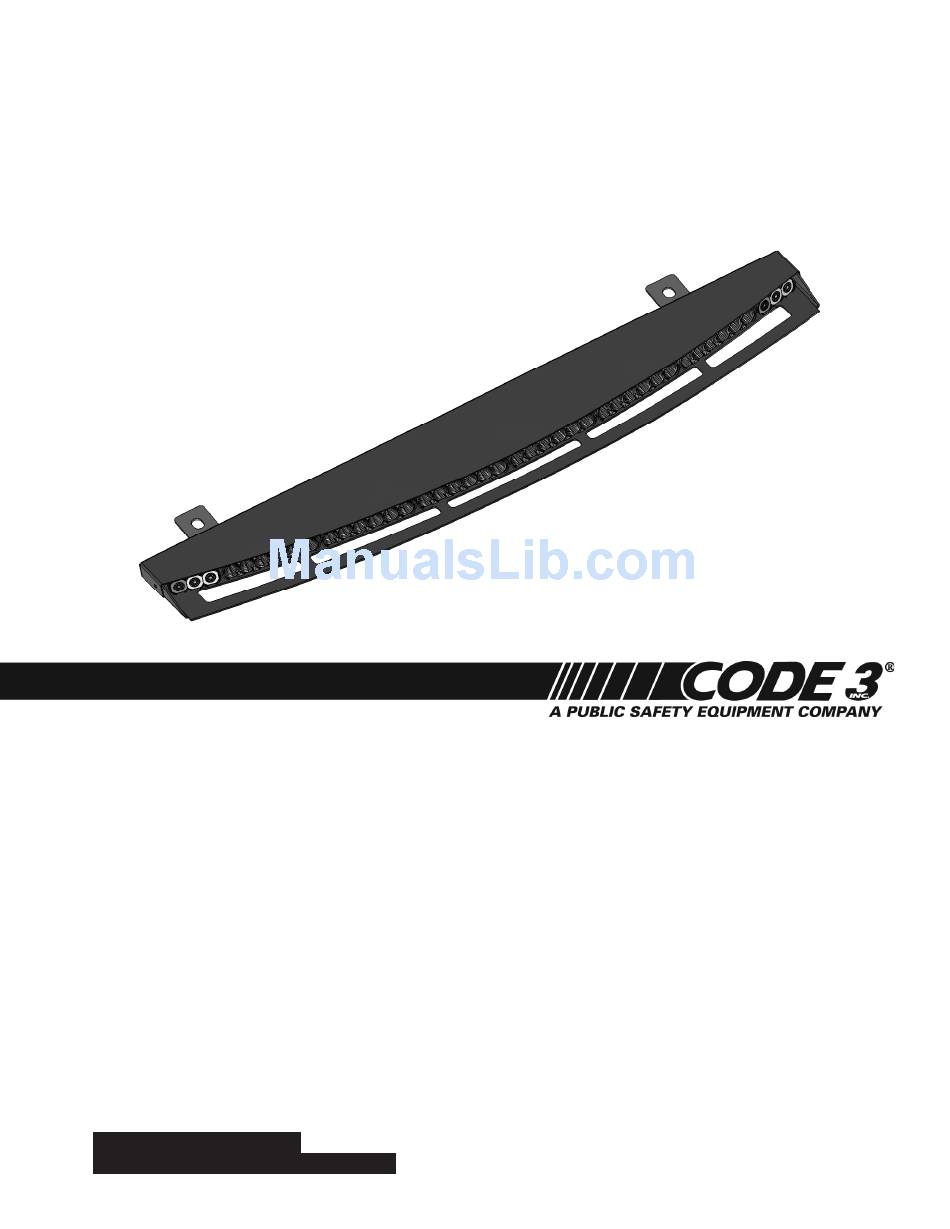

- Page 2 Introduction The WingMan™ is an interior lighting system that fits in the rear deck area behind the rear seat. The WingMan has room for up to eight light heads. Product Features LED lighthead options: Red, Blue, Amber; Directional or Spreading; Flashing or Steady Burn Control LED lighthead types: 3LED Optix and 6LED Optix Size: 42.875"...
- Page 3 WingMan. This keeps the cable out of a passengers reach Note: Move the WingMan out of the way temporarily and make sure any OEM wiring is out of the way so you don't damage the WingMan or the wiring when drilling the cable clearance hole! Route the cable through the hole, pull the slack out of the cable, and reposition the WingMan before going to the next step.
- Page 4 Installation Instructions Cont. FIGURE 7 FIGURE 8 FIGURE 9 FIGURE 10 FIGURE 11 The bracket fasteners shown in Figure 12 make excellent hard mounting points for radar guns, video cameras, etc. Caution: Drilling into the housing of the light bar could damage wiring or other internal components.
-
Page 5: Wiring Diagram
STANDARD WINGMAN NarrowStik Version The WingMan can be factory configured as a traffic director and operated using an NarrowStik Control Head. Please refer to the NarrowStik Control Head Manual for installation, wiring connections, and operation of the Control Head. Wiring For models with independently flashing Red or Blue Lightheads located on each end, the Blue and Brown wires will be used to control these heads. - Page 6 LED Fusing Considerations Although the average current draw per module is very low, due to the type of circuit used to power each module, the instantaneous peak current to a module can be significantly higher during low voltage conditions. To avoid prematurely blowing ATO style fuses or tripping breakers it is recommended the following rule-of-thumb be used to size fuses or breakers.
-
Page 7: Troubleshooting
Troubleshooting All WingMan Rear Bars are thoroughly tested prior to shipment. However, should you encounter a problem during installation or during the life of the product, follow the guide below for information on repair and troubleshooting. Additional information may be obtained from the factory technical help line at 314-996-2800. - Page 8 *Code 3, Inc. reserves the right to repair or replace product at its discretion and assumes no responsibility or liability for expenses incurred for the removal and/or reinstallation of products requiring service and/or repair.
