DMP Electronics V-RC8221 Installation Manual

Description

The DMP V-RC8221 is an indoor wired/wireless HD video camera that allows live
view and recorded clips through the Virtual Keypad App, as well as email motion-
triggered video clip notification. To install and activate the camera, you need an
active dealer account at vk.securecomwireless.com.

Compatibility

• Any DMP system with an active Virtual Keypad App

What is Included:

• V-RC8221 Indoor HD Camera
• Camera Mounting Base
• 12V Power Transformer (for 9' power extender, order V-DCEXT-9 separately)
• Mounting Screws

Assembling the Camera

Attach the camera to the stand if necessary for the installation.

Camera Configuration Options

The V-RC8221 can be configured to communicate to the SecureCom Video server
in three ways:
Option #1 - Wired connection
Option #2 - Wireless connection using DMP V-IP1006RR Wireless Access Point (WAP)
with WiFi Protected Setup (WPS)
Option #3 - Wireless connection using a WPS enabled WAP

Option #1 Configuration - Wired connection:

1. IMPORTANT: Before plugging in power to the
camera, plug an Ethernet cable with an active
internet connection into the Ethernet port.
Recommendation: We recommend marking the
Ethernet cable from the customer's router to the WAP
to help in network troubleshooting. If the end-user
is having network issues after the install, you can
instruct them to remove the marked Ethernet cable
and see if the problem still exists. If it does, then
they can contact their Internet service provider.
2. Once the Ethernet is plugged in, plug in the power adapter to the camera and to a power outlet. The Power LED
turns on solid during startup for 20 seconds. The Network and Power LEDs both start flashing while the camera is
establishing a connection. Once it has a connection, the Power LED turns on solid, while the Network LED continues to
flash to indicate network activity.

Option #2 Configuration - Wireless connection using DMP V-IP1006RR WAP:

For best results, establish communication while the
WAP and cameras are no more than 20 ft from each
other. After communication is established, place
them in their desired location to ensure that they
are still within wireless range of the WAP. Multiple
WAPs can be installed for larger installations.
1. Plug in the power adapter to the camera and to a
power outlet. The Power LED turns on solid green for
20 seconds while powering up.
2. The Power LED will begin to flash when the camera is ready for WPS mode. Press the WPS
button on the front of the WAP for 3 seconds. The Security LED will flash to indicate that the
WAP is sending a security key to the wireless camera.

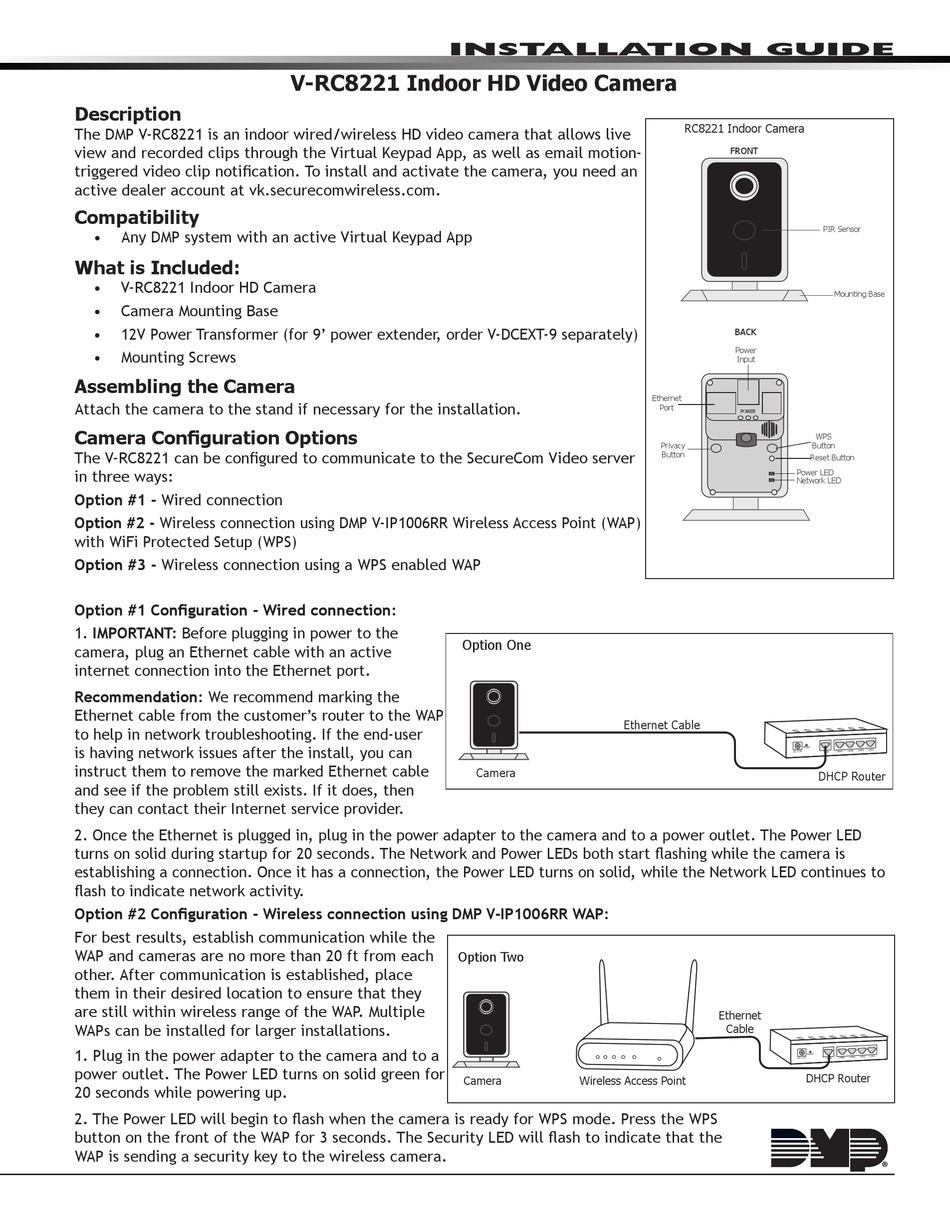

Inst alla tIon GuIde
V-RC8221 Indoor HD Video Camera
Option One
Option One
Option Two
Option Two
Camera
Option Three
Camera
Option Three
Ethernet Cable
Camera
Ethernet Cable
Camera
Wireless Access Point
Wireless Access Point
Camera
RC8221 Indoor Camera
FRONT
PIR Sensor
BACK
Power
Input
Ethernet
Port
POWER
WPS
Privacy Button
Button
Reset Button
Power LED
Network LED
DHCP Router
Ethernet
DHCP Router
Cable
DHCP Router
Ethernet
Cable
DHCP Router
DHCP & WPS
Router
Mounting Base
