Summary of Contents for Vision TM-WB

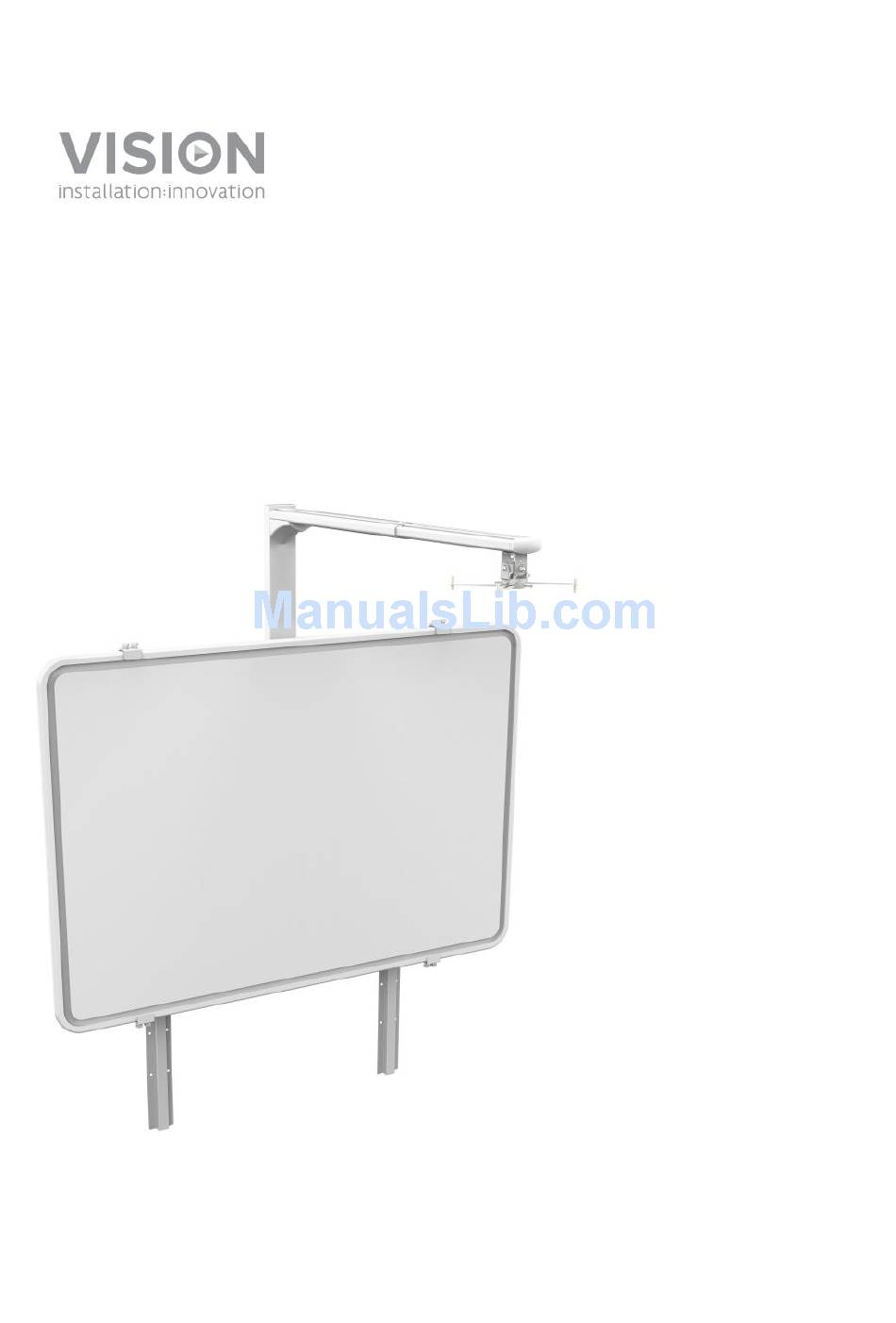

- Page 1 TM-WB OWNERS MANUAL TM-WB_manual_en...
- Page 2 TM-WB_manual_en...
-
Page 3: Declaration Of Conformity
ENSURE POWER CABLE IS NOT TWISTED, SQUEEZED, OR SHEARED! All products are designed and imported into the EU by ‘Vision’ who is wholly owned by ‘Azlan Logistics Ltd.’, Registered in England Nr. 04625566 at Lion House, 4 Pioneer Business Park, Clifton Moor, York, YO30 4GH. - Page 4 ACCESSORIES TM-WB_manual_en...
-
Page 5: Installation
INSTALLATION ATTACH LEGS TO WALL Use spirit level to ensure legs are plumb. Route cables at same time. ALTERNATIVE USING STAND-OFFS Ensure the correct fixtures are used to attach the Techmount to the wall. The fixtures provided may not be suitable for your application. NOTE: At least six fixtures must be used for each leg, with two at the top. - Page 6 HANG FRAME ON LEGS FIT BRACKETS to side of frame as shown. Add locking screws to prevent frame being lifted off legs. Locking screws Locking screws TM-WB_manual_en...
- Page 7 ATTACH UPRIGHT ATTACH BOOM TM-WB_manual_en...
- Page 8 ATTACH SPIDER TO PROJECTOR FIT PROJECTOR ASSEMBLY TO BOOM Tighten screw to lock the two parts of the boom together TM-WB_manual_en...
- Page 9 FIT ADJUSTABLE ARMS TO WHITEBOARD / FLAT PANEL HANG BOARD ON FRAME Make projector level and turn on. Set projector zoom as large as possible. Adjust boom length so image is same size as board. Hang board at same height as image.
-
Page 10: Specifications
10. TEST EXCURSION Plug motor into power and move assembly to upper and lower limits to ensure no snags and mount is operating safely. Adjustments may be necessary. Once complete tighten all bolts. SPECIFICATIONS PRODUCT WEIGHT: 40.5 kg SAFE WORKING LOAD: Interactive Whiteboard / Touch-panel LCD: 50 kg Projector: 10 kg CONTRUCTION MATERIAL: Aluminium and Steel... -
Page 11: Warranty
WARRANTY This product comes with a 2-year return to base warranty, effective from the date of purchase. This warranty applies only to the original purchaser and is not transferable. For the avoidance of doubt, this will be taken from the information held by the appointed national distributor at the point of sale.
