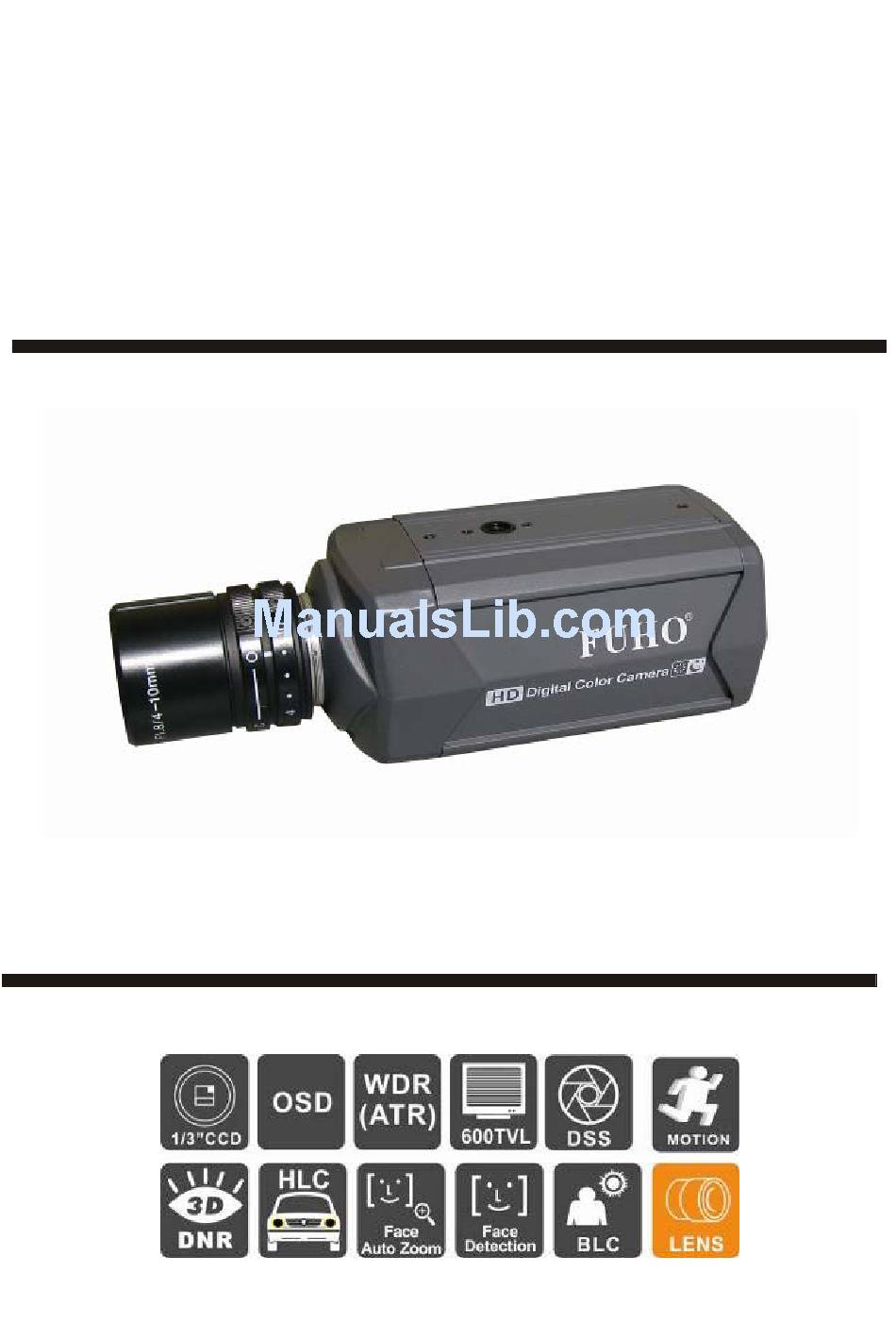

- Page 1 Intelligent Wide Dynamic High Definition Color Camera USER MANUAL 2011 NOV. V1.0 Optional...
-
Page 2: Table Of Contents
Index Product Features ................... 1 Specifications ....................2 Dimensions ..................... 3 Real panel: ...................... 3 OSD Functions ....................4 OSD operation ....................5 Main menu ......................5 (1) AE Mode setting ..................5 (2) Color Adjust ....................8 (3) Image adjust ....................9 (4) Intelligent .................... -
Page 3: Product Features
A. Product Features 1. High Sensitivity 1/3” CCD WDR Color Camera 2. High Resolution Color up to 600TVL 3. 2D/3D Noise Reduction (HDNR) 4. Super Real WDR Range/Digital WDR Function 5. Digital Slow Shutter from x2 up to x256 (Max) 6. -
Page 4: Specifications
B. Specifications Video System NTSC Pick Up Element 1/3” 760H CCD Image Sensor Image Signal Process Digital Signal Processor Number of Pixels 768 (H) × 494 (V) 752 (H) × 582 (V) Picture Elements Approx. 380K Approx. 440K Horizontal Resolution Color: 600 TVL Power Supply DC +12V... -
Page 5: Dimensions
Image Quality Adjustment Brightness / Contract / Saturation / Sharpness / Hue Auto White Balance AWB/ATW Language English / Simplified Chinese / (support multi-language) Auto:1/60(50)S TO 1/100,000 S Electronic Shutter Speed Manual: 1/60(50)S, FL1/120(100)S, 1/250S, 1/500S, 1/1,000S, 1/2,000S, 1/4,000S, 1/10,000S Video Signal Output 1 Vp-p standard video signal output, 75 Ohms Operation Temperature... -
Page 6: Osd Functions
E. OSD Functions MENU F un ct io n Remark 1.Standard AE 2. SWDR 3.BLC (back light compensation ) Please refer to AE mode OSD operation F-1 4.HLC (high light compensation) AE mode setting 5.Face AE 6.Face auto zoom 7.Demist 1.AWB (Auto white balance ) 2.Brightness 3.Color-Red... -
Page 7: Osd Operation
operation Main menu Setup: 1.Click one time to enter the Main menu Click twice ( to Exit OSD menu, Reload Fty , Return to Previous page, Exit &Save) UP / Down: Selection. Left / Right: Enter & Return. (1) AE Mode setting ... - Page 8 Symbol will be shown on the upper left corner of Live view. Standard SWDR BLC: Back light compensation Level: （Auto, low, Middle, high） Symbol will be shown on the upper left corner of Live view. Normal Back light compensation ...
- Page 9 Level : Low, Middle, High. Mask Grayscale: (Value: 1-6) Mask color set up, the color is closer to white when the value is higher. Symbol will be shown on the upper left corner of Live view. Face AE ...
-
Page 10: Color Adjust
Demist Level: (Auto/Low/Middle/High) Symbol will be shown on the upper left corner of Live view Normal Demist activated (Heavy Fog) (Middle Fog) (Light Fog) (2) Color Adjust Press to into OSD. Press to into sub‐menu. Press / ：Selection. ... -
Page 11: Image Adjust
(3) Image adjust Press to into OSD. Press to into sub‐menu. Press / ：Selection. ：Return. Press 1. Day & Night Mode: Auto-General When the condition light value matches the setting value, it will switch to mode BLACK and WHITE automatically. (1) Color Burst ON/OFF only be activated under mode BW and mode Auto-General. - Page 12 Mode: Color Color mode only Mode: BW BW mode only Mode: Auto-Progressive 2. Slow shutter 1/100000, 1/10000, 1/5000, 1/2000, 1/500, 1/240, 1/120, 1/60, AUTO, 2x, 3x, 4x, 5x, 8x, 16x, 32x, 64x, 128x, 256x To extend the photoperiod in order to enhance the sensitization. It will help to have brighter images in a condition with lack of light.
-
Page 13: Intelligent
(4) Intelligent Press to into OSD. Press to into sub‐menu. Press / ：Selection. ：Return. Press 1. Face detection Human face detection: ON/OFF Frame: (ON/OFF) Box up the human faces when human faces are detected . ... -
Page 14: Set Mask Range : Mask Range Set Up (Click Right Button To Set Up
Live view Motion detection area set up(Red zoom) Digital-Zoom Zoom in range: 1~255x. Vertical: (-100~100) Image vertical position set up after zoom in Horizon: (-100~100) Image horizontal position set up after zoom in Privacy mask Opacity: (0~3) Mask transparency setting. -
Page 15: System Setting
(5) System setting Press to into OSD. Press to into sub‐menu. Press / ：Selection. ：Return. Press Lens Mode: To select lens type DC in door/ DC outdoor/ Manual Brightness: only be activated with DC IRIS (-50~50). Smart IR: ON/OFF Camera ID: Pepco ID (0~255).
