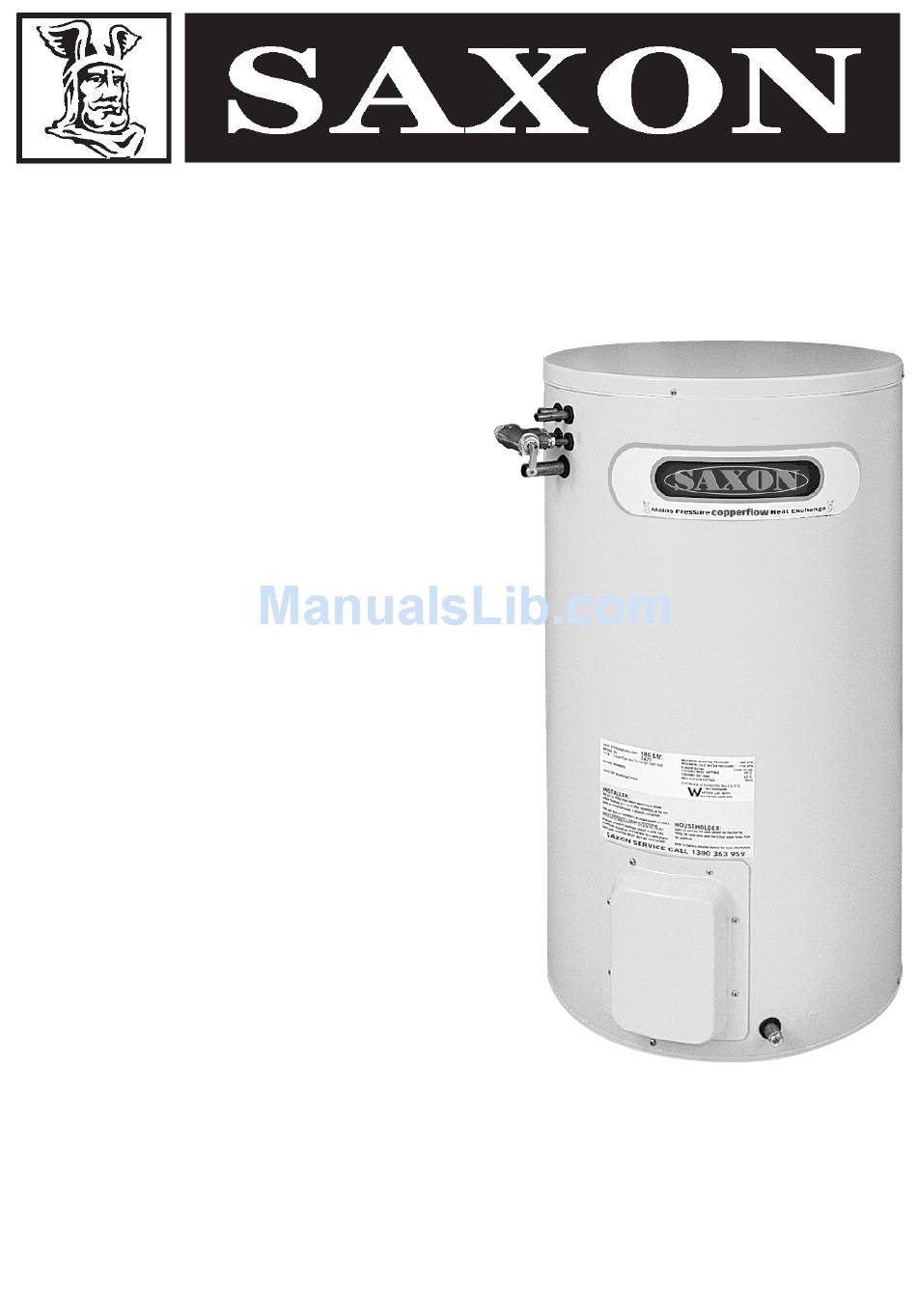

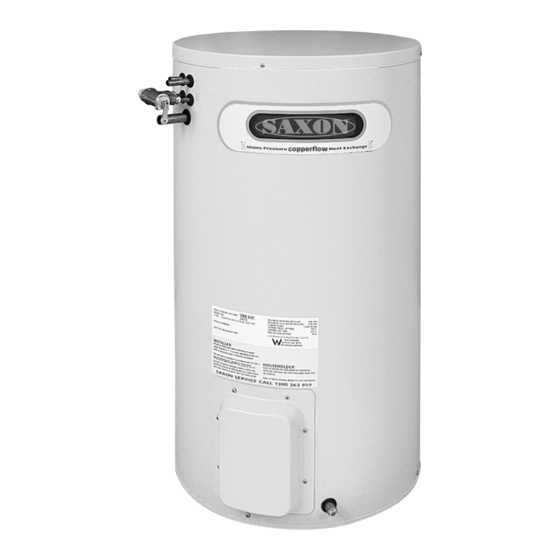

COPPERFLOW SERIES
MAINS PRESSURE ELECTRIC WATER HEATER
INDOOR/OUTDOOR MODEL
OWNER &
INSTALLER
MANUAL
AND
WARRANTY
INFORMATION.
PLEASE READ THIS MANUAL
CAREFULLY BEFORE
INSTALLING AND OPERATING.
THIS WATER HEATER MUST
BE INSTALLED BY
A QUALIFIED PERSON.
Manufactured in Australia by Peter Sachs Industries Pty Ltd
A.C.N. 010 792 051 A.B.N. 69 010 792 051
Marketed by SAXON SALES
FOR SERVICE - CALL 1300 363 959
OR EMAIL service@sachs.com.au
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Saxon COPPERFLOW
- Page 1 INSTALLING AND OPERATING. THIS WATER HEATER MUST BE INSTALLED BY A QUALIFIED PERSON. Manufactured in Australia by Peter Sachs Industries Pty Ltd A.C.N. 010 792 051 A.B.N. 69 010 792 051 Marketed by SAXON SALES FOR SERVICE - CALL 1300 363 959...
-
Page 3: Table Of Contents
CONNECTIONS - PLUMBING ..............13 CONNECTIONS - ELECTRICAL .............15 SERVICE FAULT CHECK LIST ...............17 AUTHORISATIONS: Copyright Peter Sachs Industries Pty. Ltd. Certificate of Suitability CS/57/Q (Degree of Protection IP23) © 2009 Document: B710 Issue: 09 Standards Australia Watermark AS3498 LIcense No. W191C Date: July 2009 Tick License No. -
Page 4: About Your Water Heater
ABOUT YOUR WATER HEATER AND HOW TO SERVICE IT. Congratulations for choosing a SAXON Electric Mains Pressure Heat Exchange Water Heater. With over 70 years of water heater manufacturing experience, SAXON produces high quality innovative products at affordable prices and is committed to providing excellent sales and service back up. - Page 5 HOW TO SAVE UNNECESSARY SERVICE COSTS Follow the Check List below before Calling 1300 363 959. You will be charged for attending to any condition or fault not related to the manufacture of failure of a component part (See Warranty included). SERVICE CHECK LIST FOR ITEMS NOT UNDER WARRANTY Excessive Discharge from Overflow caused by water pressure rising above the pressure designated for your heater.
- Page 6 HOW TO IMPROVE PERFORMANCE If your installation is Borderline, enquire from your plumber about fitting inexpensive flow control valves, water efficient shower roses, low flow tap aerators which will help reduce water usage. Replace leaky tap washers. An option is to adjust the Thermostat upwards to gain additional hot water capacity for limited periods.
-
Page 7: How Your Water Heater Works
HOW YOUR WATER HEATER WORKS A VERY SAFE SYSTEM Water is stored in a copper tank containing a copper heat exchange coil. Water in the tank is heated by an electric heating element. As cold water passes through the heat exchange coil it is heated by the transfer of heat from the hot water in the tank to the cold water in the coil. - Page 8 PRESSURE RELIEF & NON-RETURN VALVE Situated near the top of the water heater, the pressure relief valve is combined with a non-return valve and is set at 1400kPa. During periods after hot water has been drawn off, water in the coil is trapped between the tap and the non-return valve.
- Page 9 TOPPING UP Once every six months the pressure relief valve must be checked by the owner. To top up the tank and check the valve, lift the valve lever against the spring pressure until water flows from the overflow pipe. When water flows from the overflow, restore the lever to its original position.
-
Page 10: Installation Diagrams
INTERNAL TEMPERATURE CONTROL The internally adjustable thermostat may be altered by removing the junction box cover. This adjustment must be made by a qualified service person. ADJUSTING FLOW RATE If you need to adjust the flow rate of the water heater see Page 12 for more detail. - Page 11 INSTALLATION DIAGRAMS Use to adjust flow rate as When fitting Tempering Valve at the water heater, ensure the cold per SAXON installation supply to the Tempering Valve is teed off the cold supply to the water instructions heater down stream from the isolating stopcock and any pressure limiting valve (if fitted) Isolating Stopcock Line Strainer...
-
Page 12: Installation
INSTALLATION INSTALLATION Installation of this water heater must be performed by an Authorised Person and in accordance with both Local Authority Regulations and AS/NZS 3500.4 “National Plumbing and Drainage Code and AS/NZS 3000. Wiring Rules. LOCATION Install as close as practicable to the kitchen or most frequently used hot water outlet in an accessible position, and with adequate access to thermostat and element at front of heater. - Page 13 FOUNDATION To ensure adequate ventilation, position unit on a timber support base on a concrete slab. (SEE FIGURE 5) FIG. 5 Alternative forms of water heater bases are acceptable providing they allow for adequate ventilation. Attention is drawn to the weight of the water heater when full and installer should ensure that the base and footings are substantial enough to avoid subsidence etc.
- Page 14 BORE WATER SUPPLY NOT RECOMMENDED FOR CONNECTION. For further information contact SAXON Service. If the heater is connected to bore supply against SAXON recommendation, warranty does not apply. VENT PIPE This Pipe Must Not Become Blocked or Obstructed. It should be checked periodically to ensure it remains clear. To prevent accidental discharge of hot water through the vent pipe whilst checking the valve, the vent pipe may be extended downwardly.
-
Page 15: Connections - Plumbing
CONNECTIONS - PLUMBING All Plumbing Connections should be made in accordance with appropriate Local Authority Regulations. Flush out pipes before connecting unit to ensure that no foreign matter blocks the valve seating. Use Line strainers where required by Local Authority. It is recommended that Connections should be made with compression fittings –... -
Page 16: Draining The Water Heater
OVERFLOW PIPE Overflow pipes may be extended from the water heater, but must not be less than 19.1mm (¾”) O.D. copper tube – not more than 10 metres in length. Right angled bends must be limited to no more than three. The extension must fall from the overflow outlet, should not be looped, and shall discharge at a visible point where water flow will not cause damage to property or injury to persons. -
Page 17: Connections - Electrical
CONNECTIONS – ELECTRICAL Power must not be turned on until the water heater is filled with water, and a satisfactory megger reading is obtained. (See ‘Filling the Heater’, Page 14) All water heaters are designed for 230-240v a.c. mains operation. Electrical connections are made at the terminal block (access to which is made by removing the junction box cover from the front of the heater). -
Page 18: Water Quality
PLASTIC PIPING AND HOT WATER Under normal operating conditions, electric water heaters may heat water to around 80ºC. Mains pressure varies from location to location and from time to time and SAXON electric water heaters are fitted with an expansion relief valve rated at 1400kPa. -
Page 19: Service Fault Checklist
SERVICE FAULT CHECKLIST COMPLAINT SUSPECTED CAUSE TO CORRECT PROBLEM Poor Water Pressure Blockage at the inlet connection Re-adjust isolating valve Disconnect the water supply at the valve to remove blockage Fit unrestricted HPNR valve Not Heating (a) Tripped Circuit Breaker Reset Circuit Breaker (b) Faulty thermostat or Call SAXON Service to replace parts if in... - Page 20 MANUFACTURED IN AUSTRALIA BY PETER SACHS INDUSTRIES PTY LTD MARKETED BY SAXON SALES Peter Sachs Industries Pty Ltd Zillmere Brisbane 4034 Phone (07) 3265 5133 Fax (07) 3265 5781 A.C.N. 010 792 051 NOTE: Every care has been taken to ensure the accuracy in preparing this publication. No liability can be accepted...
