Summary of Contents for Cctung IP321
-

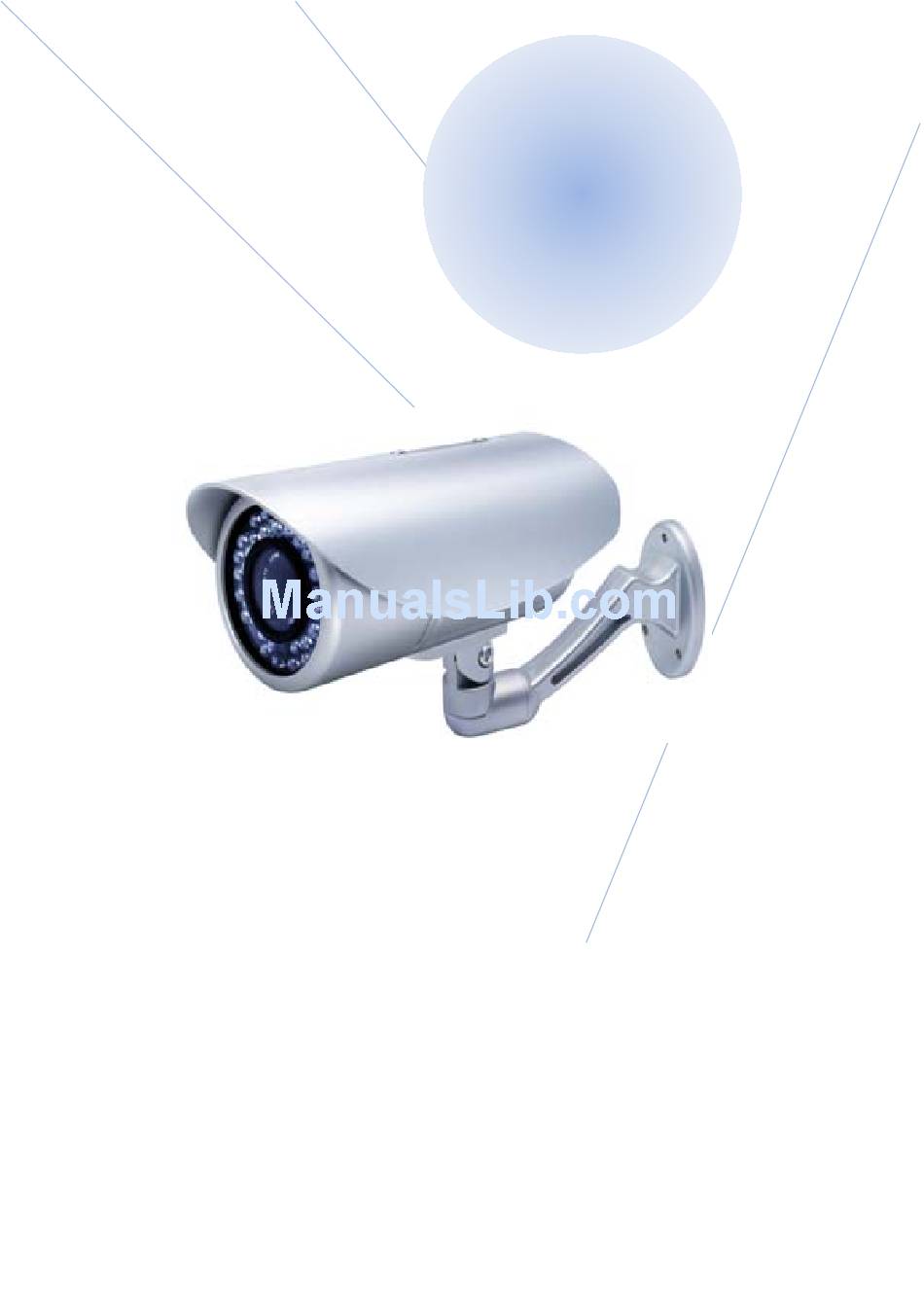

Page 1: Network Camera
User manual V1.1 Network Camera IP321/321W IP341/341W IP 351/351W IP361/IP361W... -
Page 2: Table Of Contents
CONTENTS Product Assurance ......................... 3 Approval Information ......................4 Infrared Night Vision ....................... 9 Installation ..........................10 Connecting the cameras ..................... 10 Camera Search tool Installation & Usage ................. 10 Review Images from the Network CAMERA ................16 Introduction of Main page ...................... 18 System Setting ......................... -
Page 3: Product Assurance
INTRODUCTION Thank you for your interest and support in our product and purchasing this 3GPP network camera. The camera can be accessed remotely, and controlled from any PC/laptop over the Intranet or Internet via web browser. The user-friendly installation procedure and intuitive web-based interface offer easy integration with your LAN environment or WiFi system. -
Page 4: Approval Information
Approval Information All our products meet the requirements of approval FCC or CE, and are granted the FCC or CE certification. They are authorized to bear FCC or CE mark. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant toPart15of the FCC ruled .These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 5 Maintenance Ensure that the camera and its power source have sufficient ventilation 2. Do not shake strike or drop the product 3. Keep the camera dry and dustless 4. Do not place the product near any magnetic objects 5. Avoid putting the product in places where there is constant temperature and humidity change 6.
-
Page 6: Main Features
MAIN FEATURES Easy Installation The camera comes with built-in wireless (IEEE802.11B/G) capability and a web server, therefore there is no need to install a driver .The setup CD-ROM includes the camera setup software, user manual and quick installation guide With industry standard automatic configuration-UPNP (Universal Plug and Play),your PC will discover and connect to your camera automatically .Once connected ,using a simple web browser you can see what the camera sees from anywhere in the world ! The camera can be either wall-mounted or ceiling-mounted using the supplied stand. - Page 7 video in the browser window. If not, then recheck your wireless network settings. Viewing Go to Menu: System Setup—Network—UPnP Camera If your router supports UPnP then Enable UPnP Port forwarding remotely with which allows camera to open ports on the router automatically so that UPnP the video streams can be sent out from your internal network.
- Page 8 3GPP Mobile Surveillance The camera provide the ability to view the cameras monitored through your mobile phone as a live video stream, it supports the telecommunications standard of 3GPP streaming format. All 3G Enable mobile devices and most 2G phones that support the streaming standard of 3GPP are compatible.
-
Page 9: Infrared Night Vision
Infrared Night Vision The camera utilizes 30infrared LED to provide high in dark environment. When the environment is dark, the LED will be opened automatically due to a photosensitive component, and the moving images will be changed to Black and White. User can monitor clearly the things within 15meters distance. -
Page 10: Installation
Installation Connecting the cameras Using a standard Ethernet network cable, connect the camera to your network (depending on your own setup, this may be to your router or switch). See figure below Connecting the adaptor with power, camera will detect automatically, and the ―power‖ status LED will blinks. - Page 11 2. Click on ―Install Software‖ and the following screen will be displayed. And click ―Next‖ and install:...
- Page 12 3. If you want to change the default files, click ―browse‖, otherwise click ―next‖. 4. Click ―install‖ Click Finish to end the installation...
- Page 13 6. You should now find an icon on the desktop. Double-click the ―Camera Search‖ icon on the Desktop to launch the program. The Camera Setup utility should automatically find your camera if is correctly connected...
- Page 14 【Search】: Click Search to search the cameras in LAN 【Setup】: Select the required camera and click Set up the network configuration 【Open】: Select the required camera and click Open to access the camera via a web browser 【Exit】:Click Exit to exit the Camera Setup window Notice: Select and double click to open the camera view via the web browser.
- Page 15 window of MS-DOS will be displayed, and then type “ipconfig/all”—press Enter, a screen similar to the one below will be displayed. 5. Take note of the following: IP Address Subnet Mask Default Gateway DNS Servers 6. Enter the details noted in step 5, and input relevant fields. IP address should be different. 7.
-
Page 16: Review Images From The Network Camera
NETWORK CAMERA SCREEN AND SETUP WINDOW Review Images from the Network CAMERA You can select one of the three ways to review pictures from the camera. nput the assigned IP address (or URL) of the camera on the Web Browser., for example, 192.168.1.239. - Page 17 3. Run manage device in video client software.
-
Page 18: Introduction Of Main Page
Introduction of Main page When access the network camera at the first time, IE will be prompted to install the ActiveX control. Users can install it with the following steps: Click the highlight in blue, the following page will appear. When you download and install the ActiveX control, refresh the page. - Page 19 Multi Devices select First add device in system setting, ―camera setting‖—―multi channel setting‖ Select four channel or nine channel Choose one camera, and then capture, record and image setup. Screen Size :Full screen ：640*480 ：320*240 ：160*120 Basic Setting ：mirror : flip ：frequency...
-
Page 20: System Setting
Image Setting You can adjust the Brightness, Contrast, Saturation and hues of the image, you also can restore to Default Image by Deflaut button. Press the Record button. ： snapshot ：Click Record, the color of the button will change to The default is mute, and click “Audio”... -
Page 21: System Status
System status System status includes system information, such as version No, status of memory card, Ethernet address and so on. Network Local network The camera is set up to obtain the IP address automatically (DHCP) by default. Should you may wish to assign the IP address manually, use the TCP/IP Setup page to enter the address details. -
Page 22: Port Settings
―IP configure Mode‖ Obtain an IP address automatically (DHCP): If your network supports a DHCP server (e.g. router) select this option to have the IP address is assigned automatically. If you select Obtain an IP address automatically you should select obtain a DNS Server address automatically. -
Page 23: Pppoe Account Configure
HTTP Port The default is 80. RTSP Port The default is 554, used for video. Control Port The default is 28001, offer control service, such as alarm, mirror, and image setting. Any changes of this page will lead to system reboot. Making sure all parameters correct before clicking the ―apply‖... - Page 24 Wireless access point scanning Search available wireless networks Enable wireless network Enable and disable wireless card. SSID SSID (Service Set Identifier): Manually type maximum 32 ACSII characters, can also choose wireless SSID searched. Wireless mode Access point (infrastructure): Through the selection of access point or router.
-
Page 25: Ddns Settings
WEP Key type: WEP 64bits or WEP 128bits WEP Key Index: Select the WEP key type. Either in 16 hex or ACSII characters optional WEP Key: Type the password WPA、WPA2 WPA Agorithoms: Select TKIP or AES ... -
Page 26: Upnp
Enable the Dynamic DNS function Click the Domain name server link, register domain name after account for it. ; If you already have a dynamic domain name, you can skip this step. Select your preferred DDNS service provider from 3322.org or Dyndns.org then click register ... -
Page 27: Camera Settings
Camera Settings Camera Settings OSD Timer Settings OSD Enable: Display date and time OSD Color: Display color of information Audio Settings Sample Rate: Users can select 16, 24, 32, 48 kbps to determine the quality of the audio ... -
Page 28: Stream Setup
Stream Setup RTSP Authentication: Eanable or disable RTSP stream authentication. You can use mobile phone to play the mobile stream from camera, but generally mobile phone do not support authentication, so we have to disable the RTSP authentication. Stream List: A stream list will be shown as below after clicking the stream name such as ―... - Page 29 access camera from internet. PC Stream Setup Bit Rate Mode: Set a fixed data bit stream Quality Mode: Set up image quality below, and after selecting one, bit rate of date will adjust automatically. Quality: Medium、Standard、Good、Detailed、Excellent，Medium selected ...
-
Page 30: Night Vision Settings
Night Vision Settings Camera has infrared LED lights, which can be opened automatically when camera check dark environment. Infrared light control When the environment is dark, the LED will be opened automatically due to a photosensitive component. Users also can select open or close the infrared LED manually. ... - Page 31 Choose relevant device. Device name: Give the name for identifying. IP address/Domain name: for the camera selected RTSP Port: for the camera selected Control port: for the camera selected User and password: for the camera selected...
-
Page 32: Alarm Settings
Alarm Settings Motion Detection settings If you need to use the alarm function via email, FTP server or SD card, please click the link of Alarm Configuration, FTP Mail or Recorder setting. Also there are three motion detection areas, area 1, area 2 and area 3 , you can choose three Areas at the same time. ... -
Page 33: Alarm Management
time to check linkage to the output ports in alarm Description of back of the device：Input ①② Output ③④ Alarm Management Alarm Enable: Enable or disable alarm function DO: Motion detection is transported to external alarm device, such as alarm light, alarm whistle ... -
Page 34: Periodic Record Schedule
Periodic Record Schedule Network camera can record the images or videos periodically. Store Size: set up the size of store files. MAX 99MB Valid Time: set up schedule Periodic sending Network camera can sent images periodically through FTP. ... -
Page 35: Smtp
File type: Select file types will be searched Time: Set the start time and end time. Click ―search‖, and the pictures or videos list will be displayed as following. Click ―download‖, save as local computer Click ―delete‖, delete the files in SD card ... -
Page 36: Ftp
SMTP Server Number: choose one mail server from the four options in the list. SMTP Server: Enable or Disable Email Subject: Title of the email about alarm Recipient: email address of receiver. Three selected Sender: email address of sender. ... -
Page 37: System Management
System Management Hostname Hostname: Set up a name identified. System Description: Description of place installed. Click ―save’ and finish. Notice: The information will displayed in search tool and milti channel client software, so that you can identify many cameras easily. -
Page 38: Time Settings
Input the user name Select the appropriate permissions in the user group, Three selected. Guest: see live video Operator: manage settings in system Administrator: the top authentication. Notice: admin can’t be deleted Input ―User Name‖ and ―Password‖ ... -
Page 39: Disk Management
Time Zone Settings: select the time zone NTP Settings: Enable NTP server： Input NTP time server NTP synchronization: Select NTP synchronization period Click ―save‖ and finish Disk Management Disk Management Disk Space Check Interval: Set up disk space check interval ... -
Page 40: Restore
Restore Export User Settings: Click ―Export‖, and export current settings to save Restore User Settings: Click ―browse‖， and select a back up files, and then Click ―Restore‖ to finish. Restore Factory Settings Notice: You can’t turn off the electronic power while restoring user settings and restore factory settings, otherwise, the camera will be damaged. -
Page 41: Specification
Outdoor Network Camera Model IP321W (wifi) IP341W(wifi) IP351W(wifi) IP361W(wifi) Specification IP321 (wired) IP341 (wired) IP351 (wired) IP361(wired) 1/3 CCD 1/3 CCD 1/3 CCD Image sensor 1/4 CMOS SHARP 420TVL SONY 420TVL SONY 520TVL Lens Standard CS-mount 6MM Pixels 410000 Camera Infrared LED 18 LEDs ø8 16mil... -
Page 42: Faq
If network camera can’t work, please refer to the solutions below. If the problem still exits, please contact to reseller. Questions Reason and solutions Search IP Address via client software Forget the IP address Restore factory settings ...
