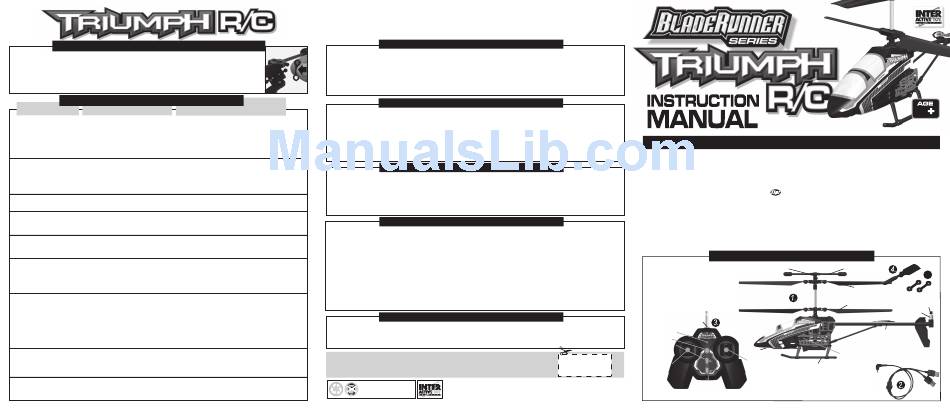

Interactive Toy BladeRunner Instruction Manual

REPLACING THE BALANCE BAR TO UPPER ROTOR CONNECTOR:
There is a small connector which connects the upper rotor to the balance bar. If this connector is lost, broken, or
disconnected, a replacement is included with your Triumph. Follow the replacement steps listed below.
1. The connector is attached by 2 simple ball joints. Remove the broken connector by pulling it away from
the axle of the main rotors. Once removed, the 2 ball joints will be exposed.
2. Install the new connector following the reverse of step 1. Gently but firmly press the connector into position,
connecting the upper rotor and the balance bar. The connector will just snap into the 2 ball joints as shown.
TROUBLESHOOTING
ISSUE: CAUSE:
Helicopter will not start, 1. Helicopter not turned on. 1. Turn helicopter on.
LED on helicopter is off. 2. Battery is not charged. 2. Charge internal helicopter battery.
3. Helicopter was not set to off during 3. Ensure helicopter is off and charge internal
charging. helicopter battery.
4. Rotors locked for overload 4. Slide helicopter's on / off switch to off, then switch
protection. on again.
Helicopter will not start, 1. Transmitter is not turned ON. 1. Turn transmitter on.
LED on helicopter is ON. 2. Radio link between the transmitter 2. Push left stick (UP/DOWN – throttle) completely to
and the helicopter is not initialized. UP, then back DOWN to initialize radio link.
3. Helicopter's battery is low. 3. Ensure helicopter is off and charge internal helicopter
battery.
Helicopter is flying too 1. You need to reduce the throttle. 1. Move the left stick (UP/DOWN – throttle) gradually
high. down.
Helicopter is flying too low. 1. Needs more power/throttle. 1. Move the left stick (UP/DOWN – throttle) up.
2. The helicopter's battery is low. 2. Ensure the helicopter is off and charge the internal
helicopter battery.
Helicopter doesn't hover. 1. The helicopter drifts 1. Push the right stick (FORWARD/BACKWARD)
forward and backward. backward/forward to compensate and hold the
helicopter in position.
Helicopter doesn't fly 1. The helicopter only flies backwards 1. Aerodynamics make backward flights more difficult
backwards briefly then spins to fly forward. than forward flight which is normal.
Practice flying backwards and control the left/right
turning motion of the helicopter to keep the tail
pointed in the direction you desire.
Helicopter doesn't move 1. The battery charge is getting low. 1. Turn the helicopter off and charge the internal
forward fast enough. 2. The tail rotor is damaged. helicopter battery.
3. The helicopter center of gravity is 2. Replace the tail rotor with new unit from the
no longer correct. replacement rotor kit (not included)
3. Use light adhesive tape to mount a clip on the front
bottom of the helicopter to add weight and adjust the
center of gravity. See also "Helicopter doesn't hover"
issue.
Helicopter always turns. 1. Trim control is not set correctly. 1. Adjust the trim control knob. See "FIRST-FLIGHT
2. The rotor blades have been -TRIMMING YOUR HELICOPTER" section.
damaged/ or experience wear 2. Replace the blades! It is hazardous to fly with
of use. damaged blades!
The main rotors spin erratically 1. The balance bar to upper rotor 1. Install a new connector using the instructions in the
causing unpredictable flight connector is either broken or "REPLACING THE BALANCE BAR TO UPPER
characteristics. missing. ROTOR CONNECTOR" section.
PLEASE! DO NOT RETURN THIS PRODUCT TO ANY RETAIL STORE!
For any questions or problems with this product please contact us at:Email: info@interactivetoy.com
Spinning propellers may cause severe injury to eyes, potentially causing blindness if they contact the eyes. Do not fly the Triumph helicopter near
or towards the face. Especially do not fly the Triumph helicopter near or towards the eyes. Interactive Toy Concepts Ltd. will not accept liability for
misuse of the Triumph helicopter causing any bodily injury, including, but not limited to eye injury.
Spinning propellers may cause extensive and possibly irreparable damage to television sets, light fixtures, and other furniture and accessories
commonly found at home and in other indoor locations. Do not fly the Triumph helicopter indoors. Especially do not fly the Triumph helicopter near
or towards any television sets, light fixtures, or any other furniture or household accessories. Interactive Toy Concepts Ltd. will not accept liability for
misuse of the Triumph helicopter causing any damage to television sets, light fixtures or any other furniture or household accessories.
CORRECTIVE ACTION:
Keep the BladeRunner Triumph helicopter away from face, eyes and hair at all times. Keep fingers away from moving rotors or propellers.
Do not fly the helicopter near or at other people or animals. Use caution when flying, make sure people around you know that you are
playing with the helicopter. Recommended for use outdoors and indoors. When flying outdoors avoid operating your BladeRunner Triumph
helicopter near power-lines, trees, or roof-tops. Do not fly your BladeRunner Triumph helicopter during windy conditions, rain or any other
form of precipitation or harsh weather. Also make sure that your BladeRunner Triumph helicopter does not have the opportunity to land in a
wet or hazardous area such as snow, water, mud, or rocks. When flying indoors, only fly in rooms without obstacles, breakable objects or
fans. The USB charging cable provided in this package is for charging the helicopter ONLY. Do not use any other source to charge the
helicopter. Do not attempt to overcharge your helicopter. Follow the charging instructions provided in this instruction manual.
Use only batteries recommended in this instruction manual. Do not mix old and new batteries. Do not mix alkaline, standard, lithium,
rechargeable, or different types of batteries. Do not use rechargeable batteries. Be careful to install the batteries with the correct polarity, as
indicated. Battery should be replaced by adults. Rechargeable batteries are only to be charged under adult supervision. Never leave a
battery unattended while it is being charged. Never leave a battery unattended in the presence of children. Non-rechargeable batteries are
not to be recharged. Rechargeable batteries are to be removed from the toy before being charged. Do not throw batteries into the fire.
Exhausted batteries are to be removed from the toy. The supply terminals are not to be short-circuited. The Triumph uses one 9-Volt (not
included).
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received including interference that may cause undesired operation.
Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's
authority to operate the equipment. The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user's authority to operate the equipment. Note: This equipment has
been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the FCC Rules. These Limits are
designed to provide reasonable protection against harmful interference in a residential installation. This generates, uses and can radiate
radio frequency energy and if not installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turn the equipment off and on, the user is encouraged to
try and correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna • Increase the
separation between the equipment and receiver • Connect the equipment to an outlet on a circuit different from that to which the receiver is
connected • Consult the dealer or an experienced radio/TV technician for help.
This radiocommunication device complies with all the requirements and limits of Industry Canada Standard RSS-310.
Operation is subject to the following two conditions: 1) This device may not cause harmful interference.
2) This device must accept any interference received, including interference that may cause undesired operation. Field Strength
and measurement distance: 27.145MHz – 61.35 dBµV/m at 3 meter. 49.860MHz - 59.69 dBµV/m at 3 meter.
Limited 30-day warranty
Product is warranted by Interactive Toy Concepts Limited against manufacturing defects in material
and workmanship under normal use for thirty (30) days from the date of purchase.
Warranty is validated upon receipt of proof or purchase and confirmation of UPC code.
Lithium Polymer Rechargeable
Batteries must be recycled or
disposed of properly.
Phone: Inside North America: +1-416-444-6873 Outside North America: 1-866-214-2220
Address: Interactive Toy Concepts, 17 Vulcan Street, Toronto, Ontario, Canada. M9W 1L3
IMPORTANT WARNINGS!
IMPORTANT SAFETY INFORMATION
IMPORTANT BATTERY INFORMATION
FCC NOTE: U.S. ONLY
Industry Canada Notice: Canada only.
Triumph and BladeRunner Series are registered trademarks of Interactive Toy Concepts © 2013 All Rights Reserved.
Manufactured by and distributed by Interactive Toy Concepts Ltd. Conforms to Safety Standards ASTM F963
Meets CPSC Safety Requirements.
Regulatory Requirements. Products and colors may vary. MADE IN CHINA.
The BladeRunner Triumph is a delicate machine, before removing it from the packaging please read the instructions!
Congratulations on the purchase of your BladeRunner Triumph helicopter. The BladeRunner Triumph brings advanced,
hobby-level flying technology to beginner, medium level or advanced flyers who are looking for great performance from
a relatively smaller helicopter. The BladeRunner Triumph has built-in advanced gyroscope technology for providing an
ultra-smooth flight and balance control assistance. The BladeRunner Triumph is available in 2 radio-control
frequencies: 27 MHz and 49 MHz. Do not throw away this instruction manual as it contains valuable information for
the operation of your helicopter as well as warranty information. The helpful tips in this pilot's manual will improve your
skill and enhance your experience. Look for these
UNPACKING YOUR BLADERUNNER TRIUMPH HELICOPTER:
To prevent damage during shipping, the BladeRunner Triumph is securely fastened in the package. Please ensure
that all of the tie-down and fastening locations are unfastened before attempting to remove the BladeRunner Triumph
from the package. Be very careful when removing the BladeRunner Triumph to prevent damaging the helicopter.
Warning: Spinning propellers can cause injury to people, animals and plants as well as damage to furniture and other
property. To avoid the risk of injury or damage, stay clear of spinning propellers. Always keep a minimum distance of
about 80 inches (2 meters) between the spinning propellers and people, pets, or other objects.
1. 1 x BladeRunner Triumph Helicopter
2. 1 x USB charging cable
3. 1 x Radio Controller & 1 x Antenna
4. 1 x Replacement Tail Rotor
5. 2 x Replacement Balance Bar to
Upper Rotor Connectors
ANTENNA
POWER ON LED
TRIM KNOB
ON / OFF SWITCH
RED LED LIGHT
LEFT STICK
Proof of Purchase
UP / DOWN
THROTTLE
PRO/NORMAL
SWITCH
INS-50418-130601-US Required (not included) One 9V alkaline battery (transmitter).
TM
TM
12
symbols for extra help.
PACKAGE CONTENTS:
REPLACEMENT TAIL ROTOR
BALANCE BAR
CONNECTOR
5.
UPPER ROTOR
REPLACEMENT CONNECTOR
LOWER ROTOR
TAIL ROTOR
TAIL MOTOR
TAIL BOOM
ON/OFF SWITCH
RIGHT STICK USB CHARGING CABLE
LANDING GEAR
Left/Right
Forward/Backward
1 circular
charging plug
2 USB
connectors
