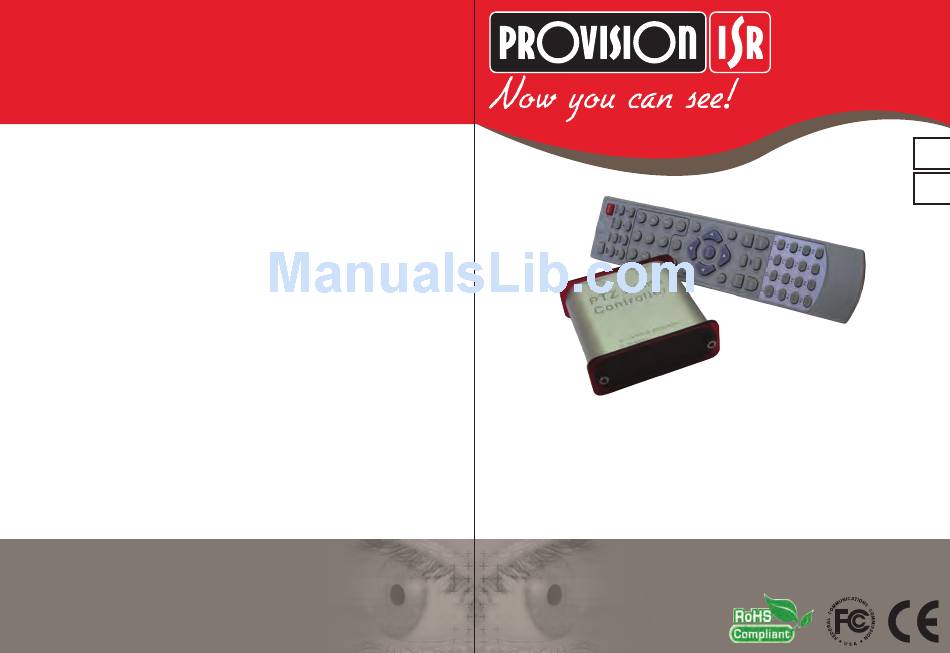

  • Page 1 PTZ Dome Controller (PTC-01) MANUAL English / Spanish www.provision-isr.com www.provision-isr.com...
  • Page 2 Content English Manual Manual en Español Note: WARNING In order to avoid electrical RISK OF ELECTRIC SHOCK DO NOT OPEN shock or re, please use Note: Only professional technicians is proper power according to allowed to open the front or back cover the manual.

  • Page 3: Table Of Contents

    Content Precautions 1.In case of smoke or strange smell originating from the camera, Precautions immediately disconnect the power and consult your vendor. Connecting the RS-485 to the camera 2.If the camera seems to be malfunctioning, disconnect it and consult Remote Control Function List your vendor.

  • Page 4: Connecting The Rs-485 To The Camera

    Connecting the RS-485 to the camera Remote Control Function List 1) Connect the 2 cables (+/-) of the camera to the B- and A+ of the Up/Down/Left/Right - Control the pan and RS485 on the PTZ Dome Controller. 2) Connect the 12VDC power supplier to the PTZ Dome Controller. tilt of camera.

  • Page 5: Protocol And Baud Rate

    Protocol and Baud rate DELETE – To clear a preset point – press You can check current baud rate and protocol or change them. You can choose between Pelco/D or Pelco/P protocol and select and hold 3 seconds. between AUTO – start auto cruise mode. baud rate 1200/2400/4800/9600.

  • Page 6: Camera Id - Selecting Camera

    Camera ID – Selecting camera To switch between presets press SHOT, Then press the desired preset number. When powered on, the display will mark the camera’s ID A001, Example - “ A001” To move to the preset you programmed “A“ = Represents the cameras ID address, means it shows you that - Press SHOT on the remote and then the desired preset number.

  • Page 7: To Delete A Preset Or A Home Point Or Left/Right Limit

    - Then press A for settings first limit. - The default time between preset to preset (Including the camera’s - Move the camera to the other location you want to set as second movement until the preset) is 8 seconds. limit and repeat the last 2 lines using B button instead of A The speed of camera movement and the stop time (dwell time) between preset to preset are adjustable.

  • Page 8: Dwell Time

    For setting up the same time to all presets Example: To set up a pattern that will move between presets 1-5-3 in a loop. - Press Preset button for 3 seconds to set preset number 242. PATTERN (3sec’) – PRESET – 1 – PRESET – 5 – PRESET - Press Preset button for 3 seconds to set preset number 245.

  • Page 9: For Setting Up Different Time To Each Preset

    For setting up different time to each preset Example to set dwell time for preset 1 – 8 seconds, for preset 5 - 4 seconds, for Preset 2 – 2 seconds. - Press Preset button for 3 seconds to set preset number 242. Preset (3 sec’) 242 –...
