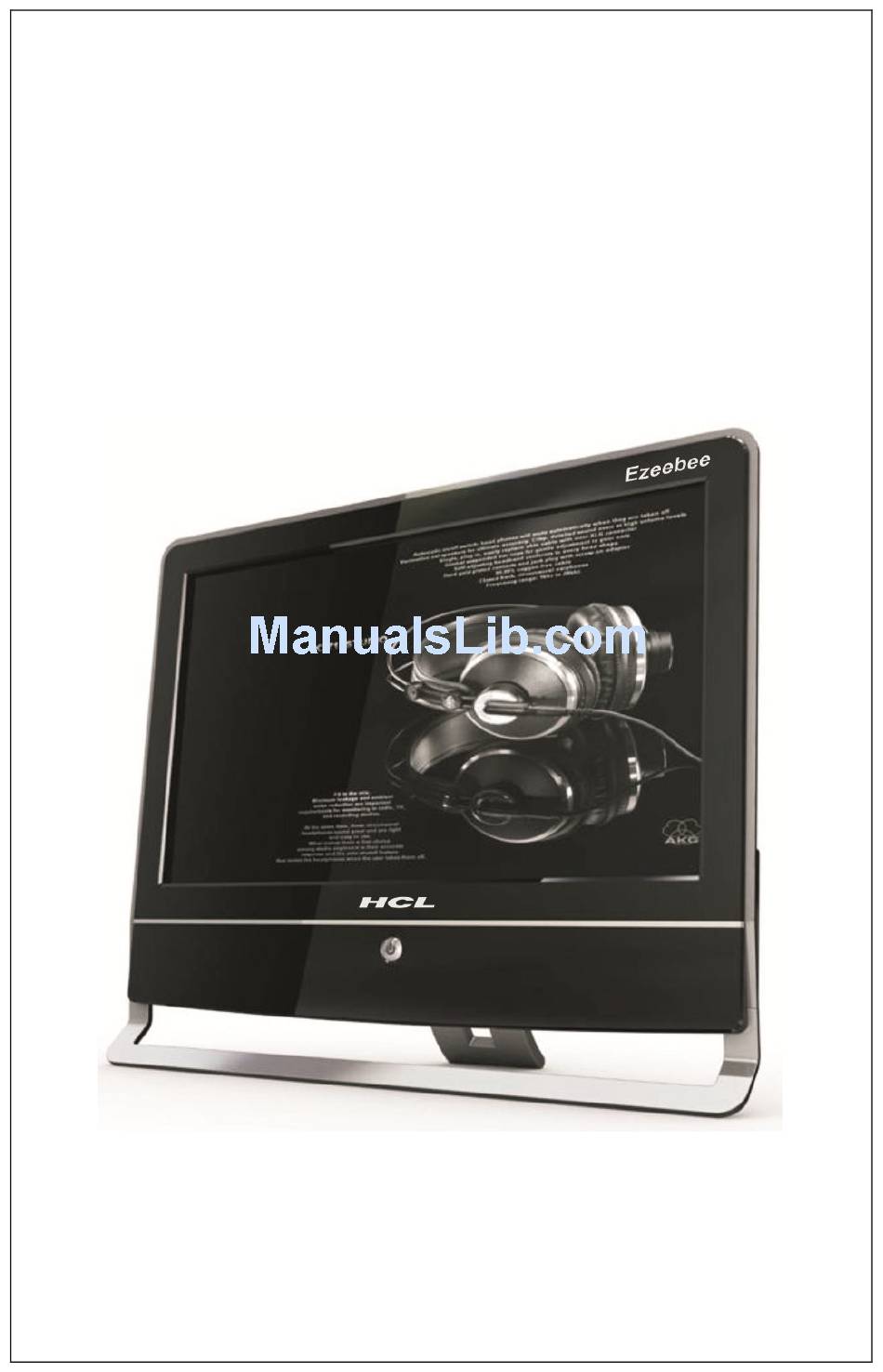

Page 1: User Manual
User Manual Rev 1.0... -
Page 2: Table Of Contents
CONTENTS Copyright Notice ................3 Safety Instructions ................3 Warning .................... 3 Appearance ..................4 Side View ..................7 When Put on the Desk ..............8 Mainboard Specifications ..............8 System Specifications ............... 9 Thank you for choosing this PC. The PC series is the best choice for your personal computing. -
Page 3: Copyright Notice
Copyright Notice The material in this document is the intellectual property of the company. We take every care in the preparation of this document, but no guarantee is given as to the correctness of its contents. Our products are under continual improvement and we reserve the right to make changes without notice. -
Page 4: Appearance

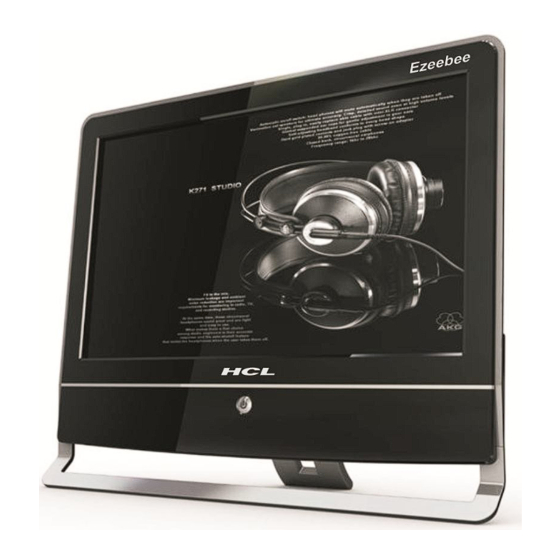

Appearance Front Panel WebCam A built-in WebCam and microphone enabled picture taking, video recording, video and other interactive applications. Microphone A microphone for video chatting. Power Button/Power LED Press the button to start/shut down the system. LCD Display 18.5”TFT LCD display, with optimal resolution: 1366 X 768 5~9. - Page 5 activated. Rear Panel * To ensure safety, please connect the power supply transformer to PC before connecting the power cord to the socket. Heat Dissipation Hole The heat dissipation hole is designed for the cooling of the device. To ensure proper ventilation, please do not cover the hole. Power Outlet The power outlet enables the conversion of AC into DC via a power transformer to provide the PC with power supply.
- Page 6 Microphone Slot (Pink) For the connection of microphone. USB Slot USB (Universal Serial Bus) slot is for the connection of keyboard, mouse and other USB-compatible devices. Internet Slot Standard RJ-45 slot for LAN access; you may connect the network cable directly to the slot. Color LED Status Specification...
-
Page 7: Side View
Side View Exit Button/ DVD LED Indicator Press the button to activate the DVD driver. If the DVD LED indicator is on, the computer is reading from or writing into CD/DVD.Eject hole available near exit button Slot-IN Type DVD Drive USB Ports: 2 USB (Universal Serial Bus) ports are for the connection with the keyboard, mouse or other USB-compatible devices. -
Page 8: When Put On The Desk
When Put on the Desk To ensure that your PC is put stably on your desk, please pull the supporting rack behind the display to the installation position and adjust the angle to 0-20 degrees from the desk as appropriate for your need. -
Page 9: System Specifications
Dimensions 430 mm (W) x 85 mm (H) System Specifications Item Specifications Product Code Ezeebee LCD Display 18.5”TFT LCD display, with maximal resolution: 1366 X 768 Input/Output Slots 1 PS/2 mouse slots 1 PS/2 keyboard slots ... -
Page 10: Power Cord
Inside the Packaging Box * Please contact us immediately if any of the above accessories are missing or damaged. * The above pictures are for reference only. The accessories may vary depending on the specific model you choose. Power Supply Power Cord Adapter Keyboard...
