SVSi N4321 Quick Start Manual

N4321 QUICK START
Congratulations on the purchase of your N4321 Audio Transceiver — part of SVSi's
family of Networked AV products. An SVSi Networked AV system comprises video and/
or audio encoders, decoders, and other network accessories including recording solu-
tions, multi-window processing, audio-only end points, and system controllers. The sys-
tem allows you to distribute HD Video, Audio and Control across a gigabit Ethernet
network. Options are available for recording, playback, and wall processing.
1 2
1
1) 12VDC Input (not needed with PoE)
2) Status Indicators
3) RJ45 Auto-Sensing Gigabit Ethernet
Switch Port — PoE
4) RJ45 Auto-Sensing Gigabit Ethernet
Switch Port
Balanced or unbalanced audio input coming into the N4321 AUDIO IN port is converted
into network packets for output through the RJ45 port. Units can be stacked to deliver
low-latency multi-channel audio over a house network or a physically separate network
(using the two auto-sensing gigabit Ethernet ports). One Ethernet port is Power Over
Ethernet (PoE) for use with a PoE switch, eliminating the need for an external power
supply.
Since control is the same as SVSi's video matrix, video and audio matrices can be com-
bined and routed using the same controller for the ultimate experience in digital media
distribution. The N4321 is fully compatible with other SVSi N-Series products and legacy
video products.

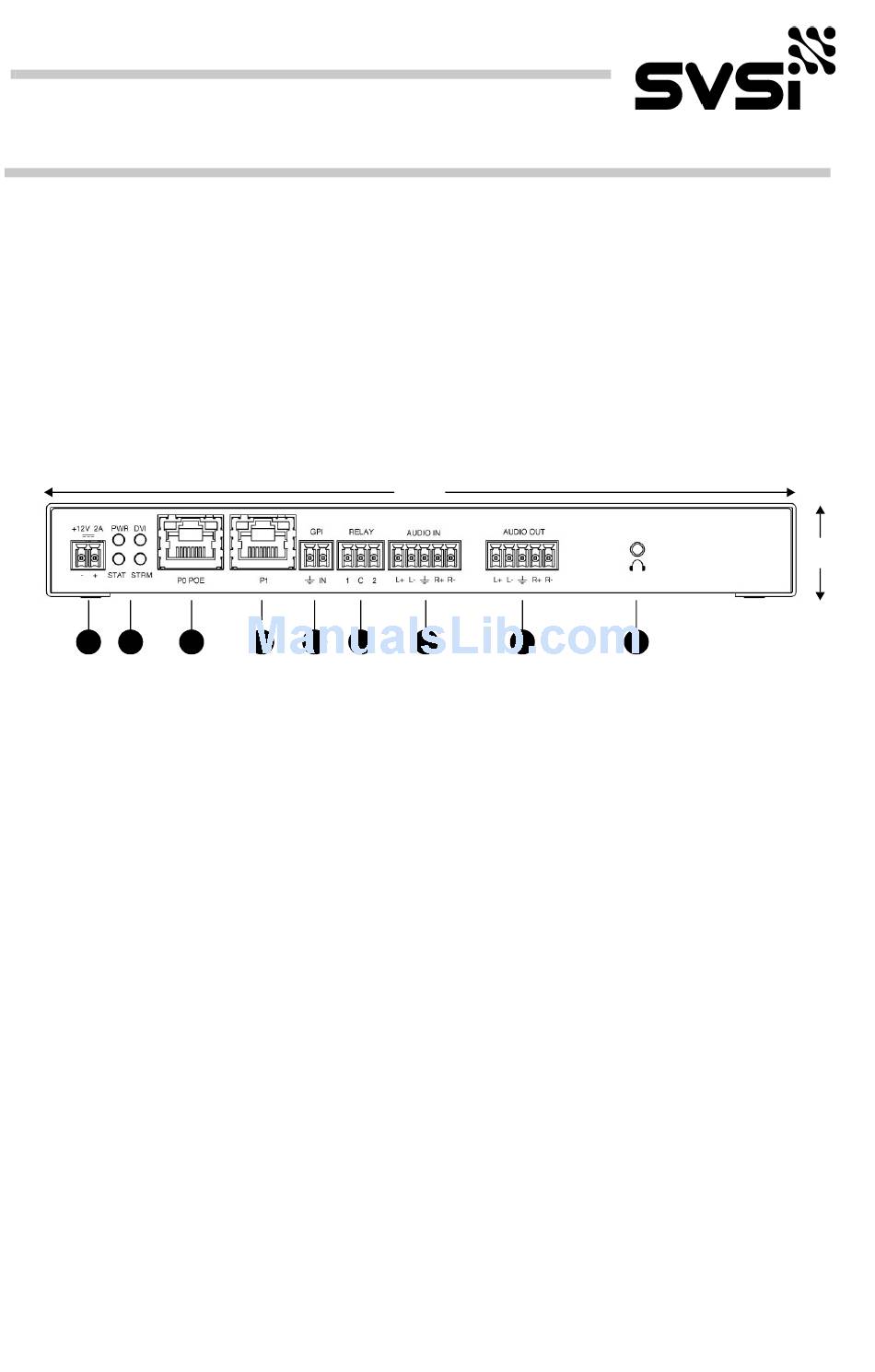

N4321 ATR Rear View
3 4 5
7.888
6 7 8
5) General Purpose Input
6) 2 Channel Relay
7) Analog Audio Input Connection
8) Analog Audio Output Connection
9) Headphone Jack (Audio-Over-IP Out)
9
1.050
