FPS Image AnyPlace IA-200 User Manual

High performance video signal processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Image AnyPlace IA-200
User's Manual
Version 1.01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Image AnyPlace IA-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FPS Image AnyPlace IA-200

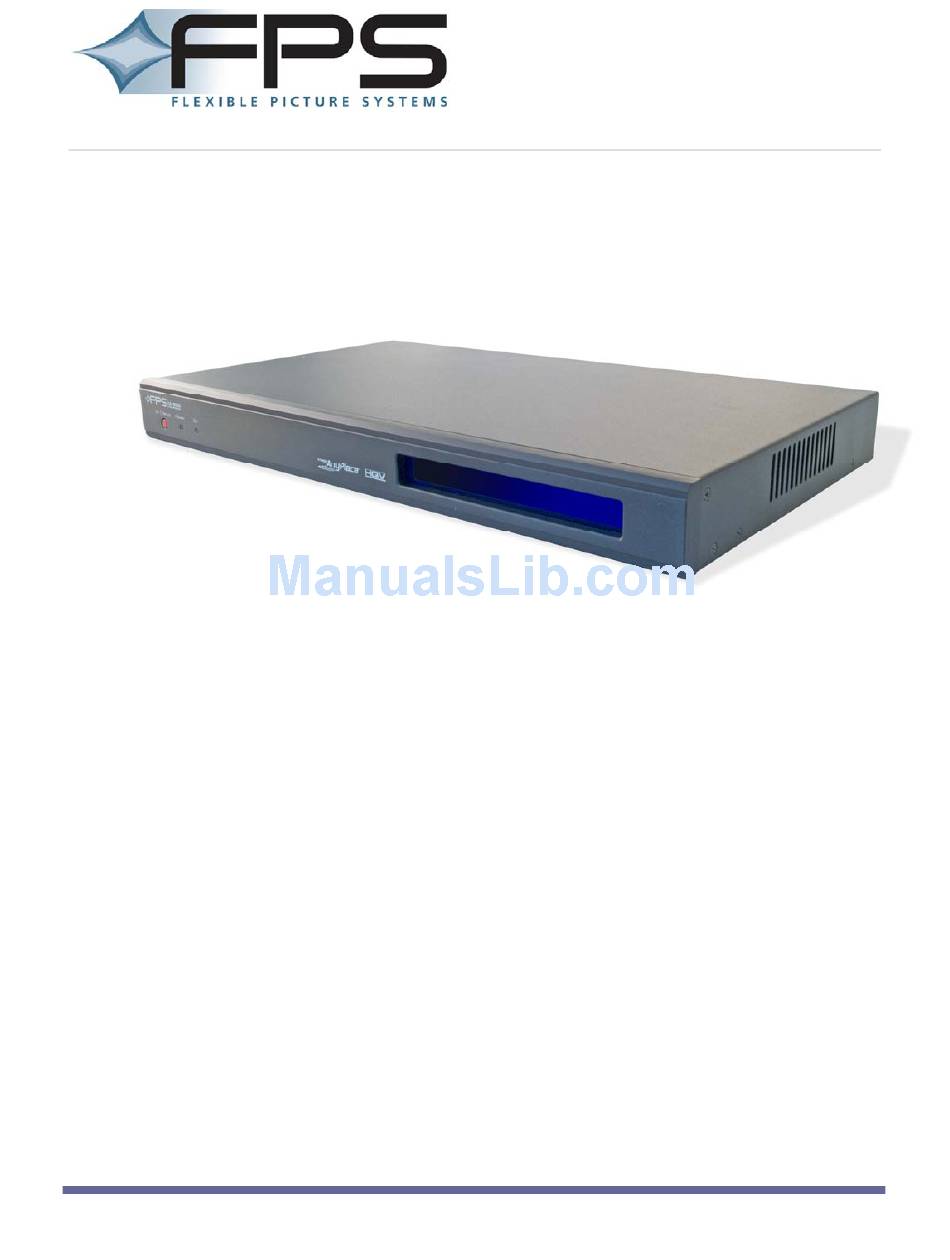

  • Page 1 Image AnyPlace IA-200 User’s Manual Version 1.01...
  • Page 2 User’s Manual 0020D1.01 Image AnyPlace IA-200 Copyright Information Copyright © 2009 Flexible Picture Systems All Rights Reserved. The information contained in this document is protected by copyright. All rights are reserved by Flexible Picture Systems. Product names mentioned herein are used for identification purposes only and may be trademarks of their respective companies.

  • Page 3: Contact Information

    Image AnyPlace User’s Manual 0020D1.01 Contact Information Address Flexible Picture Systems 174 West Beaver Creek Rd Richmond Hill, ON L4B 1B4, Canada Tel: 905-707-1664 Fax: 905-707-2304 Website http://flexiblepicturesystems.com/ Technical Support E-mail: support@flexiblepicturesystems.com © Flexible Picture Systems Page 3 of 49...

  • Page 4: Revision History

    User’s Manual 0020D1.01 Image AnyPlace IA-200 Revision History Version Date Description 1.01 March 8, 2009 Initial release. Page 4 of 49 © Flexible Picture Systems...

  • Page 5: Table Of Contents

    Image AnyPlace User’s Manual 0020D1.01 Table of Contents Preface ............................7 Limited Warranty ........................... 7 Return Material Authorization (RMA) .................... 7 FCC Statement ............................7 Safety 8 Disconnecting Instructions ........................11 1 Introduction...........................12 1.1 General Description........................12 1.2 Product Variations and Nomenclature ..................14 1.3 Features and Specifications ......................
  • Page 6 User’s Manual 0020D1.01 Image AnyPlace IA-200 6.1 Aspect Ratio Treatments ......................38 6.1.1 Supported Aspect Ratios....................38 6.1.2 Aspect Ratio Treatments Objectives................. 39 6.1.3 Input and Output Combinations..................40 7 Input Modes Supported .......................45 8 Latency Considerations.......................47 8.1 Low Latency Mode Configuration....................47 9 Glossary ..........................49...

  • Page 7: Preface

    Image AnyPlace User’s Manual 0020D1.01 Preface These sections provide information you must read before using the IA-200. Limited Warranty All Flexible Picture Systems products are designed and tested to the highest standards and backed by a one year parts and labor warranty. Warranties are effective upon the first delivery date to the customer and are non-transferable.

  • Page 8: Safety

    User’s Manual 0020D1.01 Image AnyPlace IA-200 against harmful interference in a residential/office installation. The equipment generates and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.
  • Page 9 Image AnyPlace User’s Manual 0020D1.01 Important Safety Label Information A label indicating important safety information is located on the bottom surface of the IA-200. Important Safety Instructions General • Read these instructions. • Keep these instructions. • Take note of all warnings. •...
  • Page 10 User’s Manual 0020D1.01 Image AnyPlace IA-200 Do not use this unit near water; for example, near a bathtub, washbasin, kitchen sink or laundry tub, in a wet basement, or near a swimming pool, water spa, or the like. Heat Do not use this unit near sources of heat, including heating vents, stoves, or other appliances that generate heat.

  • Page 11: Disconnecting Instructions

    Image AnyPlace User’s Manual 0020D1.01 Route power supply cords so that they are not likely to be walked on or pinched by placing items upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product. Overloading Do not overload wall power outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

  • Page 12: Introduction

    1 Introduction General Description The Image AnyPlace IA-200 is a high performance video signal processor intended for use in Pro AV applications. In addition to top ranked scaler features, the IA-200 adds Keystone Correction capability (i. e. the ability to correct for the distortion caused by projecting off-axis onto a flat screen).

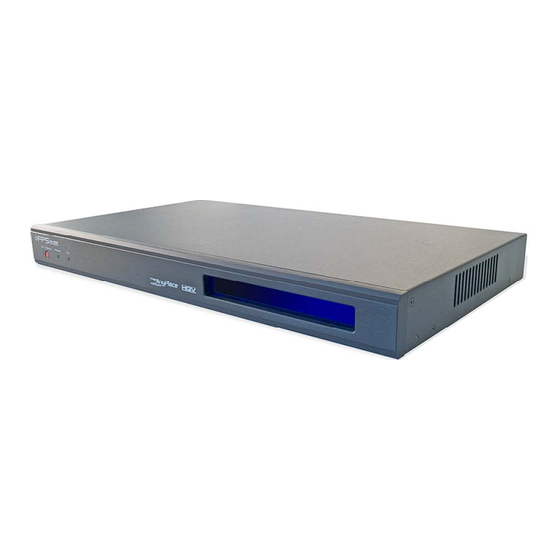

  • Page 13 Image AnyPlace User’s Manual 0020D1.01 Figure 1: IA-200 Video Processor In addition to its professional grade Scaler features and its unique Keystone Correction and Geometry Correction and Edge Blending, the IA-200 adds HQV technology video processing features to all video signals. Initially conceived in the military research labs of Lockheed Martin and then refined and commercialized by Teranex and Silicon Optix, HQV video processing has been the technology of choice of film and video professionals in broadcast and studio environments for years.

  • Page 14: Product Variations And Nomenclature

    User’s Manual 0020D1.01 Image AnyPlace IA-200 Figure 2: Typical IA-200 Application IA-200 is controlled through a simple 20-button IR remote control unit (see Figure 5). Simple navigation keys bring access to a simple, yet elegant OSD (On Screen Display). Video input device selection is accomplished using dedicated IR remote buttons.

  • Page 15: Features And Specifications

    Image AnyPlace User’s Manual 0020D1.01 the blend regions, and downloads them to the IA-200 hardware). Edge Blending Utility 200 access is enabled through a serial number based key, which is permanently stored (in the manufacturing process or by field upgrade) on the IA-200 hardware. If you have an IA-200 or IA- 200_EX and you would like to add Edge Blending, you can purchase an IA-200_EB_Key.

  • Page 16: Controls

    User’s Manual 0020D1.01 Image AnyPlace IA-200 o Temporal-Recursive Noise Reduction o Codec Noise Reduction o Fully-automatic cadence detection and correction o Detail Enhancement • Advanced motion-adaptive de-interlacing 1.3.3 Controls IA-200 may be remotely controlled over 3 different interfaces, as well as the user operated IR Remote.

  • Page 17: Installation And Operating Environment

    Image AnyPlace User’s Manual 0020D1.01 2 Installation and Operating Environment Setting up Your IA-200 The IA-200 Quick Start Guide is intended to provide a quick list of steps that you can follow to get things working in 95% of installations. Please refer to the Quick Start Guide for basic installation instructions.

  • Page 18: Ia-200 Control Tool

    User’s Manual 0020D1.01 Image AnyPlace IA-200 communications and control layer that enables each IA-200 application to quickly identify that a specific IA-200 is attached and ready to communicate. Basic details on how to quickly connect are provided in the Quick Start Guide. In depth explanation is provided in the Router Manager Manual.

  • Page 19: User Interface

    Image AnyPlace User’s Manual 0020D1.01 3 User Interface IR Remote Control All IA-200 user interface controls are accessed via infrared (IR) remote control. The remote has following groups of controls: • OSD Navigation (including the On/Setup Key) • Video Source Selection •...

  • Page 20: Osd Navigation Buttons

    User’s Manual 0020D1.01 Image AnyPlace IA-200 3.1.1 OSD Navigation Buttons These are the OSD navigation buttons on the IR remote. • The On/Setup (indicated as Power) button toggles the IA-200 between On and Setup modes of operation (as described in Operational Modes).
  • Page 21 Image AnyPlace User’s Manual 0020D1.01 3.2.1.1 On Mode On Mode is entered by toggling the On/Setup button on the IR remote. A brief transition of about 3 seconds occurs when On Mode is entered. During this transition period, the 24 x 2 LCD Display indicates IA-200 Please Wait...
  • Page 22 User’s Manual 0020D1.01 Image AnyPlace IA-200 Table 2: Setup Parameters Parameter Description* OUT = XXX ## Hz Cycles through all of the available IA-200 output modes (see Table 3 for a list of Output Resolutions). LCD Brightness = On (Off)
  • Page 23 Image AnyPlace User’s Manual 0020D1.01 Output Mode Comments SXGA 50 Hz (1280 x 1024) VESA Standard SXGA+ 60 Hz (1400 x 1050) VESA Standard SXGA+ 50 Hz (1400 x 1050) VESA Standard 1080p 60 Hz (1920 x 1080) SMPTE Standard 1080p 50 Hz (1920 x 1080) SMPTE Standard 1080p 48 Hz (1920 x 1080)
  • Page 24 User’s Manual 0020D1.01 Image AnyPlace IA-200 IP address. The left key will highlight the rightmost octet; the right key will select the leftmost octet. The up/down keys may then be used to increase/decrease the value of the octet. Subsequent presses of the left/right key highlight the octet immediately to the left/right. The up/down keys may then be used to increase/decrease the value of the octet.

  • Page 25: On Screen Display

    Image AnyPlace User’s Manual 0020D1.01 4 On Screen Display OSD Menu Structure The OSD is the primary way of controlling and selecting functions in the IA-200 system. When first powered up, the IA-200 is in a Factory Default configuration, with English as the OSD language, Component Video as Video Input, and S/PDIF Audio as Audio input.
  • Page 26 User’s Manual 0020D1.01 Image AnyPlace IA-200 Description Functionality Icon On Icon Off Enter this submenu to view information about the system (input resolution, horizontal and vertical frequency, output Info resolution, horizontal and vertical frequency, firmware revision, FPGA revision, serial number, and IP address).
  • Page 27 Image AnyPlace User’s Manual 0020D1.01 OSD Menu Level Comments Level 1 Level 2 Level 3 Level 4 Level 5 The higher the setting, the sharper the image (edge 0 - 100, Sharpness enhancement). 50 (default) The lower the setting, the lower the sharpness.
  • Page 28 User’s Manual 0020D1.01 Image AnyPlace IA-200 OSD Menu Level Comments Level 1 Level 2 Level 3 Level 4 Level 5 The higher the setting, the 0 - 360, more greenish the picture. The lower the setting, the more (default) purplish the picture.
  • Page 29 Image AnyPlace User’s Manual 0020D1.01 OSD Menu Level Comments Level 1 Level 2 Level 3 Level 4 Level 5 Fills the Output Screen by cropping the image (maintaining aspect ratio). • 4:3 input and 4:3 output – Grayed out, no action •...
  • Page 30 User’s Manual 0020D1.01 Image AnyPlace IA-200 OSD Menu Level Comments Level 1 Level 2 Level 3 Level 4 Level 5 Squeezes 16:9 pre-stretched inputs to 4:3 presentation • 4:3 input and 4:3 output – grayed out, no action • 4:3 input and 16:9 output –...
  • Page 31 Image AnyPlace User’s Manual 0020D1.01 OSD Menu Level Comments Level 1 Level 2 Level 3 Level 4 Level 5 Adjusts the horizontal position Picture of image (default setting Horizontal 0 - 400 Position depends on the input video/graphics source) Automatically centers the Autosync image for graphic inputs 0 - 200,...
  • Page 32 User’s Manual 0020D1.01 Image AnyPlace IA-200 OSD Menu Level Comments Level 1 Level 2 Level 3 Level 4 Level 5 Displays test pattern images on screen, with OSD off. Up- and down-arrows navigate user through all 10 available test patterns. Left-arrow key returns user to Test Pattern menu.
  • Page 33 Image AnyPlace User’s Manual 0020D1.01 OSD Menu Level Comments Level 1 Level 2 Level 3 Level 4 Level 5 Input H Shows the source H frequency Frequency Input V Shows the source V frequency Frequency Output Shows the display mode Mode Output Shows the display resolution...
  • Page 34 User’s Manual 0020D1.01 Image AnyPlace IA-200 OSD Menu Level Comments Level 1 Level 2 Level 3 Level 4 Level 5 Top Left Corner H deviation in + pixels Top Left Top Left Corner V deviation in + pixels Reset Resets Top Left Corner...
  • Page 35 Image AnyPlace User’s Manual 0020D1.01 OSD Menu Level Comments Level 1 Level 2 Level 3 Level 4 Level 5 Automatically sets up Noise Auto Reduction according to Auto Processing Bias Enables specific adjustment TRNR of Temporal Recursive Noise Reduction Enables specific adjustment of Codec Noise Reduction Selects amount of HQV Auto Bias...

  • Page 36: Keystone And Geometry Correction

    User’s Manual 0020D1.01 Image AnyPlace IA-200 5 Keystone and Geometry Correction Operation of Keystone Control Keystone Control is activated by selecting the Keystone sub-menu from the Projection sub-menu in the Advanced main menu. Keystone Control operates significantly differently from the IA-100 predecessor product’s Keystone Control.
  • Page 37 Image AnyPlace User’s Manual 0020D1.01 Warp Maps may be selected with the IR remote (using the dedicated eWarp button or by navigating to the menu.) User Warp Maps may also be selected using the Control Protocol. User Warp Maps are activated by selecting the User Warp Map Selection sub-menu from the Projection sub-menu in the Advanced main menu.

  • Page 38: Aspect Ratio Treatment

    User’s Manual 0020D1.01 Image AnyPlace IA-200 6 Aspect Ratio Treatment Aspect Ratio Treatments The IA-200 provides several different aspect ratio treatments. The operation mode of these treatments depends on the aspect ratio of the input channel and the output display.

  • Page 39: Aspect Ratio Treatments Objectives

    Image AnyPlace User’s Manual 0020D1.01 Inputs considered to have 16:9 aspect ratio are as follows: • Computer Graphics signals with a 16:9 aspect ratio appearing on the DVI and Analog RGB inputs • HDTV signals (480p, 720p, 1080i, 1080p) appearing on the Component input •...

  • Page 40: Input And Output Combinations

    User’s Manual 0020D1.01 Image AnyPlace IA-200 6.1.3 Input and Output Combinations Table 6 Table 9 present the five aspect ratio treatments over the four different combinations of Input Aspect Ratio and Output Aspect Ratio. Table 6: Aspect Ratio Treatments for 4:3 Input with 4:3 Output...
  • Page 41 Image AnyPlace User’s Manual 0020D1.01 Table 7: Aspect Ratio Treatments for 4:3 Input with 16:9 Output OSD Menu Name Description Standard 4:3 input signals are shown in a pillar box on the 16:9 output display Full Screen 4:3 input is linearly stretched horizontally to fill the 16:9 screen Crop Top and bottom of image are cropped Anamorphic...
  • Page 42 User’s Manual 0020D1.01 Image AnyPlace IA-200 OSD Menu Name Description Flexview 4:3 input signals are non-linearly stretched in the horizontal direction to fill 16:9 output displays. Horizontal and vertical scaling is equal in the middle, more horizontal stretching towards left and right sides to fill 16:9 outputs Squeeze Grayed out.
  • Page 43 Image AnyPlace User’s Manual 0020D1.01 OSD Menu Name Description Anamorphic Grayed out. No action. Flexview Grayed out. No action. Squeeze 16:9 Input is squeezed to 4:3. Theater Scope Vertically distorted 16:9 image will be stretched to 16:9 by Anamorphic lens. Table 9: Aspect Ratio Treatments for 16:9 Input with 16:9 Output OSD Menu Name Description...
  • Page 44 User’s Manual 0020D1.01 Image AnyPlace IA-200 OSD Menu Name Description Anamorphic Grayed out. No action. Flexview Grayed out. No action. Squeeze 16:9 Input will be squeezed and pillar boxed. Theater Scope Vertically distorted 16:9 image will be stretched to 2.35 by Anamorphic lens.

  • Page 45: Input Modes Supported

    Image AnyPlace User’s Manual 0020D1.01 7 Input Modes Supported Table 10: Input Modes Supported Input Timing Format Input Video Source 480i (NTSC) 720x485 60Hz 576i (PAL) 720x576 50Hz 576i (SECAM) 720x576 50Hz 480p 720x483 60Hz 576p 720x576 50Hz HDTV 720 PROGRESSIVE 1280x720 60Hz HDTV 720 PROGRESSIVE...
  • Page 46 User’s Manual 0020D1.01 Image AnyPlace IA-200 Input Timing Format Input Video Source UXGA 1600x1200 60Hz WUXGA 1920x1200 60Hz QXGA 2048x1536 60Hz MAC II Normal 13in 640x480 67Hz MAC II Normal 16in 832x624 75Hz MAC II Normal 19in 1024x768 75Hz MAC II Normal 21in...

  • Page 47: Latency Considerations

    Image AnyPlace User’s Manual 0020D1.01 8 Latency Considerations All IA-200 variations necessarily introduce some latency between the input and output. The amount of latency varies greatly, depending on which features are selected. There are two factors influencing the latency: 1) Choice of Latency mode and 2) Relative Frame rate between input and output.
  • Page 48 User’s Manual 0020D1.01 Image AnyPlace IA-200 There are two latency modes, Low Latency and Extra Low Latency. Low Latency mode achieves its effect by bypassing the HQV advanced video functions. This means that Noise Reduction, Advanced De-interlacing and Cadence detection will not work in Low Latency mode. In practice, for most ProAV applications Low Latency is more important than video noise reduction, so Low Latency is the Default mode.

  • Page 49: Flexible Picture Systems

    Image AnyPlace User’s Manual 0020D1.01 9 Glossary Term Description ASCII American Standard Code for Information Interchange Codec Noise Reduction Color Space Converter Data Communications Equipment DHCP Dynamic Host Configuration Protocol Digital Video Interface FPGA Field Programmable Gate Array HDMI High Definition Multi-media Interface HDTV High-Definition Television Hollywood Quality Video...
