Summary of Contents for KOREL KMA1-12GRC

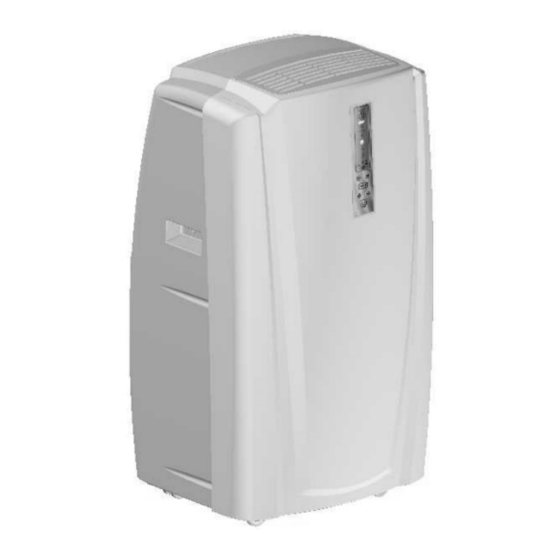

- Page 1 INSTALLATION &OPERATIONS MANUAL PORTABLE AIR CONDITIONER KOREL AIR CONDITIONING KMA1-12GRC FOR FUTURE REFERENCE...
-
Page 2: Wiring Diagram
Wiring diagram Cooling Heating HEATER ONLY THE UNIT WITH HEATING MODE HAS HEATER... -
Page 3: Table Of Contents
The Wind Blowing Out, But The Cooling Effect Is Bad Causes Solutions CONTENTS Mistakes in temperature setting. Set a proper temperature, setting temperature should be lower than Brief Introduction ............ambient temperature. The air filter is blocked by dust. Clean the air filter. Technical Specifications.......... -
Page 4: Brief Introduction
Cleaning The Unit 1.For the purpose of safety, please turn off the Brief Introduction air conditioner and cut off the power supply . 2.Wipe the unit with dry cloth . 3.If the unit is very dirty, please wipe with This mobile air conditioner is a new generation air conditioner which is wet cloth dipped by cold water . -
Page 5: Technical Specifications
Window kit installation Your window kit has been design to fit most standard vertical and horizontal AM-H09A4/BR KMA1-12GRC Model window applications. However, it may be necessary for you to improvise or modify some aspects of the installation procedure for certain types of window. -
Page 6: Parts Description
Parts Description Duct mount instruction 1. Put one side of duct to the exhaust air outlet of mobile air Air outlet conditioner, According fix it with unit correspondingly, then turn right, Push it downwards, make sure that it is fixed thoroughly. -
Page 7: Accessories
Accessories Deal with water condensate Parts Parts name Quantity When the inside water tank is full, the water full display is lighted. Down drain outlet Duct 1. Open the drain cover and extract it upwards. 2.put one container or drain cover under the drain pipe, take off the plug on the drain pipe and let Adaptor out the condensing water. -
Page 8: Control Panel
Control Panel Function buttons Before starting the unit 1.ON/OFF button 1) Select a suitable location, make sure the unit is near to an electrical outlet. Press this button to make the unit run or stop. 2) Install the flexible exhaust hose and the adjustable window slider kit. 2.
