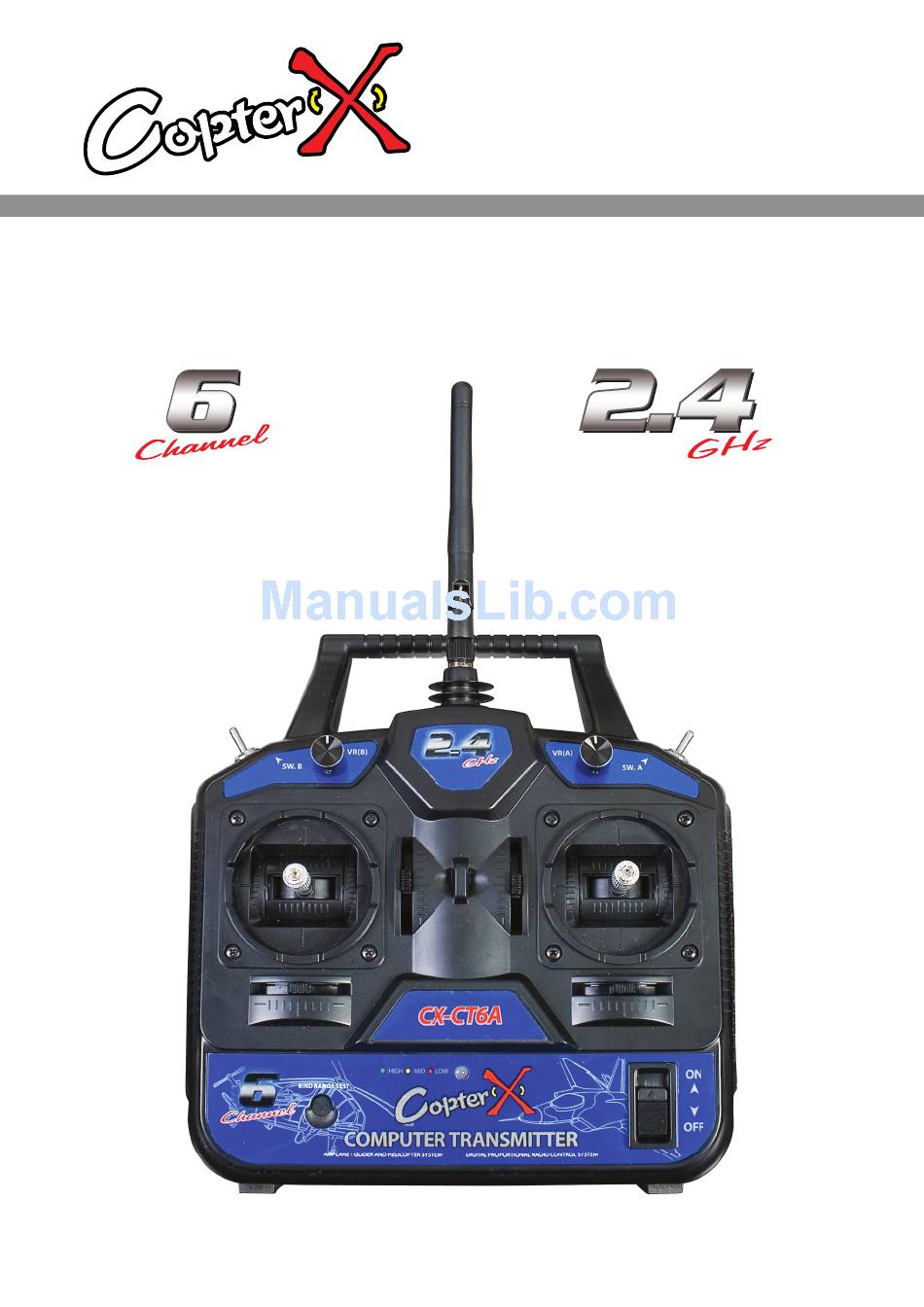

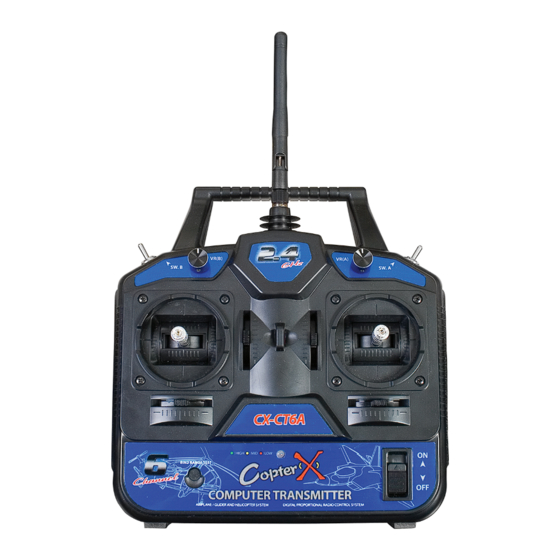

- Page 1 CX-CT6A Computer Transmitter INSTRUCTION MANUAL 6 channel Radio Digital Propotional Control System Radio Control System www.copterx.com Copyright © 2008 KY MODEL Company Limited.
-
Page 2: Table Of Contents
CX-CT6A Computer Transmitter MENU Table of content ............... . . -
Page 3: Introduction
Please keep the manual well because you may have to use it again. 2. Services If you have any problems during the operation process, please refer to the manual. If the problem still exists, you may contact our dealers for more information. You may also email us at info@copterx.com. -
Page 4: Special Symbols
CX-CT6A Computer Transmitter 3. Special Symbols Please pay attention to the following symbols when they appear on the manual. Danger : If the item is not operated by following the instructions, serious injuries, even mortal danger, may be resulted. Warning : If the item is not operated by following the instructions, serious injuries, even mortal danger, may be resulted. -
Page 5: Battery Charging
CX-CT6A Computer Transmitter 5. Battery Charging Notes If you use a Ni-Cd or Ni-MH rechargeable battery, please check before the flying. If there is a lack of electricity, accident may be resulted because of inadequate power or out of control. Therefore, please charge the battery immediately when the power is low. -
Page 6: Transmitter Parameters
CX-CT6A Computer Transmitter 6. Transmitter Parameters *Channels: 6 *Charger port: Yes *Frequency band: 2.4GHz *Simulator port: PS-2 *Power resource: 1.5V*8 “AA” Battery *Program type: GFSK *Modulation type: FM *RF power: 19db *Static current: <250mA *Voltage display type: LED *Size: 189*97*218mm... -
Page 7: Respective Part Of The Transmitter
CX-CT6A Computer Transmitter 8. Respective Part of the Transmitter Antenna Handle HOV. Pit Pit Trim Switch B Switch A Elevator Trim Throttle Trim Direction Elevator Aileron Throttle Stick Rudder Trim Alieron Trim Matching (yards) Keys Power Indicator Light Power Switch... -
Page 8: Receiver And Server Connectivity
CX-CT6A Computer Transmitter 9. Receiver and Server Connectivity Battery Main Receiver Receiver Module When you install the receiver, please make sure that it is shown as below: Receiver Module Main Receiver... -
Page 9: Operation Notes
8. If the test is failed, repeat the above steps. 9. If the test is successful, insert the power supply port into BAT and make the match completed. (The above steps are only suitable on CopterX 2.4G products.) Match Line... -
Page 10: Boot
CX-CT6A Computer Transmitter 10.02 Boot 1. Connect every part. 2. Switch on the power supply. 3. Connect the power supply. 4. Receive LED light solid. 5. Ready for use. Boot Tx power ON Rx power ON 10.03 Shut down 1. Cut off the receiver power supply. -
Page 11: Computer Hardware Connection Steps
CX-CT6A Computer Transmitter 11. Computer Hardware Connection Steps A programming line is included in this transmitter. You may use it to set up the program as you like. 1. Install the battery to the transmitter and switch on the power. -
Page 12: Computer Software Installation
With new computer programmable model design, all functions of transmitter can be set up through computer. 12.01 PC Software Download You can download from our website: www.copterx.com 12.02 PC Software Installation 1. Install driver software: PL-2303 Driver Installer.exe 2. Install application software: t6config.exe 3. -
Page 13: Transmitter Function Notes (Heli)
CX-CT6A Computer Transmitter 13. Transmitter Function Notes (Heli) Connect the transmitter programming line with the PC. Switch on the transmitter and start the application software. If you choose HELI90, HELI120 or HELI140, the following interface will appear: Channel Output Display... -
Page 14: System Function Setting
CX-CT6A Computer Transmitter If you want to save your settings, click “SAVE” on the main interface. You can then give it a name and click “SAVE” to save. If you want to open your settings, click “OPEN” on the main interface. - Page 15 CX-CT6A Computer Transmitter To use double ratio control of CH1/CH2/CH4 channel, click “DR”. It gives you the best control of the model. It is also a great help for beginners. CH1/CH2/CH4 channels can be adjusted individually. Adjusted value is from 0% to 100%. You may enter the numbers directly from the keyboard.
-
Page 16: Switches And Potentionmeter Settings
CX-CT6A Computer Transmitter To adjust swashplate of CCPM function helicopter for a better control, click “Swash Afr”. CH1/CH2/CH4 channels can be adjusted individually. Adjusted value is from 0% to 100%. You may enter the numbers directly from the keyboard. Click “OK” when the adjustment is finished. -
Page 17: Content
CX-CT6A Computer Transmitter 14. Content Model Quantity Remarks 6-Channel 2.4G Transmitter (CX-CT6A) 6-Channel 2.4G Receiver (CX-CR6B) Match (code) Line Programming Line Optional PC Software, CD Optional Charger Optional 9g Servo Optional... - Page 18 Copyright © 2008 KY MODEL Company Limited.
