Summary of Contents for APART PM1122R

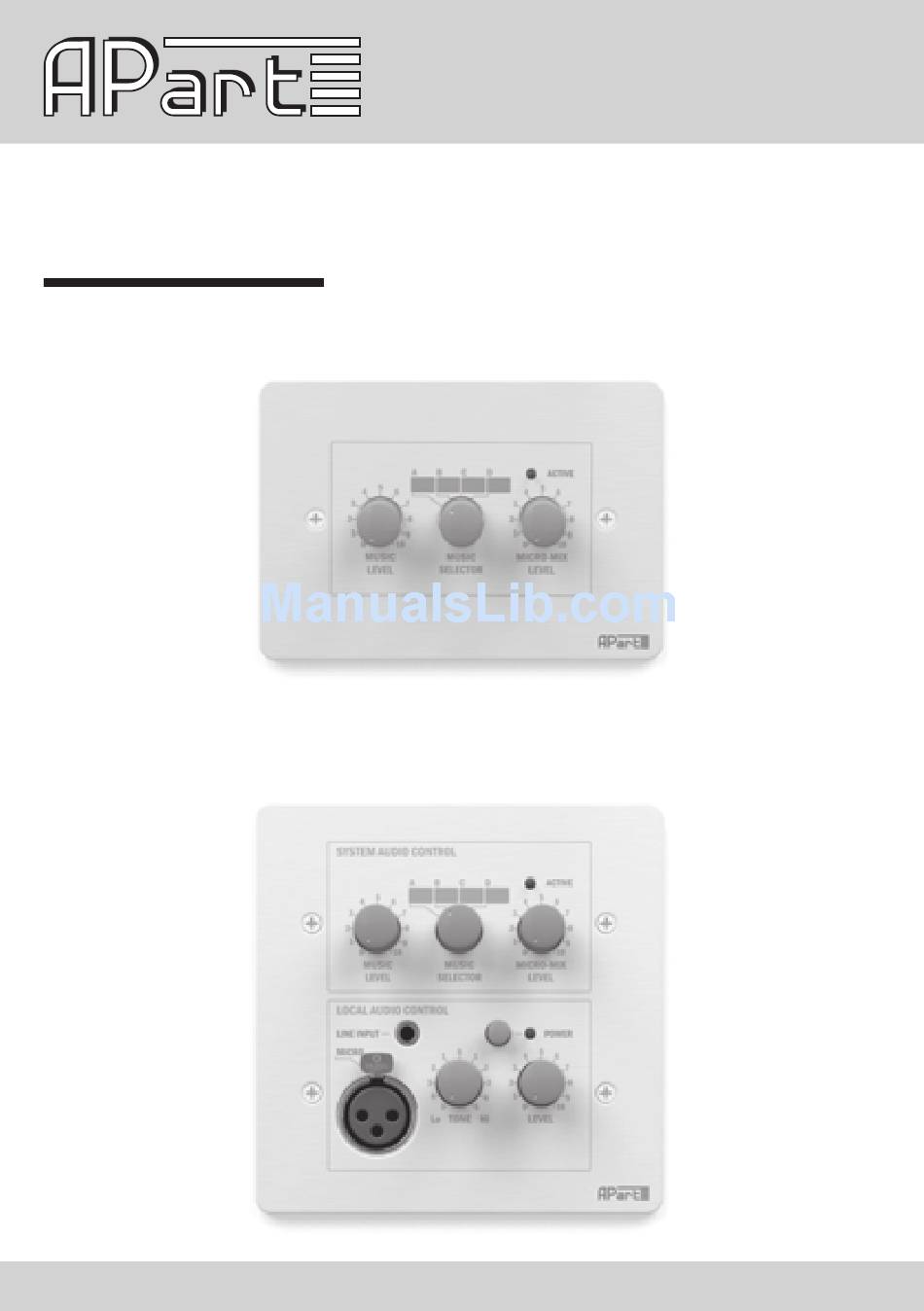

- Page 1 MANUAL pm1122R pm1122RL INFO@APART-AUDIO.COM...

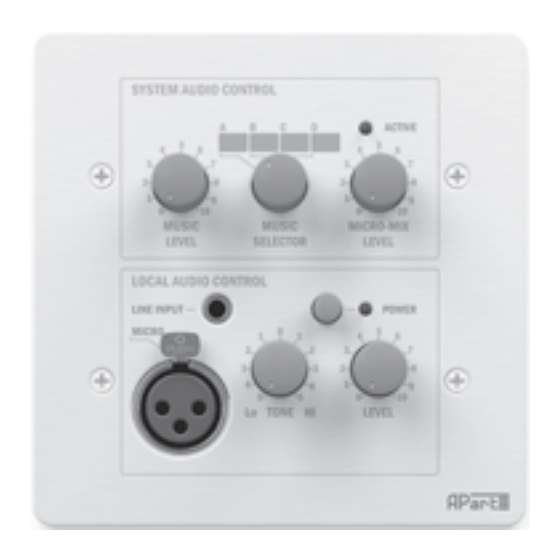

- Page 2 The APart PM1122R and PM1122RL remote control panels for PM1122 preamplifier have been designed to fit into a standard in-wall box from BTicino. PM1122R fits into a 503E/NP box, PM1122RL fits into a 506E/ NP box. Mounting screws are provided with the remote panels.
- Page 3 12) Music level jumper position up: music level is preset by trim potmeter and can not be controlled by front potmeter. 13) Phantom power jumper closed: phantom power applied to front XLR connector. 14) Microphone level jumper position up: microphone level is preset by trim potmeter and can not be controlled by front potmeter. INFO@APART-AUDIO.COM...
-
Page 4: Technical Specifications
PM1122R/RL are developed by Audioprof nv Lanteernhofstraat 90 BE-2100 Deurne BELGIUM Technical Specifications Controls • Music and MicMix level control : 0-10V operated • Music Selector control : DC operated • Power supply : only via RJ-45 / CAT-5 to PM1122 main unit Line input (PM1122RL) •...
