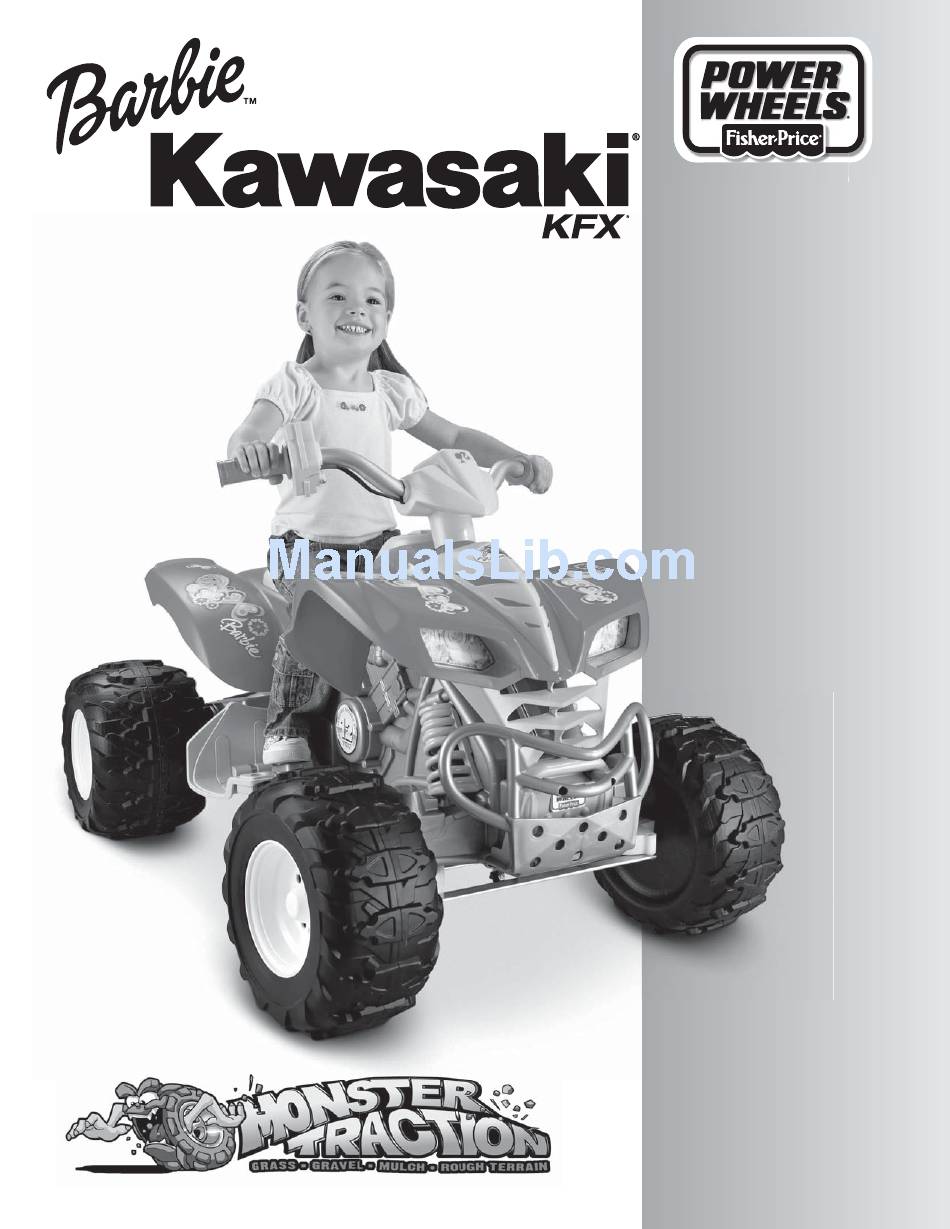

• Please read this manual and
save it with your original
sales receipt.
• Tools needed for assembly:
two assembly wrenches
(included) and a Phillips
Screwdriver (not included).
• Use only with a Power Wheels
12 Volt Lead-Acid Rechargeable
Battery and a Power Wheels
12 Volt Charger (both included).
Owner's Manual
with Assembly Instructions
For Model P5066
®
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the POWER WHEELS P5066 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Barbie POWER WHEELS P5066

  • Page 1 • Please read this manual and save it with your original sales receipt. • Tools needed for assembly: two assembly wrenches (included) and a Phillips Screwdriver (not included). • Use only with a Power Wheels 12 Volt Lead-Acid Rechargeable Battery and a Power Wheels 12 Volt Charger (both included).
  • Page 2: Table Of Contents

    Important Information ..................2 Warnings and Cautions.
  • Page 3: Electrical Hazard

    ELECTRICAL HAZARD • To prevent electric shock, do not immerse in water; wipe clean with a damp cloth. • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fi re resulting in serious injury and could also ruin the electrical system.
  • Page 4: Parts

    • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 5 Rear Axle 4 Hubcaps 4 Wheel Covers Part Not Shown: Label Sheet #8 x " Screw - 4 Note: Tighten and loosen all screws with a Phillips screwdriver. Do not over-tighten the screws. 12 Volt Battery 2 Bushings #8 x 2" Screw - 2 Fasteners Shown Actual Size For your convenience, we included extra fasteners! 12 Volt Charger...
  • Page 6: Parts Picture

    Note: Some parts shown are assembled on both sides of the vehicle. Vehicle Handlebar Seat 12 Volt Battery Rear Axle Rear Wheel Driver - 2 PARTS PICTURE Rear Wheel - 2 Bushing - 4 Wheel Cover - 4 Hand Grip - 2 "...
  • Page 7: Battery Charging

    ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fi re resulting in serious injury and could also ruin the electrical system.
  • Page 8: Assembly

    Battery Charger Connector • Plug the charger connector into the battery • Plug the charger into a standard wall outlet Notes: - Use the charger only in a wall outlet. Do not plug the AC adaptor into a ceiling outlet. - If power flow to the wall outlet is controlled by a switch, make sure the switch is “ON”.
  • Page 9: Bottom View

    Motor Assembly Rear Axle Assembly BOTTOM VIEW • Position the vehicle upside down. • Slide the rear axle assembly through the hole in the back end of the vehicle, as shown. Make sure the rear wheel driver fits into the pins in the motor assembly inside the vehicle. Motor Assembly Rear Wheel Driver (Slotted Side Out)
  • Page 10 Steering Column BOTTOM VIEW • Lift the front end of the vehicle up slightly. Check to be sure the steering column fits through the hole in the steering linkage. Lower the front end of the vehicle. Steering Column Cap • While holding the handlebar in place, carefully turn the vehicle over.
  • Page 11: Side View

    SIDE VIEW • Fit a " -16 hex nut onto each end of the front axle. Tighten both hex nuts with the wrench. Hubcaps BOTTOM VIEW • “Snap” a hubcap onto the center of each wheel cover. • Turn the vehicle upright. Wrench "...
  • Page 12 • Insert two #8 x 2" screws into the upper holes in the brush guard and tighten. Hand Grip BACK VIEW • Fit both hand grips on the ends of the handlebar. Hint: If it is difficult to slide a hand grip onto the handlebar, moisten the inside of the grip with water.
  • Page 13: Decoration

    • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. • Place the labels exactly as shown in the illustrations. For best results, avoid repositioning a label once it has been applied to the vehicle. •...
  • Page 14: Right Side View

    RIGHT SIDE VIEW LEFT SIDE VIEW P5066a-0920...
  • Page 15: Battery Installation

    IMPORTANT! Use only a Power Wheels ® rechargeable battery. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels ® operating your vehicle for the first time. Charge the battery for at least 14 hours after each use of the vehicle.
  • Page 16: Battery Care And Disposal

    BATTERY CARE AND DISPOSAL Care If a battery leak develops, avoid contact with the leaking acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician.
  • Page 17: Safe Driving Rules

    RIDING HAZARD WARNING • Prevent Injuries and Deaths • Direct Adult Supervision Required. • Never Ride at Night. • Keep Children Within Safe Riding Areas. These areas must be: - Away from swimming pools and other bodies of water to prevent drownings - Generally level to prevent tipovers - Away from steps, steep inclines, cars, roads and alleys.
  • Page 18: Vehicle Operation

    As assembled, your vehicle is ready to roll in low speed (2½ mph, maximum). It has been pre-set so it will only operate in low speed. After your child has mastered the basic skills of driving and understands the rules for safe driving, it’s time to connect the high speed connectors to allow the vehicle to operate in high speed.
  • Page 19: Vehicle Care

    • Check all screws, cap nuts and their protective coverings regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover. Remember to charge the battery at least once per month while your vehicle is not in regular use.
  • Page 20: Problems And Solutions Guide

    PROBLEMS AND SOLUTIONS IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® authorized service center. For the location nearest you, please visit us on-line at www.powerwheels.com, or call 1-800-348-0751. PROBLEM POSSIBLE CAUSE Vehicle does not run...
  • Page 21 PROBLEM POSSIBLE CAUSE Short run time (Less than Undercharged battery 1 - 3 hours per charge) Overcharged battery Battery is old and will not accept full charge Tripped thermal fuse Vehicle runs sluggishly Undercharged battery Battery needs charging Battery is old and will not accept full charge Vehicle is overloaded Driving conditions are too stressful...
  • Page 22 PROBLEM POSSIBLE CAUSE Vehicle runs in low speed, but High speed hook-up not disconnected. does not run in high speed. Please note: The vehicle is designed to operate in low speed only in reverse. When the foot pedal is pressed Operation of vehicle in low speed one rear wheel spins Sometimes the vehicle doesn’t...
  • Page 23: Limited Warranty

    LIMITED WARRANTY Bumper-to-Bumper* Limited Warranty One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the 12 volt battery. ® ® For the original purchaser, this one year limited warranty covers the Power Wheels ride-on vehicle (purchased from Power Wheels ) against defects in materials and workmanship.
  • Page 24 Authorized Service Center. For the location nearest you, visit us on-line at www.powerwheels.com. Kawasaki Trademarks used under license to Fisher-Price, Inc. BARBIE and associated trademarks and trade dress are owned byMattel, Inc. ©2009 Mattel, Inc. All rights reserved. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A.
