PocketHUB 7 Port USB
High Speed USB 2.0 Expansion Hub
Instruction Guide
I
Contents
A

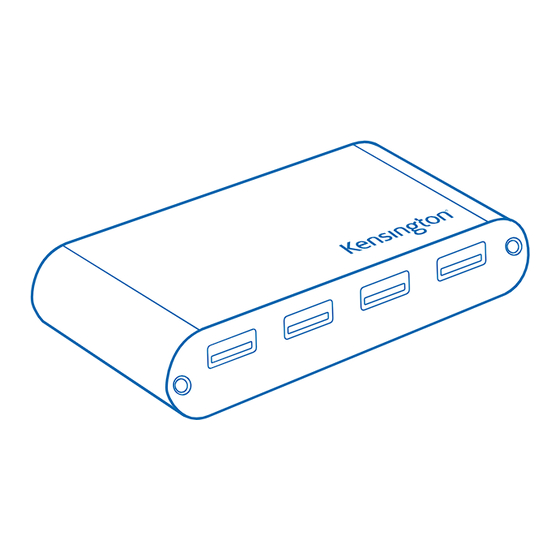

PocketHUB 7 Port USB
B
AC Power Adapter
C
USB Cable
D
Instruction Guide
Components
E
USB Ports
F
Mini USB Port
G
Power LED
H
Power
I
Wall Plug
J
Adapter Plug
K
Mini USB Plug
L
USB Plug

Connecting your PocketHUB 7 Port USB 2.0 Expansion Hub

You do not need to turn off your computer before connecting or
disconnecting a USB device. The included AC power adapter (B) must be
used for maximum performance.
To connect to a
USB 1.1 port
Note to Windows XP users: The system will warn you: HI-SPEED USB DEVICE
Plugged into non-HI-SPEED USB Hub. Click ok.
To connect to a
USB 2.0 port
B
E
J
Do this:
Plug the cable (C, J) into your computer's USB port.
The hub will function on a USB 1.1 port but only at
USB 1.1 speeds.
Connect the small 5-pin Type B mini USB connector (C, K)
into the USB hub. This cable is included in the package.
Do this:
Plug the cable (C, J) into your computer's USB port.
You will enjoy full USB 2.0 HI-SPEED performance.
Connect the small 5-pin Type B mini USB connector (C, K)
into the USB hub. This cable is included in the package.
A
C
F
L
K
Instruction Guide
Guide d'instructions
Bedienungsanleitung
Instructieboekje
Istruzioni
Manual de instrucciones
D
901-1864-00
H
G
E
