Summary of Contents for miniDSP NANOAVR DL

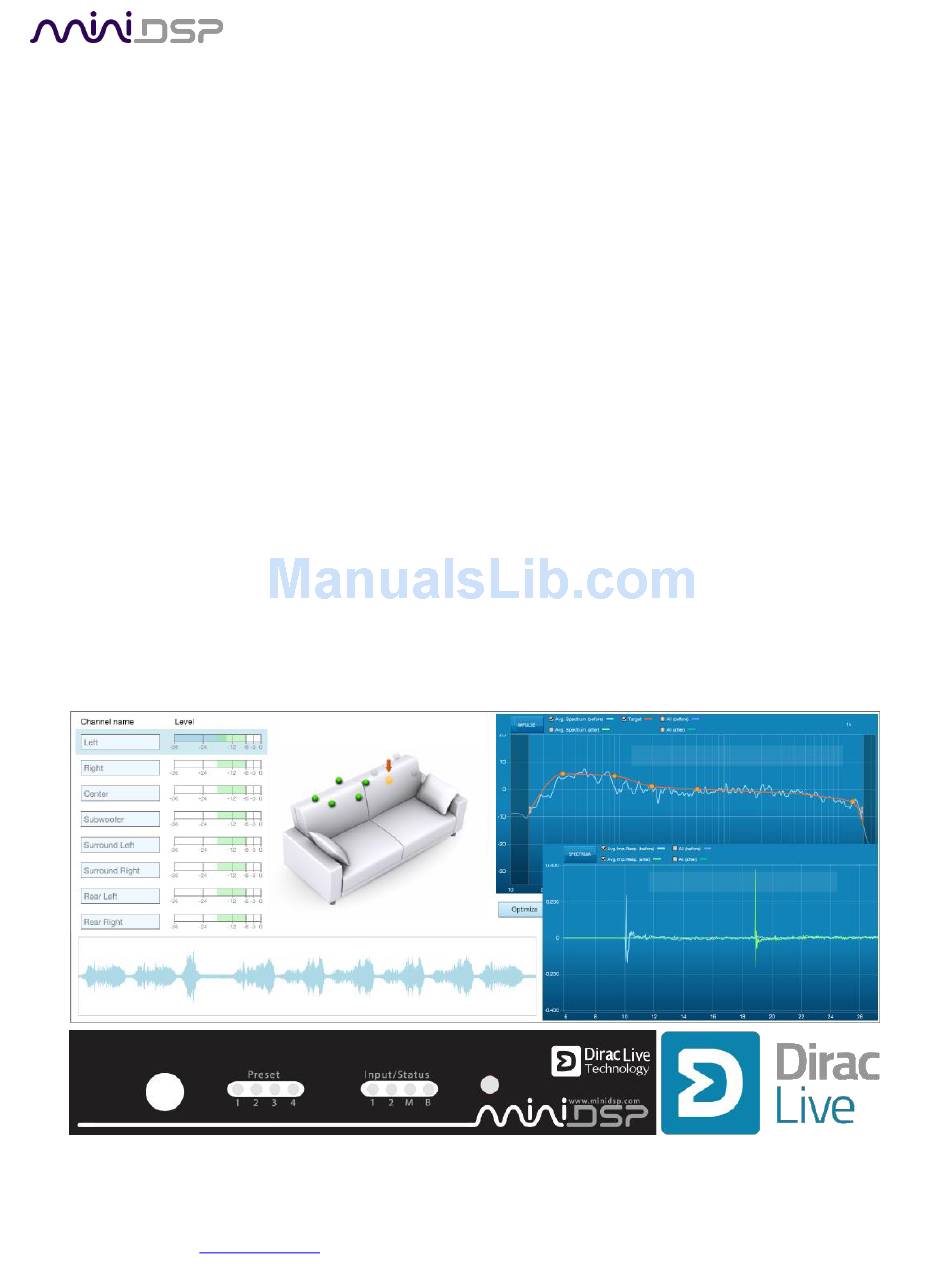

- Page 1 AVR DL NANO HDMI A CHANNEL UDIO ROCESSOR ® WITH IRAC TECHNOLOGY User Manual miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
- Page 2 Revision history Revision Description Date Initial public release 4 December 2014 miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 3: Table Of Contents
A Note on this Manual ............................. 6 Product Overview ............................7 Typical system configuration ........................ 7 How Dirac Live® works ......................... 8 NanoAVR DL / Dirac Live® configuration steps ..................10 Installation and Setup ..........................11 Software installation and license activation ..................11 2.1.1 Framework installation ....................... - Page 4 Saving and loading target curves ....................31 Generating correction filters....................... 32 Downloading and managing filter sets ....................33 Using the NanoAVR DL HDMI audio processor ..................... 34 Status indicators ..........................34 Front panel controls ........................... 34 Infrared remote control ........................35 Smartphone control app ........................
-
Page 5: Important Information
ARRANTY ERMS miniDSP Ltd warrants this product to be free from defects in materials and workmanship for a period of one year from the invoice date. Our warranty does not cover failure of the product due to incorrect connection or installation, improper or undocumented use, unauthorized servicing, modification or alteration of the unit in any way, or any usage outside of that recommended in this manual. -
Page 6: Ce Mark Statement
Notice: Changes or modification not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE M TATEMENT The nanoAVR DL has passed the test performed according to European Standard EN 55022 Class B. ’ NCLUDED One NanoAVR DL HDMI audio processor ... -
Page 7: Product Overview
YPICAL SYSTEM CONFIGURATION The nanoAVR DL typically connects between an HDMI source such as a Blu-ray player and an A/V receiver or processor. Two HDMI sources can be connected to the nanoAVR DL. Audio from the selected HDMI input is processed by the Dirac Live®... -
Page 8: How Dirac Live® Works
Computer connectivity is used to perform acoustic measurements and generate digital room correction filters for Dirac Live®. Up to four sets of correction filters can be stored on the NanoAVR DL processor and recalled from the front panel, via an infrared remote, or with the miniDSP smartphone app. Once the processor is fully configured, the computer is no longer needed. - Page 9 Late reflections are left largely untouched, being corrected only for their spectral coloration, as they contribute to a larger, more enveloping soundstage. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 10: Nanoavr Dl / Dirac Live® Configuration Steps
AVR DL / D IRAC CONFIGURATION STEPS The steps for configuring the NanoAVR DL HDMI audio processor with Dirac Live® to optimize your home theater system is summarized as follows: Connect the NanoAVR DL audio processor into your system and install software. -
Page 11: Installation And Setup
The Dirac Live Calibration Tool is used to perform measurements, generate correction filters, and load them into the nanoAVR DL. You will find it under the heading “nanoAVR Dirac Live Tools” in the nanoAVR section of the User Downloads on minidsp.com. -
Page 12: License Activation
2.1.3 License activation Start the miniDSP NanoAVR DL Utility program. It will appear as shown on the left below. Connect your NanoAVR DL processor to your computer via USB, then click on the Connect button. It will change to a green tick. -
Page 13: License Validation
Dirac server using the form shown at left in step 4 above. If you purchase more than one NanoAVR DL or Dirac Series processor, each will need to be activated with its unique serial number. Use the form shown on the right in step 4 above and enter the serial number of each additional processor, and they will in turn be added to your license. -
Page 14: Hardware Connectivity
HDMI outputs. The nanoAVR DL does not decode compressed formats such as Dolby and DTS. † Apple Macs with a Thunderbolt port can be connected to the nanoAVR DL with the use of a Thunderbolt to HDMI adapter cable. -
Page 15: Dc Power
To configure the nanoAVR DL using Dirac Live Calibration Tool for miniDSP: Connect the USB port of the nanoAVR DL to a USB 2.0 port on your computer using the supplied cable. Connect a miniDSP UMIK-1 to a second USB port on your computer using the supplied cable. -
Page 16: Acoustic Measurement
COUSTIC EASUREMENT The Dirac Live Calibration Tool For miniDSP uses a set of measurements made in your listening room to gather all the acoustical information about your room and speakers that it needs to calculate the correction filters. The measurements are made using the NanoAVR DL HDMI audio processor and a miniDSP UMIK-1 measurement microphone (must be purchased separately). -
Page 17: Connections For Acoustic Measurement
HDMI connections are needed. Simply: Connect the supplied USB (type A to type B) cable from the nanoAVR DL to a USB port on the computer. Connect the supplied USB (type A to mini type B) cable from the UMIK-1 to a USB port on the computer. -
Page 18: Configuring For Measurement
ONFIGURING FOR MEASUREMENT Start Dirac Live Calibration Tool For miniDSP. Ensure that no other programs are running that may attempt to communicate with the nanoAVR DL, such as the nanoAVR DL utility program, as this may result in communication conflicts and errors. -
Page 19: Sound System Tab
7.1 will be selected. Test signal playback device Preset to nanoAVR DL. This will ensure that test signals are sent into your audio system via the NanoAVR DL processor. If the nanoAVR DL is not showing, check that your NanoAVR DL processor is connected via USB and powered on, click the Rescan button, and then use the drop-down menu to select nanoAVR Once you have verified that this tab is correct, click the Proceed button. -
Page 20: Mic Config Tab
It is in the form xxx-yyyy and labelled on the microphone. Ensure that you download both the regular calibration file and the “90-degree” calibration file. (The latter is generated specifically for use with the nanoAVR DL.) Then click on the Load file button and select your calibration file. -
Page 21: Output & Levels Tab
On the Output & Levels tab, set Output volume quite low. If you have another volume control “down-stream” of the nanoAVR DL, set it about halfway (or -20 dB if digital) and increase it later if needed. Set the HDMI input to a connected and powered-on source device. Then click on the Test button for the left channel and gradually increase the output volume until it is at a moderate level, such that your voice would have to be raised to converse with someone sitting next to you. -
Page 22: Running The Measurements
3.4 R UNNING THE MEASUREMENTS Measurements are performed on the Measurements tab. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 23: Listening Environment
(three feet). The microphone should be varied in height from the central position by at least 30 cm (one foot) up and down. If using the Sofa or miniDSP Ltd, Hong Kong / www.minidsp.com... -
Page 24: Executing A Measurement
With the microphone in place at the central location and pointed vertically (that is, towards the ceiling or floor), click on the Start button. The NanoAVR DL HDMI audio processor will generate a test signal, audible as a frequency sweep through the left speaker, then the right, and so on through all channels, including the subwoofer. -
Page 25: Completing The Measurements
Design), or to redo any of the measurements. (Note: if you wish to change between the Chair, Sofa, or Auditorium listening environments, you will need to start a new project.) miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 26: Filter Design
The predicted magnitude responses after correction. These plots are shown in dark green, and can only be viewed after filters have been generated with the Optimize button. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 27: Working With Graphs
Designing your target curve below. By default, the front left and right, surround left and right, and rear left and right channels are linked. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... - Page 28 Double-click on the graph to zoom back out to the previous zoom level, or click on the small “–” sign next to the zoom indicator at the top right of the display. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 29: Designing Your Target Curve
4.2 D ESIGNING YOUR TARGET CURVE The target curve is the desired in-room frequency response with the NanoAVR DL processor performing digital room correction. 4.2.1 The Auto Target When first viewing the Filter Design tab, an estimated target curve suitable for your speakers is shown as the red curve. -
Page 30: Guidelines For Target Curve Design
The auto-target estimates the low-frequency roll-off and curve. You should determine by listening whether this estimate is suitable for your system, and adjust the target curve accordingly. miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 31: Saving And Loading Target Curves
To allow you to experiment with different target curves, you can save a target curve to a file and reload it at a later time. The default directory for these is C:\Users\[User]\AppData\Roaming\Dirac\OEM\MiniDSP\Targets, but you can store them in any location in your file system. To save the target curve of the currently displayed channel or group of channels, click on the Save Target button. -
Page 32: Generating Correction Filters
The Dirac Live Calibration Tool For miniDSP will contact the Dirac license server to verify its license, so you will need to be connected to the Internet to perform this step. If a firewall is in place, it must allow HTTP (normal web traffic) to pass. -
Page 33: Downloading And Managing Filter Sets
“drag and drop” metaphor: To load the most recently generated filter set into the nanoAVR DL, drag the box at the top left (labeled “Auto target” in the example) and drop it onto an empty slot. -
Page 34: Using The Nanoavr Dl Hdmi Audio Processor
SING THE AUDIO PROCESSOR Once the desired correction filters have been downloaded into the NanoAVR DL HDMI audio processor, the computer is not required and can be disconnected. The front panel, an infrared remote, or the miniDSP smartphone app can be used to control: ... -
Page 35: Infrared Remote Control
Apple Remote Learning is done with the nanoAVR DL Utility program. After starting the program, click on the Connect button. To initiate learning, simply click on one of the function buttons in the IR Learning box (Master Mute, Volume Up, and so on). -
Page 36: Smartphone Control App
To control the nanoAVR DL over the network, connect an Ethernet from the nanoAVR DL’s Ethernet port to a free port on your Ethernet router or switch. The diagram below illustrates a typical case where the Ethernet router also acts as a wireless base station, and is in turn connected to an ADSL/cable modem. -
Page 37: Additional Information
Supported on Android. iOS support scheduled for early 2015. Power supply 5 VDC single supply @ 600mA, 2.1 mm center-positive Dimensions (H x W x D) 31 x 161 x 110 mm miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice... -
Page 38: Troubleshooting
6.2 T ROUBLESHOOTING The following table lists the most common causes of issues with the nanoAVR DL. If following this table does not provide a solution, see Obtaining Support below. Item# Symptoms Troubleshooting recommendation Confirm that you downloaded and installed the required... - Page 39 HTTP (web) traffic. filters (Optimize button) Check that you do not have any other program running that is attempting to communicate with the nanoAVR DL, such as the nanoAVR DL utility program. Check that all HDMI cables are securely seated.
-
Page 40: Mcu Firmware Upgrade
6.3 MCU F IRMWARE UPGRADE miniDSP may periodically provide an update to the nanoAVR DL MCU firmware to enable new features. To update the MCU firmware, download the latest version of the nanoAVR DL utility from the User Downloads section of the miniDSP.com website. Unzip the download and run the installer. Then follow the steps below. - Page 41 8. Click the Load Hex File button. Browse to the .hex firmware file located in the unzipped download folder and select it. This file will have a name like nanoAVR_DL_v1_17_Released_13Nov2014.hex. The status will show that the hex file has loaded successfully: miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice...
-
Page 42: Obtaining Support
Provided firmware update was successful, you can now continue to use the nanoAVR DL as before. 6.4 O BTAINING UPPORT 1. Check the forums on miniDSP.com to see if your issue has already been raised and a solution or solutions provided. 2. Contact miniDSP via the support portal at minidsp.desk.com with: a.
