Summary of Contents for Divitec HNR-P116R Series

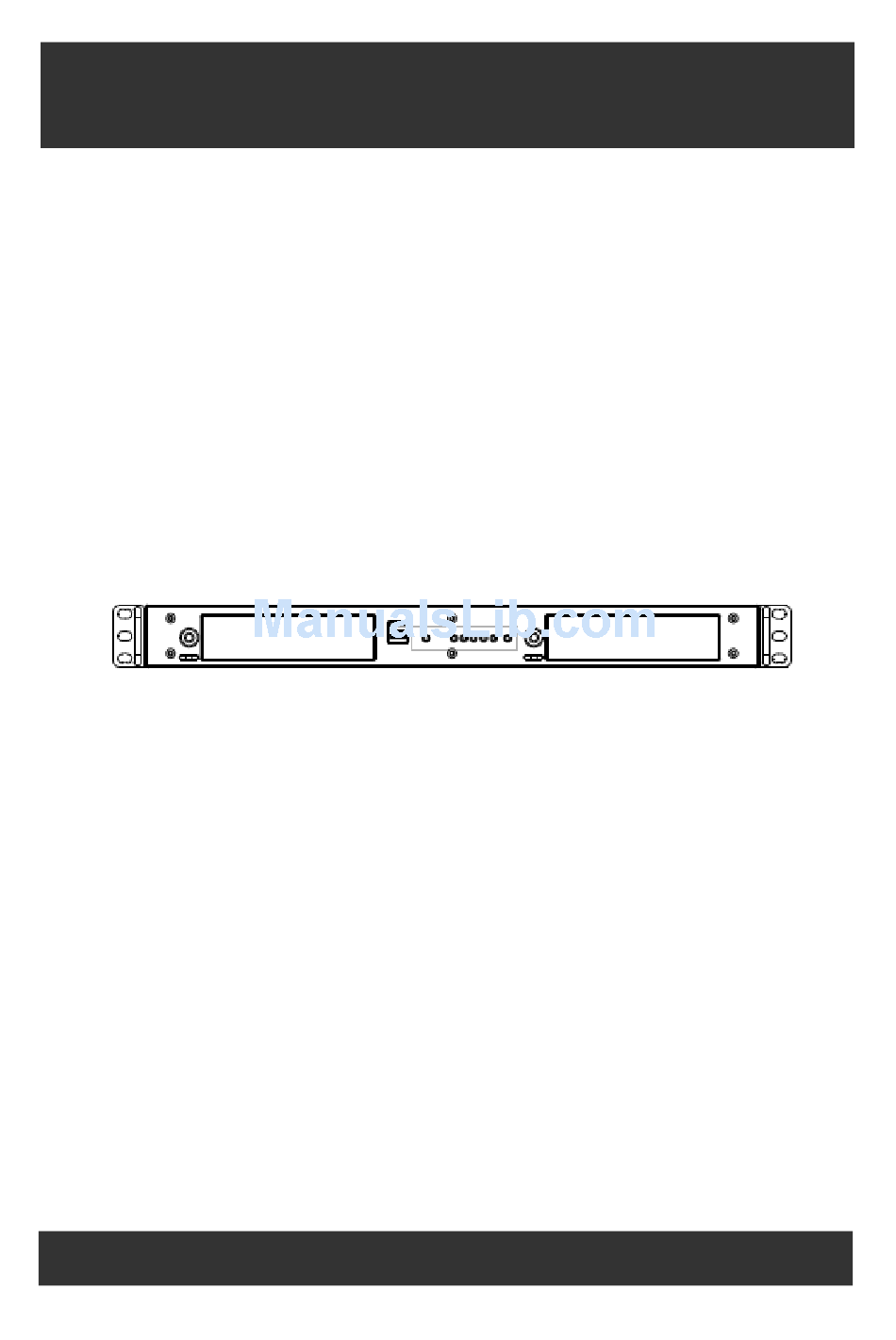

- Page 1 16 Channel Network Video Recorder User’s Manual English Version 0.92 Model : HNR-P116R Series Copyright ⓒ 2010...
- Page 2 WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PROCUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT. CAUTION EXPLANATION OF GRAPHICAL SYMBOLS The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage"...
- Page 3 FCC COMPLIANCE STATEMENT INFORMATION TO THE USER : THIS EQUIPMENT HAS BEEN TESTED AND FOUND TO COMPLY WITH THE LIMITS FOR A CLASS A DIGITAL DEVICE, PURSUANT TO PART 15 OF THE FCC RULES. THESE LIMITS ARE DESIGNED TO PROVIDE REASONABLE PROTECTION AGAINST HARMFUL INTERFERENCE WHEN THE EQUIPMENT IS OPERATED IN A COMMERCIAL ENVIRONMENT.
-
Page 4: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 5: Table Of Contents
Contents 1. Description- ------------------------------------------------------------------ 7 1.1 Components - - ------------------------------------------------------------------------------------------ 7 1.2 Key Features - -------- ----------------------------------------------------------------------------------- 8 1.3 Over View ---- ------------------------------------------------------------------------------------------- 9 2. Installation ----------------------------------------------------------------- 11 2.1 Connection----------------- ------------------------------------------------------------------------------ 11 2.2 Network Connection and IP Assignment ------------------------------------------------------------- 15 2.3 Connecting to the Website------------------------------------------------------------------------------ 3. - Page 6 11) Bonjour-----------------------------------------------------------------------------------------52 3.1.6 System ------------------------------------------------------------------------------------------- 53 1) Information ----------------------------------------------------------------------------------- 53 2) User---------------------------------------------------------------------------------------------53 3) Date/Time ------------------------------------------------------------------------------------- 54 4) Upgrade --------------------------------------------------------------------------------------- 54 5) Backup/Restore ------------------------------------------------------------------------------- 55 6) Maintenance ---------------------------------------------------------------------------------- 56 7) Log--- ------------------------------------------------------------------------------------------ 57 4. Operation--------------------------------------------------------------------- 57 4.1 Live Monitoring----- ------------------------------------------------------------------------------------- 57 4.1.1 Screen Division ----------------------------------------------------------------------------------- 59 4.1.2 Audio Control ------------------------------------------------------------------------------------- 59 4.1.3 PTZ Control----------------------------------------------------------------------------------------59...
-
Page 7: Description
1. Description This manual applies to the HNR-P116 network video recorder. The HNR-P116 network video recorder supports up to 16 network cameras. It can record more than 100 hours of high quality Full HD images onto its maximum capacity of hard disk drives, which are configured with high redundancy through a variety of RAID implementations. -
Page 8: Key Features
1.2 Key Features Your network video recorder (NVR) provides recording capabilities for eight or 16 camera inputs. It provides exceptional picture quality in both live and playback modes, and offers the following features: Up to 16 network cameras can be connected and recorded. •... -
Page 9: Overview
1.3 Overview • Front View Function Description Turning the key completely engages the lock, so the HDD bay Key Lock door cannot be opened. Mounts hard disks for storing recorded video. Up to four hard disks can be mounted. Mounted HDDs are referred to as SATA Bracket Internal HDD1 (left) and Internal HDD2 (right.) Executes the factory default. - Page 10 • Rear View Function Description Two USB ports are provided to connect external hard disk drives for USB2.0 Port data backup or USB memory stick for clip copy. RS232 Port Connects to devices such as a POS or ATM. Not used. Only for maintenance. VGA Port A network port that allows the product to connect to a PC to Client Ethernet Port...
-
Page 11: Installation
2. Installation 2.1 Connection • Connecting to the RJ-45 Connect a standard RJ-45 cable to the network port of the network camera. Generally a cross-over cable is used for directly connection to PC, while a direct cable is used for connection to a hub. - Page 12 • Connecting RS232 An RS232 port is provided to connect a text-in device like a POS. Use a RS232 cable with a DB-9S (female) connector to connect to the NVR. RS232 Caution: The VGA port is not used in the HNR-P116. •...
- Page 13 has a grounding pin. Use only a grounding-type power outlet. Do not destroy the plug even though you are not able to insert the plug into the outlet. Do not overload wall outlets and extension cords • Factory Reset The NVR has a Factory Reset switch to the left of the LED indicators on the front panel. This switch will only be used on the rare occasions that you want to return all the settings to the original factory settings.
- Page 14 recommend that IP cameras and client PC are separated in the network. That is, Case A is recommended. 2. Multi-location Configuration.
-
Page 15: Network Connection And Ip Assignment
2.2 Network Connection and IP assignment The Network Video Recorder supports the operation through the network. When the NVR is first connected to the network it has no IP address. So, it is necessary to allocate an IP address to the device with the “Smart Manager”... -
Page 16: Connecting To The Website
Note: For more information, refer to the Smart Manger User’s Manual. 2.3 Connecting to the Website The Network Video Recorder supports the operation through the network. When the NVR is first connected to the network, it has no IP address. So, it is necessary to allocate an IP address to the device with the “Smart Manager”... - Page 17 Enter the date and time settings. You can select to synchronize the server time with an internet time server. If you enter a domain name for the NTP server, make sure you have set up a correct DNS server. Click the Next button to go to next page. [Step2] Easy Installation makes the NVR detect ONVIF based all of network cameras and register automatically.
- Page 18 Note: Easy Install is inactivated in factory default. [Step3] The NVR detects all of IP cameras connected in the intranet and displays in the camera list. When you select a camera channel in the list, the basic information is displayed in Connection Setup section.
- Page 19 All cameras detected are displayed in the list. Display the name and IP address the selected camera. The name will be updated automatically depending on the settings of the network camera. Select a camera from the list and click the Register button to register. Enter the user ID and password which you set in the camera in order to connect to that camera remotely.
- Page 20 If you want to configure more detail information for a selected camera, click the Camera Setup button in the Setup Wizard window. You can configure camera settings about Profile, Video, Audio, and Network. Note: Contents in the Encoder Configuration are data received from network camera through ONVIF protocol.
- Page 21 [Step4] The list of available hard disk drives is displayed with the information of the hard disk drives. Select a hard disk drive from the list and click the Format button. Click the Finish button to exit Setup Wizard window. If you finish Setup Wizard step successfully, the NVR displays a live screen and starts recording automatically.
-
Page 22: Configuration
Note: In case that you don’t use Easy Installation function, you must register and configure IP cameras manually for proper operation. 3. Configuration 3.1 NVR Setup Select “Live” tab on the main window of the Client s/w. You can see the camera list currently registered. -
Page 23: Information
This menu offers basic settings in order to perform proper operation. 1) Information You can name the Device Name for the NVR. This page is very useful when you refer device information after installation. 2) User You can add and delete and users. When adding a user, you can assign authority levels to the users. User access control is enabled by default. -
Page 24: Date/Time
An operator can view the Live View, Playback, create and modify Operator events, and adjust certain other settings. Operators have no access to System Options. An administrator has unrestricted access to the Setup tools and can Administrator determine the registration of all other users. •... -
Page 25: Internet
Note: The Factory default of time zone is “(GMT-05:00) EASTERN TIME (US & CANADA)”. • Time Mode -. Synchronize with computer time: Synchronize the date and time of the NVR automatically with your computer time. -. Synchronize with NTP server: Synchronize the date and time of the NVR automatically with an NTP (Network Time Protocol) server. -
Page 26: Intranet
To use a static IP address for the Network Camera, check the radio button and then make the following settings: -. IP address: Specify a unique IP address for your Network Camera. -. Subnet mask: Specify the mask for the subnet the Network Camera is located on. -. -
Page 27: Easy Install
• Obtain IP address via DHCP Dynamic Host Configuration Protocol (DHCP) is a protocol that lets network administrators centrally manage and automate the assignment of IP addresses on a network. DHCP is enabled by default. Although a DHCP server is mostly used to set an IP address dynamically, it is also possible to use it to set a static, known IP address for a particular MAC address. -
Page 28: Camera Registration
7) Camera Registration You must register devices on the NVR system in order to perform any operation. Note: If the NVR has activated the Easy Install function, skip this page and refer to [step3] of Chapter 2.3. Refer to [step3] of Chapter 2.3 for more detail operation. 8) Record Storage The list of available hard disk drives is displayed with the information of the hard disk drives. -
Page 29: Camera Setup
When you click the Format button, the NVR ask you to set the storage to record or archive device. If the storage is formatted to archiving device, it can be used as a record storage. Note: Archive records a video to the record storage and copies it to the archive storage at the same time. -
Page 30: Camera Registration
Refer to [step3] of Chapter 2.3 for more detail operation. 2) Camera Registration The NVR searches and displays all cameras connected in the internet besides the intranet. All cameras are displayed in the camera list. Note: The HNR_P116 supports only for cameras which use the ONVIF Conformance protocol. •... - Page 31 • Search Camera Click the Search Cameras button to search cameras and the Camera Discovery window appears. Select one of three in Search Mode and click the Start Search button. -. Search Mode: * Auto Search (LAN): Lists cameras in a LAN environment. * IP Search (Single): Allows you to enter the IP address of a device.
- Page 32 Select a camera from the list and click the Register button to register. Enter the user ID and password which you set in the device in order to connect to that camera remotely. Only the admin user is allowed to connect to a network camera device. •...
- Page 33 video streams, and to the list of The network camera provides access to H.264, and Motion JPEG available stream profiles. The NVR and clients can also access these video streams/images directly. The number of profile depends on the kind of camera device. -.
- Page 34 -. Audio: Set up an encoder for audio. Select an audio source to configure in the Source list. Clicking the Audio button allows you to configure the details of the selected audio encoder configuration. * Token: The number of tokens. * Name: Assign a name to the selected video encoder.
-
Page 35: Record
* Use the following IP address: To use a static IP address for the NVR, check the radio button and then make the following settings: - IP address: Specify a unique IP address for the NVR. - Subnet mask: Specify the mask for the subnet the NVR is located on. - Default router: Specify the IP address of the default router (gateway) used for connecting devices attached to different networks and network segments. -
Page 36: Record
Refer to “Record Storage of Chapter 3.1.1”. 2) Record Set a weekly recording schedule for each channel. A combination of a schedule and an event is possible. • Schedule Drag or click area by a box unit at first. A pop up window will appear. Then, set recording settings for the corresponding day. -
Page 37: Archive
3) Archive The NVR supports schedule data backup which archives periodically video data in record storage to archive storage. You can set storages to record or archive device when configuring them. You can change configurations for the control of all archive devices and for the archive of recorded data in this menu. -
Page 38: Event
3.1.4 Event This menu allows setting event options such as Alarm-In, Motion, Video Loss, System Event, and Log. The NVR starts recording with settings configured here when an event occurs. The types of event include External Alarm, Motion Detection, Video Loss, and System Event. An occurred event can be notified by Alarm Output (2 Channel), and Email. -
Page 39: Motion
The destination server must first be configured on the Network page for a proper operation. * Alarm: The NVR can control external equipment connected to its alarm output port. -. Recording: Select the cameras that you want the NVR to record whenever it detects an alarm input. -
Page 40: Video Loss
Set the On/Off, Dwell Time, Action, Recording. Click each column in the list to configure settings. • Motion Event -. On/Off: Choose an item from the drop-down list. When an item is On, the motion event is activated. -. Dwell Time: Set the dwell time an event lasts for the specified dwell time from the point of detection of a motion event. -
Page 41: System
-. On/Off: Choose an item from the drop-down list. When an item is On, the event for alarm input is activated. -. Dwell Time: Set the dwell time an event lasts for the specified dwell time from the point of detection of a video loss. -
Page 42: Network
-. Dwell Time: Set the dwell time an event lasts for the specified dwell time from the point of detection of S.M.A.R.T event. -. Action: Set the actions the NVR will take whenever it senses S.M.A.R.T event. Select items in the pop-up Action screen. -
Page 43: Intranet
2) Intranet Refer to “Intranet of Chapter 3.1.1”. -
Page 44: Service
3) Service • Host Name Configuration Host Name – enter the host name to be used as device information in the client software or SmartManager. • Services HTTP port: Enter a port to receive a service through the HTTP. Default Port Number is ‘80’. -
Page 45: Ip Filtering
method, which associates the unit's MAC address with an IP address. Check this box to enable the service. Leave disabled to prevent unintentional resetting of the IP address. 4) IP Filtering Checking the Enable IP address filtering box enables the IP address filtering function. Up to 10 IP addresses can be specified. -
Page 46: Smtp
5) SMTP The NVR can be configured to send event and error email messages via SMTP (Simple Mail Transfer Protocol). • SMTP(E-Mail) Setting Select “Enable” to activate the SMTP operation. -. Mail Server / Port: Enter the host names (or IP addresses) and port numbers for your mail server in the fields provided, to enable the sending of notifications and image email messages from the camera to predefined addresses via SMTP. -
Page 47: Ddns
If your mail server requires authentication, check the box for Use authentication to log in to this server and enter the necessary information. -. User Name/Password: Enter the User Name and Password as provided by your network administrator or ISP (Internet Service Provider). -
Page 48: Upnp
When using the high-speed Internet with the telephone or cable network, users can operate the Network Camera even on the floating IP environment in which IPs are changed at every access. Users should receive an account and password by visiting a DDNS service like http://www.dyndns.com/, or http://www.cctv-network.co.kr/. -
Page 49: Qos
8) QoS Quality of Service (QoS) provides the means to guarantee a certain level of a specified resource to selected traffic on a network. Quality can be defined as a maintained level of bandwidth, low latency, and no packet losses. The main benefits of a QoS-aware network are: The ability to prioritize traffic and thus allow critical flows to be served before flows with lesser priority. -
Page 50: 9) Nat Traversal
• Auto Traffic Control Set a limitation on user network resources by designating the maximum bandwidth. -. Maximum bandwidth: In case of sharing other network programs or equipment, it is possible to set a limitation on the maximum bandwidth in the unit of Mbit/s or kbit/s. -. -
Page 51: Zeroconfig
Notes: -. For NAT traversal to work, this must be supported by the broadband router. -. The broadband router has many different names: “NAT router”, “Network router“, Internet Gateway”, “Broadband sharing device” or “Home firewall” but the essential purpose of the device is the same. •... -
Page 52: Bonjour
Zero configuration networking (zeroconf), is a set of techniques that automatically creates a usable Internet Protocol (IP) network without manual operator intervention or special configuration servers. Zero configuration networking allows devices such as computers and printers to connect to a network automatically. -
Page 53: System
Note: Bonjour - Also known as zero-configuration networking, Bonjour enables devices to automatically discover each other on a network, without having to enter IP addresses or configure DNS servers. Bonjour is a trademark of Apple Computer, Inc. 3.1.6 System 1) Information You can name the Device Name for the NVR. -
Page 54: Date/Time
Refer to “User of Chapter 3.1.1”. 3) Date/Time Refer to “Date/Time of Chapter 3.1.1”. 4) Upgrade... -
Page 55: Backup/Restore
Carry out the upgrade by importing an upgrade file and pressing the Upgrade button. During the upgrade, do not turn off the power of the NVR. And try an access again after waiting five minutes or longer. 5) Backup/Restore • Backup Save a setting value that users enter to the NVR, to a user PC. -
Page 56: Maintenance
6) Maintenance • Maintenance -. Restart: The system is restarted without changing any of the settings. Use this method if the unit is not behaving as expected. -. Reset: The unit is restarted and most current settings are reset to factory default values. The settings that are not affected are: * the boot protocol (DHCP or static) * the static IP address... -
Page 57: Log
6) Log The support page provides valuable information on troubleshooting and contact information, should you require technical assistance. • Logs The network Camera support system log information. Click the System Log button to get the log data. You can search log from the first to last system logs, or you can set the start and stop times and dates. -
Page 58: Live Monitoring
4.1 Live Monitoring The Client Live View provides a remote monitoring function for video images in real time from either a single site or multiple sites. In addition, when events are detected at a remote site, the Client Live View displays the event information, and allows users to access the remote site directly to search the image associated with the event. -
Page 59: Screen Division
4.1.1. Screen Division You can select the number of video feeds to simultaneously display on-screen by clicking the Screen Division button in the lower left of the screen. You can have 1, 4, 9, 16 channel video feed(s) displayed simultaneously on-screen. •... -
Page 60: Event Status Screen
-. Focus button: Adjust the focus of a selected camera. Click “+” and “-“ to adjust the focus. -. IRIS button: Adjust the iris of a selected camera. Click “+” and “-“ to adjust the iris. -. Preset button: Set the preset position for the PTZ camera. Select “Number” to set preset number and click the button to save a current video position. -
Page 61: Record Playback
Alarm In, displays the detection of an alarm input. Motion, displays the detection of a motion event Video Loss, displays the detection of network fail from camera. System Event, displays the detection of HDD high temperature. 4.2 Record Playback Select “Record Playback” tab on main window of the Client s/w. You can see the camera list currently registered. - Page 62 4.2.1 Time-Lapse Search In the calendar, if you succeed in connection with the remote site and there is a recorded data for a particular date, a blue square on the date will be displayed. Selecting a blue date by clicking the mouse displays an hour-based search screen for the chosen date.
- Page 63 Stop Backward Play Forward Play Audio On Audio Mute Clip Copy Backup Snapshot Printer • Clip Copy Click the button to start the clip-copy. Clip-Copy allows the NVR to clip a video segment already stored in the storage and save it to your remote PC. The clip-copy setup screen appears. Change the Days and Time range, the Channel you want to clip and press the Estimate button to calculate the size of the data to be copies.
- Page 64 • Backup Click the button to start the backup. Backup allows the NVR to clip a video segment already stored in the storage and save it to the external storage. The backup screen appears. Change the Days and Time range, the Channel you want to clip and press the Estimate button to calculate the size of the data to be copies.
-
Page 65: Event Search
Click the button to capture a playing image and the button to print that. 4.2.2 Event Search The event search screen is located on the left side Record Playback window. The NVR maintains a log of each time the Alarm Input port is activated. -
Page 66: Archive Playback
video and display the first image of the event. Pressing the PLAY, button will start playing the “event” video segment. 4.3 Archive Playback Select “Archive Playback” tab on main window of the Client s/w. You can see the camera list currently registered. -
Page 67: Backup Playback
There are two ways to use the Playback option; Time-Lapse Search and Event Search. All functions for Archive Playback are same as Record Playback. 4.4 Backup Playback Select “Backup Playback” tab on main window of the Client s/w. You can see the camera list currently registered. -
Page 68: Appendix
5. Appendix 5.1 Troubleshooting Troubleshooting if problems occur, verify the installation of the NVR with the instructions in this manual and with other operating equipment. Isolate the problem to the specific piece of equipment in the system and refer to the equipment manual for further information. Possible Causes or Corrective Actions Problems/Symptoms The NVR cannot start or boot. -
Page 69: Comprehension About Archive And Backup Function
assistance. entered the product. ▪ The product does not work as specified in this instruction manual. ▪ The product has been dropped and severely damaged. ▪ There is a noticeable degradation in the performance of the product. 5.2 Comprehension about Archive and BACKUP function ARCHIVE BACKUP Records a video to the internal... -
Page 70: Preventive Maintenance
5.4 Preventive Maintenance Preventive maintenance allows detection and correction of minor that faults before they become serious and cause equipment failure. Every three-month, perform the following maintenance. Inspect all connection cables for deterioration or other damage. Clean components with a clean damp cloth. Verify that all the mounting hardware is secure. - Page 71 Power Source 100 ~ 240 V AC ±10%, 50/60 Hz, Auto ranging Electrical Power Consumption Max. 70W(T.B.D) Max. 90W(T.B.D) Operating Temperature 0°C ~ +50°C (+36°F ~ +114°F) Environment Humidity 0%RH ~ 60%RH Dimension (W x H x D) 435 x 44.5 x 425.6 435 x x 425.6 mm unit...
