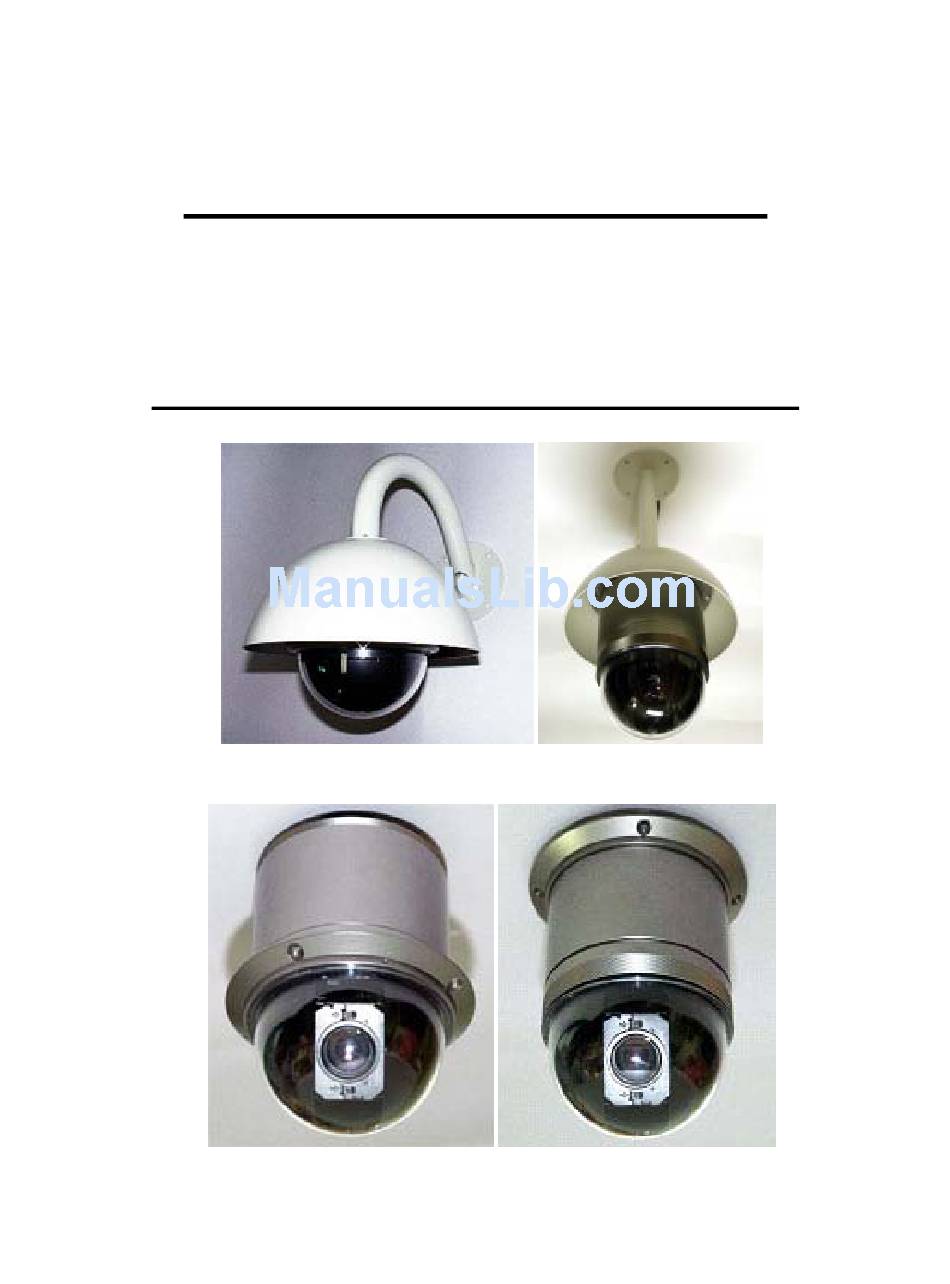

INSTRUCTION MANUAL

#EPC-500 Series

High-Speed Vandalproof Dome Camera

Outdoor Weatherproof Bracket

Indoor Surface Mount

Table of Contents

Need help?

Do you have a question about the EPC-500 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for EZspyCam EPC-500 Series

Page 1: Instruction Manual
INSTRUCTION MANUAL #EPC-500 Series High-Speed Vandalproof Dome Camera Outdoor Weatherproof Bracket Indoor Surface Mount Indoor Surface Mount...
Page 2 Features Camera Specification • 1/4” Color CCD, 410 K Pixels • MAX. 270 × /220x /160x with 10x Digital zoom • Day & Night – Day True Color/Night-0.01 B/W (270x) • Wide Dynamic Range Function High Speed & Silent Motion •...
Page 3 SW 2 : Termination Resistance, Protocol, and Video Format Setting • Termination Resistance: Pin 1 The termination resistor is used for multi-drop connections where two or more speed dome cameras are connected to a controller on a communication line consecutively. Turn on the termination resistance switch of both the nearest camera SW2:Protocol / Video Setting and the farthest camera in the communication line.
Page 4 I/O Connector • I/O Connector Connect to I/O module. • I/O Module I/O Module Signal Sensor Input 1 + Sensor Input 2 + Sensor Input Ground Not Used Relay Output 1 Relay Output 2 Sensor Input +5V, 10mA Relay Output AC125V 0.6A Max DC110V 0.6A Max BNC Connector for Video Out (Indoor)
Page 5: Menu Structure
MENU STRUCTURE Setup Menu Structure Main...
Page 6 MENU STRUCTURE Zoom Camera Setup...
Page 7 MENU STRUCTURE Motion Setup Preset Setup...
Page 8 MENU STRUCTURE Macro For ‘PELCO-D protocol version 5.0 or higher version’ controller user. Menu Enter Numerical Key 95 and Pattern key Enter Menu [95] + [Pattern] Swing Set Swing Enter Menu to set Swing function Enter Numerical Key 11~18 and Pattern key Run Swing [Number] + [Pattern] Group...
Page 9: System Information Menu
MENU DESCRIPTION Key & Joystick Usage • Menu heading in parenthesis ( ) contain sub-menu • Use NEAR key to enter into sub-menu and use FAR key to return to upper menu • Use JOYSTICK to scroll up & down the cursor in menu •...
Page 10: Display Setup
MENU DESCRIPTION Display Setup • To enter into Display Setup menu Locate the cursor at (DISPLAY SETUP) menu ○ Press NEAR key to enter into sub-menu ○ • Camera ID Shows the address of the camera • Action Title Shows the current action Example) PRESET 001 on screen: Preset 1 is activated •...
Page 11: Dome Setting
MENU DESCRIPTION Dome Setting Zoom Camera Setup • To enter into Camera Setup menu ○ Locate the cursor at (CAMERA SETUP) menu ○ Press NEAR key to enter into sub-menu • Focus Mode AUTO/MANUAL/PUSH AUTO > Auto Auto focusing > Manual Manual focusing >...
Page 12 MENU DESCRIPTION Zoom Camera Setup - Focus Setup • To enter into Focus Set menu ○ Locate the cursor at (FOCUS SET) menu by Joystick ○ Press NEAR key to enter into sub-menu • Focus Mode AUTO/MANUAL/PUSH AUTO > Auto Auto focusing >...
Page 13 MENU DESCRIPTION Zoom Camera Setup - AWB Setup • To enter into AWB Set menu ○ Locate the cursor at (AWB SET) menu by Joystick ○ Press NEAR key to enter into sub-menu • AE Mode AUTO/ MANUAL/AGC MAN/IRI MAN •...
Page 14 MENU DESCRIPTION Zoom Camera Setup - AE Setup • To enter into AE Set menu ○ Locate the cursor at (AE SET) menu by Joystick ○ Press NEAR key to enter into sub-menu • AE Mode AUTO/ MANUAL/AGC MAN/IRI MAN •...
Page 15 MENU DESCRIPTION Zoom Camera Setup - Special Set • To enter into Special Set menu ○ Locate the cursor at (SPECIAL SET) menu by Joystick ○ Press NEAR key to enter into sub-menu • User Title Available character: A ~ Z, a ~ z, 0 ~ 9,.?!&*:/+- Type title using NEAR and FAR key •...
Page 16 MENU DESCRIPTION MENU DESCRIPTION Zoom Camera Setup - Motion Detection • To enter into Motion Detection menu ○ Locate the cursor at (MOTION DET) menu by Joystick ○ Press NEAR key to enter into sub-menu • Detection ON/OFF Enables the motion detection function •...
Page 17 MENU DESCRIPTION • To enter into F OSD Display menu ○ Locate the cursor at (F OSD DISP) menu by Joystick ○ Press NEAR key to enter into sub-menu • Display DISP ON/DISP OFF Determines whether selected item is displayed or not •...
Page 18 MENU DESCRIPTION Zoom Camera Setup - WDR • To enter into WDR Set menu ○ Locate the cursor at (WDR SET) menu by Joystick ○ Press NEAR key to enter into sub-menu • WDR Control ON/OFF/AUTO • Sensitivity 0 ~ 15 •...
Page 19: Motion Setup
MENU DESCRIPTION Motion Setup • To enter into Motion Setup menu ○ Locate the cursor at (MOTION SETUP) menu ○ Press NEAR key to enter into sub-menu • Power Up Action ON/OFF > On Sets action such as PRESET, PATTERN, SWING, GROUP will automatically run when power is turned on.
Page 20 MENU DESCRIPTION MENU DESCRIPTION Motion Setup - Park Action • To enter into Park Action menu ○ Locate the cursor at (PARK ACTION) menu ○ Press NEAR key to enter into sub-menu • Park Action ON/OFF Camera will move to the PRESET position defined in PARK ACTION, when it does not detect motion command during park action time.
Page 21 MENU DESCRIPTION Motion Setup - Alarm Define • To enter into Alarm Define menu ○ Locate the cursor at (ALARM DEFINE) menu ○ Press NEAR key to enter into sub-menu • About Alarm Action When Camera receives signal from sensor, it will stop the action and move to defined PRESET position.
Page 22: Preset Setup
MENU DESCRIPTION Preset Setup • To enter into Preset Setup menu ○ Locate the cursor at (PRESET SETUP) menu ○ Press NEAR key to enter into sub-menu • Preset Number 1 ~ 128 'UNDEFINED' appears when the preset value is not set. Select the PRESET number and enter NEAR key to locate the position of defined PRESET position, and menu will appear.
Page 23 MENU DESCRIPTION MENU DESCRIPTION Preset Setup - Edit Preset Label • To enter into Edit Preset Label menu ○ Locate the cursor at (EDIT PRESET LABEL) menu ○ Press NEAR key to enter into sub-menu • To edit preset label ○...
Page 24 MENU DESCRIPTION Preset Setup - Clear Preset • To enter into Clear Preset Scene menu ○ Locate the cursor at (CLEAR PRESET) menu ○ Press NEAR key to enter into sub-menu • To clear preset ○ Enter NEAR key to clear preset position ○...
Page 25: Pattern Setup
MENU DESCRIPTION Pattern Setup About Pattern • Saves and repeats Pan, Tilt and Zoom movement of the camera • Maximum save time for each pattern is 60 seconds, and saved up to 4 patterns • To enter into Pattern Setup menu ○...
Page 26: Swing Setup
MENU DESCRIPTION Swing Setup About Swing • Camera swings between two preset positions with defined speed • Swing starts from 1st position to the 2nd position in the direction of CCW (counter clock wise) and returns in the direction of CW (clock wise).
Page 27: Group Setup
MENU DESCRIPTION Group Setup About Group • Groups are a combination of defined PRESET, SWING, PATTERN actions, and make camera runs actions in sequence. • Each group can store up to 20 actions (PRESET, SWING, PATTERN). • To enter into Group Setup menu ○...
Page 28: Product Specification
PRODUCT SPECIFICATION Specification Model EPC-500 Video Format NTSC/PAL Camera Device 1/4'' Color CCD 410K/470K pixels 811(H) × 508(V) Pixel H. Resolution More then 480 TV Lines Min. Luminance Day-0.5 LUX True color / Night-0.01 LUX B/W Focus Auto/Manual Iris Auto/Manual Backlight WDR On / Off / Auto Flickerless...
