Summary of Contents for Focus FC-7564
-

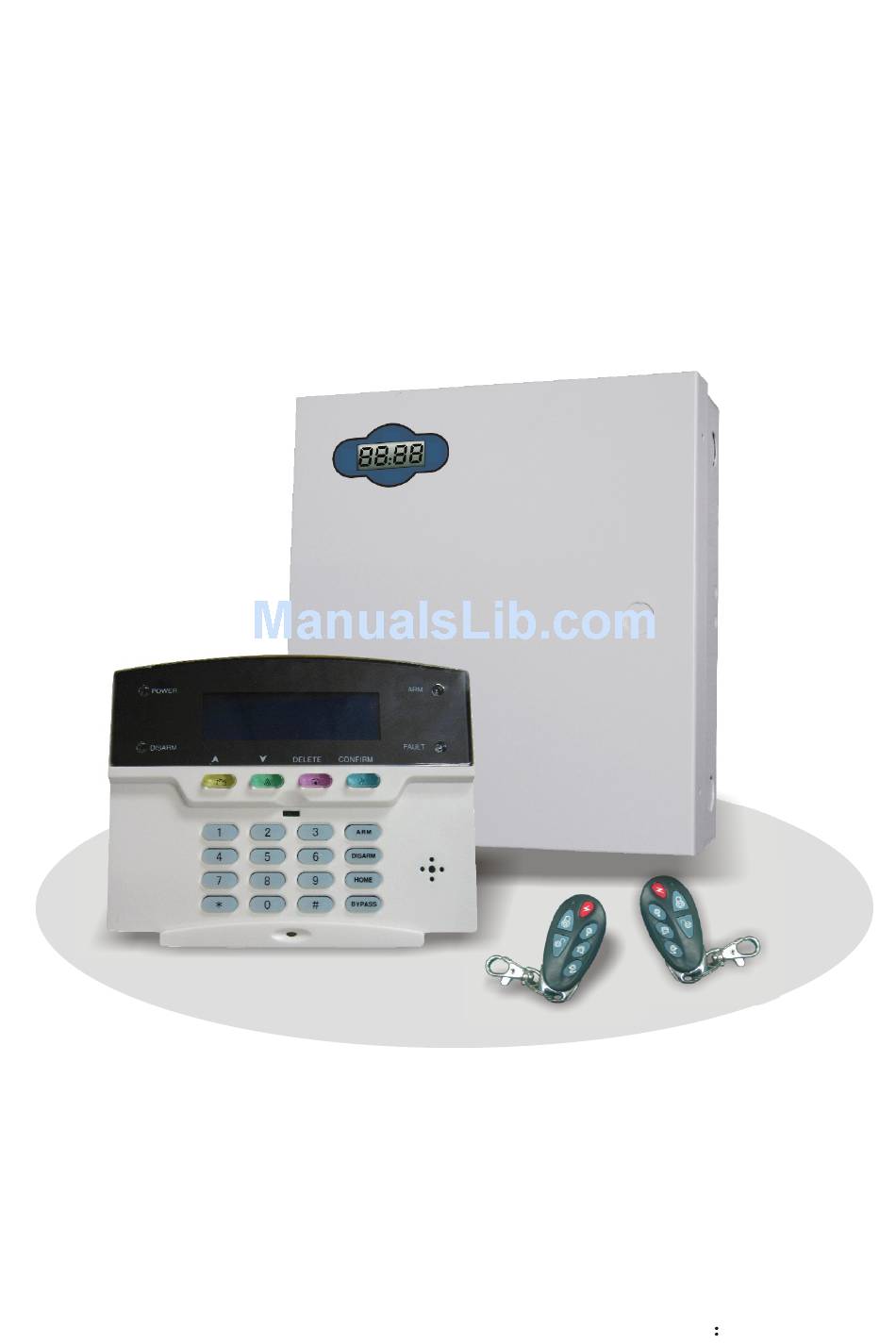

Page 1: User Manual
FC-7564 DISAR M ALARM POWE R FAULT P/N 20120815-A... -
Page 3: Power Supply
FC-7564 WIRING DIAGRAM LED display LED Flash on Metal case +BELL- KEY+ GND +12V 13VAC 2A Aux power 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K 2.2K output Power Disarm Fault Delete Confirm Frice Panic Medical Check Disarm Home Bypass Power supply Only can use12V/7A sealed lead-acid battery,change battery every 3-5 years With 1 keypad,power consumption 250mA,support for 16 working hrs. -
Page 5: Table Of Contents
Content Foreword Features Alarm procedure 1.Remote control by phone 2.Follow me operation GSM remote operation GSM alarm receiving GSM control via SMS Keypad LED display on Metal case C7601 BUS zone expander Basic operation System setting I.Set password 1.1 Set administrator password 1.2 Set user password II.set CMS number 2.1 Set CMS number... - Page 6 4.4 Manual code wireless detector 4.5 Delete remote controller 4.6 Delete detectors V.System zone setting 5.1 Zone type setting 5.2 Zone siren type setting 5.3 Wired zone loop type 5.4 The response speed of wireless VI.Other options setting 6.1 AC power fault report delay 6.2 Time calibration 6.3 Force arming 6.4 Cross protection areas...
-
Page 7: Foreword
Foreword User manual Foreword FC-7564 is a intelligent alarm control system which in tegrated with burglarproof, fireproof, gas leak proof. It is compatible with wired and wireless alarm mode. FC-7564 refers to the most advanced coding techniques of BUS zone and multi-bit random code-hopping techniques in security &... -
Page 8: Features
Features User manual Features: Zones: 8 wired/24wireless/32BUS zone Keypad and remote: Support pcs LCD keypad and 8remotes Password: 1 installer code, 1 duress code, user codes CMS: 2 CMS follow me numbers, account number Voice number: voice numbers, Voice prompting operation Event log: event logs Module expanded: GSM/GPRS module... -
Page 9: Alarm Procedure
Alarm procedure User manual Alarm procedure Cell phone telephone Telephone Tele 3.The panel will dial 1-4 telephone numbers as preset.If more than 4 numbers,the panel will start with second telephone number, then 3,4... Alarm software Alarm situation found, start to send message DISARM ALARM POWER... -
Page 10: Remote Control By Phone
Remote control by phone User manual 1 Remote control by phone When user answer the call,the panel User to call landlines phone pick up phone after preset rinings which connect to the panel 2 3 4 "Welcome to your security Enter the user code as per voice prompting(factory default system Enter your user code"... - Page 11 Follow me operation User manual User answer the call Cancel the alarm press one Check alarm zone press two Activate the hoot press three To disable the siren press four Disarm system press five Arm the system press six Stay arm the system press seven Play the zone address recording press nine Hand up press zero...
-
Page 12: Gsm Remote Operation
GSM remote operation User manual GSM remote operation You can SIM card number,then panel will off revised user password,the default password is 1234,as press 1 to disarm press 2 to arm press 3 to home arm press 0 to hangup GSM alarm receiving When alarm occurs,GSM will call the preset voice number,it will voice prompt system is alarm,please process the alarm... -
Page 13: Keypad
Keypad User manual Keypad description Power LED Arm LED Power Disarm LED Fault LED Disarm Fault Delete Confirm Frice Panic Check Medical Disarm Speech indication Numeric keyboard Home Bypass Power LED: it will normal ON when AC and battery without any trouble. It will off when both AC and battery with trouble. -
Page 14: Led Display On Metal Case
LED display on Metal case User manual Enter system setting : Admin password[012345]+ +[0]+ Exit system setting: Password reset: You can enter installer code 000000 to enter setup only during the first 1 minute when the alarm is powered on. LED display on Metal case Disarm Power... -
Page 15: C7601 Bus Zone Expander
FC-7601 BUS zone expander User manual FC-7601 BUS zone expander (Fig 1) 1.FC-7601 is single zone module via dip switch address, EOL 10k 2.Zone expanded :NO.1-128 3.Wire: red(DC+), Brown(DC-), Yellow(A), White(B), Green( zone inspection) Brown also GND. 4.Working voltage: DC8.5-24V 5.DIP 1 tamper inspection switch, ON to enable tamper, OFF-to disable tamper 2-8 address digit. -
Page 16: Basic Operation
Basic operation User manual Basic operation Disarm àÖ àÖ ¡« ¡« ¡« ¡« Power Power Disarm Fault Disarm Fault Delete Confirm Delete Confirm Frice Panic Medical Check Frice Panic Medical Check Disarm Disarm Home Home Bypass Bypass User code [1234] + or the Disarm User code[1234] +... -
Page 17: System Setting
System setting User manual System setting [012345] + [0] + System setting display Programming address Set data Data bit System menu and programming address 01-- Set admin password 51-- Set siren type 52-- Wired zone loop type 02-- 17Set user password 53-- Wired zone response time 20--21 Set CMS... -
Page 18: I.set Password
Set password User manual I.Set password 1.1 Set administrator password For example: set the administrator password as 112233, the factory default password is 012345. ---- [012345] [01] [112233] Password LCD screen display LCD screen display return to standby interface Press 1.2 Set user password the factory default password:1234 For example:set the NO.3 user password as 5678 ----... -
Page 19: Set User Id
set CMS number User manual 2.2 Set user ID the factory default setting :0000 Example: set the user ID as 6666 ---- [012345] [22] [6666] Program User ID LCD screen address display LCD screen dispaly return to standby interface Press 2.3 Free arm telephone number Example: set the free arm telephone number as 84113252 ----... -
Page 20: Cms Dialing Times
system options User manual 2.6 CMS dialing times.The default setting is 5 times Example:set the dialing time as 4 times. ---- [012345] [27] [04] return to standby interface Press 2.7 The user phone dialing time:the default setting is 5 times Example: set the dialing time as 3 times ---- [012345]... -
Page 21: Set Exit Delay Time
system options User manual 3.3 Set exit delay time:the default setting is 10seconds. Example: set the exit delay time as 15 seconds. ---- [012345] [015] [32] return to standby interface Press 3.4 Siren time the default setting is 5mins Example: set the siren time as 10 mins ---- [012345] [10]... -
Page 22: Communication Checking Interval Time
system options User manual Note: wireless detector send status report about every 3 hours. The panel check if receiver the status report signal or alarm signal from detector at programed time. If not receive the singal, will judge detector loss. We suggest set the neterval time of detector inspection longer than 4 hours. -
Page 23: Code Wireless Device
system options User manual Example: set the panic alarm sound on ---- [012345] [39] return to standby interface Press IV. Code wireless device 4.1 Code wireless remote controller Example: auto code number 5 remote ---- [012345] [40] is the first number of Trigger remote remote is 9 digit address code controller... -
Page 24: Manual Code Wireless Detector
system zone setting User manual 4.4 Manual code wireless detector Example: manual code the number 24 wireless detector by enter the address code 035126025 ---- [012345] [24] [43] [035126025] return to standby interface Press 4.5 Delete remote controller Example: delete the number 8 remote controller ---- [012345] [44]... -
Page 25: Zone Type Setting
system zone setting User manual Burglar alarm zone only trigger under system arm status, delay and perimeter zone trigger under stay or arm status. 24 hours, emergency and fire alarm zone will trigger under any system status Factory default: Wired zone 1-8 enable, wireless zone 9-32 enable, bus zone 33-64 disable, 00 is system zone. -
Page 26: The Response Speed Of Wireless
Other options setting User manual Eol resistor N.G wiring Eol resistor N.O wiring For example: set the protection area No.6 as N.C loop ---- [012345] [52] return to standby interface Press Note: if only see the loop type in the wired protection area, press to display the loop type after inputting the protection area number 5.4 The response speed of wireless protection area (default is 500ms) -
Page 27: Time Calibration
Other options setting User manual Note: if the delayed time setting is 0 minutes, it means that it will not report the power fault information. 6.2 Time calibration For example: If the panel time every 24 hours fast 20 seconds, take the formula 20x100/24=83 to calibrate, then set this value is 083. -
Page 28: Dial Back Specific Number
GSM setting User manual ---- [012345] [07080502] [70] Zone 1 Time Mode Zone 2 Press return to standby interface Note: It can set 3 groups of cross protection areas. The corresponding No is 70-72 6.5 Dial back specific No. : dial telephone No. that connected with panel, input the + administrator s password after off-hook. -
Page 29: Alarm Priorities
GSM setting User manual ---- [012345] [83] Program Type LCD screen address dispaly LCD screen dispaly Press return to standby interface 7.3 Alarm priorities (default is GSM priority) GSM priority PSTN priority For example: set telephone line is priority ---- [012345] [82] Press... -
Page 30: Handshake Voice Input Signal Strength
GSM setting User manual 7.6 Hand skake voice input signal strength (default is 60) For example: set handshake voice input signal strength is 70 ---- [012345] [90] [70] return to standby interface Press 7.7 GPRS setting (default is disable) Disable Enable For example: set enable GPRS function. -
Page 31: Server Registered Id
GSM setting User manual 7.10 Server registered ID For example: set server registered ID is 75640001 ---- [012345] [75640001] [86] Program User ID LCD screen address dispaly LCD screen dispaly return to standby interface Press 7.11. Server registered password For example: set Server registered password is 12345678 ---- [012345] [87]... -
Page 32: Technical Specification
User manual Technical specification Technical specification General data External AC power supply vdtage: Input: 185 230VAC Output:13VAC/2A Backup power supply duration:16 hours Backup battey(optiond): 12V/7AH The method of alarming dial: Telephone alarm GSM alarm and GPRS alarm DTMF dial frequency variation :< 1.5% Communication Protocol with CMS: Ademco Contact ID Frequency: 433MHz/868MHz... -
Page 33: Limitation Of The Products
Limitation of the Products User manual Limitation of the Products Although the products is a high standard products, there is also some limitation of them such as false alarm or no alarm, the reasons may be below: Lack of Maintenance. The system needs maintenance and test regularly test.
