Sonuus Voluum Owner's Manual

Analogue volume effects stomp box for guitar and bass
Hide thumbs Also See for Voluum:
Table of Contents

Advertisement

Quick Links

Download this manual
®

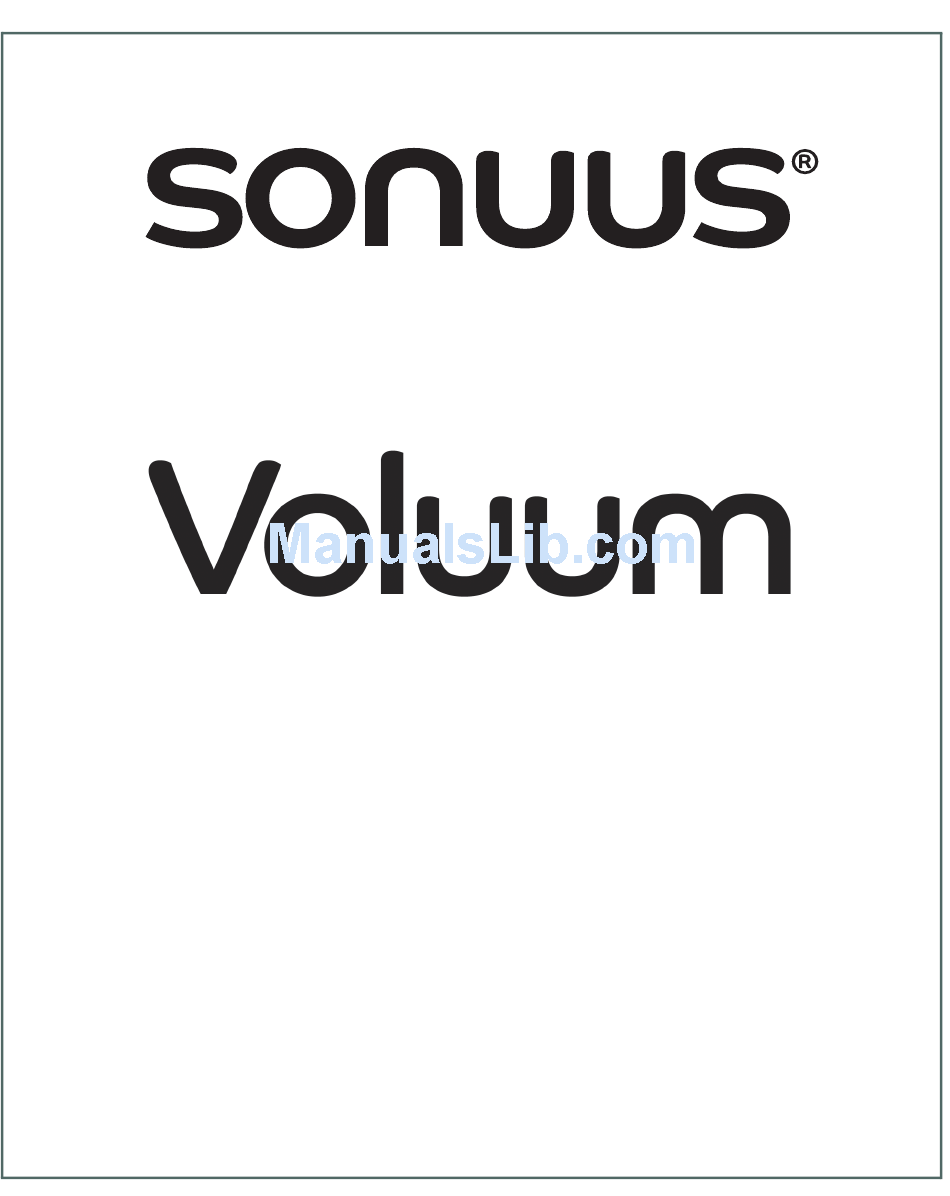

Owner's Manual
Analogue Volume Effects
Stomp Box for Guitar and Bass
Version 1.1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Voluum and is the answer not in the manual?

Questions and answers

Robert Puffer
April 4, 2025

Can the Voluum be powered by a 9 V 670 mA plug?

0
1 comments:
Mr. Anderson
April 4, 2025

Yes, the Sonuus Voluum can be powered by a 9V DC power supply that provides at least 500mA. Since 670mA is more than 500mA, it is acceptable.

This answer is automatically generated

0

Related Manuals for Sonuus Voluum

Summary of Contents for Sonuus Voluum

  • Page 1 ® Owner’s Manual Analogue Volume Effects Stomp Box for Guitar and Bass Version 1.1.0...

  • Page 2: Safety - Read This First

    Do not open any part of the Voluum case other than the battery compartment. There are no user-serviceable parts in the Voluum. Do not expose the Voluum to rain, liquids or moisture of any kind. If this occurs, disconnect the Voluum from your computer, power supply, and from your musical instrument and remove any batteries then allow the unit to dry out completely before using it again.

  • Page 3: Quick Start

    Owner’s Manual Quick start This manual is a comprehensive guide to the Voluum. To start using it as quickly as possible, follow this short guide. Please refer to the rest of the manual for detailed operating instructions. Connect your guitar/bass to the jack of the Voluum.
  • Page 4 As a result, the pedal control on the Voluum won’t get scratchy and will never wear out. Combined with ultra-smooth pedal action with user-adjustable tension, in a rock-solid chassis, the Voluum gives you unrivalled signal level control.
  • Page 5 We recommend that you visit our web site and register your new Voluum. This is required for direct warranty support. Once you have registered, you have access to firmware updates, the Voluum Desktop Editor Software and you can opt to receive updates and news from sonuus: register.sonuus.com...
  • Page 6 What can the Voluum do? Gate/expander In its simplest form a noise gate cuts the signal when its level falls below a set threshold. The Voluum noise gate not only gives you control over the threshold, but also enables fine control over how quickly it reacts and how much the signal should be reduced in level.
  • Page 7 ADSR Limiter The high voltage analogue power rails in the Voluum give great sonic quality, but it means that high output levels can overdrive other effects in your chain. The limiter can be engaged to soft-limit the signal peaks to keep them within the input range of your other effects to avoid nasty clipping distortion.
  • Page 8 Using the Voluum In the rest of this manual, we cover everything you need to know about the Voluum: from how to connect it to your rig, to how to power it and how to delve in and create your own presets.
  • Page 9 You can also connect the Voluum to the effects loop of your amp: connect the output of your guitar to the input of your amp, then connect the “send” of your amp to the Voluum...

  • Page 10: Lock Switch

    . When this switch is in the LOCK locked position, the Voluum is in Preset Select mode and none of the parameters can be edited or saved: the only thing that you can do is change between presets. If you try to make a change when locked, LoC is shown briefly on the numeric display.
  • Page 11 ). This connection is known as a true-bypass connection because in this state none of the Voluum electronics are connected to the signal: this keeps your original guitar/bass signal as pure as possible. (Unless buffered-bypass mode is enabled, see “Custom settings” on page 35, where the Voluum electronics are active, but have minimal effect on your signal.)

  • Page 12: Selecting A Factory Preset

    The factory presets configure the Voluum into a variety of set-ups, from traditional volume to sonuus’ unique pedal-controlled compressor effects. The Voluum has two modes: Preset Select mode and Preset Edit mode. By default, it is in Preset Select mode and the display alternates between the 3-character preset name and the preset number: either F00–F99 for factory presets 0 to 99 or P00–P99 for user presets 0 to 99.
  • Page 13 Note 2: In foot-operated preset selection mode, you can still use the buttons as normal to select presets, and to increment/decrement in 10s if required. Voluum © Copyright 2014 Sonuus Limited...
  • Page 14 (the Footswitch is off). As described in “Enabling and bypassing the Voluum” on page 11, the Voluum can operate in true- bypass, or buffered-bypass mode. A third option “preset-bypass” can also be selected (see “Custom settings”...

  • Page 15: Creating Your Own Presets

    Owner’s Manual Creating your own presets You can create and store up to 100 user presets on the Voluum. The steps for creating a preset are straight-forward. Creating and saving a user preset Ensure that the switch is in the unlocked position. Starting from any preset (factory or...
  • Page 16 Owner’s Manual Selecting and changing parameters When you press or move the knob, the Voluum will enter Preset Edit mode. The EFFECT flashing shows which effect is being edited. Successive presses on the knob will EFFECT cycle between editing the parameters for the gate, compressor, , volume and limiter effects.
  • Page 17 The Voluum signal chain does things differently. The limiter is always the last effect in the chain in order to limit the output of the Voluum. But the other effects in the chain can be considered to be in any order—because the effects are all volume-...
  • Page 18 Not all parameters are controllable (it simply doesn’t make sense for some parameters to be controllable), but for those that are, the same control method is used for each. Note that the Voluum allows you to use different control methods for different effects.
  • Page 19 When using the Voluum as a volume pedal effect, the volume meter can be used as a visual i.e., indication of the position of the pedal ( the current volume) before enabling the effect.
  • Page 20 Adjusting the gate The gate effect on the Voluum is a noise gate/expander. A noise gate is used to suppress unwanted noise when the signal falls to a low level. It works by allowing signals that are above the gate threshold to pass through unchanged, but reduces signals that are below the gate threshold.
  • Page 21 Above the knee, a constant gain- reduction (ratio) is applied to the signal level. Note that the shape (sharpness) of the Voluum compressor’s knee varies as the amount of compression is changed.
  • Page 22 The attack parameter (Att) is the time in milliseconds that it takes the compressor to respond to a signal that exceeds the threshold. A fast attack (Att time is small) can compress short transients, Voluum © Copyright 2014 Sonuus Limited...
  • Page 23 In general, the release should be set fast enough to recover in time to process the next transient. The Voluum has an intelligent automatic make-up gain which maintains the subjective loudness of the signal. The aim of the make-up gain is to ensure that the signal loudness is the same with and without compression.
  • Page 24 Owner’s Manual Adjusting the in the Voluum is used to create a tremolo effect. It is highly configurable using the parameters in the table below. The speed of the can be controlled precisely and can even be synchronised to a sequencer using “...
  • Page 25 (square), whereas at its limits the waveform is always at its minimum (dty = 0) or maximum (dty = 100) value. This can be used to emulate the sound of a kill-switch, particularly when you control dty using the pedal. Voluum © Copyright 2014 Sonuus Limited...
  • Page 26 The trapezoidal waveform is highly configurable: examples of trapezoidal waveforms are shown below. In the Voluum, the shape of the trapezoid is controlled by the parameters ramp up (r.uP) and ramp down (r.dn), referring to the left and right sides of the waveforms shown. One cycle of the trapezoid waveform is represented by 100 time units.
  • Page 27 +6dB and −12 dB, set the Top Tip: If you want the dB to −18 and set the level trim (LvL) to +6. Voluum © Copyright 2014 Sonuus Limited...

  • Page 28: Adjusting The Volume

    ’ parameters you can easily create complex, smoothly evolving textures. LFOS Adjusting the volume The Voluum lets you configure how your volume effect sounds and how it feels to play. The parameters to set it up are in the table below. Parameter...
  • Page 29 “hi” curve (Lh-), and vice-versa (hL-). The Lh- curves are particularly useful for volume fades: note how the change starts and ends smoothly at both ends. These curves, also known as sigmoid curves, allow the most natural-sounding fades to be achieved. Voluum © Copyright 2014 Sonuus Limited...
  • Page 30 Owner’s Manual The Voluum lets you do super-smooth volume fades that would be impossible to achieve using a simple volume pedal: enable FAd (set to on) and set a fade time using the tiM parameter. When the footpedal is moved to the toe-down position, the volume will fade from lo to hi. Conversely, when the footpedal is moved to the heel-down position, the volume will fade from hi to lo.
  • Page 31 The nominal level at which the limiter clips, in dBu. The limiter symmetry in percent — 0 is symmetric. −99–99 Positive values allow the positive part of the signal to be larger than the negative part. Voluum © Copyright 2014 Sonuus Limited...
  • Page 32 SyM parameter gives you the flexibility to achieve it. Don’t worry too much about the details of the harmonics—just set-up the Voluum © Copyright 2014 Sonuus Limited...

  • Page 33: Midi Operation

    ( , Windows, MIDI Linux) via a cable. The necessary drivers are part of the operating system so your computer will automatically configure itself to work with the Voluum. Once this is done, new -in and -out MIDI MIDI ports will appear, named “Voluum”.
  • Page 34 The Voluum can also be used as a interface, allowing you to send between your MIDI MIDI computer and other gear. When the Voluum is connected to your computer via , any MIDI MIDI messages sent to the Voluum over will also be sent out the 5-pin output.

  • Page 35: Custom Settings

    The custom settings are not stored in a preset, they are stored in the Voluum itself. They take effect from when they are changed. They are not changed by switching from one preset to another.
  • Page 36 (omni mode). Any, MIDI Sets the output channel used to send messages. If set to oFF, MIDI MIDI Ch.o 1–16 oFF, no messages will be sent. MIDI Voluum © Copyright 2014 Sonuus Limited...
  • Page 37 Owner’s Manual External footswitch connection Although it is easy to select presets using your foot with the Voluum’s footswitch and footpedal (see “Foot-operated preset selection” on page 13), it can sometimes be more convenient to have dedicated footswitches for this, freeing up the Voluum’s foot controls to be used exclusively for enabling/bypassing the effect and for pedal-control.

  • Page 38: Pedal Calibration

    Warranty The Voluum is supported by a limited warranty for a period of one year from the date of purchase. During this period, any faults due to defective materials or workmanship will be rectified (by repair or replacement) free of charge. A unit under warranty may be replaced with a reconditioned unit.

  • Page 39: Firmware Updating

    (if not already done during power-on). Follow the steps in the Firmware Updater manual you have downloaded. Note: if the Voluum detects that your firmware is corrupt, it will boot straight into update mode to let you update the firmware.
  • Page 40 Simultaneously press and hold active + to display % battery charge. Firmware update mode: enter Simultaneously press and hold active + when powering-on the Voluum. exit Restart the Voluum. Cancel edit Press and hold save for 2s. (enter Preset Select mode)

  • Page 41: Factory Presets

    Owner’s Manual Factory presets The Voluum is able to store up to 100 factory presets, but not all of these slots are utilised in the current firmware version. Additional factory presets will be included in future firmware updates. Use this space to note your favourite factory, or user, presets.

  • Page 42: Specification

    Class-compliant HID/USB Audio (built into operating system) Windows XP, Vista, 7 and above Computer (Editor) Apple OSX 10·5 and above (Intel Mac only) Windows XP, Vista, 7 and above Computer (MIDI) Apple OSX 10·3·9 and above Voluum © Copyright 2014 Sonuus Limited...
