Summary of Contents for Kiwi Technics Patch Editor

  • Page 1 Patch Editor...

  • Page 2: Table Of Contents

    Organix Midi 3P Upgrade......................... 12 Korg DW-6000........................... 13 Each active controller in the Patch Editor is lit by a LED. If a control is unused it will be dark and will Korg DW-8000........................... 14 have no effect. This has added to the cost of making the Patch Editor but it was felt that the visual Korg DSS-1............................
  • Page 3 Patch Editor is switched off. It is possible to send commands to the Patch Editor on one midi channel and the Patch Editor will output to the synth on another. This could be useful if the control codes to the Patch Editor could be interpreted differently by the synth being controlled.

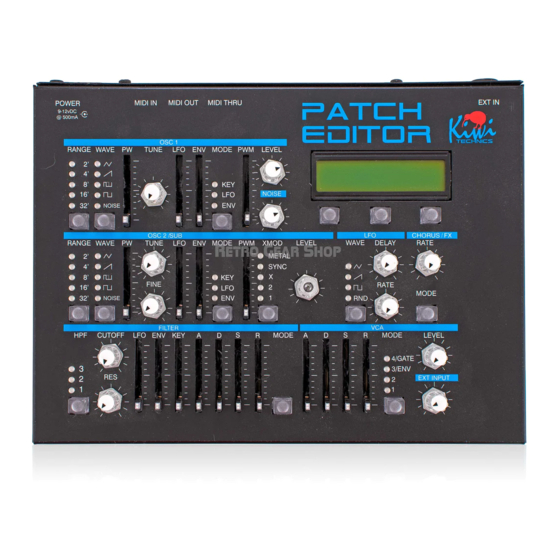

  • Page 4: Patch Editor Layout

    1. Osc 1 Range Select 19. Osc 2 Fine Tune 37. Filter/EG1 Attack Patch Editor has developed. An example of a use of this button is in the Roland 2. Osc 1 Waveform Select 20. Osc 2 LFO Modulation 38. Filter/EG1 Decay Juno-1 where this button will select the PW wave form.
  • Page 5 These controls (37) (38) (39) (40) (42) (43) (44) (45) set the shape of the EG1 and which will allow more than one synthesizer to be controlled using the Patch Editor. EG2 Envelopes. The EG1 envelope, if used, will normally control the Filter via the Only the active synthesizer can be controlled 'live' but any supported type can be ENV mod control (35).

  • Page 6: External Input

    12 volt DC supply. If this becomes an issue then either lower the brightness setting or run the Patch Editor on a 9 volts DC supply. No damage to the Patch Editor will result from this. 9vDC is the preferred supply.

  • Page 7: Synth Tables

    Osc 2 Env Amount Osc 2 Mode (22) PWM Source - Env, Sweep Osc 2 PWM (23) Osc 2 PWM Osc 2 XMod Sync / Ring Mod - Off/Off, On/Off, Off/On, On/On Osc 2 Level (25) Not Used www.kiwitechnics.com Patch Editor v6.0...

  • Page 8: Cheetah Ms6

    DCO B PWM Modulation Osc 2 PWM (23) Wave 2 Shape Osc 2 XMod Not Used Osc 2 XMod (24) Sync On/Off Osc 2 Level (25) Wave Balance Mix Osc 2 Level (25) DCO A & B PWM Level www.kiwitechnics.com Patch Editor v6.0...

  • Page 9: Kiwitechnics Kiwi-3P Upgrade

    DCO 2 ENV Level - note split ± 63 control Osc 2 Mode (22) Select DCO 2 EG Source - EG1 or EG2 Osc 2 PWM (23) Not Used Osc 2 XMod Sync Off, Sync On, Metal Osc 2 Level (25) Not Used www.kiwitechnics.com Patch Editor v6.0...

  • Page 10: Kiwitechnics Kiwisix Upgrade

    Key Mode - Poly 1, Poly 2, Unison Osc 2 Level (25) MG Osc Level Roland© KiwiTechnics JX-3P Upgrade Notes Random mode on the Arp is only available via midi control Full details can be found in the KiwiTechnics Korg PolySix Upgrade manual. www.kiwitechnics.com Patch Editor v6.0...

  • Page 11: Kiwitechnics Kiwi-106 Upgrade

    VCA Level (47) Active Osc 2 ENV Mod (21) Portamento Rate (0=Off) Osc 2 Mode (22) Not Used Osc 2 PWM (23) Not Used Osc 2 XMod LFO Mode- Normal/Plus Osc 2 Level (25) Sub Level www.kiwitechnics.com Patch Editor v6.0...

  • Page 12: Organix Midi 3P Upgrade

    Osc 2 ENV Mod (21) Not Used Osc 2 Mode (22) Used to enable Osc 2 LFO & Env modulation Osc 2 PWM (23) Not Used Osc 2 XMod Sync Off, Sync On, Metal Osc 2 Level (25) Not Used www.kiwitechnics.com Patch Editor v6.0...

  • Page 13: Korg Dw-6000

    Because of this combining, changing one control in a combination will also set the other part to the current Patch Editor setting. This is unavoidable due to the way the DW-6000 is Osc 1 Range (1)

  • Page 14: Korg Dw-8000

    The Envelopes in the DW-8000 use extra controls. In addition to Attack, Decay, Sustain and Release there are break level and slope controls. On page 1 the Patch Editor sets the slope equal to the decay and the break level to maximum and break time to minimum which has the effect of changing the envelope generators to the four control system.

  • Page 15: Korg Dss-1

    VCA Level (47) Active Osc 2 ENV Mod (21) Not Used Osc 2 Mode (22) OSC Auto Bend Polarity Osc 2 PWM (23) Not Used Osc 2 XMod (24) Sync On/Off Osc 2 Level (25) Not Used www.kiwitechnics.com Patch Editor v6.0...

  • Page 16: Korg Dsm-1

    VCA Level (47) Active Osc 2 ENV Mod (21) Not Used Osc 2 Mode (22) OSC Auto Bend Polarity Osc 2 PWM (23) Not Used Osc 2 XMod (24) Not Used Osc 2 Level (25) Not Used www.kiwitechnics.com Patch Editor v6.0...

  • Page 17: Korg M1

    PW slider. The lowest numbers select internal waves and the higher numbers select cartridge waves if a cartridge is present. The Envelopes in the M1 use extra controls. In addition to Attack, Decay, Sustain and Release there are break level and slope controls. The Patch Editor only controls the A/D/S/R sections. www.kiwitechnics.com Patch Editor v6.0...

  • Page 18: Oberheim Matrix 6

    Osc 2 Mode (22) OSC 1 Fixed Mods (Off, Level 1, Vibrato, Both) Osc 2 PWM (23) DCO 2 PW by LFO2 Modulation Amount Osc 2 XMod (24) Sync On/Off Osc 2 Level (25) Not Used www.kiwitechnics.com Patch Editor v6.0...

  • Page 19: Oberhiem Matrix 1000

    This makes it unsuitable to control parameters in a live situation but a patch has been provided to help set up the M1000. The parameter for Filter sustain control does not work in the M1000 and has been disabled in this patch. www.kiwitechnics.com Patch Editor v6.0...

  • Page 20: Roland Juno-1 Juno-2 And Hs-10

    Not Used Filter Key Follow (36) Active Oscillator 2 on the Patch Editor is used to control the sub oscillator. The oscillator 2 wave switch (16) is used to step through Osc 2 Wave (16) Sub Osc Waveform & Octave Select...

  • Page 21: Roland Jx-8P

    DCO 2 LFO Mod VCA Level (47) Active Osc 2 ENV Mod (21) DCO 2 ENV Mod Osc 2 Mode (22) Not Used Osc 2 PWM (23) Not Used Osc 2 XMod (24) Off, 1, 2, Cross Mod www.kiwitechnics.com Patch Editor v6.0...

  • Page 22: Roland Juno-106 / Mks-7

    Note: Because the switch settings are combined into two commands changing one switch will cause the others in the same command to be sent also with whatever settings are on the Patch Editor. This is unavoidable due to The Roland Juno-106 did not have a dedicated controller available.

  • Page 23: Roland Mks-70 / Jx-10Se

    Osc 1 ENV Mod (6) Active HPF (31) Active can have completely independent settings. The Patch Editor can address these separately on the MKS-70 or simultaneously Osc 1 Mode (7) Osc 1 & 2 Envelope Source Select LPF Cutoff (32) Active via the Tone Select Button.

  • Page 24: Roland Jd-990 Fx

    Controls for Tone A-D. Each patch is made up of four separate Tones (A,B,C & D) and each of these has two pages of controls. VCA Level (47) Active It is not possible to fit all parameters into the PE layout so only those deemed the most useful for Patch editing have been included. www.kiwitechnics.com Patch Editor v6.0...

  • Page 25: Roland Jd-990 Tone

    Not Used VCA Mode (46) Not Used It is not possible to fit all parameters into the PE layout so only those deemed the most useful for Patch editing VCA Level (47) TVA Level have been included. www.kiwitechnics.com Patch Editor v6.0...

  • Page 26: Roland Mks-80

    Osc 1 Wave (2) Sawtooth, Pulse, Square, Triangle LFO Delay (27) LFO Delay The two boards are called Upper and Lower and can have completely independent settings. The Patch Editor Osc 1 PW (3) VCO 1 & 2 PW adjust LFO Speed (28) LFO-1 Rate can address these separately or simultaneously via the Upper/Lower Select Button.

  • Page 27: Studio Electronics Atc

    Osc 2 ENV Mod (21) Not Used Osc 2 Mode (22) Not Used Osc 2 PWM (23) Cross Mod Amount Osc 2 XMod (24) Osc 2 Sync Control (Normal & 3 types) Osc 2 Level (25) Oscillator 2 Level www.kiwitechnics.com Patch Editor v6.0...

  • Page 28: Sequential Circuits Six-Trak And Max

    Osc 2 ENV Mod (21) Env Modulation Osc 2 Mode (22) Pulse LFO Modulation On/Off Osc 2 PWM (23) Filter/Osc Tri Modulation Osc 2 XMod (24) Oscillator Env Normal / Inverse Osc 2 Level (25) Not Used www.kiwitechnics.com Patch Editor v6.0...

  • Page 29: Waldorf Pulse

    Osc 1 PWM (8) Pitch Bend Scale VCF Resonance (33) Active This Waldorf patch uses more controls than are available on the Patch Editor so this patch has been spread over two Osc 1 Level (9) Not Used Filter LFO Mod (34) VCF Mod Amount pages.

  • Page 30: Waldorf Q/Q Plus Microq

    DCO 1 Pulse Width Mod LPF 2 Resonance (33) VCF 2 Resonance This Waldorf patch uses more controls than are available on the Patch Editor so this patch has been spread over two Osc 3 Level (9) DCO 1 Level...

  • Page 31: Waldorf Microwave 1

    Wave 1 Modifier 2 Amount LPF Resonance (33) VCF Resonance Mod 1 Amount This Waldorf patch uses more controls than are available on the Patch Editor so this patch has been spread over two Osc 1 Level (9) Wave 1 Keytrack Amount...

  • Page 32: Unsupported Synthesizers

    Unsupported synthesizers The following synthesizer types have been tested and found to be not suitable for controlling with the Patch Editor. Yamaha DX7 The Yamaha DX7 synthesizer is FM based and few of the Patch Editor controls are suitable. This is what is required.

  • Page 33: Midi Implementation

    Because sysex commands are much longer than MidiCC commands the Patch Editor will need to output much more data than is sent to it. This will take extra time and there may be a noticeable lag if too much data is sent to the PE too quickly. If the Patch Editor buffer overflows data will be lost...
  • Page 34 Korg M1 Default=$0a (10) Waldorf MW1 Default=$19 (25) Moog Slim Phatty Default=$0b (11) Waldorf Pulse Default=$1a (26) Matrix M6r Default=$0c (12) Waldorf MicroQ Default=$1b (27) Matrix M1000 Default=$0d (13) Generic MidiCC Default=$1c (28) Organix 3P Default=$0e (14) www.kiwitechnics.com Patch Editor v6.0...
