Summary of Contents for Yulong D100 II

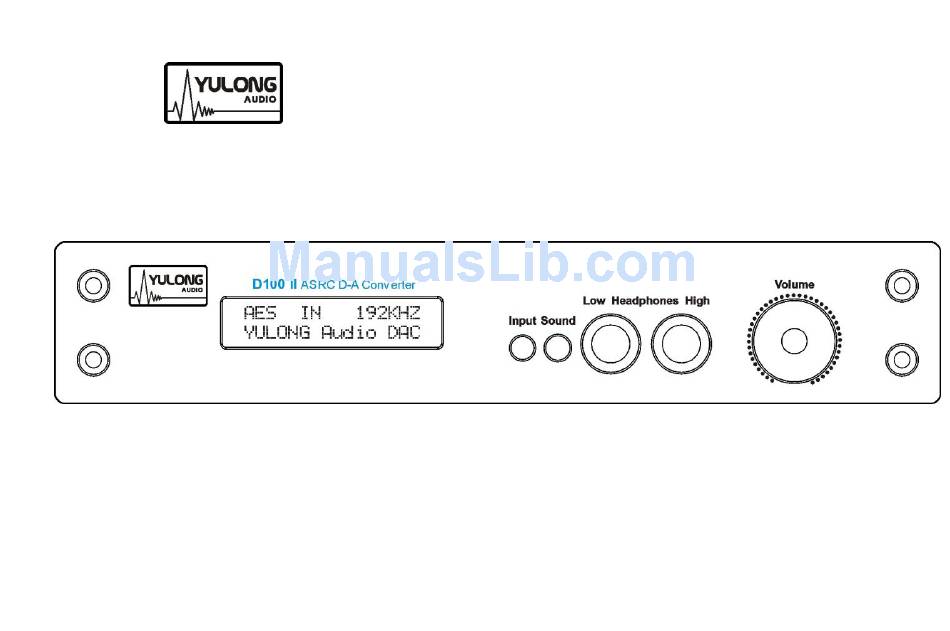

- Page 1 音频解码器操作手册 D100 II User Manual Of D100 II Audio Decoder 在使用本机之前，敬请详细阅读本手册，并妥善保管以便参考。 For a better experience with this product, please read this manual carefully before using it, and keep it for future reference.
- Page 2 D100 II Digital to Analogue Converter, and we believe this product will bring you into a brand new audio journey. Carefully designed and manufactured by ShenZhen YuLong Electronics Co. Ltd., The D100 II is a high-precision audio decoder. Thanks to it's plenty interface, excellent performance and small size, it is very convenience to integrate into your Hi-Fi system.
- Page 3 input digital signal is added 80ns of jitter, this DAC can produce almost same performance as when there is no jitter added, while another DAC in comparison which is not implemented with ASRC already lost the lock to the signal and cannot work. ●...
- Page 4 ● No matter where you are: You can select 110/120V or 220/240 operating voltage. Inputs: The digital input includes Optical, S/PDIF and AES/EBU, which can connect to most of the equipments with PCM digital audio signal up to 24bit/192KHZ, such as CD, DVD or sound card. By selecting USB mode by pushing the INPUT button on the front panel, this DAC can be used as a USB sound card, and supports WINDOWS 7, VISTA, XP, MAS OS and LINUX.
- Page 5 The structure is as follows:...
- Page 6 The diagram of using: Operating instructions:...
- Page 7 1、LCD display, shows the input, output as well as the sound mode 2、Input selection: Press to select input from Optical, S/PDIF, AES/EBU and USB. 3、Sound mode selector: Mode 1 is default setting, and switch to Mode 2 by a double press. 4、LOW Headphone output: To connect low impedance and high sensitivity headphones.
- Page 8 If you want to use the ASIO, it is needed to install the special ASIO drivering program for the D100 II. Recommendation: Uses the USB to connect the D100 II, in order to get the best result, you can adjust the volume of PC to the...
- Page 9 D100 II Technical Specifications: ● Inputs: Optical, Coaxial, USB, AES/EBU ● Input digital signal format: 32-192 KHz, 16/24 Bit auto detection. USB supports up to 24Bit 96KHz ● SNR: >120dB. ● Dynamic Range: 115dB. ● THD+N: <0.0005% at 1KHZ ●...
-
Page 10: Test Chart
Series III digital audio analyzer Test chart： D100 II-Frequency response st Fs=96KHZ... - Page 11 D100 II THD + N vs Frequency odbfs/A-weighting...
- Page 12 D100 II 1KHZ/0DBFS/16K FFT...
- Page 13 SHENZHEN YULONG Audio ELECTRONICS CO.,LTD. Contact person: YuLong Zhang Mobile: 86(0)13570857228 Tel: 86-0755-28895692 QQ： 87553183 MSN： xiaolong0841@msn.com Email: xiaolongaudio@qq.com...
