Bluetooth Audio Receiver
Please read this manual before use

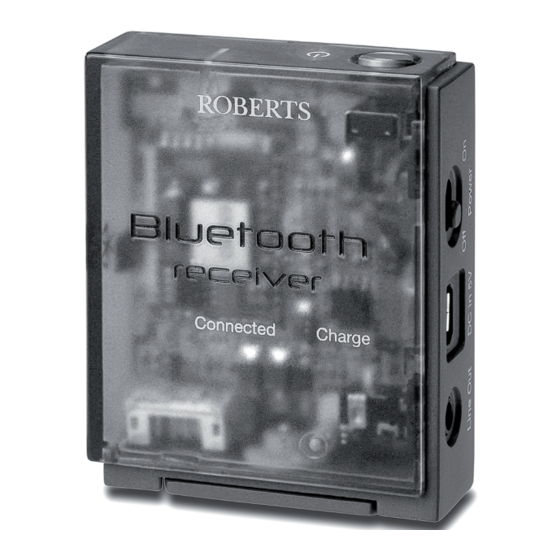

About your Bluetooth Receiver
The Bluetooth receiver allows you to play audio, play sound from video fi les
and stream music from Bluetooth capable devices such as your moblie phone,
computer, tablet etc. through your radio's loudspeakers. To be able to use the
Bluetooth receiver your radio must have an auxiliary audio input (typically labelled
Aux-in or Line-in). A Bluetooth connection can provide a link for audio up to a
distance of approximately ten metres.
Powering your Bluetooth Receiver
You can use your Bluetooth receiver with the mains adaptor connected or without
the mains adaptor once the built-in battery has been fully charged.
1. Your receiver is designed to be used either horizontally or vertically. To use
vertically, swivel the foot located underneath the receiver through 90° and
place the receiver on a fl at surface.
2. Insert the USB connector into the USB socket on the mains adaptor.
3. Plug the micro USB connector into the DC in socket on the receiver.
4. Plug the mains adaptor into a standard 13A mains socket outlet. The red
indicator will light showing that the internal battery is charging.
5. Charging time will be approximately 2 hours. You can charge your receiver
when the power switch is in the on or the off position.
6. The red indicator remains lit while charging is taking place and will turn
off when the receiver is fully charged. Once fully charged the battery will
power your receiver for approximately 8 hours.
7. If you need to use the receiver continually you may keep it connected to
the mains adaptor while in use.
IMPORTANT: The mains adaptor is used as the means of connecting the
Bluetooth receiver to the mains supply. The mains socket used for the receiver
must remain accessible during normal use. In order to disconnect the receiver
from the mains completely, the mains adaptor should be removed from the
mains socket outlet completely.
3
Controls
1 2 3 4
10
9
1. Bluetooth receiver
2. Swivel foot
3. Connected indicator
4. Charge indicator
5. Bluetooth On / Standby button
6. Line out socket
Operating your Bluetooth Receiver
'Bluetooth pairing' occurs when two Bluetooth enabled devices agree to establish
a connection and communicate with each other.
When a Bluetooth enabled device is in a 'discoverable' state other Bluetooth
devices can detect, pair with or connect to it.
Your Bluetooth receiver will fl ash its Bluetooth indicator light when it is discoverable
or when it is trying to connect to a previously paired Bluetooth device. When
a device is paired with and connects to your receiver, the Bluetooth indicator
light will remain lit.
1. Before connecting the receiver to your radio, we recommend the radio is
switched off or in standby or the volume is set to minimum to avoid unpleasant
pops and clicks when making the connections.
2. Connect one end of the audio lead to the Line out socket on your Bluetooth
receiver.
3. Connect the other end of the audio lead to the Auxiliary input socket on
the radio (please refer to the user guide provided with your radio). On some
products the Auxiliary input may be referred to as the Line input.
7
6
4. Ensure that the Bluetooth capability on your phone, tablet or PC is enabled.
You may need to refer to the user documentation for your device, since the
method will vary with each device.
5. Switch your radio on and select the Auxiliary input mode (please refer to
the user guide provided with your radio).
6. Slide the Power On / Off switch on the receiver to the On position.
7. Press the Bluetooth On / Standby button for between 1 and 2 seconds to
wake up the Bluetooth recevier. Your receiver will show that it is 'discoverable'
by fl ashing the blue connected indicator.
5
6 7 8
11
12
7. DC in socket
8. Power On / Off switch
9. USB lead
10. Audio lead
11. Mains adaptor / charger
12. USB socket
