Summary of Contents for SpraMigo TCB100

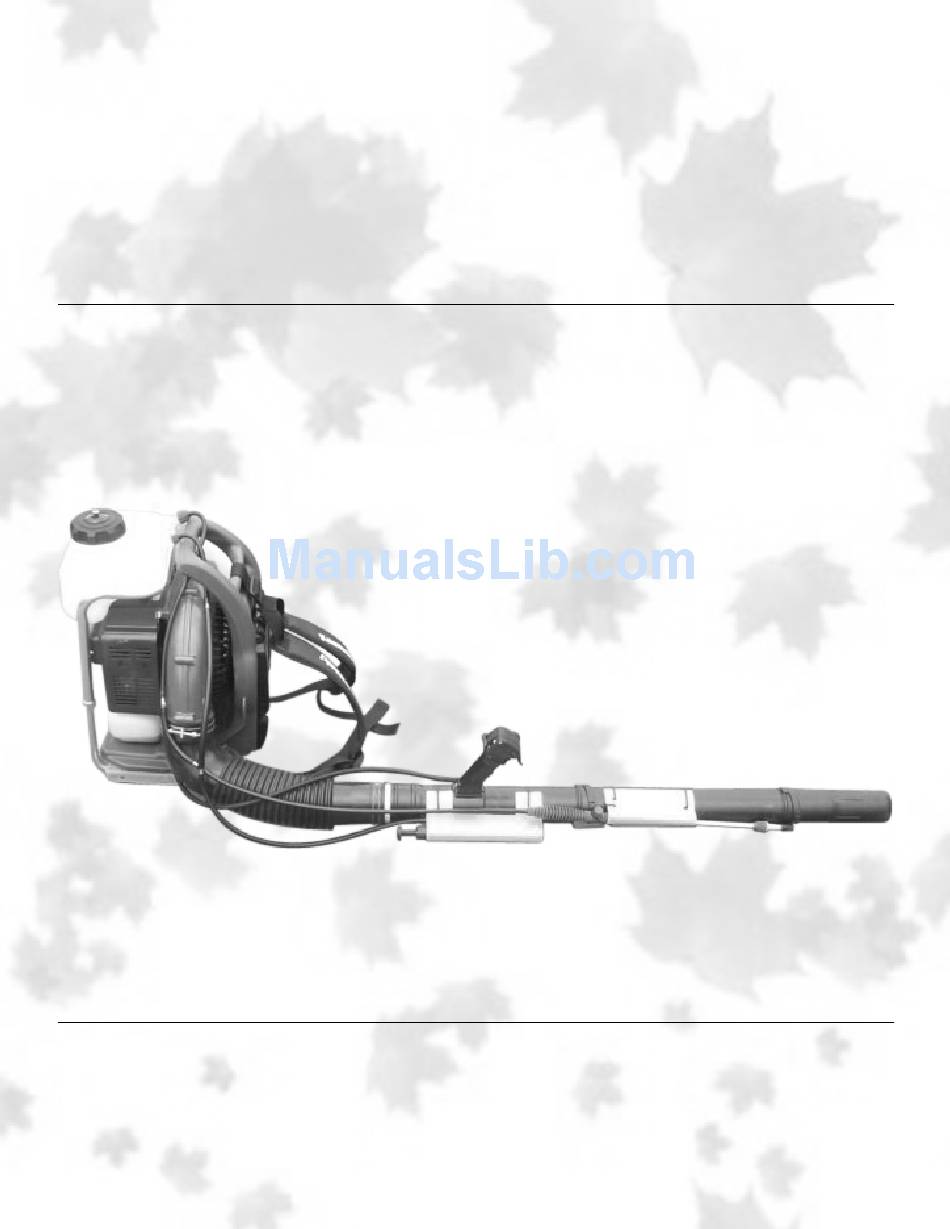

- Page 1 SpraMigo TCB100 Curb appeal is most important SpraMigo can be mounted on blowers from these manufacturers: ECHO STIHL REDMAX MARUYAMA TANAKA KAWASAKI see page 1 for specific models SpraMigo 1-877-921-1194 P.O. Box 44128 Charlotte, NC 28213 www.spramigo.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS SAFETY WARNINGS..............BOX CONTENTS................HARDWARE NEEDED..............OPERATING SPRAYER..............MODEL SPECIFIC ASSEMBLY STIHL BR340, BR380, BR420............STIHL BR500, BR 550, BR600............. 10-11 RED MAX EBZ 5100, EBZ 7001, EB7001, EBZ 7100, EBZ 7150 -Tanaka TBL 7800, TBL 7800R 12-13 KAWASAKI KRB 750A, KRB 750B, KRB 650B...... - Page 4 ! WARNING ! BEFORE YOU ASSEMBLE AND USE YOUR SPRAYER PLEASE READ THE FOLLOWING SAFETY INFORMATION • This sprayer operates with liquid under pressure. • Failure to observe cautions and follow instructions for use and maintenance can cause tank, hoses, or other parts to become corroded, weakened and burst.
-
Page 5: Box Contents
BOX CONTENTS TANK PUMP HOUSING TANK CAP PUMP TANK FILTER WAND HOUSING BASE WAND ASSEMBLY TANK MOUNTING FRAME m. ADJUSTABLE NOZZLE (3pc) HARDWARE BAG PUMP HOSE PUMP & WAND HOLDER FLOW HOSE TIES - 14” #4 SIPHON TUBE PUMP “O” RING... -
Page 6: Hardware Needed
Hardware Needed*** Screws Flat Washers (4) #10-32x1” (8) #10-32 (6) #10-32x1 1/4” (2) #10-32x1 1/2” (2) #10-32x1 3/4” (4) #10-32x2” Lock Washers Tee Nuts (8) #10-32 (4) #10-32x5/16” 1” Screw 1 1/4” Screw 1 1/2” Screw 1 3/4” Screw 2” Screw ***Not all hardware will be used. -
Page 7: Operating Sprayer
Operating Your Sprayer 1. Remove lid from tank. 2. Prepare spray solution following instructions provided with chemicals. 3. When sprayer is filled to correct mark on tank, close tank lid. 4. Put backpack blower/sprayer on your back and pressurize sprayer when ready for use. Important Note: When operating blower/sprayer combination, always blow area off first then spray chemicals on weeds so as not to blow chemicals on to grass, plants, other materials, etc. - Page 8 FOR BLOWER MODELS: STIHL BR340, 380 & 420 (REQUIRES 19.5” ALUMINUM FRAME SETTING) IMPORTANT: USE LETTERS SS MARKED ON NEW BASE FOR INSTALLATION TO BLOWER FRAME ON ALL MODELS LISTED ABOVE. Mounting New Base to Blower Frame 1. Remove gas tank from blower (remove gas from tank first). 2. Remove blower body from blower frame. 3.
- Page 9 CENTER FRAME BRACKET EQUAL WITH BOTH SIDES 420 STIHL ALIGN WITH BACK BACK CORNER DETAIL TEE NUT INSTALLATION (STEP 9) FRAME...
- Page 10 FOR BLOWER MODELS: STIHL BR500, 550 & 600 (REQUIRES 19.5” ALUMINUM FRAME SETTING) IMPORTANT: USE LETTERS LS MARKED ON NEW BASE FOR INSTALLATION TO BLOWER FRAME ON ALL MODELS LISTED ABOVE. Mounting New Base to Blower Frame 1. Remove gas tank from blower (remove gas from tank first). 2. Remove blower body away blower frame. 3.
- Page 11 STIHL TEE NUT INSTALLATION (STEP 6) FRAME ALIGN WITH GUIDE MARKS (DOTTED LINE)
-
Page 12: Tanaka Tbl 7800, Tbl 7800R
FOR BLOWER MODELS: Red Max EBZ 5100, 7001, 7100 & 7150 (REQUIRES 22” ALUMINUM FRAME SETTING) Tanaka TBL 7800 & TBL 7800R (REQUIRES 19.5” ALUMINUM FRAME SETTING) IMPORTANT: USE LETTERS R MARKED ON NEW BASE FOR INSTALLATION TO BLOWER FRAME ON ALL MODELS LISTED ABOVE. Mounting New Base to Blower Frame 1. Remove gas tank from blower (remove gas from tank first). - Page 13 MEASURE 1/4” FROM EDGE OR CENTER FRAME ALIGN OVER CENTER FRAME BRACKET EQUAL WITH BOTH SIDES REDMAX ALIGN FLUSH WITH BACK TEE NUT INSTALLATION (STEP 6) FRAME...
- Page 14 FOR BLOWER MODELS: Kawasaki KRB 750A, 750B & 650B (REQUIRES 19.5” ALUMINUM FRAME SETTING) Maruyama BL 5100, 8100, 8101 & 8200 (REQUIRES 19.5” ALUMINUM FRAME SETTING) IMPORTANT: USE LETTERS K MARKED ON NEW BASE FOR INSTALLATION TO BLOWER FRAME ON ALL MODELS LISTED ABOVE. Mounting New Base to Blower Frame 1. Remove gas tank from blower (remove gas from tank first).
- Page 15 ALIGN FLUSH WITH EDGE KAWASAKI ALIGN FLUSH WITH BACK TEE NUT INSTALLATION (STEP 6) FRAME...
- Page 16 FOR BLOWER MODELS: Echo PB 413T, 500H, 500T, 620H & 620ST (REQUIRES 19.5” ALUMINUM FRAME SETTING) IMPORTANT: USE LETTERS E MARKED ON NEW BASE FOR INSTALLATION TO BLOWER FRAME ON ALL MODELS LISTED ABOVE. Mounting New Base to Blower Frame 1. Remove blower body from blower frame (remove gas from tank first) 2.
- Page 17 ECHO ALIGN FLUSH WITH EDGE ALIGN FLUSH WITH BACK TEE NUT INSTALLATION (STEP 5) FRAME...
- Page 18 Assembly: Connect & Secure 1. Pump Hose and Duck Bill to Tank A. Slide screw cap over end of hose and press hose barb inside hose. B. Using end of hose with hose barb, press duck bill into place inside of tank fitting, then install small “o” ring between hose barb & duck bill. Tighten screw cap by hand.
- Page 19 tank 6 Q-R 6 O-P 6 M-N wand handle flow control lever wand holder wand tubing adjustable nozzle pump handle pump housing blower tubing...
- Page 20 DETAIL EXPLODED VIEW...
-
Page 21: Maintenance
Maintenance • Your sprayer pump “O” ring was lubricated with petroleum jelly. Keep it lubricated for longer “O” ring life with petroleum jelly or grease. • Release pressure from sprayer by slowly unscrewing fill cap on tank. Replacing Pump “O” Ring 1. Release pressure from sprayer by slowly unscrewing fill cap on tank, unscrew pump nut and pull out pump handle. 2. -
Page 22: Troubleshooting
Troubleshooting Pump Won’t Pressurize Tank 1. Make sure fill cap is tight 2. If the pump’s “O” ring is damaged or expired, replace it. 3. Check for leaks in all hoses. 4. Check that all hose connections are tight. Flow Control Leaks 1. Check that the extension’s “O” ring is not prevented from sealing by dirt or damage. - Page 23 This warranty does not cover normal wear and tear of “O” rings or seals. SPRAMIGO INC. liability is limited solely to the repair or replacement of the non-functioning product or part. SPRAMIGO INC. excludes liability under this warranty for any and all incidental or consequential loss or damage.
