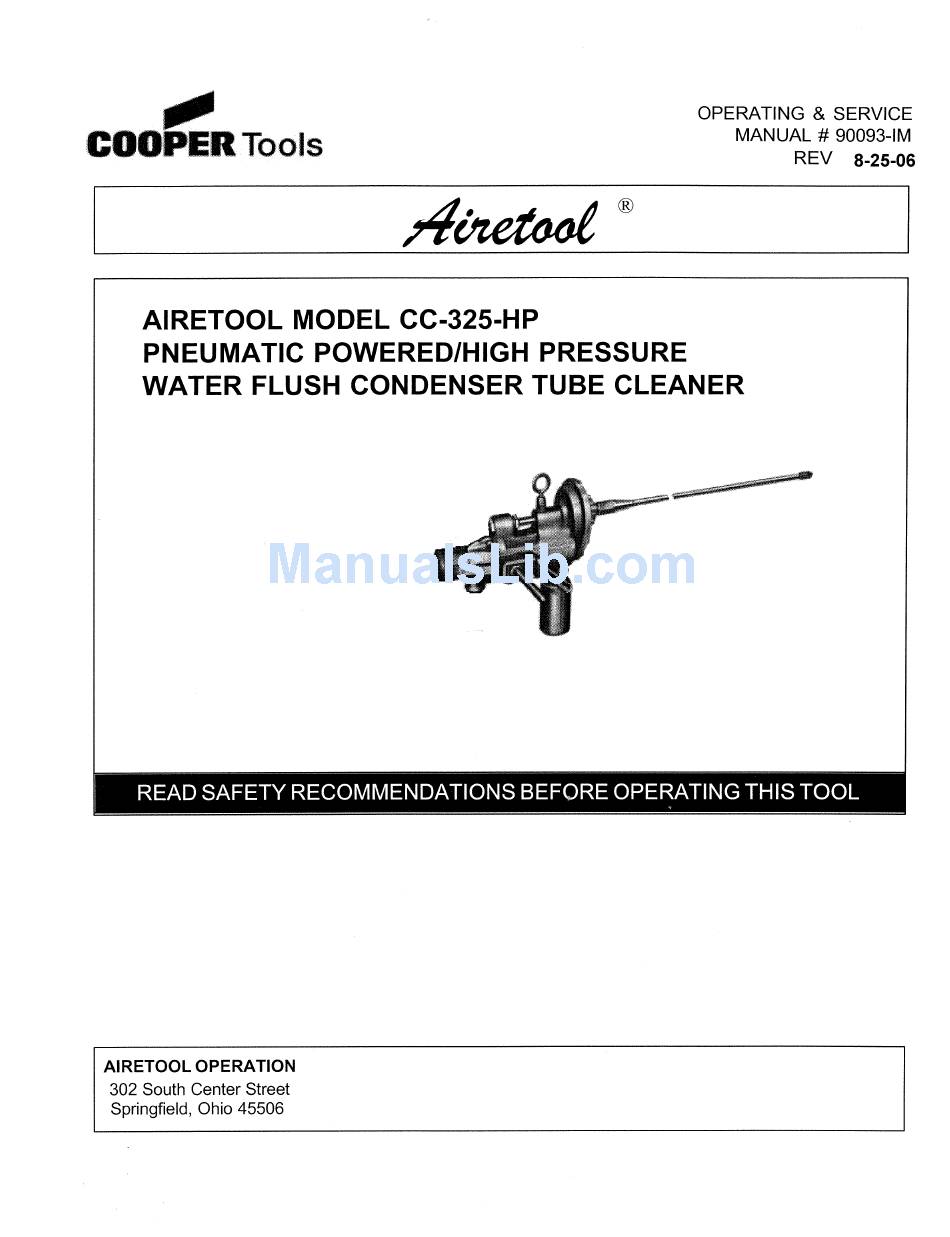

Summary of Contents for Cooper Tools AireTool CC-325-HP
-
Page 2: Safety Recommendations
Safety Recommendations For your safety and the safety of others, read and understand the safety recommendations and operating instructions before operating an Airetrol. When using right angle Airetrols, be sure the throttle is posi- tioned relative to the angle head so that the throttle will not be- come wedged against an adjacent object in the “ON”... - Page 3 Safety Recommendations ADDITIONAL SAFETY RECOMMENDATIONS FOR USE OF RIGHT ANGLE AIRETROLS * Tasks should be performed in such manner that the wrists are maintained in a neutral position, which is not flexed, hyperextended, or turned side to side. * Stressful postures should be avoided and can be controlled through tool selection and work location.
-
Page 4: Specifications
Operating & Service Instructions CC-325-HP High Pressure Water Flush Condenser Cleaner Motor SPECIFICATIONS FLUSHING AGENT Recommended Air Pressure - 90/100 psi. The model CC-325-HP condenser cleaner motor coupling Air Volume Required - 200 cfm. as installed upon this machine is designed to operate with Minimum Hose Size - 1”... - Page 5 Operating & Service Instructions - continued - c o n t i n u e d - point. With the proper size Allen wrench, reach down STORAGE through the thrust nut No. 14, in one of the elongated slots and loosen the two set screws that are in the thrust nut. Before storage of the tool, blow all water out of the tool and Rotate the shaft until the set screws appear.
- Page 6 Operating & Service Instructions - c o n t i n u e d - tate the shaft 180 degrees and tighten the other set screw. bly. Gears, bearings and grease retainers should be packed This adjustment should be adequate to allow the bearing with grease.
- Page 7 Parts List For Model CC-325-HP Condenser Cleaner Motor With High Pressure Water Flush ITEM # PART # DESCRIPTION QUANTITY 8010619 CD-11 Cap 1 1/4" 1715657 CC32519-HP Gasket 1715320 CC-32511-HP Drive Shaft 1235700 CC-35027-1 Bearing 1234500 CC-32501-A-1 Cover 8010024 3/8" Medium Lock Washer 1228900 CC-121 Bearing 8010075 3/8"-16 x 3/4"...
- Page 8 Parts List For Model CC-325-HP Condenser Cleaner Motor With High Pressure Water Flush ITEM # PART # DESCRIPTION QUANTITY 1236100 CC-37501-B-1 Front Cap 1237900 CC-37533 Front Cap Gasket 1234700 CC-32532 Case Cover Gasket 1234600 CC-32510 Drive Gear 1236400 CC-37508 Bearing 1235100 CC-35007-F Thrust Plate 1234800 CC-35002 Cylinder 1234900 CC-35005 Rotor...
- Page 9 Parts Drawing For Model CC-325-HP Condenser Cleaner Motor With High Pressure Water Flush...
- Page 10 DRIVE DRIVE COUPLING COUPLING SHAFT TUBE I.D. DIAMETER DRIVE DRIVEN SHAFT CC-475 DRIVE CC-325-1 DRIVE Inch. Inch. DRIVE SHAFT DRIVEN SHAFT SHAFT COUPLING CC-475-PS COUPLING CC-325-HP COUPLING (mm) (mm) SHAFT THREAD SHAFT THREAD COUPLING THREAD & WF-100 THREAD CC-375-1 THREAD .291"-.358"...
- Page 11 "AT" "CB" "CT" "TW" "B" TUBE DIAMETER of Tool Steel Carbide Carbide Tool Steel Steel I. .D DRILL or BRUSH STUD Straight Straight Twist Twist Wire inch inch THREAD DRILL # DRILL # DRILL # DRILL # BRUSH # .291-.306 7.39-7.77 .281 "...
- Page 12 Selection Guide - continued "AT" "CB" "CT" "TW" "B" TUBE I. D. DIAMETER of Tool Steel Carbide Carbide Tool Steel Steel DRILL or BRUSH STUD Straight Straight Twist Twist Wire inch inch THREAD DRILL # DRILL # DRILL # DRILL # BRUSH # .291-.306 7.39-7.77...
- Page 13 Airetool Operation 302 South Center Street Springfield, Ohio 45506...
