- Page 1 GSM Door Phone System System Installation, Setting and Operation Manual User Manual (263-S– V1) Please read this user manual completely before operating this system and keep it in a safe place for future reference.
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS ……………………………………………….………………. IMPORTANT SAFETY INSTRUCTIONS…………………………………………….. UNPACKING YOUR SYSTEM…………………..…………………………………….. SYSTEM DIAGRAMS Front View ……………………………………………………………….…………. Back View ………………………………………………………………….………. Wall Mounting Bracket ……………………………………………………………. INSTALLATION GSM Door Phone…………………………………………………………………… Wiring Diagram & Wiring Instructions …………………………………………..OPERATION Power ON/OFF …………………………………………………………………….. Manager Mode and Functions ……………………………………………….…… MANAGER SETTINGS Change Manager Password ………………………………………………………... -
Page 3: Important Safety Instructions
Thank you for purchasing the GSM Door Phone. To ensure that you enjoy the full capacity of this product, please read this user manual before proceeding. Be sure to keep this manual for future reference in case any challenge or question should arise. We hope you enjoy your new GSM Door Phone. -
Page 4: Unpacking Your System

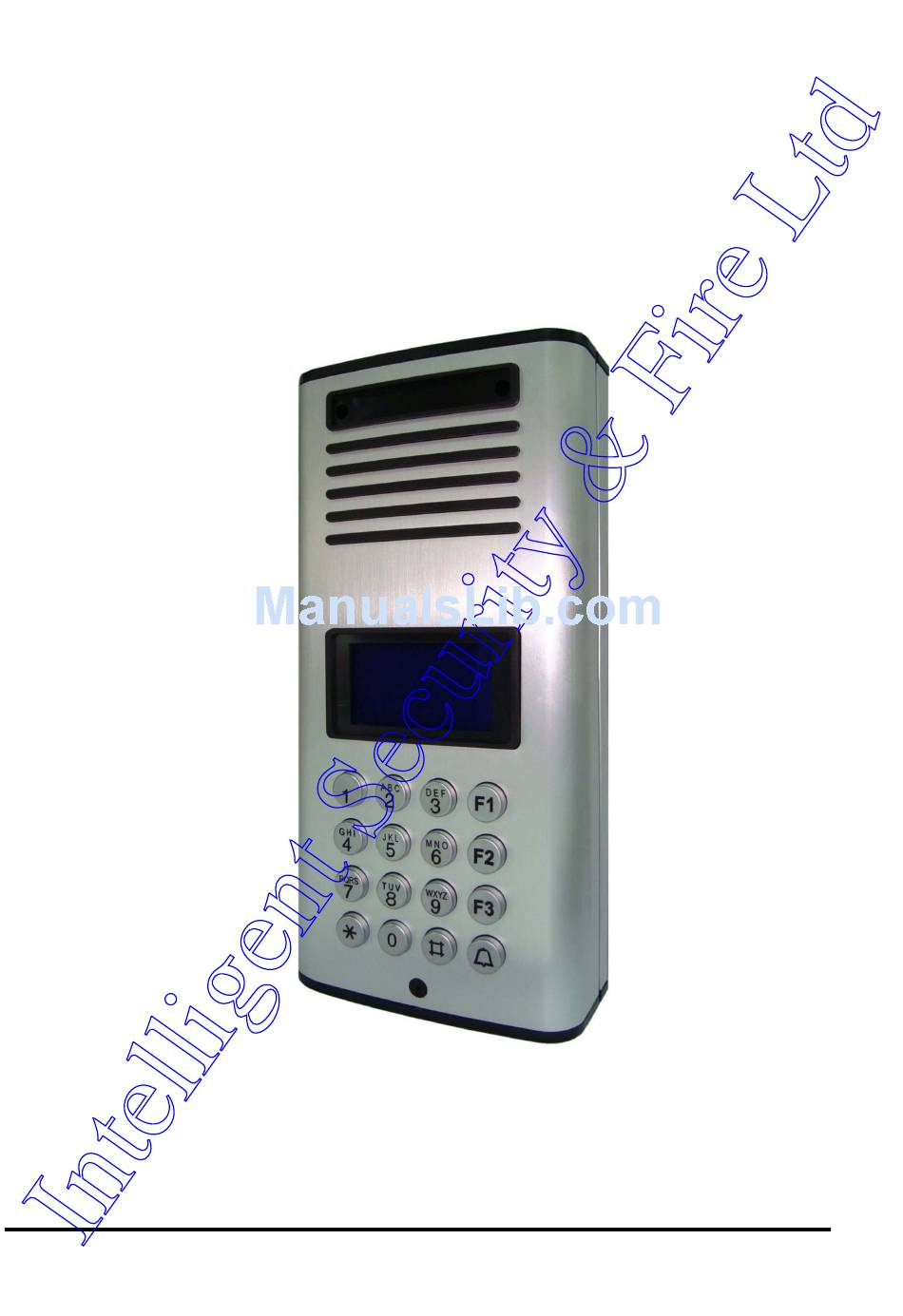

Your GSM Door Phone system will include the followings: 1 x Door phone unit 1 x AC power adapter 1 x GSM antenna 1 x Wall mounting bracket 1 x Wire 4 x screws for mounting bracket 2 x screws for door phone... - Page 5 Acrylic cover Speaker LCD display Keypad 0~9: Number keys F1: Menu/Exit key F2: Delete key F3: ABC/abc/123 exchange button ＊ ＊ ＊ ＊ : Volume & select up key ＃ ＃ ＃ ＃ : Volume & select down key Microphone Bottom cover System Diagram (Back View)
-
Page 6: Back View
Opening for connecting wall-mount bracket Metal back cover plate Opening for connecting wall-mount latch Wiring terminal SIM card slot GSM Antenna socket USB port GSM antenna Bottom cover System Diagram (Wall Mounting Bracket) -
Page 7: Installation
INSTALLATION... -
Page 8: Gsm Door Phone
GSM Door Phone 1. Take the wall-mount bracket from the package and screw it on proper place (as Step 1 & 2 shown below). 2. Open the bottom cover of door unit and pass the wires through the hole. Then, refer to the “Wiring Diagram and Wiring Instruction”... - Page 9 WARNING: Only use the original power adapter supplied. Using any other adapter might damage the door unit and cause a risk of electric shock. Wiring Instructions...
-
Page 11: Operation
OPERATION Before operation: Please make sure the GSM Door Phone is installed correctly. Please also study all button functions before use. Power On/Off Turn the power on Insert the plug of the power adapter into the DC power jack of door unit and the other end into an AC power outlet. -
Page 12: Manager Settings
Manager Settings Under the Manager section, there are 4 main options: “System Setting”, “Volume Setting”, “Door Setting” and “Calling Setting”. System Setting Volume Setting Door Setting Calling Setting Press CALL button to enter System Setting. Change Password Manager Phone # Talking Time Change Manager Password Manager Setting... -
Page 13: Set Minutes For Talk Time
With cursor on the 1, press CALL button to enter phone number Enter phone number with prefix and area code, then press CALL button to save. (If you enter a number incorrectly, use the ＊ ＊ ＊ ＊ /＃ ＃ ＃ ＃ button to move forwards or backwards. The F2 (Delete) button will clear a digit you do not want.) Press F1 (EXIT) button to return to previous option screen. -
Page 14: Change Speaker Volume
Speaker Volume Change Speaker Volume Manager Setting GSM Setting Speaker Volume <-＊＊＊＊..… -> Note: There are 9 levels of speaker volume from left (lowest) to right (loudest). If the GSM Door Phone is installed outdoors, please set the speaker level to 4 or 5. Try not to set the speaker volume to the maximum level because it may cause feedback. -
Page 15: Change Door Opening Password
Door Open Time 03 Second(s) Note: This GSM Door Phone system will allow the user to set how long the door lock will be opened. Sometimes, the user might need more time to reach from the door phone unit to the locked main gate. -
Page 16: Calling Setting
Manager Setting Calling Setting Calling by List Calling by List Note: The GSM Door Phone system will allow the user to set the calling by list. Under the Manager Menu option, press CALL button. Select Calling Setting and press CALL button. -
Page 17: Subscriber Id Number Setting
phone numbers programmed for each. The first registered phone number will be the first number that the GSM Door Phone will call. If the first registered number is busy or no one answers the call, the door phone will automatically dial the second registered number. We suggest that the first number can be the home phone number and the second number can be a mobile phone number. -
Page 18: Contacting A Subscriber
Incorrect! If the ID does not exist, the screen will show “Incorrect!”. If the ID exists, but there is no number assigned, the screen will show “Calling…”, but will never connect and then time out after 3 minutes. In order to avoid this problem, please make sure to input the phone number on each User ID. -
Page 19: Call Manager
If the SIM card is not inserted, the screen will show “SIM not Inserted” when the system is turned on. SIM not Inserted Call Manager If “Manager Phone #” has been programmed, the system will directly dial this number while the visitor presses CALL button at the standby mode.
