Summary of Contents for Kerkyra Hanse 400e

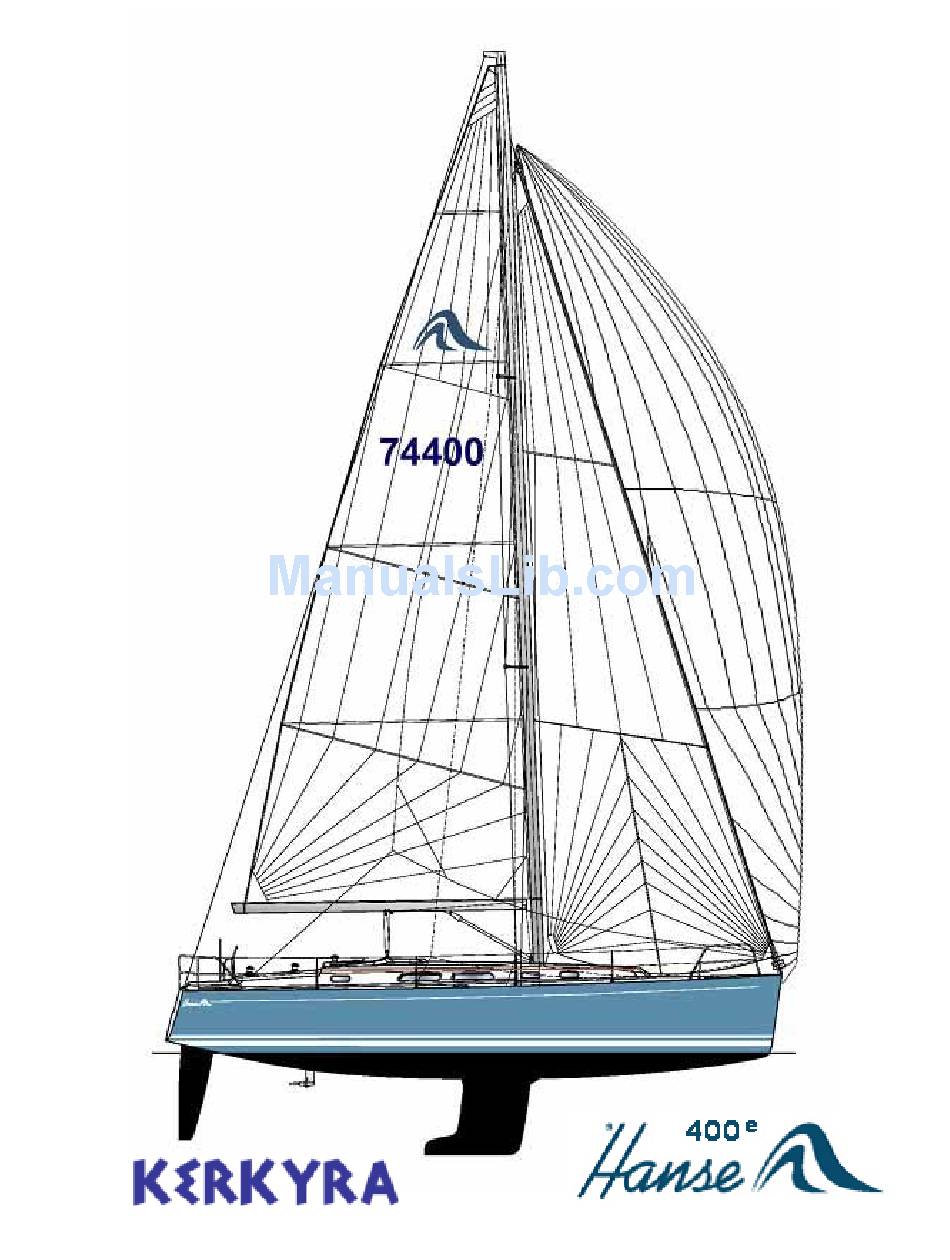

  • Page 1 YACHT MANUAL...
  • Page 2 Kerkyra Hanse 400e Yacht Manual INDEX Overview / Background Specifications Sailplan Deckplan Floorplan Storage and Equipment Locations Plumbing, Bilge, Water Tank and Through-Hulls Personal Floatation Devices Tethers, Harnesses, Strobes & Jacklines Flares & Fire Extinguishers Man-Overboard Equipment VHF Distress Calling...
  • Page 3 Overview / Background Design: The Hanse 400e is designed by Judel / Vrolijk & Co., a company founded in 1978 by Fietje Judel and Rolf E. Vrolijk. Known for a series of successful international racing designs including the past two America’s Cup wins, JVC also has a strong track record for production racing and cruising designs for Hanse, Dehler, Najad, Grand Soleil and Baltic Yachts.
  • Page 4 Kerkyra Hanse 400e Yacht Manual Specifications LOA: 11.96m / 39’ 3” LWL: 10.6m / 35’ 5” Hull Length: 11.99m / 39’ 4” Beam: 4.04m / 13’ 3” Draft: 1.98m / 6’ 6” Displacement: Approx 7.9 t / 17,417 lb. Ballast: Approx 2915 kg / 6,426 lb.
  • Page 5 Kerkyra Hanse 400e Yacht Manual Sailplan BACK TO INDEX...
  • Page 6 Kerkyra Hanse 400e Yacht Manual Deckplan BACK TO INDEX...
  • Page 7 Kerkyra Hanse 400e Yacht Manual Floorplan BACK TO INDEX...
  • Page 8 Kerkyra Hanse 400e Yacht Manual Storage and Equipment Locations...
  • Page 9 Kerkyra Hanse 400e Yacht Manual...
  • Page 10 Kerkyra Hanse 400e Yacht Manual...
  • Page 11 Kerkyra Hanse 400e Yacht Manual...
  • Page 12 Kerkyra Hanse 400e Yacht Manual...
  • Page 13 Kerkyra Hanse 400e Yacht Manual BACK TO INDEX...
  • Page 14 Kerkyra Hanse 400e Yacht Manual Plumbing, Bilge, Water Tanks and Through-Hulls • Holding tanks are gravity-drained • Shower sump pump switch located next to shower bench • Always put plug in sink drain when operating shower drain • Water tank level indicated on left hand gauge when either battery gauge switch is activated •...
  • Page 15 Kerkyra Hanse 400e Yacht Manual Personal Floatation Devices Kerkyra is equipped with: • 4 inflatable adult PFD’s with harnesses* o Whistles and waterproof lights attached The inflatable PFD can be inflated by 3 possible methods: o Automatic inflation when the PFD is immersed in...
  • Page 16 Kerkyra Hanse 400e Yacht Manual Tethers, Harnesses, Strobes & Jacklines Kerkyra is equipped with: • 2 lifejacket strobe lights o Visible to 2 miles o Waterproof o 2 lithium AA batteries in each. o In cabinet by chart table • 6 waterproof lights...
  • Page 17 Kerkyra Hanse 400e Yacht Manual Flares and Fire Extinguishers Kerkyra is equipped with: • 1 Flare Kit • In cabinet next to nav station • 6 flares included with kit • 6 additional flares in cabinet • 2 Class 10BC fire extinguishers in cabin •...
  • Page 18 Kerkyra Hanse 400e Yacht Manual Man Overboard Pole, Lifesling, Heaving Line & Boarding Ladder MOB Pole is mounted on the backstay and connected to strobe and drogue Life ring is mounted on the rail Lifesling is mounted on the rail Heaving line is mounted on the rail Boarding ladder is stored in cockpit locker.
  • Page 19 Kerkyra Hanse 400e Yacht Manual Chartplotter Man Overboard (MOB) button BACK TO INDEX...
  • Page 20 Kerkyra Hanse 400e Yacht Manual VHF Distress Calling The installed VHF radio is capable of sending a DSC distress call on channel 70, which will include the station ID and GPS location. A section of the VHF radio manual outlining the DSC distress calling procedure is reproduced below*.
  • Page 21 Kerkyra Hanse 400e Yacht Manual Battery Management • Meter Right hand meter shows House or Winch/Windlass battery condition • Switches Located under navigation table • 4 Batteries located under nav station seat 1 Engine Starter battery 2 House batteries 1 Winch/Windlass battery •...
  • Page 22 Kerkyra Hanse 400e Yacht Manual 12 Volt Panel NOTES: Engine must be switched on in order to operate Windlass “Mast Lights” switch must be on in order to operate steaming, anchor, tricolor or foredeck lights. Bilge pump should be left on (auto).
  • Page 23 Kerkyra Hanse 400e Yacht Manual FURNACE ERROR CODES: A series of short flashes of the LED on the thermostat control indicates an error condition on the furnace. The number of long flashes following the short flashes indicates the error code:...
  • Page 24 Kerkyra Hanse 400e Yacht Manual AC Shore Power • 50 foot shore power cord and 12 foot extension located in port cockpit locker Always connect to boat first and disconnect from shore power first. • 20A and 30A shore power adaptors located in cabinet next to Nav station •...
  • Page 25 Kerkyra Hanse 400e Yacht Manual Engine & Fuel ENGINE: Yanmar 3JH4E naturally aspirated, freshwater cooled, 3 cylknder 39 HP...
  • Page 26 Kerkyra Hanse 400e Yacht Manual FUEL GAUGE • Located on panel in Navigation Station • Press fuel switch to view diesel level on leftmost gauge DAILY CHECKS Check oil dipstick Check transmission fluid dipstick Check alternator belt tension and wear...
  • Page 27 Kerkyra Hanse 400e Yacht Manual PORT ENGINE ACCESS STARBOARD ENGINE ACCESS...
  • Page 28 Kerkyra Hanse 400e Yacht Manual • STARTING Open hatches and turn blower on (switch to “ON” position) to ventilate engine compartment. Confirm the following conditions: # Audible alarm on # Oil pressure light on # Alternator light on # Coolant temperature light off # Water in Seal light off Make sure gear shift is in “NEUTRAL”...
  • Page 29 Kerkyra Hanse 400e Yacht Manual Instruments COMBI Upper Info: Normally displays depth Shallow Depth Alarm: press UPPER INFO key once Deep Alarm: press UPPER INFO key twice Press ALARM TIMER while alarm is displayed to change setting (follow icons displayed above keys)
  • Page 30 Kerkyra Hanse 400e Yacht Manual WIND Press TRUE APP to toggle between true and apparent wind angle and speed Press WIND ALARM to view wind alarm setting. Follow icon prompts to adjust setting. Press INFO key to toggle between wind speed and close hauled wind angle on digital display.
  • Page 31 Kerkyra Hanse 400e Yacht Manual Navigation Station Kerkyra is equipped with a Simrad Navstation in the cockpit with a repeater in the cabin. The Navstation includes the following functions: • Radar • Chartplotter • Echo Sounder • GPS Pilot For the full manual refer to the collection of manuals in the binder in the boat.
  • Page 32 Kerkyra Hanse 400e Yacht Manual...
  • Page 33 Kerkyra Hanse 400e Yacht Manual...
  • Page 34 Kerkyra Hanse 400e Yacht Manual BACK TO INDEX...
  • Page 35 Kerkyra Hanse 400e Yacht Manual Autopilot Part of the Autopilot manual is reproduced below. For the full manual refer to the collection of manuals in the binder in the boat. NOTE: Some instrumentation features rely on the use of the fluxgate rate compass that is part of the autopilot system.
  • Page 36 Yacht Manual VHF Radios Kerkyra is equipped with a mounted VHF radio and a handheld radio. An operator’s license is required in order to operate the VHF radio. Part of the VHF radio manuals is reproduced below. For the full manual refer to the collection of manuals in the binder in the boat.
  • Page 37 Kerkyra Hanse 400e Yacht Manual...
  • Page 38 Kerkyra Hanse 400e Yacht Manual Handheld Radio • Located at Nav Station BACK TO INDEX...
  • Page 39 Kerkyra Hanse 400e Yacht Manual Sails & Winches 1. Roller Furling Headsails Self-tacking 95% working Jib 140% genoa We highly recommend the self-tacking jib for the following reasons: o Boat is already heavily canvassed (SA/D=22.5) with jib o Genoa adds only ¼ knot and only in light winds (see polars)
  • Page 40 Kerkyra Hanse 400e Yacht Manual SPINNAKER SLEEVE USE SETTING • Set the spinnaker while on a broad reach so that it is blanketed by the mainsail • Raise the spinnaker and sleeve together with the spinnaker halyard. • Do not keep the sleeve control lines taught or they may become stuck in the block at the top of the sleeve.
  • Page 41 Kerkyra Hanse 400e Yacht Manual NOTE: Charts assume a symmetric spinnaker is in use for downwind angles. BACK TO INDEX...
  • Page 42 Kerkyra Hanse 400e Yacht Manual Anchors & Windlass • Main anchor 44lb Delta On bow roller 300 ft. 8mm chain, marked with as shown below and on underside of anchor locker lid. ANCHOR CHAIN LENGTH MARKINGS DEPTH DEPTH 7:1 SCOPE...
  • Page 43 Kerkyra Hanse 400e Yacht Manual Docking • Fenders o In anchor locker and cockpit locker • Mooring Lines o Bow, stern and 2 spring lines o In anchor locker and cockpit locker • Lead Line o Use spare anchor rode and wheel wrench located in winch handle holder •...
  • Page 44 Kerkyra Hanse 400e Yacht Manual First Aid Kit Red kit located on saloon shelf BACK TO INDEX...
  • Page 45 Kerkyra Hanse 400e Yacht Manual Miscellaneous Equipment • Fridge/Freezer o Thermostat in freezer compartment o Power must be switched on at 12v panel. • Stove/Oven o Valve must be open on tank. o Solenoid power must be on at 12v panel and at galley switch (by sink).
  • Page 46 Kerkyra Hanse 400e Yacht Manual Tender Kerkyra’s Tender is a Zodiac Cadet 340FR. It is a fully inflatable boat with a high-pressure floor. Part of the Zodiac manual is reproduced below. For the full manual refer to the collection of manuals in the binder in the boat.
  • Page 47 Kerkyra Hanse 400e Yacht Manual Electric Inflation Pump There is an electric pump that can be used for inflating the tender. The pump is located under the settee in the salon. This pump switches automatically from a high-volume blower mechanism to a high-...
  • Page 48 Kerkyra Hanse 400e Yacht Manual Outboard Motor • Specifications: o 15 HP o 2 stroke cycle IMPORTANT: USE 100:1 GAS/OIL MIX ! o Weight 79 lbs • Starting / Running o CAUTION: ALWAYS WEAR KILL-SWITCH TETHER! o CAUTION: THIS MOTOR POWER IS THE MAXIMUM RATING FOR THIS BOAT.
  • Page 49 Kerkyra Hanse 400e Yacht Manual HOIST MECHANISM FOR OUTBOARD MOTOR The outboard motor hoist mechanism provides a convenient and effortless way to move the outboard from the rail to the dinghy and back. CAUTION: This method makes use of the halyard winch, which is capable of applying strong forces.

  • Page 50: Operating Instructions

    Kerkyra Hanse 400e Yacht Manual OPERATING INSTRUCTIONS: TO MOVE MOTOR FROM STORAGE LOCATION TO DINGHY: 1. Connect halyard to lifting 2. Tether motor to yacht. 3. Loosen motor clamps and strap. Slide lifting hook under tighten halyard. handle on motor bridle.
  • Page 51 Kerkyra Hanse 400e Yacht Manual TO MOVE MOTOR BACK TO STORAGE LOCATION: 1. Reverse process to raise motor. 2. Push back to separate lifting hook from frame and lower motor to storage location. CAUTION: TAKE CARE NOT TO PUSH THE MOTOR OFF THE LIFTING HOOK UNTIL IT IS FIRMLY MOUNTED ON THE DINGHY OR THE RAIL.
  • Page 52 Kerkyra Hanse 400e Yacht Manual Tools & Spares General Pupose Toolkit (plastic moulded case): Kit contains: 1/2" DRIVE: 1 1/2" 72 TOOTH QUICK RELEASE DRIVE 1 1/2” DRIVE 5" EXTENSION 10 SOCKETS: 1/2", 9/16", 5/8", 3/4", 7/8", 15MM, 17MM, 18MM, 19MM, 21MM 3/8"...
  • Page 53 Kerkyra Hanse 400e Yacht Manual Entertainment & Pastimes Music o The music system on Kerkrya will play CD’s in standard CD, MP3 or WMA format including writable CD’s. o Use the fade function to switch between the cockpit and cabin speakers.
  • Page 54 Kerkyra Hanse 400e Yacht Manual Games o Playing cards o Rook o Wizard o Five Crowns o Chess, Checkers, Backgammon o Cribbage Crab & Prawn Traps o 2 lead lines (50 ft for crab trap and 300 ft for prawn trap) o One large orange “ball”...
  • Page 55 Kerkyra Hanse 400e Yacht Manual Appendix A – Chart Inventory Chart Title Scale 3312 Jervis Inlet and Desolation Sound Various 3313 Gulf Islands and Adjacent Waterways Various 3410 Sooke Inlet to Parry Bay 20,000 3440 Race Rocks toD'Arcy Island 40,000...
