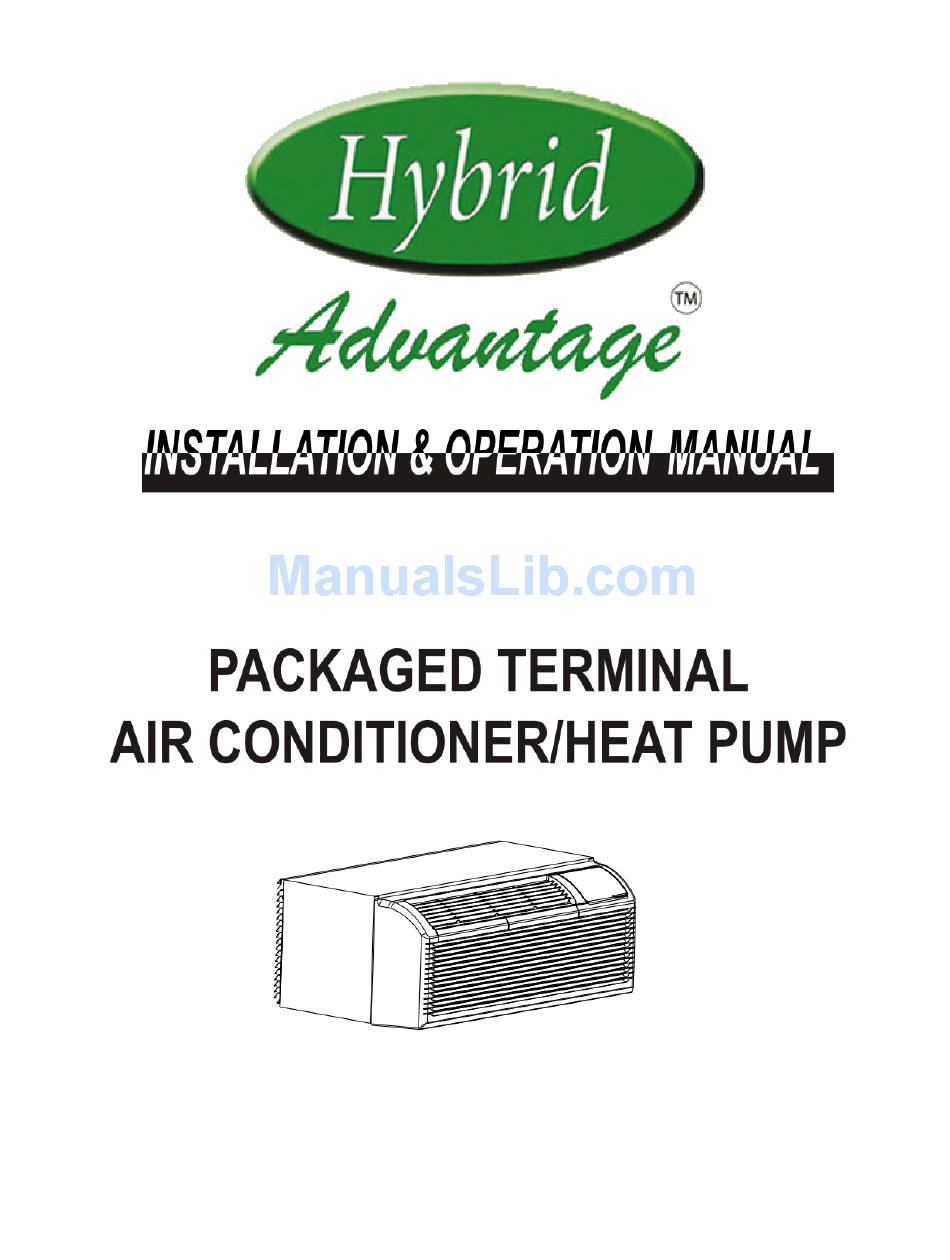

Hybrid Advantage Installation & Operation Manual

Packaged terminal air conditioner/heat pump
Hide thumbs

Advertisement

Table of Contents

Before using your air conditioner, please read this manual carefully and keep it for future reference.
PACKAGED TERMINAL AIR CONDITIONER/HEAT PUMP

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Advantage and is the answer not in the manual?

Questions and answers

Related Manuals for Hybrid Advantage

Summary of Contents for Hybrid Advantage

  • Page 1 Before using your air conditioner, please read this manual carefully and keep it for future reference. PACKAGED TERMINAL AIR CONDITIONER/HEAT PUMP...

  • Page 2: Table Of Contents

    CONTENTS SAFETY PRECAUTIONS ..............................3 IMPORTANT SAFETY INSTRUCTIONS ...........................5 AIR CONDITIONER FEATURES .............................7 CONTROL PANEL OPERATION .............................9 DIP SWITCHES CONFIGURATIONS (Optional) ......................11 INSTALLATION ................................. 16 CARE AND CLEANING ............................... 20 TROUBLESHOOTING ..............................22 OPTIONAL WIRED/WIRELESS DIGITAL WALL STATS ....................24...

  • Page 3: Safety Precautions

    Read This Manual Inside you will find many helpful hints on how to use and maintain your air conditioner properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your air conditioner. You'll find many answers to common problems in the chart of troubleshooting tips.
  • Page 4 Plug in power plug properly. Do not operate with wet Incorrect installation may hands or in damp cause fire and electric shock. Otherwise, it may cause environment. electric shock or fire due to Do not open the unit during excess heat generation. It may cause electric shock.

  • Page 5: Important Safety Instructions

    Do not place obstacles This could injure the pet or Do not use this air around air-inlets or inside of plant. conditioner to preserve air-outlet. precision devices, food, pets, Hold the plug by the head of plants, and art objects. It It may cause failure of the power plug when may cause deterioration of...

  • Page 6: Electrical Information

    Please refer to the operation section for more any other electrical appliance. details.  To avoid fire hazard or electric shock: The power cord cannot be repaired. If the Do not use an extension cord or an power cord is damaged, a new one should be adaptor plug.

  • Page 7: Air Conditioner Features

    This unit has many features. The servicer must be familiar with these features in order to properly Service the unit. Operation of Current Device (optional) The power supply cord contains a protection device that senses damage to the power cord. To test your power supply cord do the following: 1.
  • Page 8 This unit has many features. The servicer must be familiar with these features in order to properly service the unit. Compressor Restart Delay This feature extends the overall life of compressor by preventing the short-cycling of the air conditioner. When the compressor restarts, the unit is designed to give a minimum of three minutes delay to equalize the refrigerant pressures and optimize the cycling of unit.

  • Page 9: Control Panel Operation

    CONTROL PANEL OPERATION The control panel keypad will look like the following: For some models with REMOTE SIGNAL RECEPTOR, the unit can be controlled by the control panel alone or by the remote wall stat. No REMOTE SIGNAL RECEPTOR. Fig.1 POWER - Press the POWER button to turn the unit on or off.
  • Page 10 UP/DOWN BUTTONS (+ / -) - Push the UP (or DOWN) button to increase (or decrease) the set temperature of the unit in cooling or heating mode. The temperature can be set by increments of 1 C (1 F).The setting temperature appears in the display.

  • Page 11: Dip Switches Configurations (Optional)

    Note: Performance may be reduced outside of these operating temperatures. Accessory NOTE: When the unit displays LC (Pads on the control panel is not available. The unit can be set by using wire controller only.) You can install the Accessory on the control panel. DIP SWITCHES CONFIGURATIONS (Optional) REMOVING THE FRONT PANEL - Dip switches controls are located behind front...
  • Page 12 Fig.4 NOTE: On heating mode, the setting temperature cannot be higher than 29 C/84 F. Electric Heat Only (for heat pump units only) - This setting is typically used for Emergency Heating. Wall Thermostat Enable - A wired wall thermostat can be connected to the unit. In order to do so, dip switch must be moved to the Wall Thermostat Enable Position, before the wall thermostat will begin control.
  • Page 13 Modes while the unit is in heating and cooling mode. CON (Continuous) - Allows fan to run continuously, circulating air even when the temperature setting has been satisfied. This switch helps to maintain the room temperature closer to the thermostat setting. CYC (Cycle) - This setting allows the fan to cycle on and off with the compressor or electric heater.
  • Page 14 (UNDER SLEEVE, BEHIND FRONT PANEL) Fig. A - Proper Wire Routing Beneath Unit NOTE: Refer to thermostat installation instructions for details on installing wall thermostat. Installation instruction of some types of wall stats (you can consult with the sales agency or manufacturer for details) - Pull the dip switch DOWN (OFF) as shown below.
  • Page 15 WALL THERMOSTAT TERMINAL (Optional) UNIT DAMAGE HAZARD  Failure to follow this caution may result in equipment damage or improper operation.  Improper wiring may damage unit electronics. Common wire busing is not permitted. Damage or erratic operation may result. NOTE: ...

  • Page 16: Installation

     It’s suggested to set the compressor protection time to 3 minutes. If it’s set less than 3 minutes, then the compressor will set the restart delay to 3 minutes automatically.  Wall thermostat must be heat changeover for 4-way valve. ...
  • Page 17 - Install the new air conditioner according to these installation instructions to achieve the best performance. All wall sleeves used to mount the new air conditioner must be in good structural condition and have a rear grille that securely attaches to the sleeve or the flange of the sleeve to secure the new air conditioner.
  • Page 18 INSTALLATION CONTINUED UNIT INSTALLATION (CONTINUED) - Rotate the vent control lever to either open or close the vent door. (See Fig.6)
  • Page 19 NOTE: When vent control lever set at CLOSE, only the air inside the room is circulated and filtered. When set at OPEN, some outdoor air will be drawn into room. This will reduce heating or cooling efficiency. - Lift unit level and slide unit into wall sleeve until firmly against front of wall sleeve and secure with 4 screws and washers (supplied in the SLEEVE ASSEMBLY) through the unit flange holes.

  • Page 20: Care And Cleaning

     Do not put obstacles around air-inlet or inside of air-outlet of the unit, such as window curtain etc.  Always insert the filter securely, clean filter once every two weeks as required. CARE AND CLEANING FRONT PANEL AND CASE - Turn unit off and disconnect power supply.
  • Page 21 - Keeping filters clean will:  Decrease cost of operation  Save energy  Prevent clogging of indoor coil  Reduce risk of premature component failure - To Clean Air Filters:  Vacuum off heavy soil.  Run water through filter. ...

  • Page 22: Troubleshooting

    - Clean the filter. Dry thoroughly before replacing. - Replace the vent door and filter, reinstall the four screws. - Re-insert the vent door steel wire into the hole of the vent door. TROUBLESHOOTING SOLUTONS POSSIBLE CAUSES UNIT DOES NOT START ...
  • Page 23  DISPLAY HAS STRANGE NUMBERS/CHARACTERS The unit may be in a protection mode. ON IT The unit may be set for C (instead of F).  UNIT MAKING NOISES Clicking, gurgling and whooshing noises are normal during operation of unit. ...

  • Page 24: Optional Wired/Wireless Digital Wall Stats

    2. If unit is installed where condensation drainage could drip in an undesirable location, an accessory drain kit should be installed and connected to drain system. OPTIONAL WIRED/WIRELESS DIGITAL WALL STATS AND EMS SYSTEMS DIP SWITCH 24V WIRED CONTROL Digital Wired/Wireless Wall Stat Terminal...
  • Page 25 Hybrid Wired Thermostat Installation: To install Hybrid wired thermostat, plug it in directly to the unit as shown below:...
  • Page 26 Controller for Hybrid Wired Stat Hook up wall stat connector with the digital stat controller encircle in RED 24V Controller for PRO1 wireless or other wired modules.
  • Page 27 Hook up wall stat connector to the unit as shown in the image. It’s recommended to affix wall stat wire with sticker so as to avoid any damage related to assembling the unit.
  • Page 28 PRO1 WIRELESS & WIRED DIGITAL WALL STAT CONFIGURATION Steps to follow: 1. Power “OFF” the unit. 2. Turn “OFF” all the dip switches by push them DOWN. 3. Turn “ON” S3 which is # 2 (OR SECOND) switch on the second block from right by pushing it UP.
  • Page 29 5. Connect the wireless or wired module with controller as per the table below:...
  • Page 30 6. Jump the connection between Heat 1 & Heat 2 as shown below. 7. After connecting the stat with unit, apply double sided sticker at the back of the wireless module.
  • Page 31 8. Stick the module to unit as depicted below. 9. Set the thermostat to “OFF” 10. Set “CO” to b on thermostat as per the procedure below: a. Press & hold “+” & “-“ on thermostat until it displays “CA 1”, then press them again to get either “CO b”...
  • Page 32 i. If “CO 0” is displayed, then press “+” to change it to “CO b” ii. If “CO b” is displayed, then wait for the thermostat until it returns to temperature screen 11. Replace the cover and assemble the unit. Turn “ON”...
