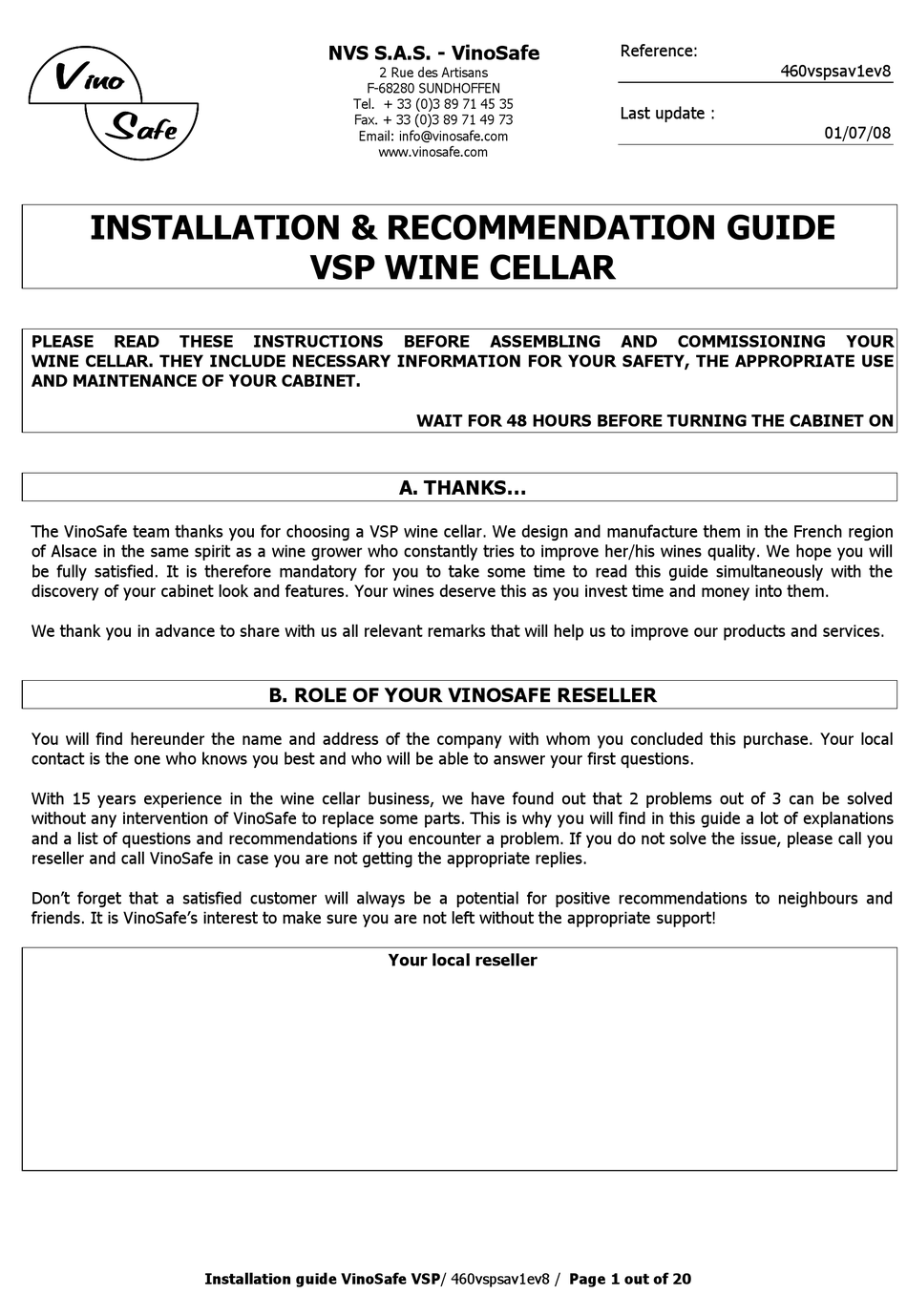

INSTALLATION & RECOMMENDATION GUIDE
PLEASE
READ
THESE
WINE CELLAR. THEY INCLUDE NECESSARY INFORMATION FOR YOUR SAFETY, THE APPROPRIATE USE
AND MAINTENANCE OF YOUR CABINET.
The VinoSafe team thanks you for choosing a VSP wine cellar. We design and manufacture them in the French region
of Alsace in the same spirit as a wine grower who constantly tries to improve her/his wines quality. We hope you will
be fully satisfied. It is therefore mandatory for you to take some time to read this guide simultaneously with the
discovery of your cabinet look and features. Your wines deserve this as you invest time and money into them.
We thank you in advance to share with us all relevant remarks that will help us to improve our products and services.
You will find hereunder the name and address of the company with whom you concluded this purchase. Your local
contact is the one who knows you best and who will be able to answer your first questions.
With 15 years experience in the wine cellar business, we have found out that 2 problems out of 3 can be solved
without any intervention of VinoSafe to replace some parts. This is why you will find in this guide a lot of explanations
and a list of questions and recommendations if you encounter a problem. If you do not solve the issue, please call you
reseller and call VinoSafe in case you are not getting the appropriate replies.
Don't forget that a satisfied customer will always be a potential for positive recommendations to neighbours and
friends. It is VinoSafe's interest to make sure you are not left without the appropriate support!
NVS S.A.S. - VinoSafe
F-68280 SUNDHOFFEN
Tel. + 33 (0)3 89 71 45 35
Fax. + 33 (0)3 89 71 49 73
Email: info@vinosafe.com
VSP WINE CELLAR
INSTRUCTIONS
B. ROLE OF YOUR VINOSAFE RESELLER
Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 1 out of 20
2 Rue des Artisans
www.vinosafe.com
BEFORE
ASSEMBLING
WAIT FOR 48 HOURS BEFORE TURNING THE CABINET ON
A. THANKS...
Your local reseller
Reference:
460vspsav1ev8
Last update :
AND
COMMISSIONING
01/07/08
YOUR

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VSP WINE CELLAR and is the answer not in the manual?

Questions and answers

Summary of Contents for Vino Safe VSP WINE CELLAR

  • Page 1 A. THANKS… The VinoSafe team thanks you for choosing a VSP wine cellar. We design and manufacture them in the French region of Alsace in the same spirit as a wine grower who constantly tries to improve her/his wines quality. We hope you will be fully satisfied.

  • Page 2: Safety Recommendations

    C. DELIVERY, UNPACKING, STORAGE, REMOVAL CONDITIONS You have acquired a refrigeration system that contains a gas in a closed circuit, and oil in the compressor. Your product cannot be transported and stored in any position. The air-conditioning system must never be put to bed. It has to be delivered inclined, then after out packing, it always must remain standing (respect the same records at the time of a move) Please check that the packaging is not damaged before you unpack.

  • Page 3: Cabinet Identification

    E. CABINET IDENTIFICATION The identification nameplate is located at the top/left of the rear of the cabinet. WARNING: WHEN YOU NEED INFORMATION OR TECHNICAL ASSISTANCE, PLEASE ALWAYS SUPPLY THE MODEL, TYPE AND SERIAL NUMBER LOCATED ON THIS VINOSAFE NAMEPLATE. Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 3 out of 20...
  • Page 4 F. ASSEMBLY F.1. ASSEMBLING THE WINE CELLAR Use a metallic driller. 1. Principle The insulating panels are assembled using hooks mounted on a rod. These catches are operated using a right angled hex wrench. In most cases, the hooks are engaged by turning the wrench fully clockwise.
  • Page 5 Warning : Always start with rear left angle (see draft) Put the first corner panel (type V.A) in position. Make sure that it is the right way up (the top is marked HAUT). Tighten the two bottom hooks (clockwise). Fit the first side panel (type V.F). Before tightening the V.F side panel to the V.A, corner panel, make sure that the tops of the panels are well aligned.
  • Page 6 Warning: Allow a space for fitting the V.P.C. door frame. The doorframe can be fitted in place of any V.F side panel. Always end with a V.A. corner panel. To make it easier to fit the last V.A panel, lift it up, engage the tongues into the grooves and slide it downwards.
  • Page 7 Fit the first V.PM top panel Fit the V.PR panel. VSP 146 wine cellars do not have any V.PR panels NB: When clamping these panels to the V.PM panel, tighten the hooks anti-clockwise. Warning: Use the panel pre-equipped with the electric cord near the air conditioning door Fit the V.PF panel last Warning:...
  • Page 8 F.2. WIRING Fit the door. Remove both side covers (A) from the strip light, V.R. (B) Position the strip light at the top of the doorframe (on the inside): Ensure that the light bulks lamp (C) pass through the holes, Put the white light switch pusher through the hole.
  • Page 9 Link the male 3-point connector of the electric cord to female connector positioned on the ruler Take the black flexible conduit from the door to the strip light and anchor the cut-out using the nut. Attach the white connector from the door to the connector inside the strip light.
  • Page 10 Replace the covers on either side of the V.R. strip light. Attach the covers using the two 4 x 10 screws Place the V.C. air conditioning unit in front of the door. Warning! Do not lift the air conditioning unit by the espace.
  • Page 11 F.3. FITTING THE RACKS Fit of the V.EPB end panels and hold it upright. Build up the rack by sliding the small V.EP panels into the grooves in the V.EPB end panel and the V.ER connectors. Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 11 out of 20...
  • Page 12 The large V.ED dividers are designed to be fitted diagonally to form two six bottle compartments A typical rack All that remains to be done is to spread the gravel on the floor, between the shelves. Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 12 out of 20...
  • Page 13 I. USER MANUAL G.1. COMMISSIONING  The two switches on the lighting strip to 0. The switch nearer the end of the switch controls the air conditioning unit The other switch controls the lighting  Connect the power supply cable (single phase 220 V + earth) to a plug. G.2.
  • Page 14 G.3. AIR-CONDITIONNING UNIT Turn on the air conditioning (switch at end of strip). The green light should come on. The internal fan operates continuously. The external fan operates only when the unit is cooling. The unit thermostat is preset to maintain a constant temperature of about 12 to 13°C inside the wine cellar.

  • Page 15: Relative Humidity

    RELATIVE HUMIDITY If the humidity is too low the corks will dry out (leakage), if the humidity is too high the corks and labels may go mouldy but the wine will not be affected. The air conditioning unit has been specially designed to maintain a optimum humidity.
  • Page 16 STOCKING BOTTLES IN THE CELLAR So that the air conditioning unit does not operate for an excessively long time (to avoid icing up). We recommend stocking the cellar gradually. As both the glass and the wine have a significant thermal capacity, it may take several days for the bottles to reach the correct temperature.

  • Page 17: Maintenance

    J. MAINTENANCE TEMPERATURE TOO LOW   The thermometer is not showing the correct reading: Check by using another thermometer.  Thermostat set too low: Raise the temperature gradually to avoid subjecting your wine to sudden changes in temperature. TEMPERATURE TOO HIGH ...
  • Page 18 Installation guide VinoSafe VSP/ 460vspsav1ev8 / Page 18 out of 20...
  • Page 19 L. RECOMMENDATIONS TO POTENTIAL BUYERS If you are satisfied with VinoSafe, we suggest that you refer some potential buyers to us. If you transmit 5 comprehensive addressees of potential buyers to VinoSafe or its reseller, we shall send a gift to you (wine accessory). If some addresses end us as orders, we shall send yet another gift, but more substantial.
  • Page 20 DÉCLARATION DE CONFORMITÉ DU CONSTRUCTEUR selon les directives 73/23/CEE 89/336/CEE CE CONFORMITY DECLARATION according directives EEC/73/23 EEC/89/336 HERSTELLERKONFORMITÄT ERKLÄRUNG entsprechend-Richtlinien EWG/73/23 EWG/89/336 Nous, NVS S.A.S 2 rue des Artisans Wir, F – 68280 SUNDHOFFEN Déclarons par la présente que la machine Hereby declare that the machine Erklären, dass die folgende Maschine Type / type / Typ_______________________________________________________________________...
