Summary of Contents for DirectCM DCM2200i

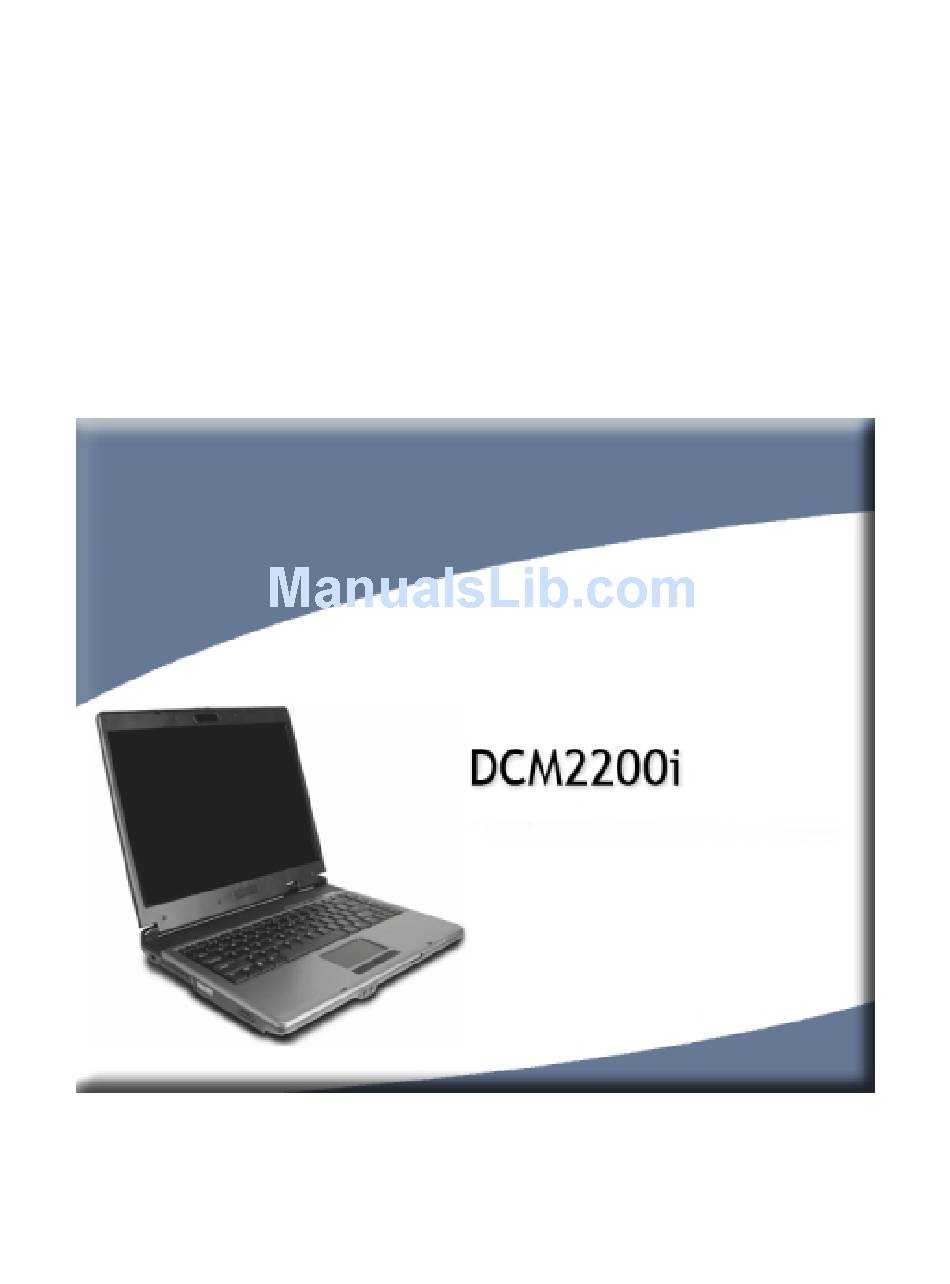

Page 1 DCM2200i Technical Reference Manual...
Page 2: Table Of Contents
DCM2200i Table of Contents Copyright/Limited Warranty......................1 Trademark Notice ........................1 Limitation of Liability ......................... 1 Notices ............................1 Life Support and Nuclear Facilities................... 2 Energy Star® Notice........................3 Network Compatibility ....................... 3 Welcome............................4 System Information........................4 Manual Conventions ......................... 4 Manual Updates........................
Page 3 Table of Contents Power Management........................ 34 Power Saving Tips........................35 Keyboard and Touchpad ......................36 Keyboard ..........................36 Numeric Keypad ........................37 Special Function Keys ......................37 Touchpad ..........................38 Storage Devices ......................... 40 PC Cards ..........................40 Optical Drive ........................... 43 Memory Card Slot........................
Page 4 FCC Part 68 Statement ......................65 CTR21 Statement ........................66 Canadian Radio Interference Regulations................66 Class 1 Laser Product ......................67 Power Cord Requirement ....................... 67 Safety Approval ........................69 Service and Support........................70 DirectCM Technical Support....................70 Glossary ............................71...
Page 5: Copyright/Limited Warranty
In no event will the manufacturer or seller of a DirectCM™ product be liable for direct, indirect, special, incidental, or consequential damages arising out of the use or inability to use the product or documentation, even if advised of the possibility of such damages.
Page 6: Life Support And Nuclear Facilities
DCM2200i Life Support and Nuclear Facilities Products sold by DirectCM™ are not authorized for use as critical components in medical devices or systems or in nuclear facilities without the express written approval of the Chief Executive Officer of DirectCM™. EMA001092-00, PJH, 06-20-2006...
Page 7: Energy Star® Notice
Power Management settings or default times. Network Compatibility The power-saving functions may vary among different network operating systems. If the system is to be permanently connected to a network, we recommend the DCM2200i’s "wake up" function be tested before relying on this mode.
Page 8: Welcome
DCM2200i Welcome Congratulations on the purchase of your DCM2200i. Whether you are a new or an experienced notebook user, this Technical Reference Manual can help you get the most from your notebook. The following sections in this chapter contain more information about your notebook and this manual: •...
Page 9: Manual Updates
Technical Reference Manual for your system. Please note that not all of the manual updates will be applicable to your system. 1. Go to the DirectCM Support Web site at http://www.directcm.com 2. Find the DCM2200i Electronic Manual link and select the EMA001092-XX link.
Page 10: Notebook Safety And Care
DCM2200i Notebook Safety and Care Your DCM notebook has been manufactured to the highest quality standards and is designed and tested to meet the latest standards for safety of information technology equipment. With proper care, it should provide years of trouble-free service.
Page 11 DCM2200i Temperature and Humidity Operational Levels Environment Ambient temperature, operating 32°F to 86°F (0°C to 30°C) Ambient temperature, storage -23°F to 122°F (-5°C to 50°C) Relative humidity (noncondensing), operating 20% to 80% Relative humidity (noncondensing), storage 5% to 90% Magnetic Fields Place the notebook away from electromagnetic or radio frequency interference (for example, television/stereo sets, copying machines, and air conditioners).
Page 12: Using Your Notebook
DCM2200i Other Environmental Concerns High levels of dust, dirt, or smoke can also damage your notebook. Place the notebook in an area with good ventilation. Periodically check the notebook's case, side, and bottom to ensure that dust or dirt is not accumulating on the ventilation portholes.
Page 13 DCM2200i • If your local area is subject to frequent electric power failures, attach an Uninterruptible Power Supply (UPS) to the notebook. A UPS will give you time to save all data files and properly turn off the notebook. General Work Area Concerns •...
Page 14: Storing Your Notebook
DCM2200i • Under the following conditions unplug the notebook from the wall outlet and refer problems to a service representative: • The power cord or plug is damaged or frayed. • Liquid has been spilled onto your notebook. • The notebook has been exposed to rain or water.
Page 15 DCM2200i Caution: Any damage to the machine caused by using a locking/security device is not covered under warranty. Laser Safety All systems equipped with optical drives comply with the appropriate safety standards, including IEC 825. The laser devices in these components are classified as "Class 1 Laser Products" under a US Department of Health and Human Services (DHHS) Radiation Performance Standard.
Page 16: Cleaning Your Notebook
DCM2200i Cleaning Your Notebook Use the following information when cleaning your notebook. • Before cleaning, turn off your notebook and unplug it from the wall outlet. Do not use liquid cleaners or aerosol cleaners. Use a soft cloth and denatured alcohol for cleaning the notebook case and LCD.
Page 17: Using The Battery Safely
Warning: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommend by DCM. Discard used batteries according to DirectCM’s instructions (see below). Follow these guidelines to safely use the battery: •...
Page 18: Getting Started
DCM notebook • Cloth for screen cleaning and LCD protection • Accessories • AC adapter with AC power cord • DCM2200i Driver CD • Phone/modem (RJ-11) telephone cable • LAN (RJ-45) networking cable • Ferrite beads (large and small) •...
Page 19 When the AC adapter is connected, power is being supplied from the electrical outlet to the AC adapter and into your DCM2200i. Now, you are ready to turn on the notebook. Caution: When you disconnect the AC adapter, disconnect from the electrical outlet first and then from the DCM2200i.
Page 20: Opening The Cover
DCM2200i See Power Management for more information on using your notebook's battery. Opening the Cover Caution: Be gentle when opening and closing the cover. Opening it vigorously or slamming it shut could damage the notebook. To open the top cover: 1.
Page 21: Turning On And Off
Note: An operating system is the platform for all your software application programs to run on. Your DCM2200i is shipped from the factory with Windows® Note: The first time you start your notebook you will see the operating system registration screens.
Page 22 DCM2200i Turning on the Notebook Turning Off Prior to shutting down your notebook, ensure all of your data and current work are saved. To turn off the notebook: 1. Click the Start button on the taskbar. 2. Select Shut Down to display the Shut Down Windows screen.
Page 23 DCM2200i Standby or Hibernation Mode When you finish a working session, you can power down the DCM2200i by turning off the notebook or placing the notebook in Standby or Hibernation Mode. Standby, unlike Hibernation Mode, does not store unsaved information on your hard disk;...
Page 24: Notebook Features
DCM2200i Notebook Features Your DCM2200i is a lightweight portable notebook that includes features to meet your computing needs at home or on the road. The following sections in this chapter will help you locate and identify the connectors and components on your notebook.
Page 25 DCM2200i • Operating System: Microsoft Windows XP Home and Professional • PC Card Support: CardBus Support, 1 Type II PCMCIA card slot • Primary Battery: 6-cell or 9-cell 4800mAH, 64W Lithium Ion battery options • AC Adapter: 19V DC, 3.42A, 64W output; Automatic voltage adjustment 100-240V AC, 50/60Hz •...
Page 26: Front Open View
DCM2200i Front Open View Front Open View Front Open View Descriptions 1. Display Panel Button: Press the display panel button to open the display panel. 2. Microphone (Built-in): The built-in mono microphone can be used for voice narrations or simple audio recordings.
Page 27: Front And Rear Views
DCM2200i 4. Instant Keys: Instant keys are used to launch frequently used applications with one push of a button. 5. Status Indicators (top): Status indicators show hard drive activity and number, capital, and scroll lock status. 6. Keyboard: The keyboard provides full-sized keys with comfortable travel (depth at which the keys can be depressed) and palm rest for both hands.
Page 28 DCM2200i 3. Headphone Output Jack: The stereo headphone jack (1/8 inch) is used to connect the notebook’s audio out signal to amplified speakers or headphones. Using this jack automatically disables the built-in speakers. 4. Display Panel Latch: Slide the latch to the right to open the notebook.
Page 29: Side Views
DCM2200i The battery pack cannot be disassembled and must be replaced as a single unit through DirectCM. Side Views Caution: Do not place any heavy objects on the top of the notebook. This may damage the display. Right View Right View Descriptions 1.
Page 30 DCM2200i 6. LAN Port: The RJ-45 LAN port with eight pins is larger than the RJ-11 modem port and supports a standard Ethernet cable for connection to a local network. The built-in connector allows convenient use without additional adapters. 7. Modem Port: The RJ-11 modem port with two pins is smaller than the RJ-45 LAN port and supports a standard telephone cable.
Page 31: Bottom View
The battery pack cannot be disassembled and must be replaced as a single unit through DirectCM. 2. Battery Lock - Manual: The manual battery lock is used to keep the battery pack secured.
Page 32: Ac Adapter
• The hard disk drive is easily accessible through this compartment for future upgrades. The DCM2200i supports 9.5mm IDE hard drives. AC Adapter AC Adapter AC Adapter Descriptions...
Page 33: Switches And Status Indicators
DCM2200i Switches and Status Indicators Switches Internet Launch Key: Pressing this button will launch your Internet browser application while ® Windows is running. Email Launch Key: Pressing this button will launch your e-mail application while Windows ® running. Pad-Lock Key: Pressing this button will lock your touchpad when using an external mouse.
Page 34: Power Management
DCM2200i Status Indicators - Front Edge Power Indicator: The green LED lights to indicate that the notebook is turned ON and blinks slowly when the notebook is in the Suspend-to-RAM (Standby) mode. This LED is OFF when the notebook is OFF or in the Suspend-to-Disk (Hibernation) mode.
Page 35: Ac Adapter
The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct Current) power because your DCM2200i runs on DC power, but an electrical outlet usually provides AC power. It also charges the battery pack when connected to AC power.
Page 36: Battery Pack
DCM2200i Battery Pack The battery pack is the internal power source for the notebook. It is rechargeable using the AC adapter. The operating time of a fully charged battery pack depends on how you are using the notebook. When your applications access peripherals often, you will experience a shorter operating time.
Page 37 To charge the battery pack, connect the AC adapter to the notebook and an electrical outlet. The Battery Power Indicator on the notebook is solid amber indicating that charging is in progress. Keep the DCM2200i power off while the battery is being charged. When the battery is fully charged, the Battery Charge Indicator turns off.
Page 38: Power Management
DCM2200i Power Management ® Power management settings can be found in the Windows control panel. The following shows ® the power option properties in Windows . You can define “Stand by” or “Shut down” when closing the display panel, pressing the power button, or activating sleep mode. “Stand by” and “Hibernate”...
Page 39: Power Saving Tips
DCM2200i Suspend Mode In “Stand by” (STR) and “Hibernation” (STD), the CPU clock is stopped and most of the notebook devices are put in their lowest active state. The suspend mode is the lowest power state of the notebook. The notebook enters suspend mode when the system remains idle for a specified amount of time or manually using the [Fn][F1] keys.
Page 40: Keyboard And Touchpad
DCM2200i Keyboard and Touchpad The following sections in this chapter provide information on using your notebook's keyboard and touchpad: • Keyboard • Numeric Keypad • Special Function Keys • Touchpad Keyboard Your notebook has an 87/88-key keyboard. By pressing designated key combinations, you can have access to all the key functions of a full-sized keyboard.
Page 41: Numeric Keypad
DCM2200i Numeric Keypad The numeric keypad is embedded in the keyboard and consists of 15 keys that make number- intensive input more convenient. These dual-purpose keys are labeled in orange on the key caps. Numeric assignments are located at the upper right-hand corner of each key as shown in the figure.
Page 42: Touchpad
DCM2200i • ® Speaker Down Icon (F11): Decreases the speaker volume (only in Windows OS). • Speaker Up Icon (F12): Increases the speaker volume (only in Windows ® OS). • Num Lk (Ins): Toggles the numeric keypad (number lock) ON and OFF. Allows you to use a larger portion of the keyboard for number entering.
Page 43: Configuring The Touchpad
DCM2200i Scroll To scroll is to move up and down or left and right in the working area on the screen. To move vertically, place your finger on the right edge of the pad and slide your finger up and down along the edge. To move horizontally, place your finger on the bottom edge of the pad and slide your finger left and right.
Page 44: Storage Devices
DCM2200i Storage Devices The following sections in this chapter provide information on various storage features: • PC Card • Optical Drive • Memory Card Slot • Hard Disk Drive PC Cards Your notebook has a PC Card slot. PC Cards are credit card-sized peripheral products developed to meet the standards developed by PCMCIA (Personal Computer Memory Card International Association).
Page 45 DCM2200i Inserting and Removing a PC Card Note: Some PC cards require additional system resources. Before using such a PC card, you may have to free other system resources. Although some PC cards can be inserted and removed without turning off the notebook, you cannot remove or install PC cards in Standby mode.
Page 46 DCM2200i PC Card Adapter To remove a PC card: 1. Remove all cables or adapters attached to the PC card. 2. Double-click the PC card icon on the Windows taskbar and stop the PC card you want to remove. 3. Push the Eject button once and the button pops out (1).
Page 47: Optical Drive
DCM2200i Optical Drive The notebook has one optical drive slot. The procedure to replace the optical drive is described below. Caution: Avoid touching the lens in the tray with your hand. If the lens becomes dirty, the optical drive may malfunction.
Page 48 DCM2200i Inserting an Optical Disc Removing an Optical Disc Eject the tray and gently pry the edge of the disc upwards at an angle to remove the disc from the hub. Removing an Optical Disc...
Page 49 DCM2200i Emergency Eject The emergency eject is located in a hole on the optical drive and is used to eject the optical drive tray in case the electronic eject does not work. Do not use the emergency eject in place of the electronic eject.
Page 50: Memory Card Slot
DCM2200i Memory Card Slot Normally a PCMCIA memory card reader must be purchased separately in order to use memory cards from devices such as digital cameras, MP3 players, mobile phones, and PDAs. The notebook has a single built-in memory card reader that can read the following flash memory...
Page 51: Hard Disk Drive (Hdd)
DCM2200i Hard Disk Drive (HDD) Hard disk drives have higher capacities and operate at much faster speeds than floppy disk drives and optical drives. The notebook comes with a replaceable 2.5” (6.35cm) wide and approximately .374” (.95cm) high IDE hard disk drive. Current IDE hard drives support S.M.A.R.T.
Page 52: Communication
DCM2200i Communication The following sections in this chapter provide information on various communication features: • Modem • Ethernet • Wireless LAN • Bluetooth Wireless Connection Modem Note: To take advantage of the modem feature, the modem driver supplied with your notebook must be installed.
Page 53: Ethernet
DCM2200i Connecting the Modem Ethernet Connect a network cable, with RJ-45 connectors on each end, to the modem/network port on the notebook and the other end to a hub or switch. For 100 BASE-TX / 1000 BASE-T speeds, your network cable must be category 5 or better (not category 3) with twisted-pair wiring. If you plan on running the interface at 100/1000Mbps, it must be connected to a 100 BASE-TX / 1000 BASE-T hub (not a BASET4 hub).
Page 54: Wireless Lan
DCM2200i Network Hub Example Wireless LAN The optional built-in wireless LAN is a compact easy-to-use wireless Ethernet adapter. Implementing the IEEE 802.11ABG standard for wireless LAN (WLAN), the optional built-in wireless LAN is capable of fast data transmission rates using Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM) technologies on 2.4 GHz...
Page 55 DCM2200i Ad-hoc Mode The Ad-hoc mode allows the notebook to connect to another wireless device. No access point (AP) is required in this wireless environment. (All devices must install optional 802.11 wireless LAN adapters.) Ad-hoc Mode Example Infrastructure Mode The Infrastructure mode allows the notebook and other wireless devices to join a wireless network created by an Access Point (AP) (sold separately) that provides a central link for wireless clients to communicate with each other or with a wired network.
Page 56: Bluetooth Wireless Connection
DCM2200i Bluetooth Wireless Connection Notebooks with Bluetooth technology eliminate the need for cables for connecting Bluetooth- enabled devices. Examples of Bluetooth-enabled devices may be Notebook PCs, Desktop PCs, mobile phones, and PDAs. Bluetooth-enabled Mobile Phones You can wireless connect to your mobile phone. Depending on your mobile phone’s capabilities, you can transfer phone book data, photos, sound files, etc., or use it as a modem to connect to...
Page 57: Video And Audio
14.1-inch TFT (Thin-Film Transistor) color LCD display with 1280x800 WXGA resolution. • Simultaneous display on LCD and external monitor, which is useful when you have a presentation, since you can control the screen from your DCM2200i and face the audience at the same time. •...
Page 58: Audio Features
DCM2200i Audio Features Your DCM2200i’s audio subsystem is Sound Blaster Pro-compatible. Adjusting the Volume Manually • To increase the volume, press [Fn+F12]. • To decrease the volume, press [Fn+F11]. • To mute or unmute the volume, press [Fn+F10]. ® Adjusting the Audio Volume in Windows 1.
Page 59: Bios Setup
DCM2200i BIOS Setup The System Setup (BIOS) program enables you to configure your notebook hardware and set security and power-savings options. The settings you choose are stored in battery-maintained CMOS memory that saves the information even when the computer’s power is turned off. When your notebook is turned back on, it is configured with the values found in this memory.
Page 60: Starting Bios Setup
The settings you select in your operating system might override similar settings in the BIOS. To run the BIOS, press [F2] when the DirectCM logo appears on the screen during system startup. The prompt shows up on the screen for only a few seconds. You must press [F2] quickly.
Page 61: Navigating The Bios
DCM2200i Navigating the BIOS Keyboard information can be found at the bottom of the Setup Utility screen. A brief description of keyboard usage is listed below: BIOS Navigation Function [F1] Displays the General Help window. [Esc] Exits the BIOS. Up or Down Arrow Move the cursor up and down between fields.
Page 62: Advanced Menu
Advanced Menu The Advanced menu contains configuration settings of the system. Caution: Incorrect settings in this menu may cause your system to malfunction. DirectCM recommends that you keep the default settings. Advanced Menu Options Core Multi- Enables/Disables the second CPU core. (May not be present with processing Single Core or Celeron CPUs.
Page 63: Super Io Configuration Submenu
DCM2200i Super IO Configuration Submenu The Super IO Configuration submenu contains the IO configuration settings of the system. Caution: Incorrect settings in this menu may cause your system to malfunction. DCM recommends that you keep the default settings. Super IO Configuration Submenu Options Enables/Disables the parallel port on the optional port replicator.
Page 64: I/O Interface Security Submenu
DCM2200i I/O Interface Security Submenu The I/O Interface Security submenu contains the I/O Interface Security settings of the system. Note: Disabling a device on this screen will override any other hardware or software settings. Devices which are disabled on this screen will need to be re- enabled on this BIOS screen.
Page 65: Boot Menu
The Boot Settings Configuration menu provides booting options. Boot Settings Configuration Submenu Options Quick Enables/Disables specific tests when booting to decrease the time the system Boot takes to complete POST. Quiet Enables/Disables the DirectCM screen displayed when the system is first Boot powered on.
Page 66: Exit Menu
DCM2200i Exit Menu The Exit pull-down menu displays different methods of exiting the BIOS. After you have finalized your settings, you must save and exit so that the new settings can take effect. Exit Menu Options Save Changes and Saves the changes made while in the Setup Utility and restarts the Exit system.
Page 67: Regulatory Notices
DCM2200i Regulatory Notices This device complies with Part 15 of the Federal Communications Commission (FCC) Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Page 68: Product Specification
DCM2200i Product Specification Intel PRO/Wireless 3945ABG 802.11 Network Connection Item Detailed Specifications 59.75 x 44.45 mm (wxh) Physical Dimensions Specifications Temperature: 0°C ~ 70°C Operation Temperature and Humidity Humidity: less than 85% Power Power Saving Mode 135 mW Specification Receiving Mode .85 W...
Page 69: Wireless Lan Module Statement
Canada: ICES-003 (Class B) FCC Radiation Exposure Statement The DirectCM Wireless LAN Mini PCI Card will be installed with an antenna that is integrated into the LCD screen. The radiated output power of the DCM Wireless LAN Mini PCI Card is far below the FCC radio frequency exposure limits.
Page 70: Ctr21 Statement
DCM2200i The REN is used to determine the quantity of devices that may be connected to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in response to an incoming call. In most, but not all areas, the sum of RENs should not exceed five. To be certain of the number of devices that may be connected to a line, as determined by total RENs, contact the local telephone company to determine the maximum REN for the calling area.
Page 71: Class 1 Laser Product
DCM2200i Class 1 Laser Product All systems equipped with CD or DVD drives comply with the appropriate safety standards, including IEC 825. The laser devices in these components are classified as “Class 1 Laser Products” under a US Department of Health and Human Services (DHHS) Radiation Performance Standard.
Page 72 DCM2200i Country-Specific Power Cord Set Requirements Country Accredited Agency Applicable Note Numbers Australia EANSW Austria Belgium CEBC Canada Denmark DEMKO Finland FIMKO France Germany Italy Japan The Netherlands KEMA Norway NEMKO Sweden SEMKO Switzerland United Kingdom United States Notes: * Flexible cord must be [HAR] Type HO5VV-F, 3-conductor, 1.0 mm conductor size. Power cord set fittings (appliance coupler and wall plug) must bear the certification mark of the agency responsible for evaluation in the country where it will be used.
Page 73: Safety Approval
DCM2200i Safety Approval Product Safety Investigation for Safety to the U.S. and Canadian (Bi-National) Standard for Safety of Information Technology Equipment, CSA C22.2 No. 60950 * UL60950, Third Edition, dated December 1, 2000.
Page 74: Service And Support
Requesting a Return Material Authorization (RMA) Number Prior to returning a part to DirectCM for warranty service, you will need to log in to your secured website to request a Return Material Authorization (RMA) Number. Once an RMA number is issued, the replacement part or product will be shipped by DirectCM (subject to availability), freight prepaid via ground delivery service.
Page 75: Glossary
Glossary A: Amperes AC: Alternating Current AC Adapter: The AC (or alternating current) adapter regulates current coming into your computer from the wall outlet. The current at the wall outlet is alternating current and needs to be changed by the adapter to DC (direct current) before your computer can use it for power. ACPI: ACPI (Advanced Configuration and Power Interface)- a method for describing hardware interfaces in terms abstract enough to allow flexible and innovative hardware implementations and concrete enough to allow shrink-wrap OS code to use such...
Page 76 DCM2200i CD: Compact Disc CD-ROM: Compact Disc Read-only Memory cm: Centimeters CMOS: Complementary Metal-oxide Semiconductor CMOS Memory: CMOS (complementary metal oxide semiconductor) memory is powered by the CMOS battery. The System Setup settings and other parameters are maintained in CMOS memory. Even when you turn your computer off, the information in CMOS memory is saved.
Page 77 Glossary g: gram GB: Gigabytes Hard Drive: Also called fixed disk. A hard drive is connected to the computer and can be installed or removed. Data written to a hard drive remains until it is overwritten or corrupted. The 2.5-inch hard drive in your computer was designed for use in a notebook computer. Because hard drives in notebook computers are smaller than those in desktop computers, their maximum storage capacity may be less than that of desktop hard drives.
Page 78 DCM2200i mA: Milliampere mAhr: Milliampere hour MB: Megabyte. 1,024 kilobytes. Megabit: 1,048,576 bits or about 128 kilobytes. mm: millimeter MPEG: Motion Picture Experts Group MPU: Microprocessor Unit ms: Millisecond Operating System: A program that supervises the computer's operation, including handling I/O.
Page 79 Glossary Resolution: The resolution is the sharpness or clarity of the image on your LCD screen. Resolution is measured by the number of pixels the computer’s screen can display. For example, a resolution of 800 x 600 means that the screen can display 800 pixels in row and can display 600 rows.
Page 80 DCM2200i process improves video performance. Video conferencing and real-time multimedia devices, such as video cameras, are supported by zoom video.
