  • Page 1 GiGabit Network Card user maNual Model 522328 INT-522328-UM-0108-01...

  • Page 3: System Requirements

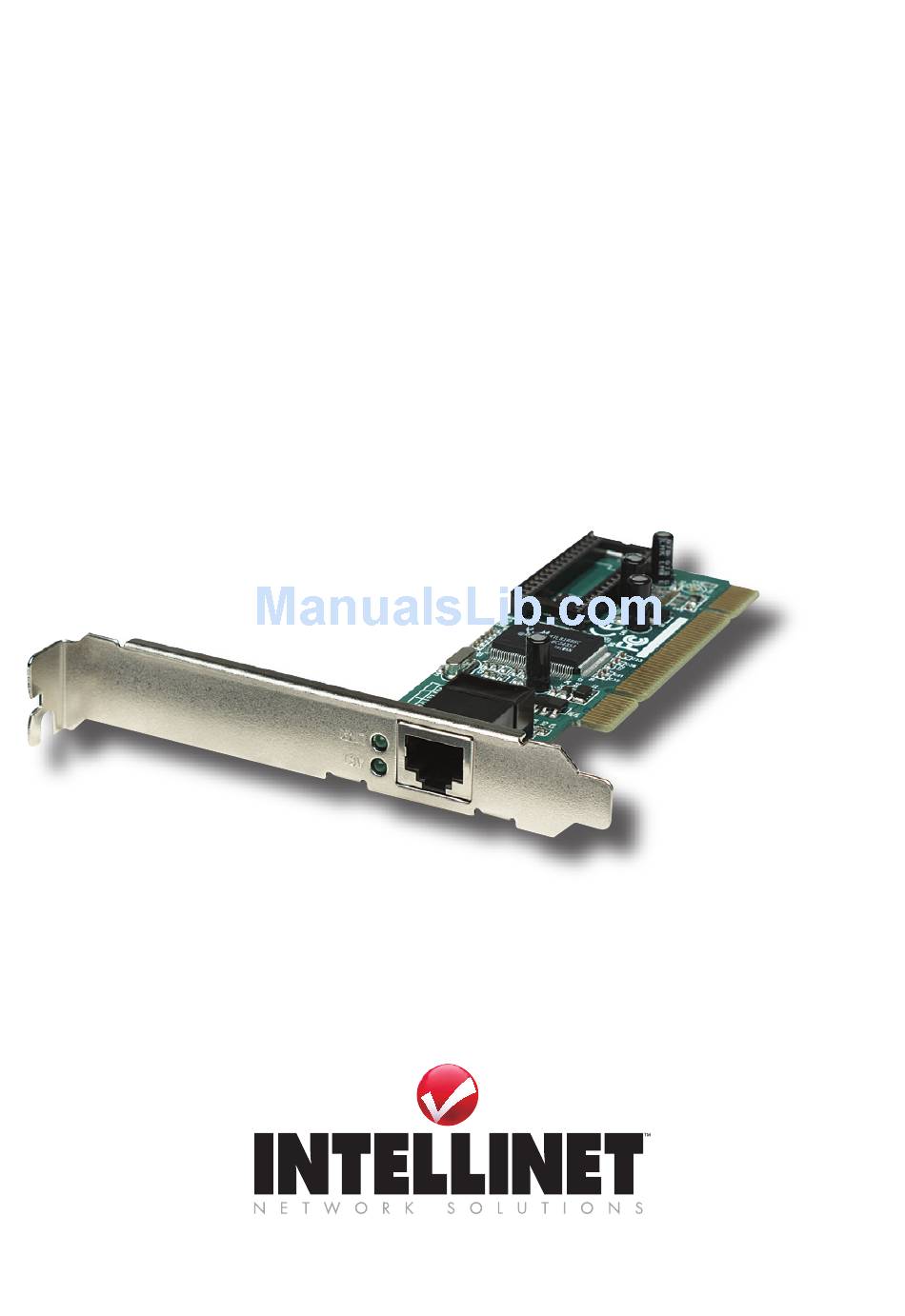

    Thank you for purchasing the INTELLINET NETWORK SOLUTIONS ™ Gigabit PCI Network Card, Model 522328. A high-performance network adapter designed to fit into the PCI slot of your desktop computer, this card allows you to upgrade your computer to support Gigabit network speeds without changing your copper network cabling scheme to fiber optic.

  • Page 4: Fcc Statement

    NOTE: 1000Base-T signaling requires four twisted pairs of Category 5/6 balanced cabling, as specified in ISO/IEC 11801:1995 and ANSI/EIA/ TIA-568-A (1995) and tested for additional performance using testing procedures defined in TIA/EIA TSB95. FCC Statement This device compiles with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1.

  • Page 5: Hardware Installation

    hardware iNstallatioN 1. Turn off the computer and unplug the power cord. 2. Remove the computer’s cover (refer to its manual if necessary). 3. Insert the contact edge of the Gigabit PCI Network Card into the connector of any available PCI bus master expansion slot. Press the card firmly into the slot, making sure the card’s contacts are fully seated.

  • Page 6: Windows Nt

    WinDoWS M 1. With the Gigabit PCI Network Card inserted into the PCI slot, turn the computer on. 2. An Add New Hardware Wizard screen will display “PCI Ethernet Controller.” Insert the enclosed driver CD. 3. Select “Install the software automatically” and click “Next.” 4.

  • Page 7: Windows Xp

    search locations:” Select “Specify a location” and then click “Next.” 5. Insert the enclosed driver CD. 6. On the next Found New Hardware Wizard screen, enter the driver pathname “E:\” (E representing your CD-ROM drive), then click “OK.” 7. The next Found New Hardware Wizard screen will display “The wizard found a driver for the following device Ethernet Controller.”...
  • Page 8 linuX kERnEl 2.2. 1. Compiling rtl8169.c “gcc -DMODULE -Wall -Wstrict-prototypes -O6 -c rtl8169.c” 2. Move the object code rtl8169.o to the directory “/lib/modules/2.2.14-5.0/net” “cp rtl8169.o /lib/modules/2.2.14-5.0/net” 3. Insert module to kernel “insmod rtl8169” 4. Check the driver status “dmesg” 5. The media can be forced to one of five modes (see below). The link speed and duplex mode can be forced in five modes.
  • Page 9 5. The media can be forced to one of the five modes (see below). Cmd: “insmod r8169 media = SET_MEDIA” Example: “insmod rtl8169 media=0x04” will force PHY to operate in 100 Mpbs half duplex. SET_MEDIA can be: _10_Half = 0x01 _10_Full = 0x02 _100_Half = 0x04 _100_Full = 0x08...

  • Page 10: Specifications

    3. In the Installation Options menu, select “Driver options.” 4. In the Driver Options menu, select “Configure network drivers.” 5. In the Additional Driver Actions menu, select “Select a driver.” 6. Press <Ins> to install an unlisted driver, then press <F3> to specify a different path.
  • Page 12 INTellINeT NeTWoRK SolUTIoNS offers a complete line ™ of active and passive networking products. Ask your local computer dealer for more information or visit www.intellinet-network.com Copyright © INTELLINET NETWORK SOLUTIONS All products mentioned are trademarks or registered trademarks of their respective owners.
