USB Turntable
Item number 62904201
R R
R R
Installation & User's Guide
All brand names and trademarks are the property of their respective owners.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the USB Turntable and is the answer not in the manual?

Questions and answers

Summary of Contents for StarLogic USB Turntable

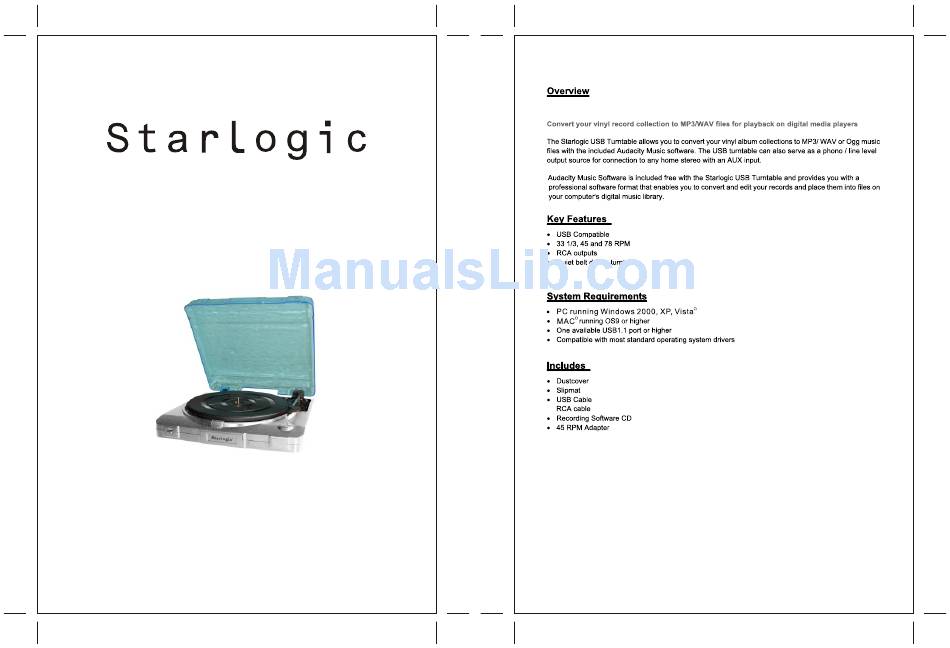

  • Page 1 USB Turntable Item number 62904201 Installation & User's Guide All brand names and trademarks are the property of their respective owners.

  • Page 2: Before Use

    Precautions Before Use Safety Information 1. Choose unit installation location carefully. Avoid placing it in direct sunlight or close to a source of heat. Also avoid locations subject to vibrations and excessive dust, cold or CAUTION moisture. Keep away from sources that hum, such as transformers or motors. 1.In order to shut off the power of this product completely, unplug the power cord from the 2.

  • Page 3: Location Of Parts

    Location of parts Preparation for Use 1. Remove all the packaging from the unit. 2. Connect the AC adaptor to the turntable and then to 1.POWER SWITCH an AC outlet. 2.TONE ARM 3.SPEED CONTROL SWITCH 4.SECURITY HOOK 5.TONE ARM REST 6.TURNTABLE Front View 7.SUSPENSION SCREW...

  • Page 4: Listening To A Record

    Install the USB Driver 7. Turn on the receiver which you Make sure the Audacity disc is still in connected to this USB turntable by your CD drive. using the On/off Knob or Volume knob, Using the included USB cable, connect adjust the volume knob to control the the turntable to your computer.
  • Page 5 Audacity Music Software and USB Computer Connection Audacity Music Software and USB Computer Connection Audio Properties Interface 4. Adjust the output and input volume. Sound Recorder Interface 6.Click the ( ) button to skip to start; Input Volume Output Volume 7.Click the ( ) button to skip to end;...

  • Page 6: Specifications

    Specifications TURNTABLE SECTION Motor..........DC servo motor Drive System........Belt Drive Speeds...........33-1/3 rpm, 45 rpm and 78 rpm Wow&Flutter........Less than 0.25%(WTD) S/N Ratio.........More than 50 dB Cartridge Type.........Ceramic Stereo Cartridge Stylus..........402-M208-165 Output Level........160-380 mV (5 cm/sec at 1 KHz) GENERAL Power Requirements......Input: AC 120 V~ 60 Hz Output: DC 9V~ 800 mA Power Consumption......5 W Standard Accessories.......Operating Instruction Booklet 45 rpm Adapter...
