Summary of Contents for Next Dlight

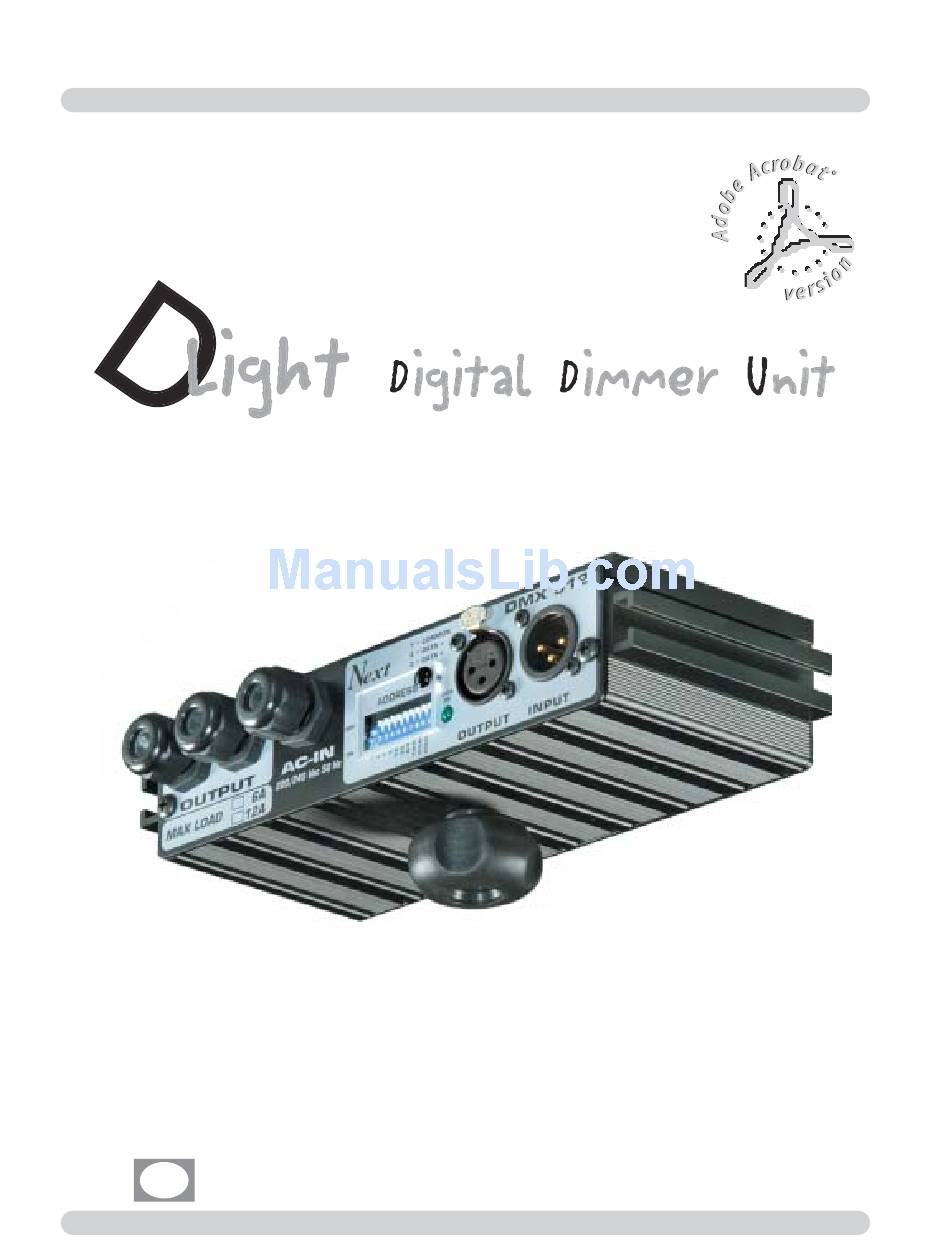

- Page 1 USER’S MANUAL...
- Page 3 We congratulate you on your purchase of Dlight Before proceeding of the use of this product it should be necessary to read carefully the following user’s manual to install it correctly and to make the most of its potentialities.
- Page 4 Profile in aluminum Screw Panel for connections Screw Passage of the cable...
- Page 5 Screw Bolt for fixing Par-can become Active Estraibile frontal panel Screw Handle grip for fixing Par-can on DLight...
- Page 6 USER’S MANUAL Sets of the equipment 1.1 Unpacking of the equipment 1.2 Acessories issued with the equipment and relative documentation Description of the rear panel and installation 2.1 Description of the rear panel 2.2 DMX 512 output connection Description of the Electronic circuit and relative connection 3.1 Description of the Electronic circuit and relative connection Protections 4.1 Over-heating protection...
- Page 7 Verify the contens of the packing. If one of the following parts of the packing is missing or damaged, please, contact your dealer immediately. A) User’s manual. B) Handle grip for fixing Par-can on DLight C) Bolt for fixing Par-can become Active .
- Page 8 2.1 Description of the rear panel and installation DMX 512 1 = COMMON 2 = DATA 3 = DATA ADDRESS OUTPUT AC-IN 220/240 Vac 50 Hz MAX LOAD OUTPUT INPUT Profilo in alluminio Profile in aluminum Outputs for Par-can with PG9 AC-IN 220/240Vac 50 Hz with PG9 Dip-switch for signal Dmx Addess Standard DMX 512 signal IN/OUT with a 3-pin cannon connector.
- Page 9 Estraibile frontal panel Use always a suitable section cable to connect power supply and lamps. Be sure that current socket is capable to delivery required current. Vite / Screw Manopola per fissaggio Faro su DLight Handle grip for fixing Par-can on DLight...
- Page 10 4.1 - OVER-HEATING PROTECTION: The maximum temperature of work is 90º C. and it is measured inside of the DLIGHT. When exceeded this temperature, the output come disable up to when the tempera- ture doesn't return within normal values.
- Page 11 Note...
- Page 12 CODEM MUSIC S.r.l. - Via Del Vallo, 110 - 61100 PESARO - ITALY Tel. +39 0721 204357- Fax +39 0721 203554 h h t t t t p p : : / / / / w w w w w w . . c c o o d d e e m m m m u u s s i i c c . . c c o o m m - - E E - - m m a a i i l l : : i i n n f f o o @ @ c c o o d d e e m m m m u u s s i i c c . . c c o o m m All rights reserved.
