Using the Shred Emulsifier
TM

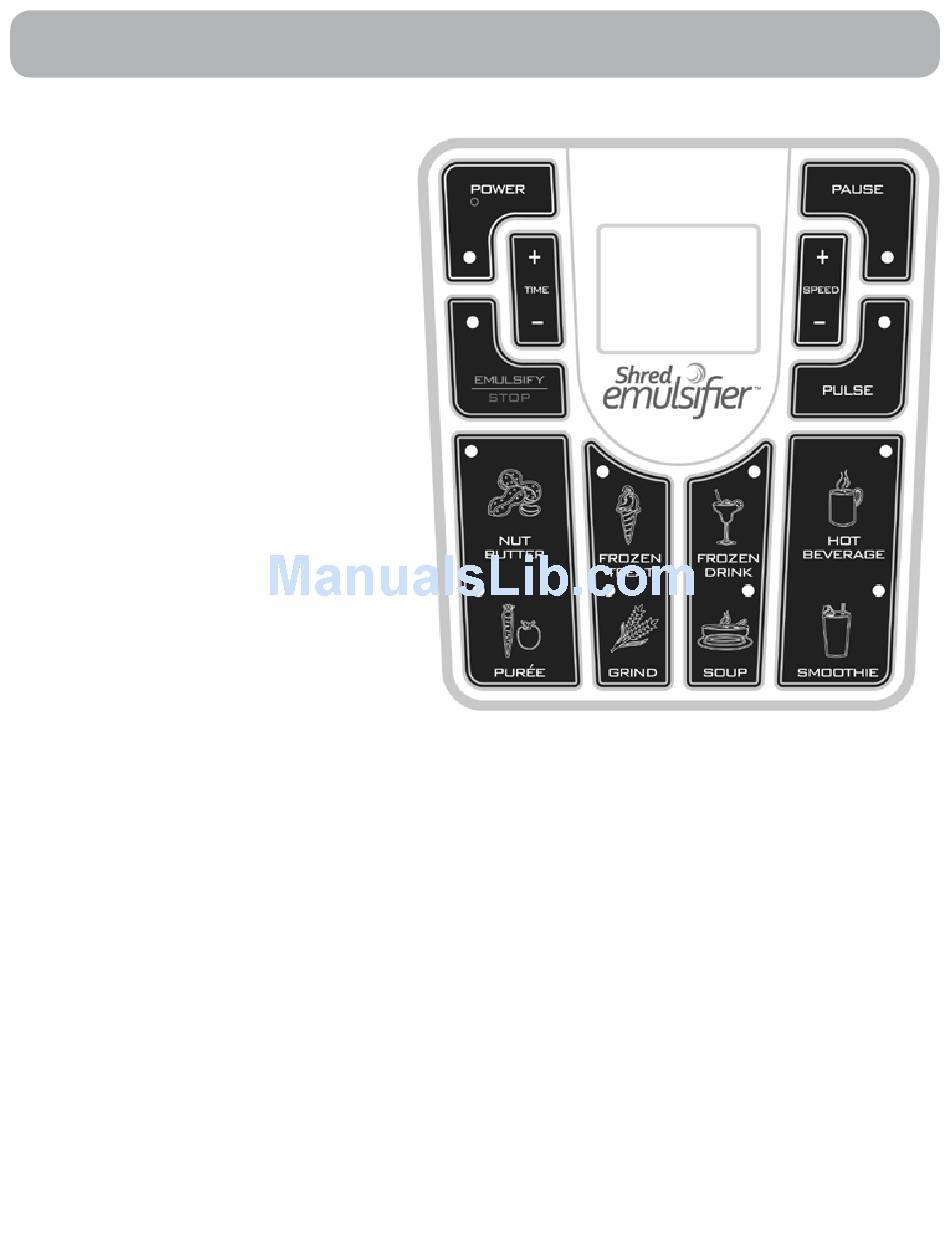

Control Panel
POWER Button: Once the Pitcher is
in place and the unit is plugged into
a 120V AC outlet, the Power Button
Light will turn Blue indicating that
the unit is ON but does not actually
10:00
have Power. Now, select the Power
Button, the LED Display will light up
2
and the unit will have Power.
NOTE: During any processing
function, selecting the Power
button will shut everything down. To
continue processing you must re-
select the Power Button.
("o" denotes power off)
STOP Button: Located just below
the Power Button will also effectively
stop any Processing function
immediately but it will not cut the
power and the LED will remain lit.
TIME Button: The unit has a 10 Min.
Maximum run time. Add or subtract
minutes with the + or - buttons in the
TIME panel.
SPEED Button: The unit has 10
speeds. The default speed is 2. The lowest speed is "STIR". If the LED is set on 2, selecting a
lower speed will change the LED reading to STIR. If the LED speed is set to 9, selecting a higher
speed will change the LED to "H" which is the highest setting.
EMULSIFY Button: Automatically operates the unit at its lowest speed for a 10 minute default
time. For less "Emulsify" Time, selecting STOP located below the Emulsify Button will cancel
the Process.
PAUSE Button: Allows you to stop any function in progress without cancelling the setting.
When on Pause you may add ingredients and then hit Pause again to complete the
pre-programmed setting.
PULSE Button: This button is used when you need short bursts at full power. Pulse will only
work only while button is pressed... removing your finger stops the process.
PRE-SET Buttons: There are 8 Pre-Set Functions that occupy the bottom half of the control panel.
You may apply these functions to your own recipes or select any from the Shred Emulsifier
TM
Recipe Guide.
