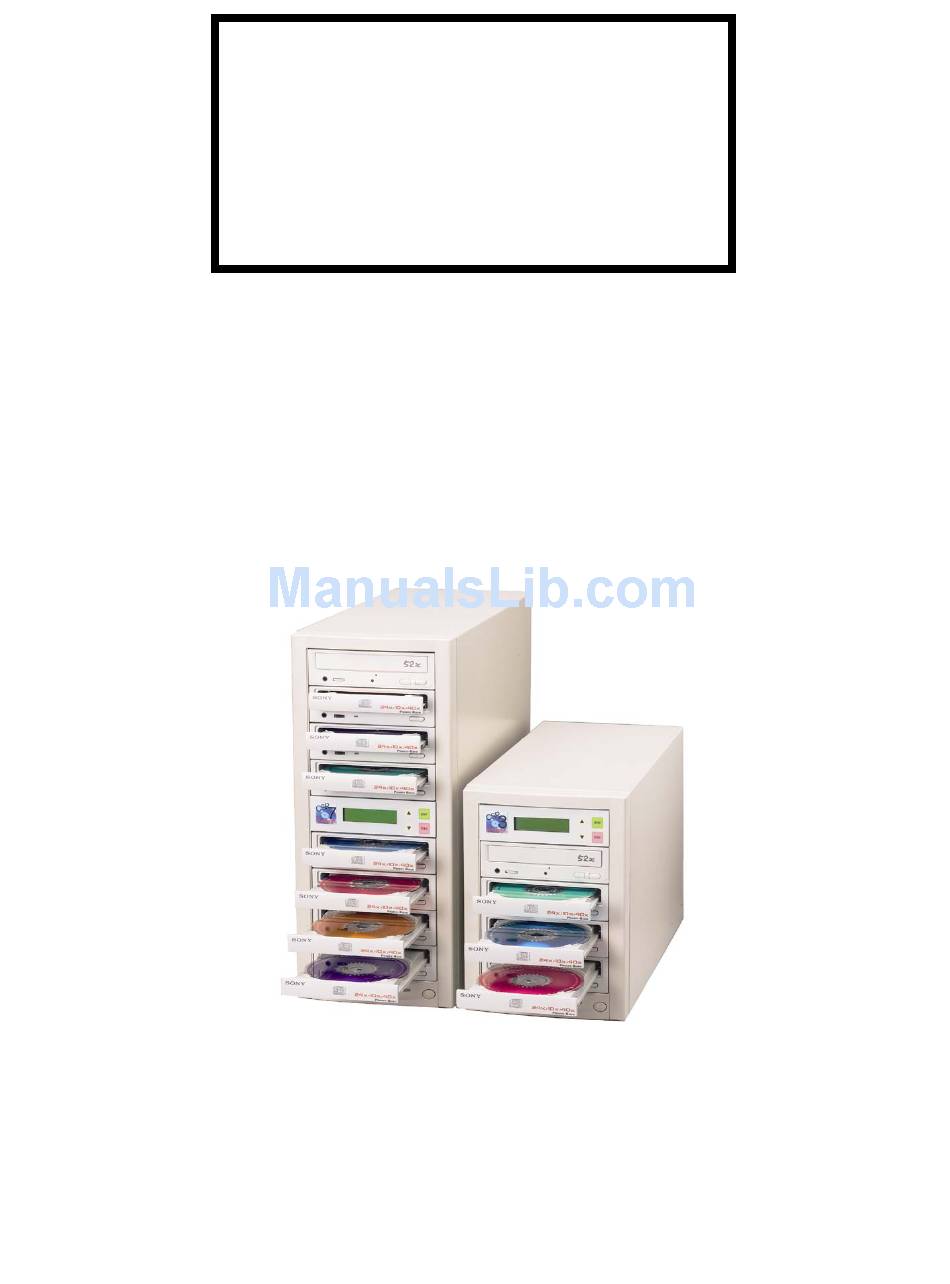

- Page 1 VERBATIM CSP243/CSP247 COPYSMARTPLUS CD Duplication Tower User Manual CSP247 CSP243 – V1.0 – Copyright 2002 Verbatim Australia...
-
Page 2: Chapter 1 Introduction
Chapter 1 Introduction 1.1 Overview Users who want to backup their CDs normally have go through many steps by turning on their computer, launching the software, setting up various parameters, and tiding up their computer. Sometimes it can take up to an hour to get only a few CD backups. A standalone CopySmartPlus will easily resolve this inconvenience. - Page 3 Chapter 2 Installation and Operation Procedure Unpack the duplicator. Check the entire unit to see if there is any mal-function or damage found. Make sure that the voltage setting is correct. Connect power cable. Switch on the CopySmartPlus with the front power button. 2.1 Key Functions and Operating Instructions LCD Display Panel: Displays main functions and all messages.
-
Page 4: Quick Start
2.2 Quick Start • Place master disc in CD-ROM. • Switch to Copy function by pressing arrow button. • Place a blank CD-R or CDRW disc into each the CD writer. • Press “ENT” button to start copying once all writers detect the CD discs (front panel lights stop flashing). - Page 5 Chapter 3 Function 3.1 Copy When running the coping process, the data will really burn into the blank CD-R/RW discs. Before starting the coping process, please make sure the master CD is put in the CD-ROM drive before coping. 1. Copy Place blank CD-R/CD-RW discs into the CD writers.
- Page 6 3.3 Test & Copy 3.Test & Copy Press “ENT” button to do the disc testing then really write the data on the disc or press “ESC” to exit. Testing-24X 0% 650.0MB 74:00 Before starting the copying process, the writers will simulate the data writing process.
- Page 7 Compare OK: 3 Fail: 0 Diff: 0 When the process is finished, the LCD will show the result of the “Compare” process. The CD discs will be ejected by CD writer. Src: 01 CD-ROM Total: 650.0MB Press “ENT” button to see the results of “Compare” Src: 02 CD-RW Identical If the compare result is identical, the LCD will show the...
-
Page 8: Disc Info
3.7 Disc Info This function will show the total amount information on the master disc. 7.Disc Info Press “ENT” button to show the disc information or press “ESC” to exit. Total 02 Sessions Total 10 Tracks The LCD will show the total sessions and tracks on the master disc. -
Page 9: Edit Track
3.10 Edit Track This is a track-selecting function that can combine tracks on different CD discs into one single CD disc. For example, you can make a collection of favorite songs from different music CDs and store them into one CD disc. 10. -
Page 10: Play Audio Track
Select Track: End 2Trk07:50 Finally, when the track of selection is made. Please use arrow button to move to the “End” menu. End edit disc and burn?Yes Press “ENT” button to finish the disc editing, using arrow buttons to make “Yes” or “No” selection. Copying- 24X Edit 1/10 - >... -
Page 11: Close Session
3.10.4 Close Session Selecting “Close Session” will make the disc close and you cannot write any additional data to it. This function is required to allow the disc to be read on normal player. 10-04. Edit Track Close Session Press “ENT” button to close session; “ESC” button to bring you to next setting. -
Page 12: Read Speed
3.11.3 Read Speed Sets the reading speed of the target source CD-ROM. 11-03. Setup Read Speed Press “ENT” to enter the setting and “ESC” to exit. Read Speed Use arrow buttons to change the reading speed then press “ENT”. (Depends on the CDROM maximum speed support) 3.11.4 Auto Start Drive Use this setting to auto start copy or test when the blank discs are inserted into the CD/RW... -
Page 13: Auto Compare
3.11.7 Auto Compare This setting controls auto compare of the data between master and target discs after discs copy. Default setting is “Off”. 11-07. Setup Auto Compare Press “ENT” button to enter “Auto Compare” and “ESC” to exit. Auto Compare Use arrow buttons to change “On”... -
Page 14: Burn Mode
3.11.10 Burn on The Fly This setting controls the writing methods of the CD writers. When the setting is “On”, the data will direct copy from source drive to the target drives. 11-10. Setup Burn On The Fly Press “ENT” button to enter “Burn On The Fly” and “ESC”... -
Page 15: System Info
MODEL FIRMWARE Press “ENT” button to see the device information and “ESC” to go BACK. 01 IDE1 Master CD- RW：BRAND Using arrow button to select another device or press “ESC” to go back. MODEL FIRMWARE Press “ENT” button to see the device information and “ESC”... -
Page 16: Quick Erase
3.11.15 Quick Erase This function will quick erase the data on the CD-RW discs. It will only take a short time to do it. 11-15. Setup Quick Erase Press “ENT” button to enter the “Quick Erase” and “ESC” to exit. All data will be lost, erase?Yes Use arrow buttons to change “Yes”... - Page 17 Chapter 4 Trouble Shooting 1. No display on LCD or the unit does not operate when power on. Please check the connection of power cable and the environment of power outlet is normal. 2. LCD shows the Error message. During operations like Copy, Test, Compare and Verify, you may press ESC button to abort the operation.
-
Page 18: Table Of Contents
Appendix 1 Directory Structure 1. Copy 2. Test 3. Test&Copy 4. Verify 5. Compare 6. Prescan 7. Disc Info 8. Select Source 9. Image 10. Edit Track (For AUDIO disc only) 10.01 CD to CD Edit 10.02 CD to HDD Edit 10.03 Play Audio Track 10.04 Close Session 11. -
Page 19: Appendix 2 Lcd Message List
Appendix 2 LCD Message List Normal LCD Message List： Message Description Initialize SDRAM Initialize the memory on the system Detect Drives Detect what drives are connected to the system User Abort! Job was cancelled Analyzing..Analyzing the source disc Source Drive Not Ready Source drive is not ready to read Target Drive Not... - Page 20 Audio Edit Messages： Message Description Lost selected Tracks? Abort the tracks selected and delete it End edit disc and burn? Finish the music disc edit and start to record the CD Continue edit next Disc? Asking to continue editing next music disc or not Target Overflow Re-Select The CD disc space is not enough to record the selected track,...
