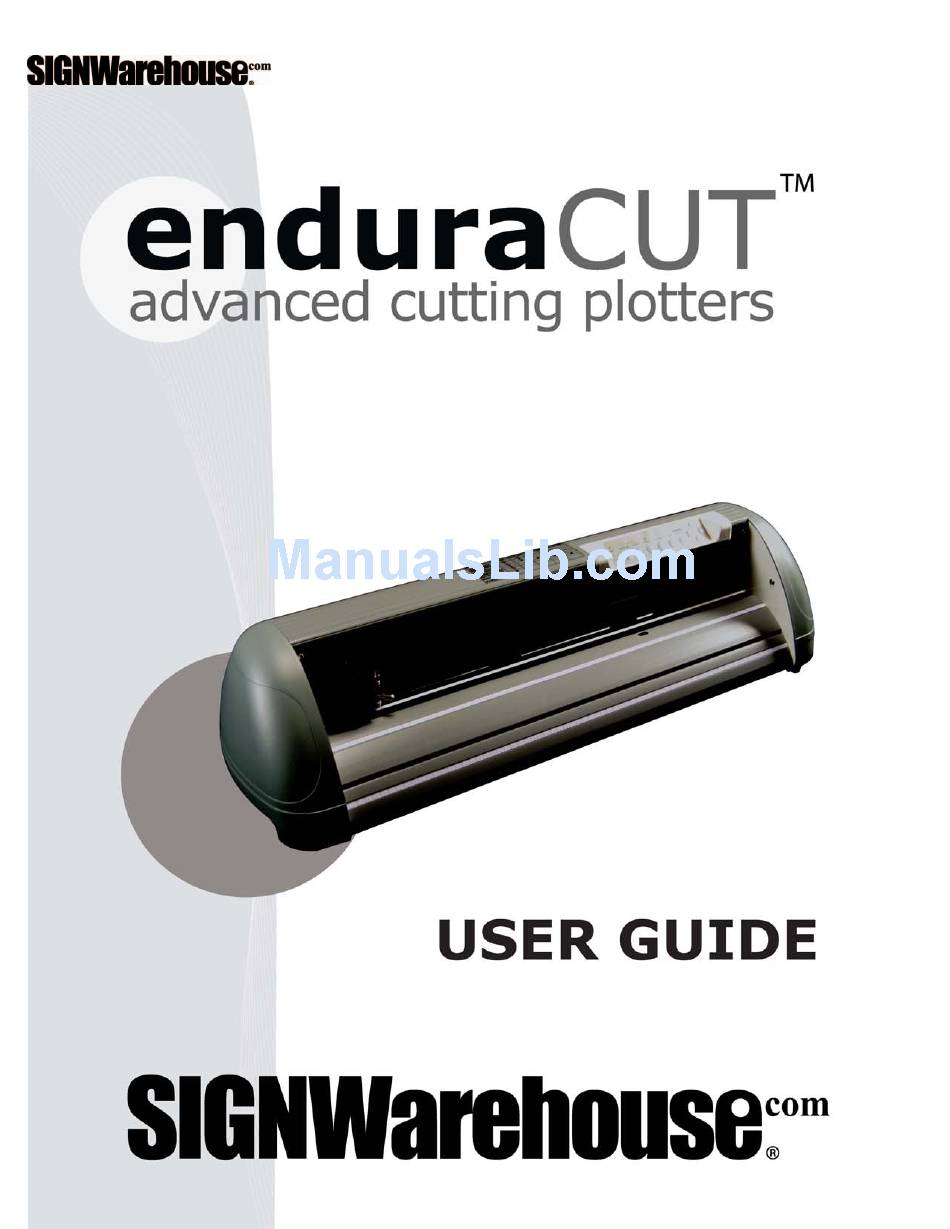

SignWarehouse.com Enduracut User Manual

Vinyl express enduracut cutting plotter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Enduracut and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SignWarehouse.com Enduracut

Summary of Contents for SignWarehouse.com Enduracut

  • Page 2 NOTICE SignWarehouse.com reserves the right to modify the information contained in this user manual at any time without prior notice; un-authorized modification, copying distribution or display is prohibited. All comments, queries or suggestions concerning this manual please consult with your local dealer.

  • Page 3: Safety Precautions

    Important Information Thank you for purchasing the Vinyl Express Enduracut Cutting Plotter. Before you use the cutting plotter, please make sure that you have read the Safety instructions and precautions below. SAFETY PRECAUTIONS! For safety concern, please always hold the cutter firmly from the bottom while moving it. Do not move the cutter by clasping the depression area on both sides.

  • Page 4: Table Of Contents

    4.1 Cleaning the cutting Plotter 4-1 4.2 Cleaning the Grid Drum 4-1 4.3 Cleaning the Pinch Rollers 4-2 5. Trouble Shooting 5.1 What if Enduracut cannot operate? 5-1 5.2 Light Indicators 5-1 5.3 Cutting Quality Problems 5-4 5.4 USB Connection problems (Keyspan) 5-5...

  • Page 5: General Information

    1. General Information 1.1 Package Items The package of Enduracut-60 contents the items listed below, please check carefully. If you find any item missing, please consult your local dealer for further assistance. Item Quantity Cutting Plotter 1 Set Accessories 1 Set 1.

  • Page 6: The Appearance

    1.3 The Appearance (Enduracut) 1.3.1 The Front View 【Figure 1-1 】 Primary Pinch Roller To help hold the media during cutting. C Alignment Ruler To align media with clear guideline marks D Tool Carriage To help perform cutting job with installed blade or pen.
  • Page 7 1.3.2 The Back View J Grid Drum To move media back and forth in operation. 1.3.3 The Side Views 【 Figure 1-4 】 【Figure 1-3 】 Object Description AC Power Connector To insert the AC power cord. Fuse 3Amp. Power Switch To turn on or off the machine.

  • Page 8: Installation

    2. Installation 2.1 Precaution Please read below information carefully before you start installation. Notice 1 Make sure the power switch is off before installing the cutting plotter. Carefully handle the cutter to prevent any injuries. Notice 2 Choosing a proper place before setting up the cutting plotter Before installing your cutting plotter, select a suitable location, which meets the following conditions.

  • Page 9: Blade Installation

    2.2 Blade Installation Figure 2-12 is the illustrator of the blade holder. Insert a blade into the bottom of the blade holder and remove the blade by pushing the pin. Make sure that your fingers are away from the blade tip. Adjustment depth knob Outward ring Step 1...
  • Page 10 Step 4 Insert the blade holder into tool carriage. Please note the outward ring of the holder must put into the grooves of carriage firmly (see Figure 2-16), fasten the case (Figure 2-17). Step 5 Use the reversing steps to remove the blade holder. Step 6 Eject the blade: Push “Blade eject pin”...

  • Page 11: Media Loading

    2.3 Media Loading 2.3.1 Loading the Sheet Media To load the media properly, please follow the below procedures: Step 1 Lift the 2 levers at the back side of cutter to raise pinch rollers ( Figure 2-18 Step 2 Load your media on the platen and slide it under the pinch rollers from either the front side or the backside.
  • Page 12 Step 3 Then move the pinch rollers manually to the proper position. Be sure the pinch rollers must be positioned above the grid drum. The white marks on the main beam will remind you where the grid drums are (Figure 2-20).

  • Page 13: Cable Connections

    Step 4 Push the lever backward to lower down the pinch rollers (Figure 2-21). Step 5 After turn on the power, the tool carriage will measure the size of the media automatically. And the plotting cutter begins to work. Incorrect 2.3.2 Loading the Roll Media You can use the desktop media support system for roll media.
  • Page 14 2.4.1 USB Interface Enduracut can connect to your computers USB port using a Keyspan Highspeed USB Serial Adaptor. Caution!! • DO NOT plug USB cable into Enduracut Cutter. That port is for loading firmware at the factory only. 2.4.2 RS-232 Interface...

  • Page 15: Operation

    3. Operation 3.1 The Control Panel 3.1.1 The Outline of control panel Figure 3-1 Function POWER LED To indicate the power status ( light up: power on; light off: power off ) ERROR LED To indicate the error status ( light up: error; light off: normal ) To switch modes or stop cutting job (light up: on-line;...
  • Page 16 Step 1 Move the carriage to a new position. Step 2 Press the ORIGIN SET button to reset origin. 3.1.3 Cut Test Step 1 After sizing, press the ON/OFF LINE button to set as off-line mode. Step 2 Move the carriage to a preferred position. Step 3 Press CUT TEST button to perform.

  • Page 17: Data Transmission

    3.2 Data Transmission There are two options to transmit the data from the computer to the cutting plotter: Option 1: With proper interface settings, the data can be transmitted from your application software package to the cutting plotters directly. Option 2: Most cutting software packages are able to emulate HP-GL or HP-GL/2 commands, therefore, Use DOS commands like TYPE or PRINT to output your file.

  • Page 18: Basic Maintenance

    4. Basic Maintenance This chapter explains the basic maintenance (i.e. cleaning the cutting plotter) required for the cutting plotter. Except for the steps mentioned below, all the other maintenances must be performed by a qualified service technician. 4.1 Cleaning the cutting plotter In order to keep the cutting plotter under good conditions and have the best performance, you need to clean the machine properly and regularly.

  • Page 19: Cleaning The Pinch Rollers

    4.3 Cleaning the Pinch Rollers If the pinch rollers need a thorough cleaning, use a lint-free cloth or cotton swab to wipe away the accumulated dust from the rubber portion of the pinch rollers. To prevent the pinch rollers from rotating while cleaning, use your fingers to hold the pinch rollers in place.

  • Page 20: Trouble Shooting

    Why doesn’t the cutting plotter operate? 5.1 What if Enduracut cannot operate? If your cutting plotter doesn’t plot, please check the following items first: Is the power cord plugged in properly?
  • Page 21 5.2.1 Warning Indicators When the ERROR LED flashes (as shown below), take the necessary actions according to the following instructions. When the problems are solved, the ERROR LED will turn off automatically. Pressing the ON/OFF LINE button can also turn off the ERROR LED. ON/OFF DATA Warning Indicators...
  • Page 22 Warning 5 Communication error Check that the serial/USB cable has been connected to the cutting plotter and computer properly. If so, then check whether the interface settings are correct. Check that the communication settings in your PC are the same as the ones on your cutting plotter (for example – 9600bps, no parity, 8 bits, 1 stop bit). Then, press ON/OFF Line key to switch back to On Line mode.

  • Page 23: Cutting Quality Problems

    5.3 Cutting Quality Problems Remove the blade and clean it Please contact customer service personnel for technical support...
  • Page 24 Appendix -Enduracut Specification Model Enduracut Max. Cutting Width 605mm (23.75") Max. Media Width 719mm (28.3") Material Thickness 0.8mm Max. Cutting Force 250g Max. Cutting Speed(Diagonal) 400 mm /sec Software Resolution 0.025 mm Repeatability ±0.1mm Re-plot Memory 500 Kbytes Interfaces RS-232...
