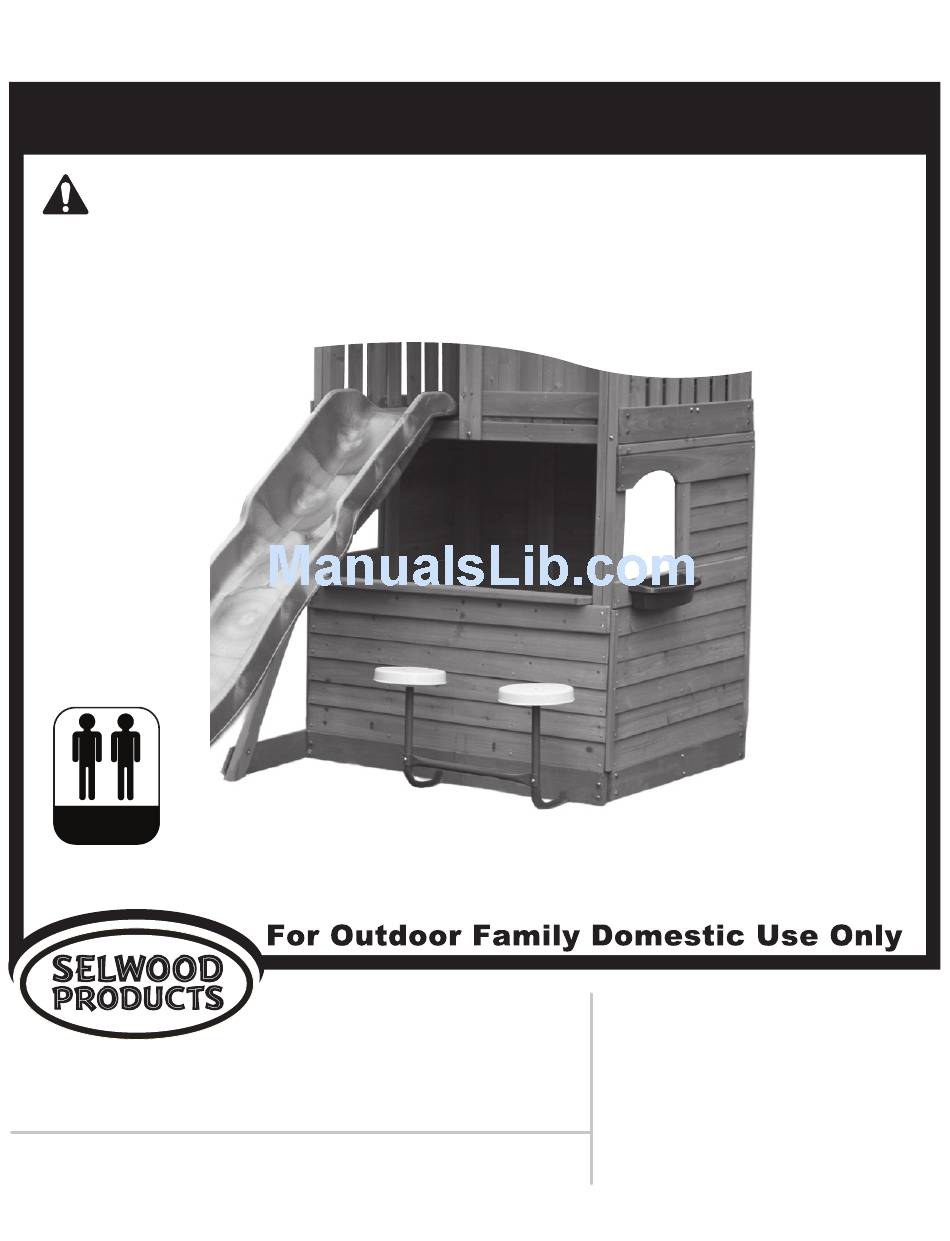

LOWER CLUBHOUSE II - A24670E
for use with SELWOOD 1.2 METRE FORT II - A23837E
INSTALLATION AND OPERATING INSTRUCTIONS
WARNING
RESIDENTIAL HOME USE ONLY. Not intended for public areas such as schools, churches, nurseries, day cares or parks.
Slide sold separately
4 Hrs
Two person
assembly
Europe
The Granary, Weathercock Hill
Chevington, Bury St
Edmunds, Suffolk IP29 5RG
FR: Pour obtenir la notice de montage dans votre langue, cliquez sur www.selwoodproducts.com
DE: Gehen Sie auf www.selwoodproducts.com um die Bauanleitung in thre Sprache zu bekommen.
3404670E
To reduce the risk of serious injury or death, you must read and follow these instructions. Keep and refer to
these instructions often and give them to any future owner of this play system. Manufacturer contact information
provided below.
North America
375 Sligo Road West.
P.O. Box 10 Mount Forest
Ontario, Canada N0G 2L1
www.selwoodproducts.com
Australia
Unit 6/168 - 180 Victoria Road
Marrickville, Sydney NSW 2204
Table of Contents
Warnings and Safe Play Instructions. . . . . . . . . . . . . . . pg. 2
Protective Surfacing Guidelines. . . . . . . . . . . . . . . . . . . pg. 3
Instructions for Proper Maintenance . . . . . . . . . . . . . . . pg. 4
About Our Wood - Limited Warranty . . . . . . . . . . . . . . pg. 5
Keys to Assembly Success . . . . . . . . . . . . . . . . . . . . . . pg. 6
Metric Conversion Sheets . . . . . . . . . . . . . . . . . . . . . pg. 7,8
Part ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . pg. 9
Rev 01/09/2012
Advertisement
Summary of Contents for SELWOOD A24670E
-
Page 1: Table Of Contents
LOWER CLUBHOUSE II – A24670E for use with SELWOOD 1.2 METRE FORT II - A23837E INSTALLATION AND OPERATING INSTRUCTIONS WARNING To reduce the risk of serious injury or death, you must read and follow these instructions. Keep and refer to these instructions often and give them to any future owner of this play system. -
Page 2: Warnings And Safe Play Instructions
Warnings and Safe Play Instructions CONTINUOUS ADULT SUPERVISION REQUIRED. Most serious injuries and deaths on playground equipment have occurred while children were unsupervised! Our products are designed to meet mandatory and voluntary safety standards. Complying with all warnings and recommendations in these instructions will reduce the risk of serious or fatal injury to children using this play system. -
Page 5: About Our Wood - Limited Warranty
Selwood Products Limited Warranty Selwood Products states that the product is free from defect in materials and workmanship for a period of one (1) year from the original date of purchase. This one (1) year warranty covers all parts including wood, hardware, and accessories. All wood carries a ten (10) year warranty against rot and decay. -
Page 6: Keys To Assembly Success
Keys to Assembly Success Tools Required Shovel Measuring Drill (1/8” Safety Hammer Ratchet 1/2”, Level #2 & #3 Phillips Square Step Tape 3/16” Bit) Glasses 7/16” & 9/16” or Robertson Ruler Ladder Part Identification Key 1234 Post 2 x 4 x 83” On each page, you will find the parts and quantities required to complete the assembly step illustrated on that page. -
Page 9: Part Id
Part Identification (Reduced Part Size) (5) Cedar Siding 3/8 x 3-1/2 x 46 -5/8" 3631801 Box 1 Nominal Size Actual Size 2" x 6" 1½" x 5⅜" 2" x 4" 1⅜" x 3⅜" 1" x 5" ⅝" x 4½" (12) CE Siding 3/8 x 3-1/2 x 36 -3/4" 3631802 Box 1 1"... - Page 10 If you have missing, damaged or require replacement parts DO NOT contact your retailer. Please visit www.selwoodproducts.com and select the Parts Centre. You can then complete a quick online order form or make direct contact with the Selwood Products Part Team. www.selwoodproducts.com...
- Page 11 Step 1: Half Wall Assembly A: Make sure the distance between the outside edges of (F13) Posts measures 46-5/8”. Tight to the top of (F9) Front Back and flush to the outside edges of (F13) Posts attach 1 (A1) Cedar Siding to each (F13) Post with 2 (S0) #8 x 7/8” Truss Screws. (fig. 1.1) B: Attach 4 more (A1) Cedar Siding to each (F13) Post with 2 (S0) #8 x 7/8” Truss Screws per siding. Make sure the top board overlaps the board below it. (fig. 1.1 & 1.2) Fig. 1.1 46 5/8” Fig. 1.2 Fig. 1.3 C: Remove the Lag Screw from the top of (F11) Lower Diagonal. This will make it easier to install the (A6) Wall Top. (fig. 1.3) D: Place (A6) Wall Top tight to top of last (A1) Cedar Siding and attach to each (F13) Post using 4 (S7) #12 x 2” Pan Screws . (fig. 1.3) E: Re-attach the (F11) Lower Diagonal using the same Lag Screw. (fig. 1.3) Hardware Wood Parts Cedar Siding 3/8 x 3-1/2 x 46-5/8” 10 x # 8 x 7/8” Truss Screw Wall Top 5/4 x 4 x 46-5/8”...
- Page 12 Step 1: Half Wall Assembly cont. F: Place (A19) Table Support flush to top of (A6) Wall Top and tight to (F11) Lower Diagonal then attach with 4 (S15) #8 x 1-3/4” Wood Screws, as shown in fig. 1.4. Fig. 1.4 Flush to top Tight to Lower Diagonal Notice bevelled edge is on this side Outside Fort View Hardware Wood Parts Table Support 5/4 x 2 x 44” #8 x 1-3/4” Wood Screw...
- Page 13 Step 1: Half Wall Assembly cont. G: Place (A18) Table Top on (A6) Wall Top and (A19) Table Support, flush to the outside edge of (F13) Post, as shown in fig. 1.5. Notice the side the angled edge of (A18) Table Top is on. H: Attach (A18) Table Top to (A6) Wall Top with 5 (S7) #12 x 2” Pan Screws. (fig. 1.5) I: Attach (A15) Short Trim to (F13) Post, flush to the outside edges of (A1) Cedar Siding, with 3 (S2) #8 x 1-1/2” Wood Screws. (fig. 1.5) Fig. 1.5 Notice angled edge is on this side Hardware Wood Parts #12 x 2” Pan Screw Table Top 5/4 x 3 x 45-1/4” Short Trim 1 x 2 x 19-5/8” #8 x 1-1/2”...
- Page 14 Step 1: Half Wall Assembly cont. Fig. 1.6 Inside Fort View J: On the inside of the fort, centred over the pilot holes in (A1) Cedar Siding, attach 2 (A10) Short Wall Supports to (A6) Wall Top and (F9) Front Back with 4 (S1) #8 x 1-1/8” Wood Screws per board. (fig. 1.6) Fig. 1.7 Outside Fort View K: From the outside of the fort attach the (A1) Cedar Siding to each (A10) Short Wall Support with 2 (S0) #8 x 7/8” Truss Screws per siding. (fig. 1.7) Hardware Wood Parts Short Wall Support 1 x 4 x 24-1/4” 10 x # 8 x 7/8” Truss Screw #8 x 1-1/8”...
- Page 15 Step 2: Entrance Assembly For ease of assembly remove Rock Wall then re-attach upon completion of Step 2G. A: On the inside the fort measure 19-5/8” from outside edge of (F13) Post for the entrance opening and attach (A9) Wall Support to (AR13/BR7/OR9) Floor Back with 2 (S2) #8 x 1-1/2” Wood Screws and to (F9) Front Back with 2 (S1) #8 x 1-1/8” Wood Screws as shown in fig. 2.1, 2.2 & 2.3. Fig. 2.1 Fig. 2.2 AR13 Fig. 2.3 19-5/8” Inside Fort View Outside Fort View Wood Parts Hardware Wall Support 1 x 4 x 45-1/2” #8 x 1-1/8”...
- Page 16 Step 2: Entrance Assembly cont. B: Tight to the bottom of (AR13/BR7/OR9) Floor Back and flush to the outside edge of (F13) Post attach (A17) Door Top to (F13) Post with 2 (S2) #8 x 1-1/2” Wood Screws and to (A9) Wall Support with 2 (S1) #8 x 1-1/8” Wood Screws. (fig. 2.4) C: Tight to the bottom of (A17) Door Top attach 1 (A14) Door Trim flush to the inside edge of (F13) Post using 4 (S2) #8 x 1-1/2” Wood Screws and 1 (A14) Door Trim flush to the entrance opening side of (A9) Wall Support using 4 (S1) #8 x 1-1/8” Wood Screws. (fig. 2.4) D: Flush to the outside edge of (F13) Post on the Rock Wall side and tight to the top of (F9) Front Back attach 1 (A5) CE Siding to (F13) Post and (A9) Wall Support with 2 (S0) #8 x 7/8” Truss Screws. (fig. 2.4 & 2.5) E: Evenly space and attach 11 more (A5) CE Siding to (F13) Post and (A9) Wall Support with 2 (S0) #8 x 7/8” Truss Screws per siding. Make sure the top board overlaps the board below it. (fig. 2.4 & 2.5) AR13 S0 x 12 S0 x 12 A5 x 12 Flush to Fig. 2.5 edge of Post Fig. 2.4 Hardware Wood Parts 12 x CE Siding 3/8 x 3-1/2 x 25-1/2” 24 x # 8 x 7/8”...
- Page 17 Step 2: Entrance Assembly cont. F: On the inside of the fort attach (A9) Wall Support to (AR13/BR7/OR9) Floor Back and to (F9) Front Back with 4 (S1) #8 x 1-1/8” Wood Screws. Make sure the (A9) Wall Support is centred over the pilot holes in (A5) CE Siding. (fig. 2.6) G: From the outside of the fort attach the (A5) CE Siding to (A9) Wall Support with 1 (S0) #8 x 7/8” Truss Screw per siding. (fig. 2.7) H: Re-attach Rock Wall. Fig. 2.6 Fig. 2.7 AR13 x 12 Inside Fort View Outside Fort View Hardware Wood Parts 12 x # 8 x 7/8” Truss Screw Wall Support 1 x 4 x 45-1/2” #8 x 1-1/8” Wood Screw...
- Page 18 Step 3: Window Wall Assembly Complete Window Wall Assembly on both sides of fort. If a Selwood Spiral Slide or Selwood Monkey Ladder were purchased complete only one Window Wall Assembly then proceed to Step 4 for the second Window Wall Assembly.
- Page 19 Step 3: Window Wall Assembly cont. D: Tight to the bottom of (F17) End Floor attach (A16) Top Trim to both (F13) Posts using 2 (S2) #8 x 1-1/2” Wood Screws and to (A11) Long Wall Support with 1 (S1) #8 x 1-1/8” Wood Screw. (fig. 3.4) E: Tight to the bottom of (A16) Top Trim and tight to (A7) Long Trim attach (A12) Window Top to both (F13) Posts using 4 (S2) #8 x 1-1/2” Wood Screws and to (A11) Long Wall Support with 2 (S1) #8 x 1-1/8” Wood Screws. (fig. 3.4) SELWOOD S3 Part 2 -Window Wall Assy F: Tight to the bottom of (A12) Window Top and tight to (A7) Long Trim attach 3 (A4) CE Siding to (F13) Post and (A11) Long Wall Support with 2 (S0) #8 x 7/8” Truss Screws per siding. Make sure the top board overlaps the board below it. (fig. 3.4) G: Place (A3) CE Siding directly under the last (A4) CE Siding and attach to (F13) Post and (A11) Long Wall Support with 2 (S0) #8 x 7/8” Truss Screws. (A4) CE Siding should overlap (A3) CE Siding. (fig. 3.4) Note: The distance from bottom of (A12) Window Top to bottom of (A3) CE Siding should measure 11-1/8”. Fig. 3.4 11-1/8” x 8 per...
- Page 20 Step 3: Window Wall Assembly cont. H: Tight to the edges of the (A3) & (A4) CE Siding and tight to the bottom of (A12) Window Top attach (A13) Window Trim to (A11) Long Wall Support with 3 (S1) #8 x 1-1/8” Wood Screws. (fig. 3.5) I: Tight to (A7) Long Trim and tight to the bottom of (A13) Window Trim attach (A8) Window Bottom to both (F13) Posts using 4 (S2) #8 x 1-1/2” Wood Screws and to (A11) Long Wall Support with 2 (S1) #8 x 1-1/8” Wood Screws. (fig. 3.5) J: With the top board tight to (A8) Window Bottom and the bottom board tight to (F16) SW Ground, attach 6 (A2) CE Siding to both (F13) Posts and (A11) Long Wall Support with 3 (S0) #8 x 7/8” Truss Screws per siding. Make sure the siding are evenly spaced and the top board overlaps the board below it. (fig. 3.5) Fig. 3.5 x 6 per Window Wall Assembly Hardware Wood Parts 18 x # 8 x 7/8” Truss Screw CE Siding 3/8 x 3-1/2 x 36-3/4” Window Bottom 1 x 4 x 37-3/4” 10 x #8 x 1-1/8”...
- Page 21 Step 4: Window Wall Assembly for Spiral Slide & Monkey Ladder Side The top of the (F17) End Floor will be flush with the floor boards A: From inside the fort measure 13-1/8” from the Half Wall side (F13) Post and then attach (A11) Long Wall Support to (F17) End Floor and (F8) SL Ground with 4 (S1) #8 x 1-1/8” Wood Screws. (fig. 4.1 & 4.2) B: On the outside of the fort and tight to the top of (F8) SL Ground attach (A7) Long Trim to the Entrance Wall side (F13) Post with 4 (S2) #8 x 1-1/2” Wood Screws. The (A7) Long Trim should be flush to the outside edge of (A14) Door Trim. (fig. 4.1) C: Tight to the bottom of (F17) End Floor and tight to (A7) Long Trim attach (A12) Window Top to both (F13) Posts using 4 (S2) #8 x 1-1/2” Wood Screws and to (A11) Long Wall Support with 2 (S1) #8 x 1-1/8” Wood Screws. (fig. 4.1) Fig. 4.1 Fig. 4.2 13-1/8” 13-1/8”...
- Page 22 Step 4: Window Wall Assembly for Spiral Slide & Monkey Ladder Side cont. D: Tight to the bottom of (A12) Window Top and tight to (A7) Long Trim attach 3 (A4) CE Siding to (F13) Post and (A11) Long Wall Support with 2 (S0) #8 x 7/8” Truss Screws per siding. Make sure the top board overlaps the board below it. (fig. 4.3) E: Place (A3) CE Siding directly under the last (A4) CE Siding and attach to (F13) Post and (A11) Long Wall Support with 2 (S0) #8 x 7/8” Truss Screws. (A4) CE Siding should overlap (A3) CE Siding. (fig. 4.3) F: Tight to (A7) Long Trim and tight to the bottom of (A3) CE Siding attach (A8) Window Bottom to both (F13) Posts using 4 (S2) (S2) #8 x 1-1/2” Wood Screws and to (A11) Long Wall Support with 2 (S1) #8 x 1-1/8” Wood Screws. (fig. 4.3) Note: The distance from bottom of (A12) Window Top to bottom of (A3) CE Siding should measure 11-1/8”. Fig.
- Page 23 Step 4: Window Wall Assembly for Spiral Slide & Monkey Ladder Side G: Tight to the edges of the (A3) & (A4) CE Siding and tight to the bottom of (A12) Window Top attach (A13) Window Trim to (A11) Long Wall Support with 3 (S1) #8 x 1-1/8” Wood Screws. (fig. 4.4) H: With the top board tight to (A8) Window Bottom and the bottom board tight to (F8) SL Ground, attach 6 (A2) CE Siding to both (F13) Posts and (A11) Long Wall Support with 3 (S0) #8 x 7/8” Truss Screws per siding. Make sure the siding are evenly spaced and the top board overlaps the board below it. (fig. 4.4) Fig. 4.4 Fig. 4.4 Hardware Wood Parts 18 x # 8 x 7/8” Truss Screw CE Siding 3/8 x 3-1/2 x 36-3/4” Window Trim 1 x 4 x 11-1/8” #8 x 1-1/8”...
- Page 24 Step 5: Stool Assembly A: Using the hardware provided with the Stool Seat Assembly attach 1 Seat to 1 Seat Support and then create a second seat as in fig. 5.1. B: Keeping the Cross Brace tight to the Seat Assemblies, fasten the Cross Brace to each of the Seat Assemblies using the hardware provided. (fig. 5.2) 1/4” Flat Washer 1/4 x 1” Pan Bolt Seat Fig. 5.1 0.32 Spacer Fig. 5.2 Seat Support 1/4” Lock Nut 1/4” Lock Nut Cross Brace 1/4 x 1-1/4” Pan Bolt Other Parts 1 x Stool Set (with hardware)
- Page 25 Step 6: Attach Flower Box and Stool Seat Assembly A: Centre the Flower Box in the window opening as shown in fig. 6.1and attach to (A8) Window Bottom with 2 (S13) #6 x 5/8” Pan Screws. (fig. 6.2) B: Measure 13” from (F13) Post on the right side and then attach the Stool Seat Assembly to (F9) Front Back and into (A10) Short Wall Supports using 2 (S6) #12 x 1” Pan Screws (with 1/4” flat washers) per Seat Assembly. (fig. 6.3) Fig. 6.2 Fig. 6.1 Flower Box Fig. 6.3 Stool Seat Assembly 13” Hardware Other Parts #12 x 1” Pan Screw (with 1/4” flat washer) 1 x Flower Box #6 x 5/8” Pan Screw...
- Page 26 NOTES...
- Page 27 NOTES...
- Page 28 Register your Product Online To register yourself as the original purchaser of this Selwood Products Swingset / Climbing Frame, please take a few moments to complete the short registration form that will be found online at: www.selwoodproducts.com/warranty-registration Rate and Review Your Product...
