User Manual
I. Quick Reference
A. Quick reference for Installation Guide
II. Check door dimensions and determine desired "door swing"
III. Install Deadbolt Body
IV. Install the Front panel Assembly
V. Install the AA Batteries
VI. Install the Rear panel Assembly
VII. Operating Instructions
VIII. Routine Maintenance

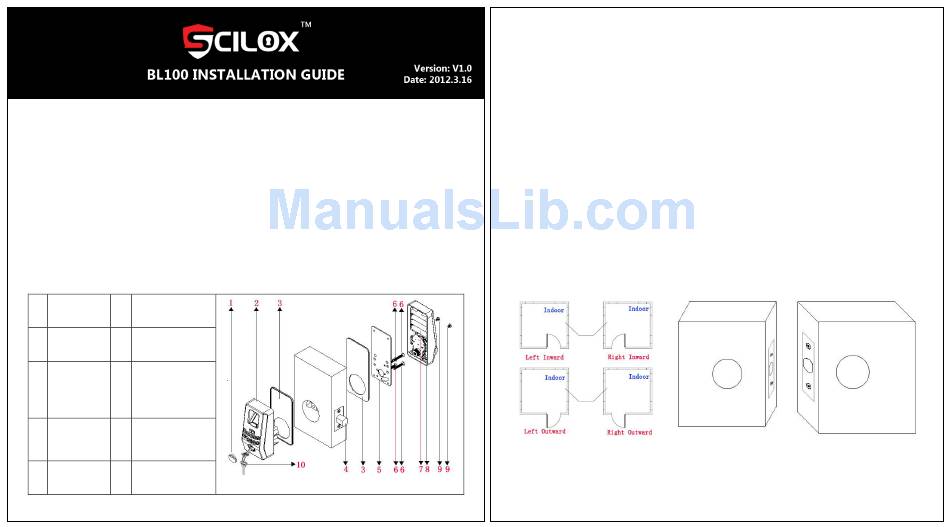

B. List of Lock Accessories
Keyhole
1
6
Screw (4 PCS)
Cover
Front panel
2
7
4 PCS AA Batteries
Assembly
Silica gel
Rear panel
3
backing
8
assembly
plate
4
Lock body
9
Screw (2PCS)
Back Lining
5
10
Key (2PCS)
Plate
-1-
II. Check door dimensions and determine desired "door swing"
1. Installation Requirements
The fingerprint deadbolt can be installed on doors of 1.5 – 2 inches (35-50) mm in thickness.
2. Check the direction in which the door is being opened (i.e. right or left-handed swing) and align the deadbolt's
latch-bolt, accordingly.
(1). The deadbolt's body outside and inside must align properly. Assume you are standing outside the
room/structure and facing a door. Basically there are four door opening-directions: Left inward, left
outward, right inward and right outward. Left inward/outward means the door swings inward/outward
with hinges on the left; right inward/outward means the door swings inward/outward with hinges on the
right (see Figure 1 below):
(2). Determine the deadbolt's correct alignment/positioning based on the door's opening direction (see
Figure 2 below):
Figure 1
Figure 2
-2-
Advertisement
Related Manuals for Scilox BL100
Summary of Contents for Scilox BL100
- Page 1 II. Check door dimensions and determine desired “door swing” 1. Installation Requirements The fingerprint deadbolt can be installed on doors of 1.5 – 2 inches (35-50) mm in thickness. 2. Check the direction in which the door is being opened (i.e. right or left-handed swing) and align the deadbolt’s I.
- Page 2 III. Install Deadbolt Body (3). To set the deadbolt as "Left Open" or "Right Open" on the Rear panel Assembly, reference Figure 3: 1. Determine the desired installation height and position of the deadbolt in relation to the door; then adhere the hole-drilling-template to the door, accordingly (see Figure 4-1 below).
-
Page 3: Install The Front Panel Assembly
3. After the procedure is completed, secure the Deadbolt Body using a screwdriver, as shown in Figure 6. 2. Stretch the spring bolt back to the Deadbolt Body and pull the connecting wire out of the hole at the Insert the screwdriver into the cross-shaped hole of the Deadbolt Body. When you rotate the cylinder bottom of the deadbolt body. - Page 4 3. Place the silica gel backing plate on the rear panel assembly, turn the lock button to make the hole slot V. Install the AA Batteries vertical to the ground, and insert locking bar into the hole slot (see Figure 19 below). In this case, when you 1.
- Page 5 Note: For instructions on how to change the Master Pass Code, Enroll Administrator User or Enroll Ordinary User, please see BL100 Fingerprint Deadbolt User Manual. (2). Do not remove batteries when matching, enrolling or deleting fingerprints because the sudden power-loss may result in data loss of fingerprint templates.
-
Page 6: Routine Maintenance
VIII. Routine Maintenance 1. The deadbolt’s surface should not be exposed to corrosive substances. Otherwise, the protective layer of the deadbolt’s surface may be damaged, and therefore the “glossiness” of the deadbolt surface may decrease. To keep the deadbolt surface glossy, use furniture polish (i.e. Pledge) wax to polish the deadbolt lock regularly.
