Summary of Contents for Metal Fab Logaire

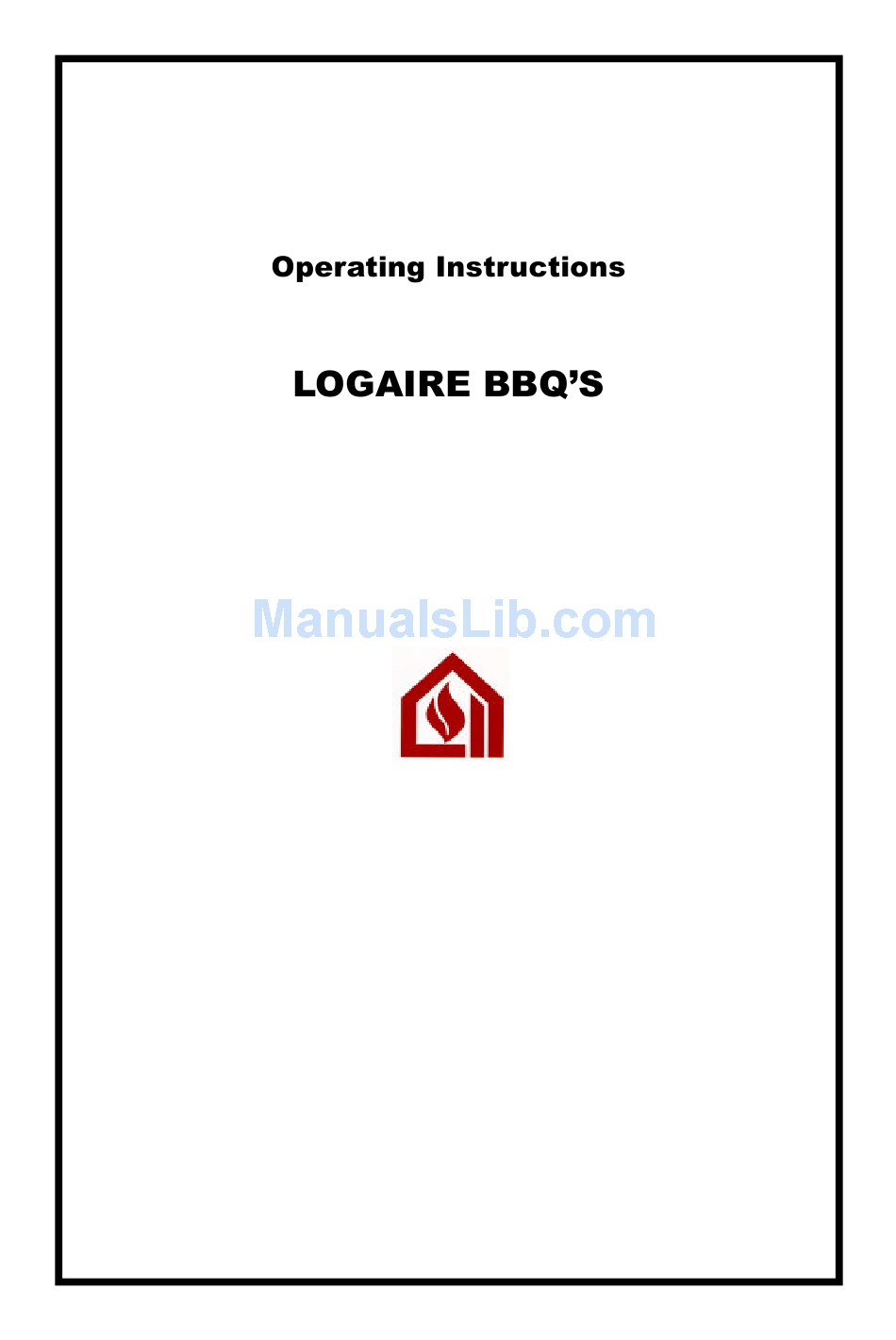

- Page 1 Manufactured in New Zealand Metal Fab Industries Ltd PO Box 58-473 Greenmount Auckland Www.metalfab.co.nz...
- Page 2 LOGAIRE STAINLESS STEEL BBQ 2,3 & 4 Burner Models IMPORTANT—Please read all instructions before using the BBQ. BBQ Assembly Instructions STATUS NOTE: If this BBQ has been converted to be used on mains sup- ply natural gas only then under no circumstances should it be run on LPG supply.
- Page 3 Place cast iron plate on the left hand side and grill on the right hand side above volcanic rock tray. (cast iron pack only). The cast iron burners will just fit in place using locator holes for burner to sit in. (For SS Pack only) —...
- Page 4 Check the pressure of the regulator and adjust if necessary. The burn ers must have a blue flame. The adjustment screw is found on the throat of the burner, visible when viewed from under the BBQ. If the BBQ cannot be adjusted correctly DO NOT USE THE APPLIANCE AND CONTACT YOUR NEAREST DEALER.
- Page 5 Grease or oil control valves every six months to avoid seizing up of valves. Pull off knobs — use sewing machine oil or WD40. Do not attempt to dismantle control valves or regulator. Control valves, regulators, burners, volcanic rock can all be bought in most BBQ retail outlets.
- Page 6 PO Box 58 473 Greenmount Auckland Phone 09 274 8265 or Fax 09 287 8472 www.metalfab.co.nz To be filled in and returned with 30 days of installation and posted to the above address. Please specify which size burner above. Customer Name Address Date Purchased Dealer Purchased From...
- Page 7 STAINLESS STEEL SIDE BURNER If your BBQ came with a Stainless Steel side burner or you have purchased one it will include a jumper hose to connect the manifold and the side burner gas control together. The side burner must be fitted to the right hand side of the trolley. Use the same screws and assembly procedure as a standard side shelf.
- Page 8 If you have ordered Stainless Steel burners, grills, etc. you will also receive flame tamers. Please see illustration below for easy installation. NOTE: - Flame tamers with vertical vent outlets go to outside burners. If you have a 4 burner BBQ the middle two flame tamers are without vertical vents.
