Summary of Contents for Sweetlight FR-252 MK2
-

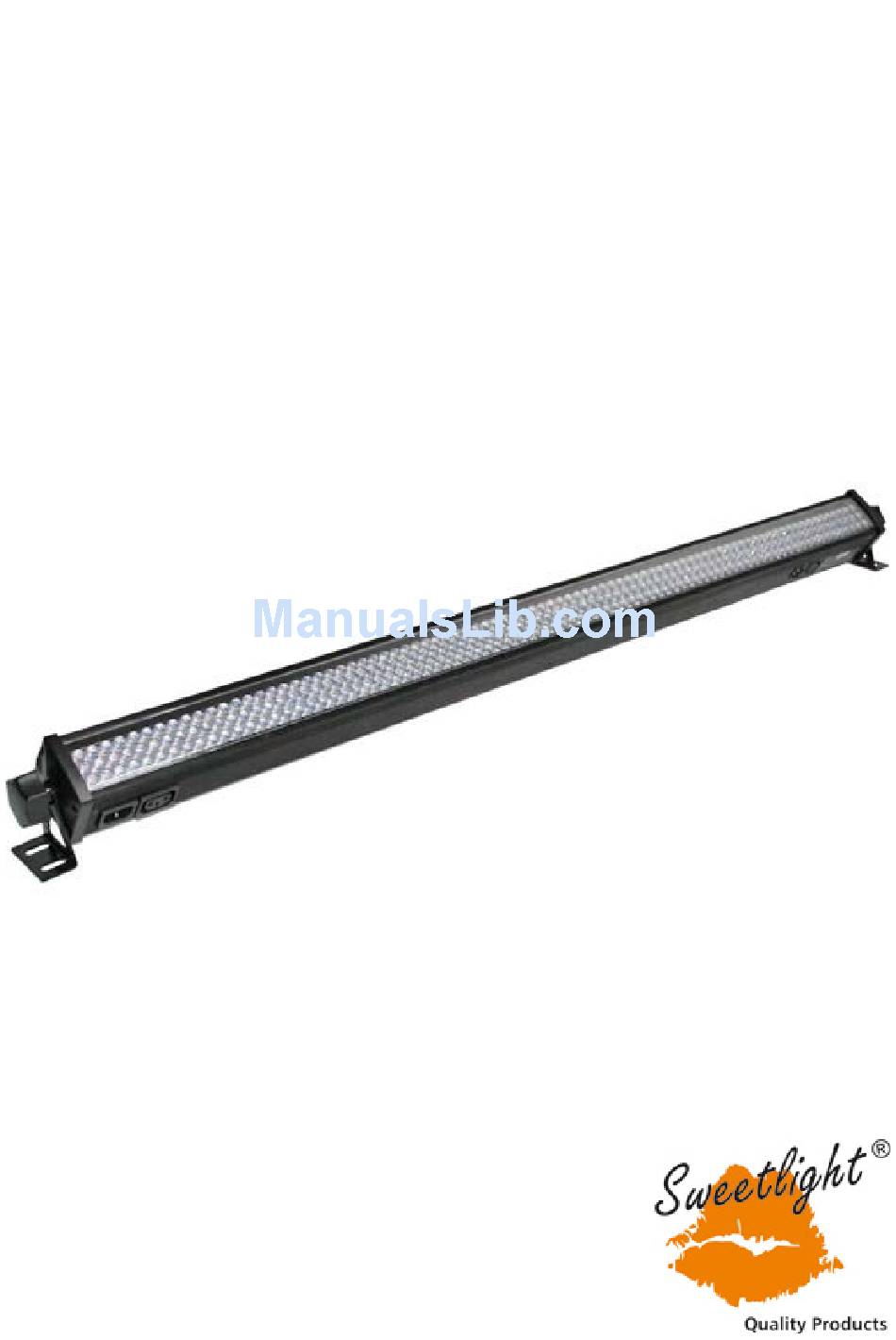

Page 1: User Manual

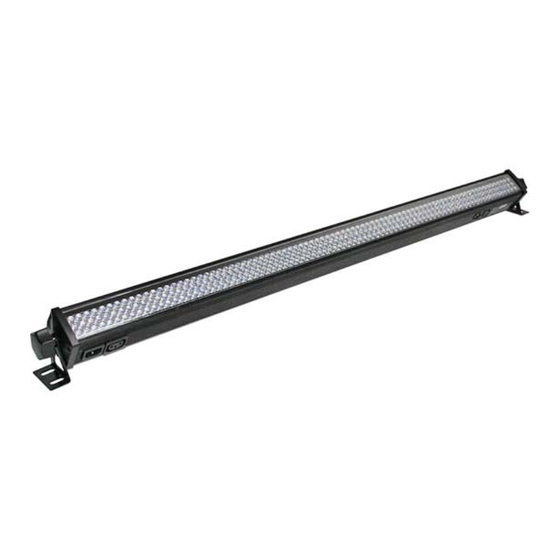

USER MANUAL Sweetlight FR-252 MK2 DMX-controlled RGB 3-Segment LED Batten... - Page 2 User Manual: Sweetlight FR-252 MK2 ■ Introduction Dear customer, congratulations on the purchase of this quality item and the trust having been put in us with this decision. To take full advantage of all possibilities and for your own safety and the safety of your environment, please read these operating instructions carefully before you start using the unit.
- Page 3 User Manual: Sweetlight FR-252 MK2 Do not stare into the beam for extended periods at a short distance. Do not view the beam directly with optical instruments such as magnifiers. Protection from electric shock: Do not connect the AC power plug to the unit before assembly has been completed.
- Page 4 User Manual: Sweetlight FR-252 MK2 connect several units to one wall outlet and avoid any overloading. Protection from injury and damage: Never use any accessories or modifications not authorized by the manufacturer of this unit. Choose a location for operation where the unit is protected from vibration and where a fixed mounting position is provided.
-
Page 5: Environmental Advice
If any part is missing, please contact your dealer immediately for replacement. ■ Getting started: choosing a location Risk of fire: The Sweetlight FR-252 MK2 has been designed to work in dry indoor environments at environmental temperatures up to 35 degrees Celsius. - Page 6 ■ Getting started: making AC supply connections Risk of fire / Safety risk The Sweetlight FR-252 MK2 has an AC outlet that is designed to carry loads of no more than 8A. Do not connect any high-power devices such as audio power amplifiers, fog machines etc. to this outlet. Make sure that all connected devices in a chain fed by the first device do not exceed a maximum of 8A current consumption.
- Page 7 User Manual: Sweetlight FR-252 MK2 ■ Operation User interface overview: MODE selection button UP-Button DOWN-Button Display showing the Mode, DMX-address, etc. DMX input DMX output AC output AC input Upon the user’s choice, the unit can work stand-alone with fixed colors or may be controlled by external DMX-controllers.
- Page 8 User Manual: Sweetlight FR-252 MK2 If you leave mode “A” for any reason and come back later into mode “A”, the unit will recall the last chosen color preset (even if the unit was switched off in between). The factory default is A10. Hence switching on the unit for the first time directly gives a light output and the user then may choose any other pattern out of the following: A10 Chase 1 with Mood 0 …..
- Page 9 User Manual: Sweetlight FR-252 MK2 panel can be chosen as a static preset. Use the UP/DOWN buttons (2/3) to choose one of the 13 color presets as shown in the list below. Changing the setting becomes effective directly. The output level us maximum.
- Page 10 User Manual: Sweetlight FR-252 MK2 CH3: Segment 1/Blue intensity CH4: Segment 1/ value 000-127 = Master dimmer (overall weighting to the values received on CH1/2/3), Strobe off value 128-227 = Strobe (128= slow / 227= max. speed 23 Hz) value 228-255 =...
- Page 11 User Manual: Sweetlight FR-252 MK2 “SLI” Mode (DMX Individual Slave) Press the MODE button (1) until the display shows “SLI”, indicating operation in “SLI” (SLAVE INDIVIDUAL) mode. In this mode the unit is set to DMX-channel 001 in order to receive the DMX signal on 12 consecutive channels starting from 001 from a master- unit being in mode "CI"...
- Page 12 ■ Technical data Sweetlight FR-252 MK2: LEDs…..……...……252 pcs. 10mm LEDs (63 red – 108 green – 81 blue) in 3 segments Dispersion angle………………………………………………………….………...30 degrees...
