Page 1: Operating Manual

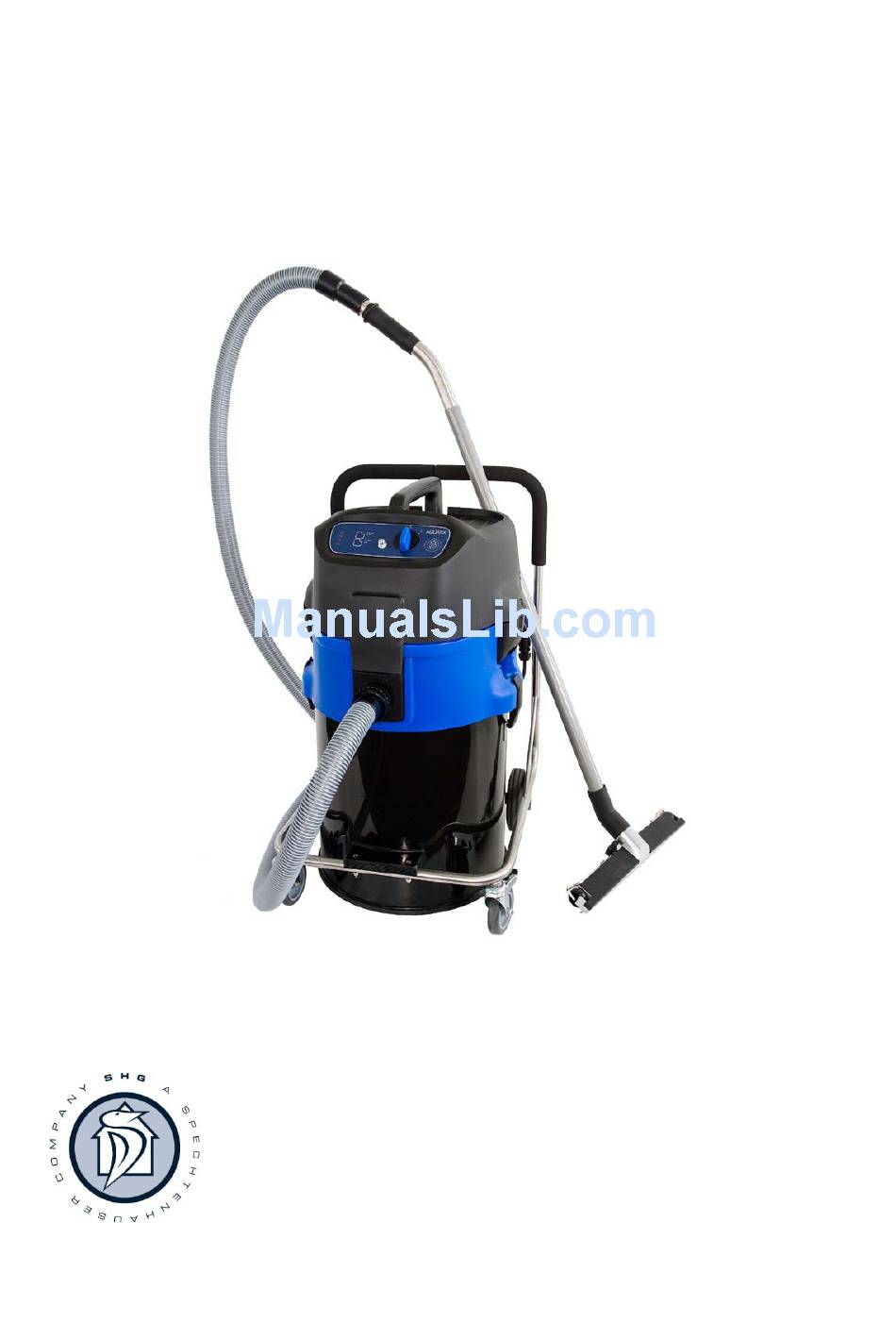

Operating manual Professional wet vacuum cleaner Aquatix SHG S PECHTENHAUSER OCHWASSER EWÄSSERSCHUTZ Gewerbestraße 3, D-86875 Waal, Germany... -
Page 2: Table Of Contents
Operating manual: Professional wet vacuum cleaner Aquatix Table of contents General information ______________________________________________________________________ 2 Purpose _____________________________________________________________________________ 2 Safety instructions _______________________________________________________________________ 4 Markings and symbols in this operating instructions _________________________________ 4 Qualifications of personnel ___________________________________________________________ 4 Hazards in the event of non-compliance with the safety instructions _________________ 4... -
Page 3: General Information
Operating manual: Professional wet vacuum cleaner Aquatix 1 General information 1.1 Purpose The wet vacuum cleaner Aquatix is suitable for sucking up non-flammable, non- hazardous liquids including sludge, stones and other solids and suspended solids. 1.1.1 Marking of the wet vacuum cleaner Aquatix Each wet vacuum cleaner and each draining pump is marked by a type plate. - Page 4 Operating manual: Professional wet vacuum cleaner Aquatix 1.1.3 Description Suction head (upper section) Suction tube Operating panel Suction hose Water vacuuming nozzle Dirt tank SHG S PECHTENHAUSER OCHWASSER EWÄSSERSCHUTZ Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de Tel.: +49 (0)8246.9695-20 shg@spechtenhauser.de Fax: +49 (0)8246.9695-25...
-
Page 5: Safety Instructions
Operating manual: Professional wet vacuum cleaner Aquatix 2 Safety instructions (General safety instructions as per VDMA 24292) This operation manual gives basic instructions that should be followed carefully during installation, operation and maintenance. It is essential that this manual is carefully read by the responsible personnel/operator before assembly and com- missioning. - Page 6 Operating manual: Professional wet vacuum cleaner Aquatix Despite its simple handling the wet vacuum cleaner is not suitable for chil- dren. The use of the wet vacuum cleaner is subject to valid national regulations. Besides the operating instructions and the binding accident prevention regu- lations valid in the country of use, observe recognized regulations for safety and proper use.
-
Page 7: Safety Instructions Relevant For Maintenance, Inspection And Assembly Work
Operating manual: Professional wet vacuum cleaner Aquatix When using an extension lead, check the minimum cross-sec-tions of the ca- ble: Cross section Cable length m < 16A < 25A up to20m Ø 1,5mm² Ø 2,5mm² 20 to 50m Ø 2,5mm²... -
Page 8: Technical Data
Operating manual: Professional wet vacuum cleaner Aquatix 3 Technical data 3.1 Equipment and weight Aquatix Operating voltage: 230 V Frequency: 50 Hz Fuse: 16 A Power consumption: 1,2 kW Weight: 44 kg Volume flow (air): 3600 l/min Sound pressure level (EN 60704-1) -
Page 9: Dirt Tank
Operating manual: Professional wet vacuum cleaner Aquatix 3.5 Dirt tank Material: PE-HD Volume 80 l Outlet: C-Storz 3.6 Operating panel Push button: Vacuum cleaner OFF (5) Dirt tank level indicator (4) Push button: Turn switch: Wet Pump ON (3) Motor protection... -
Page 10: Operating The Wet Vacuum Cleaner
Operating manual: Professional wet vacuum cleaner Aquatix 4 Operating the wet vacuum cleaner Caution: The wet vacuum cleaner may only be operated in compliance with the instruc- tions and information of this operating manual. Note: The operating voltage shown on the type plate must correspond to the voltage of the mains power supply. -
Page 11: Picking Up Liquids
Operating manual: Professional wet vacuum cleaner Aquatix 4.2 Picking up liquids The wet vacuum cleaner Aquatix is only designed for picking up liquids. Caution: Do not pick up flammable liquids. Before picking up liquids check the floater for proper operation (See section Fehler! Verweisquelle konnte nicht gefunden werden..) -
Page 12: After Finishing Work
Operating manual: Professional wet vacuum cleaner Aquatix 4.4 After finishing work 1. Turn the switch to position „0“ for switching off the vacuum cleaner. 2. Pull the mains plug out of the socket. 3. Wind up the power cable and hang it on the handle. - Page 13 Operating manual: Professional wet vacuum cleaner Aquatix Lift the pump out of the dirt tank. Ensure that the elastic connector re- mains on the outlet of the pump. Remove the intake nozzle from the pump by unscrewing the three screws.
-
Page 14: Accessories
Operating manual: Professional wet vacuum cleaner Aquatix 5 Accessories Standard accessories included in delivery: • 4m suction hose • 1m suction tube • Water vacuuming nozzle • Crevice nozzle Optional accessories: • Accessory pack with 5 m PVC spiral hose, gate valve and blank cap •... -
Page 15: Service And Maintenance
Operating manual: Professional wet vacuum cleaner Aquatix 6 Service and Maintenance It shall be the user’s responsibility to ensure that all maintenance, inspection and assembly work is performed by authorized and qualified personnel who have adequately familiarized themselves with the subject matter by studying this manual in detail. -
Page 16: Replacing Filter Element
Operating manual: Professional wet vacuum cleaner Aquatix 6.4 Replacing filter element 1. Open the retaining clamps and remove the upper section of the cleaner from the dirt tank. Lay the upper section of the cleaner down with the filter ele- ment facing upwards. -
Page 17: Troubleshooting
Operating manual: Professional wet vacuum cleaner Aquatix 7 Troubleshooting Malfunctions; causes and rectification Fault Cause Remedy Motor does not start Fuse of the mains socket has Connect mains fuse. blown. Overload protection switch Switch off the wet vacuum clean- has tripped. -
Page 18: Further Information
Operating manual: Professional wet vacuum cleaner Aquatix 8 Further information 8.1 Recycling the wet vacuum cleaner Make the old cleaner unusable immediately. • Unplug the cleaner and cut the power cord. Do not discard of electrical appliances with household waste. - Page 19 Operating manual: Professional wet vacuum cleaner Aquatix EG-Konformitätserklärung Declaration of EC-Conformity Attestation de Conformité CE Hiermit erklären wir, dass alle Exemplare unserer Geräte Herewith we declare that all our devices Nous attestons par la présente, que tous nos produits Aquatix...
- Page 20 Operating manual: Professional wet vacuum cleaner Aquatix SHG S PECHTENHAUSER OCHWASSER EWÄSSERSCHUTZ Gewerbestraße 3, D-86875 Waal, Germany www.spechtenhauser.de Tel.: +49 (0)8246.9695-20 shg@spechtenhauser.de Fax: +49 (0)8246.9695-25 20.07.11 [0]...
