Summary of Contents for HOMEPURE Water Filter

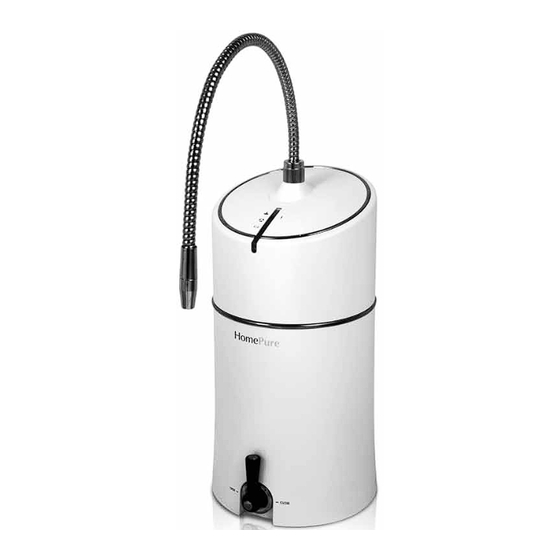

- Page 1 HOmePure water Purifier...
-
Page 3: Table Of Contents
user manual COntents 1. Features ����������������������������������������������������������������������� 04 2. Filter Components �������������������������������������������������������������� 06 3. Accessories and Operating Instructions ������������������������������������������� 07 4. Filter Media Functions ����������������������������������������������������������� 08 5. Precautions �������������������������������������������������������������������� 09 6. Installation Guidelines ����������������������������������������������������������� 10 7. Filter Replacement �������������������������������������������������������������� 11 8. Display ������������������������������������������������������������������������ 13 9. -
Page 4: Features
user manual features 7 stages in 1 filter Tourmaline ceramic balls The quality of seven single filtration stages is Tourmaline ceramic balls have the function to purify combined in one cartridge. The high-quality filter and release mineral microelements into the drinking media allows extraordinarily clean and safe filter water. - Page 5 Filter replacement Flexible pipe The HomePure filter cartridge is easy to change. This pipe can be rotated 360 to maximise Professional plumbing and tools are not needed. convenience and save space for the user. Display with indicator and beeper...
-
Page 6: Filter Components
user manual filter COmPOnents Flexible pipe Display top cover nipple Battery cover reset ejector Controller cover filter retaining ring Base housing front valve One-touch elbow fitting 7-in-1 filter cartridge... -
Page 7: Accessories And Operating Instructions
OPeratinG instruCtiOns Model Water Filter Type name HomePure Characteristics Installation type Countertop Filter cartridge 7-in-1 composite filter Housing material aBs resin Max. operating pressure 4 bar Min. operating pressure 1 bar Max. operating temperature 35˚C Min. operating temperature 4˚C... -
Page 8: Filter Media Functions
user manual filter meDia funCtiOns Filter step Functions 1. Sediment pre-filter PE material of non-woven fabrics effectively removes suspended solids such as rust, mud and sand larger than 5 µm (micron). 2. Activated carbon block filter This filter absorbs and eliminates residual chlorine, heavy metals, and all sorts of organic compound such as agricultural chemical components, carcinogenic substances, etc. -
Page 9: Precautions
PreCautiOns The water filter can only be used with pre-filtered water from a HomePure can only be installed as a countertop unit by using a water supply facility, such as a tap. The filter cannot be used diverter valve. It cannot be used under the sink. -
Page 10: Installation Guidelines
user manual installatiOn GuiDelines Pull out the top cover. Open the battery cover and insert Put the top cover back on the filter Connect the plastic tube to the the batteries. and connect the flexible pipe to diverter valve. Tighten the cap.* the nipple. -
Page 11: Filter Replacement
user manual filter rePlaCement Close the diverter valve. Remove the tube by pressing Open the front valve and remove Pull out the top cover. down on the upper ring on the the flexible pipe. connector.* remove the retaining ring to Press out the ejectors firmly to Separate the old filter from the Clean the inside of the filter only... - Page 12 user manual filter rePlaCement Assemble the new filter with the Open the front valve and press the Lock the filter retaining ring. After changing the filter cartridge, the indicator has to be reset. Press the reset button using adapter. assembled filter down firmly into a paperclip or similar for two seconds to reset the base housing.
-
Page 13: Display
user manual DisPlaY Flickering blue LED Flickering red LED Flickering red LED and beeping Normal flow. Filter replacement is needed within 1 month. The filter has to be changed immediately. 1-10 months or 0-4,000 litres 11 months or 4,000 litres 11-12 months or 4,300 litres No flickering LEDs and no beeping All LEDs flickering... -
Page 14: Troubleshooting
Possible Cause(s) Troubleshooting Black colour or black particles in the water The HomePure water filter contains carbon powder. After installation, After installation or filter exchange, let the water flow for at least 10 minutes small particles can appear in the water. - Page 16 Central, Hong Kong Tel: +852 2263 9013 Fax: +852 2802 0981 www.qnet.net or www.homepure.com Copyright © QNet / 2010. All rights reserved. Copyrights and/or other intellectual property rights on all designs, graphics, logos, images, photos, texts, trade names, trademarks, etc., in this publication are reserved.
